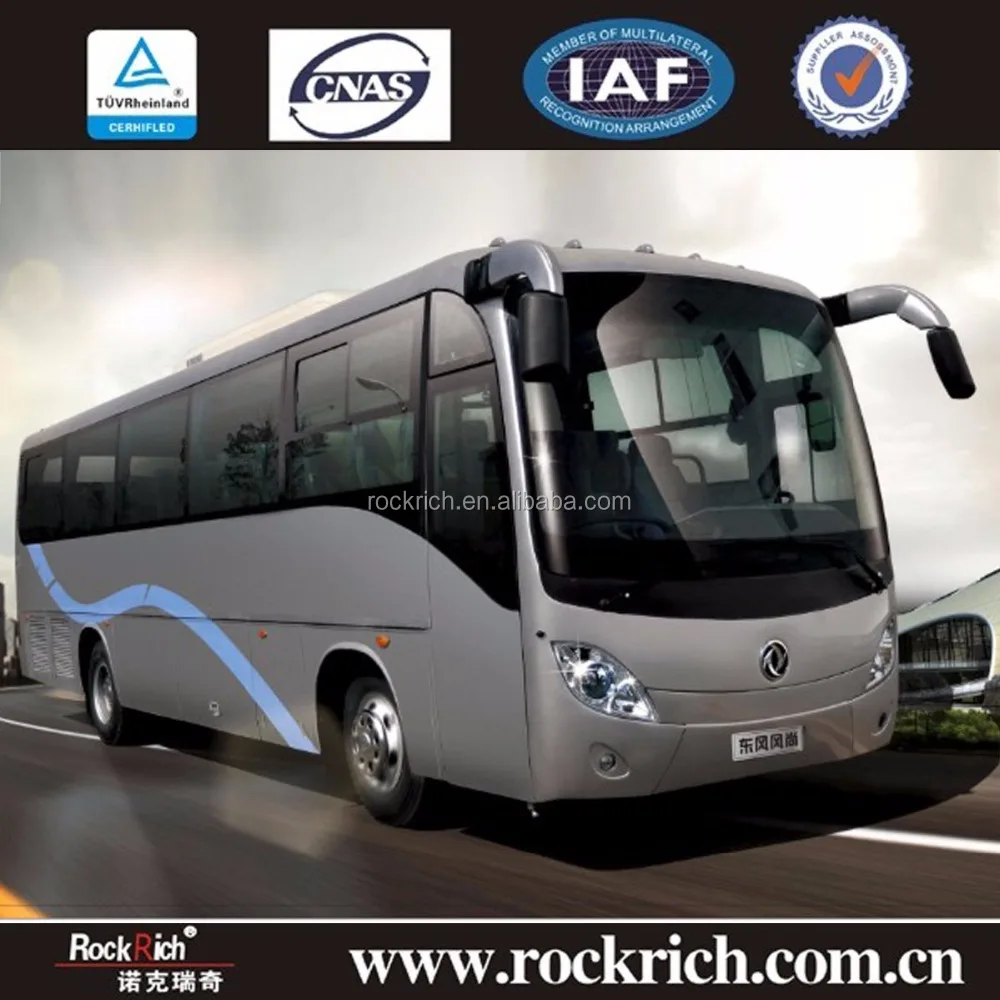

60 местный EQ6105P3G 10 м Длинные Роскошные автобусы для продажи
- Категория товара: >>>
- Поставщик (Оптовый магазин): Shiyan,Rockrich,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
60 seater EQ6105P3G 10 meters long luxury buses for sale
| EQ6105P3G Technical Specification | |||||
| Chassis Model | EQ6101RC3G1 | Bus Model | EQ6105P3G | ||
| Dimension | Length(mm) | 10490 | Engine | Engine model | YC6A240-30 |
| Width(mm) | 2500 | Fuel type | Diesel | ||
| Height(mm) | 3250 | Discharge standard | Europe 3 | ||
| Internal Heigh(mm) | 2260 | Engine location | Rear location | ||
| Wheelbase(mm) | 5000 | Compression ratio | 17.5 1 | ||
| Tread(front/rear,mm) | 2020/1860 | Maximum power | 177/2300 | ||
| Front overhang/rear overhang(mm) | 2400/3090 | Max Torque | 900/1000-1800 | ||
| Minimum ground clearance(mm) | ≥180 | Performance parameters | Fully-loading)braking distance | ≤10 | |
| Approach angle/departure angle(°) | 7/7 | Fuel consumption limit condition(L/100km) | ≤25 | ||
| Displacement | 7.255 | Max speed | 90 | ||
| Quality parameters | Unladen mass(kg) | 10050 | Gradeability largest (%) | ≥30 | |
| UMAX mass(kg) | 15,000 | Min turning Diameter | ≤18 | ||
| UFully loading mass(front/rear,kg) | 5000/10000 | Oil tank capacity(L) | 310L | ||
| Items | Body configuration | ||||
| Chassis spec. | Clutch | Φ 430mm diaphragm spring,hydraulic pressure remote,with clutch booster; | |||
| Transmission | QJ-ZF gear box QJ1205; Odometer gear ratio 10:3; Flexible shaft wire drawing control | ||||
| Front axles/rear axles | DONGFENG DANA Axles (Forged steel Material ) Axles load capacity 5500kg | ||||
| DONGFENG DANA Axles, load capacity10000kg | |||||
| Suspension system | Few spring suspension, front 3/rear 4; Front and rear Suspension with horizontal Stabilizer Bar | ||||
| Steering system | Power steering, Steering wheel position can be adjust | ||||
| Braking system | split braking system,drum brake,energy storage spring brake ,Automatic gap adjustment arm; with Dryer, | ||||
| Auxiliary Brake: WABOC ABS Option E-turbo retarder | |||||
| Tires | 10.00R20 radial tire | ||||
| Dynamotor | 90A,28V | ||||
| Body Spec. | Interior | Softening treatment,aircondition Interior | |||
| Passenger's door | Pneumatic door | ||||
| Flooring | Aluminum Floor with 2mm thickness | ||||

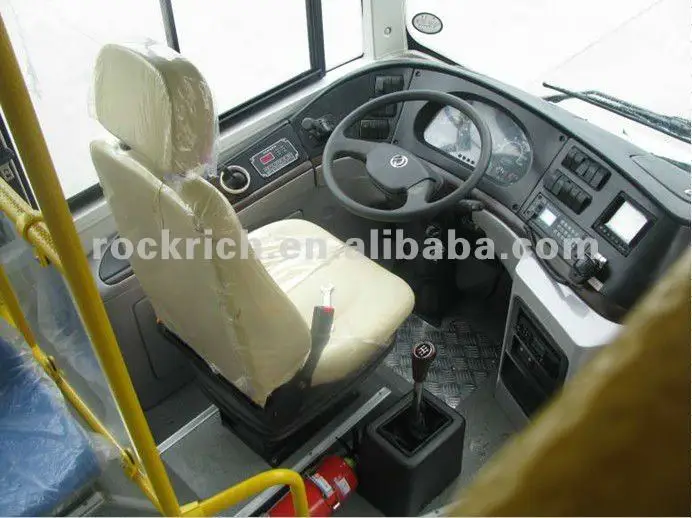

| Driver's seat | Damping driver seat, adjustable high back reclining chair | ||||

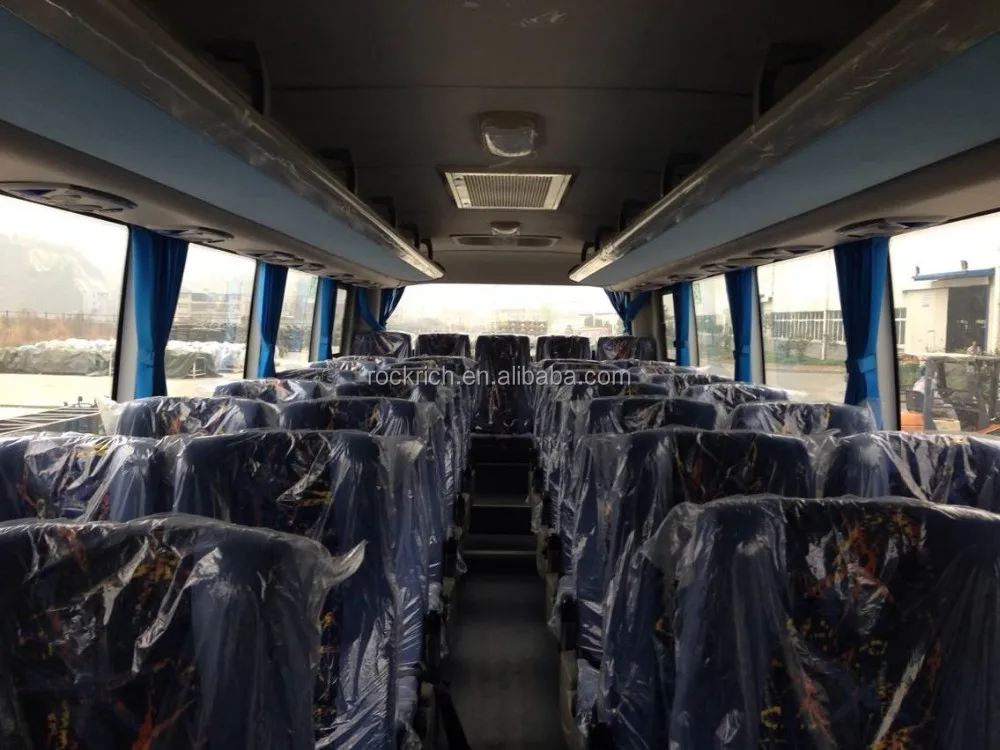

| Passenger seat | Youbang brand GJ-08B model 39 seats with cushion ( 2+2 layout) | ||||
| Audiovisual system | radio+ 17'LED +DVD + MP5 player | ||||
| Rearview mirror | Electrical rabbit ear type rearview mirror | ||||
| Internal Rearview mirror | |||||
| Lamp | Integral front and rear headlights | ||||
| Windscreen wiper, | Opposed windscreen wiper | ||||
| Paint | Metallic Paint as per customer requirements deign. | ||||
| Pattern | To be determined | ||||
| Others Spec. | Driver's Sunshade Curtains, Side Sunshade Curtains | ||||
| Electricity/air horn , Electric fan, Engine cover, Cigar Lighter | |||||
| Triangle warning plate,Electronic clock , Fire extinguishers ,Safety hammer(four units) | |||||
| Two Security window with fan.(DS750C) | |||||
Packing and shipping
Company Profile:
Client visit
Hot bus
Packaging & Shipping
FAQ
1.What is the warranty?
You can enjoy technical support by phone or email forever.We will provide a prompt solution.We also offer the most convenient and efficient spare parts support with competitive price.
2.What is the delivery time?
The delivery time is usually within 35 workdays after we received your prepayment.
3.Do you provide customized service?
Yes, we offer customized service as you need for the performance,including special requirements.
4.What is the payment method?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
5.Why us?
We guarantee professional one-stop service,competitive price with high performance.
