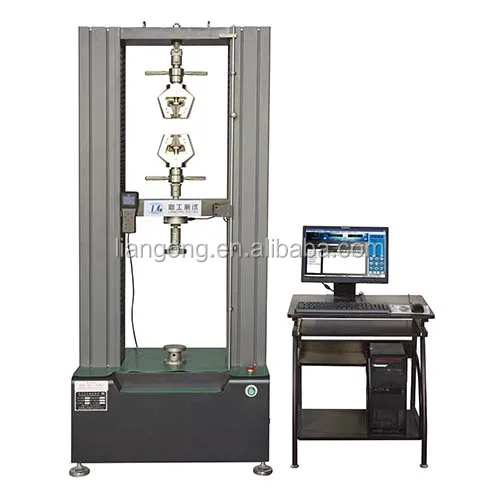

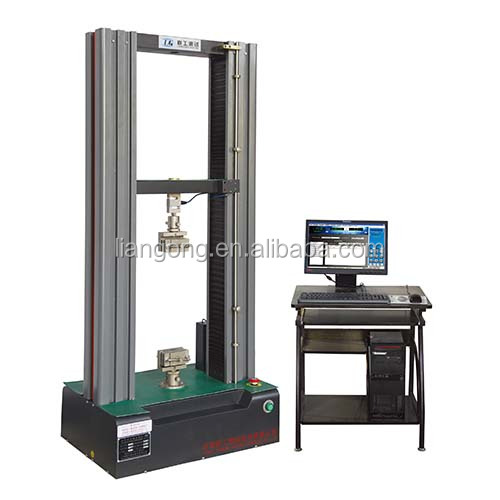

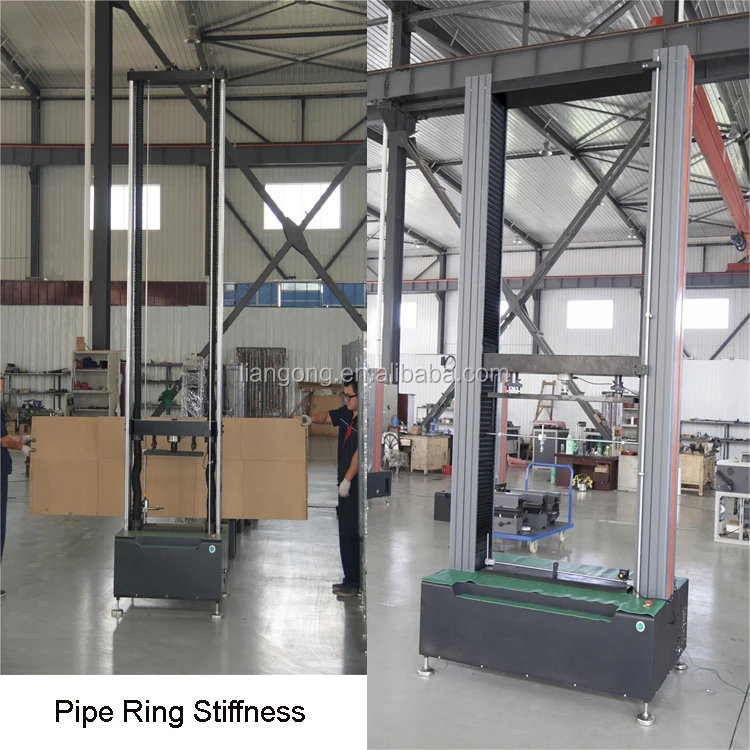

Electronic UTM Universal Tensile Strength Tester Machine for component materials elongation test

Product Description

Electronic UTM Universal Tensile Strength Tester Machine for component materials elongation test-50N to 600KN

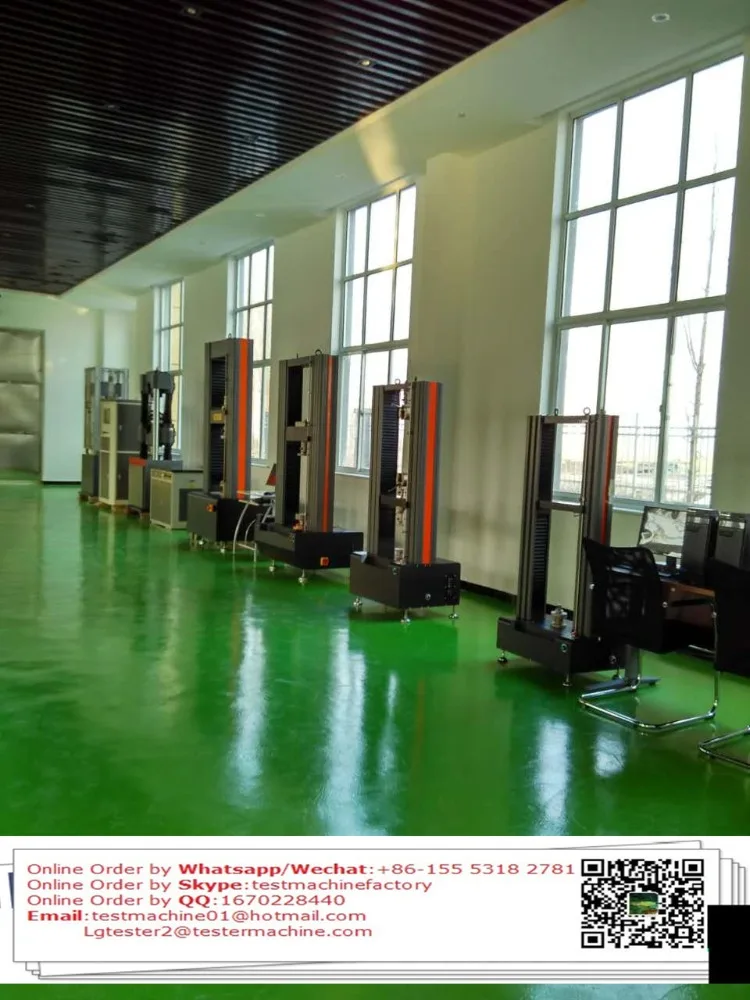

CMT-07

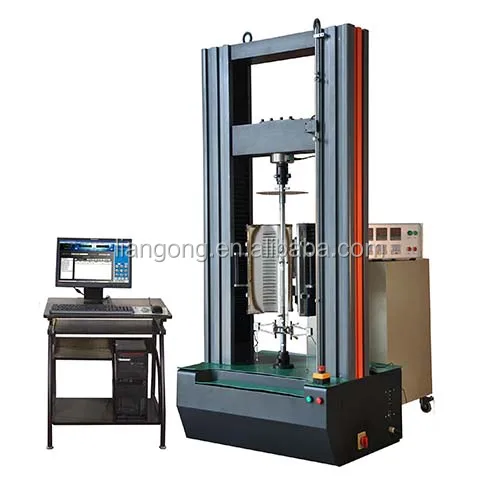

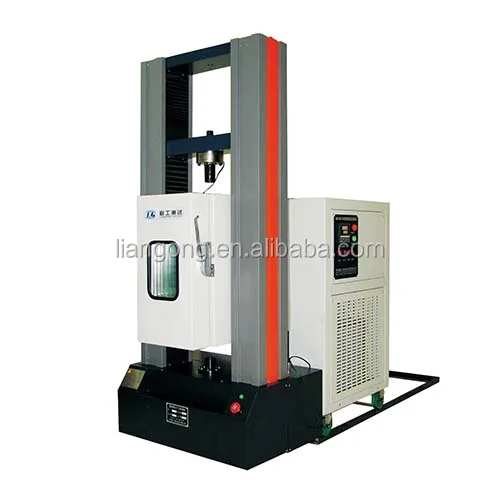

CMT series electronic universal testing machine is used for metal and nonmetal(including composite materials) for the normal and high,low temperature tensile,compression,bending,shear,striping,tear,load,relaxation,reciprocating and other static mechanical property test and analitycal investigation,which can calculate the test parameters automatically like ReH,ReL,Rp0.2,Fm,Rt0.5,Rt0.6,Rt0.65,Rt0.7,Rm,E and so on,and can test and provide data according to GB,ISO,DIN,ASTM,JIS and other international standard.

Main Technical Parameters

Type	CMT-01L,02L,05L,1L,2L,5L	CMT-10,20,30,50	CMT-100,200,300
measurement parameters
Max.test force(kN)	0.1,0.2,0.5,1,2,5	10,20,30,50		100,200,300
(Accuracy Class)	0.5class
Test force measurement range	0.2%~100%FS
Test force and relative error value	Better ±0.5% than indicating value
Resolution of test force	±1/300000 of Max.test force(not marking graduation within full range,and same resolution all the way)
Deformation measurement range	0.2%~100%FS
Deformation and the relative error value	±0.5% of indicating value
=Deformation resolution	1/300000 of max. deflection
Large deformation measurement range(mm)	10~800
large deformation relative error of indicating value	Within ±1% of indicating value
Large deformation resolution(mm)	0.008
displacement relative error of indicating value	Within ±0.5% of indicating value
Displacement resolution(μm)	0.025
controls parameters
Force control speed regulating range	0.005~5%FS/s
Force control speed control accuracy	rate <0.05%FS, for the date within ±2% When speed rate <0.05%FS, within range ±2% of set point
	rate ≥0.05%FS, for the date within ±0.5% When speed rate ≥0.05%FS, within range ±0.5% of set point
deformation rate regulating range	0.2%~100%FS
Deformation speed rate control accuracy	rate <0.05%FS/s, for the date within ±2% When speed rate <0.05%FS/s, within range ±2% of set point
	rate ≥0.05%FS/s, for the date within ±0.5% When speed rate ≥0.05%FS/s, within range ±0.5% of set point
Beam displacement rate regulating range	0.001~500mm/min
Beam displacement speed rate control accuracy	rate <0.5mm/min, for the date within ±1% When speed rate<0.5mm/min, within range ±1% of set point
	rate ≥0.5mm/min, for the date within ±0.2% When speed rate≥0.5mm/min, within range ±0.2% of set point
Constant force, constant strain (deformation), Constant displacement control range	0.2%~100%Fs

Effective tensile stroke(customizable)	700mm	700mm	800	600
Effective compression stroke(customizable)	700mm	700mm	800	600
Effective width space(customizable)		400mm	550
Power	220V,50Hz,0.5~0.75kW	220V,50Hz,0.75~1kW	380V,50Hz,2~5kW
work environment	Room temperature-35°C, Relative humidity less than 80%
Size of host (Dimension)(L×W×H)mm	650×330×1730	760×460×1900	1050×750×2100	1050×900×2400
Weight	About 150kg	About 350kg	1000kg	1500kg

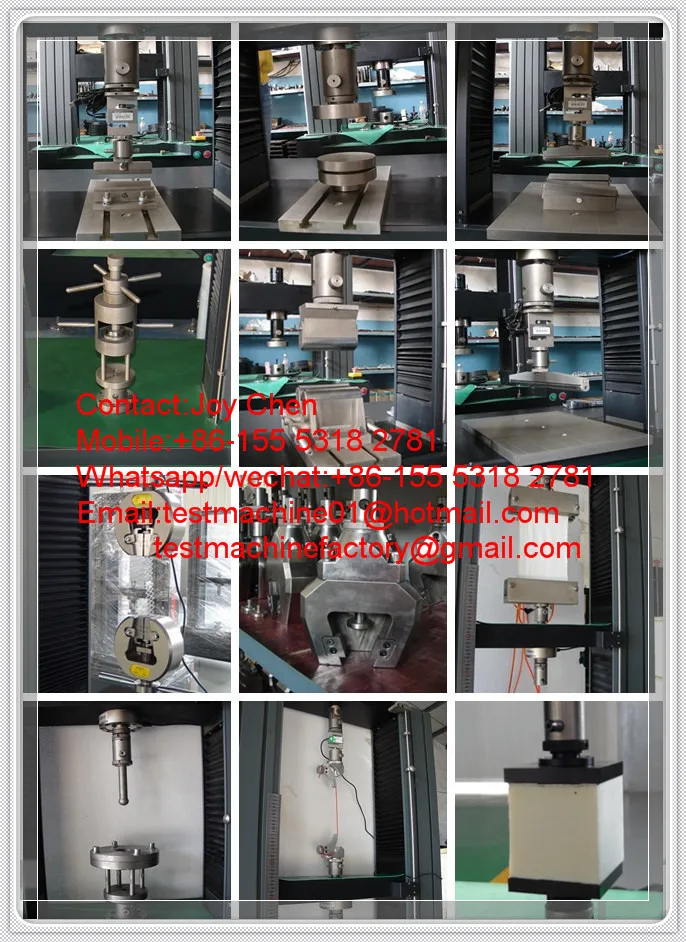

Remark	1. Equipped Fixture can be based on user’s needs or customer made 2. Alternative transducer is available to extend the measuring range 3. The tensile space can be heighten on user’s requirements

.jpg

Packaging & Shipping

Standard Export Package;

Shipping by sea or by air or as client requirements

Package

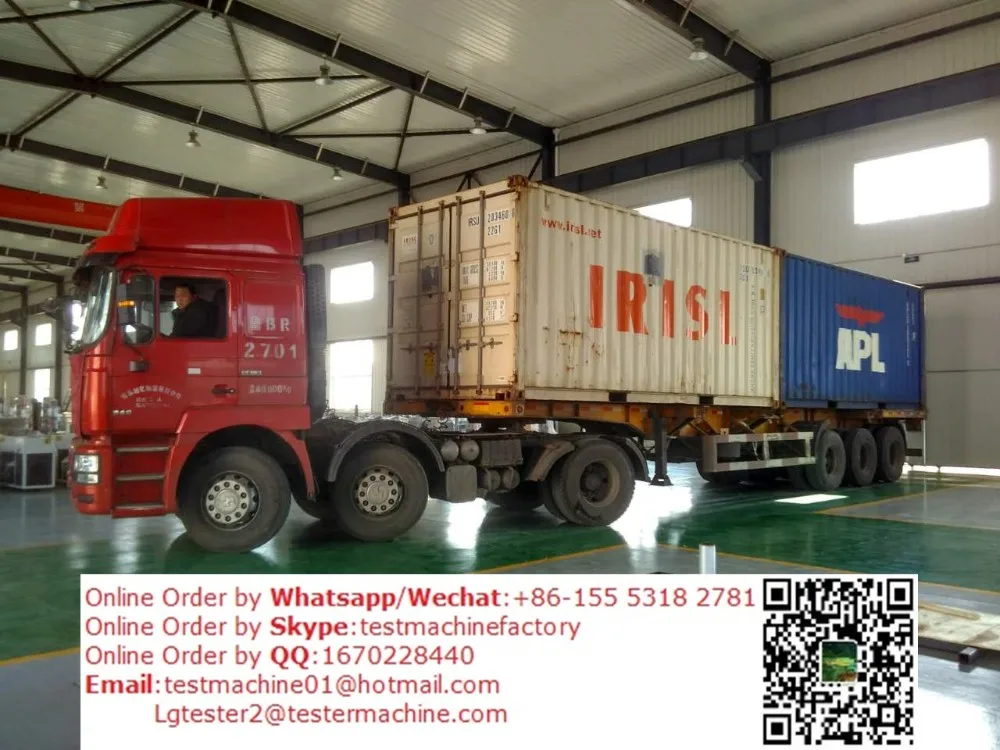

Shipping-03

Our Services

After-sales service commitment

Warranty

The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).

Training

1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.

2. We can arrange engineer to train the operation of equipment to customer’s company when you need.

Maintenance services

Consultation services. We answer your question timely via the telephone or email.
