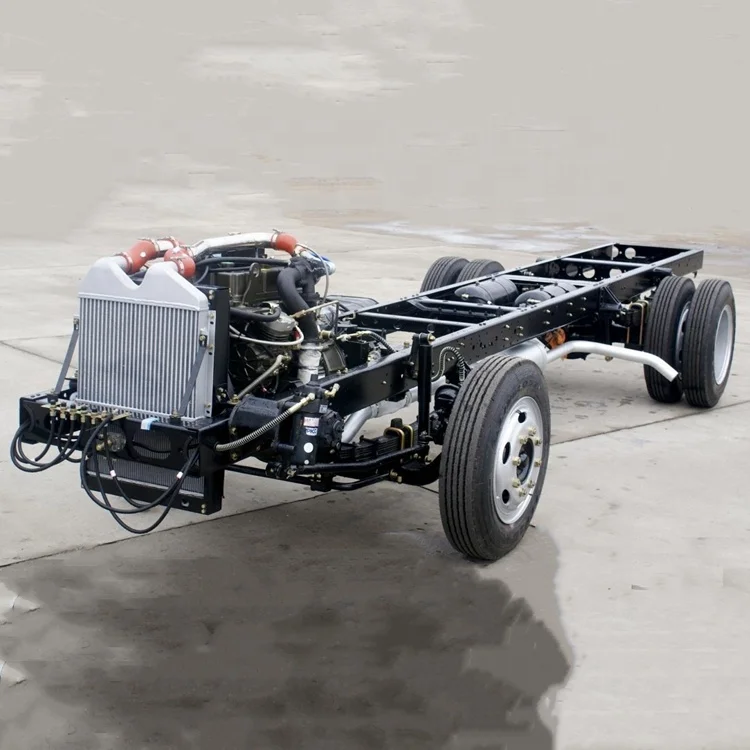

Dongfeng 8m Front Engine Left/Right Hand Drive Coach Bus chassis

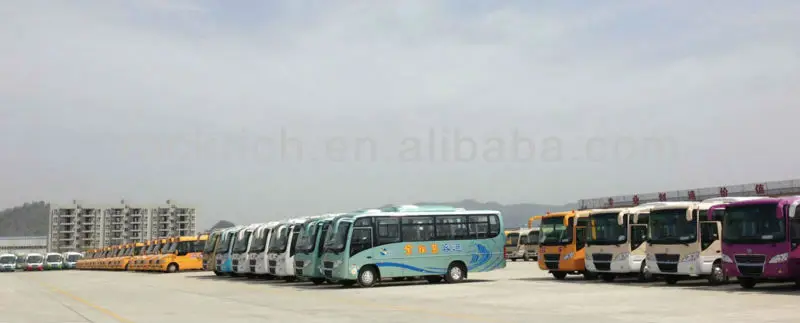

1,Company profile

1. Professional Bus Maker for 40 Years
2. The year production capacity is 6000 passenger vehicle and 20,000 bus chassis.
3. We have a first-class bus chassis and modern bus production line.
4. In 2012 we sold bus 2506, bus chassis 12360.
5. Flexible Overseas Marketing Strategy
6. Intimate and Humanized After-Service

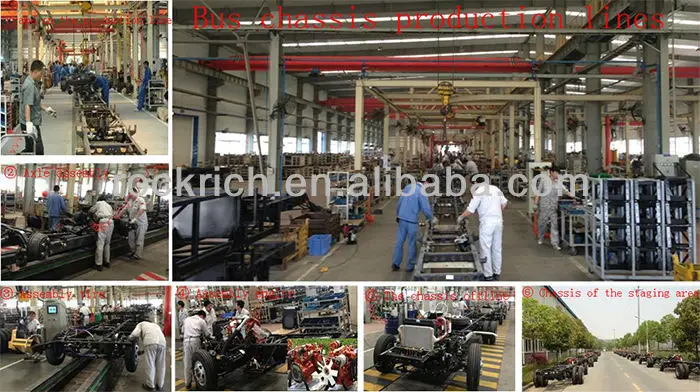

2,Bus chassis production line

3,Bus chassis specification
Specification | ||
| Dimensions(mm) | 7650*2110 | |
| Track(mm) | Front 1835 1860 | |
| Rear 1700( leaf Spring up head)1658(leaf Spring under head) | ||
| Wheel base(mm) | 3800 | |
| Front/Rear Suspension | 1500/2350 | |
| Min Ground Clearance(mm) | Rear Axle 280 | |
| Ground Clearane of upper frame(leaded) (mm) | Front axle | |
| Rear axle | ||
| Dry mass(Kg) | 2970 | |
| Authorized total mass(Kg) | 9200 | |
| Front/rear axle load(Kg) | 3600/5600 | |
| Max.speed (Km/h) | 90,95 | |
| Min.turning diameter(m) | 16 | |
| Max. grade ability(%) | 30 | |
| Limited mode Fuel consumtion/100km(L) | 18 | |
| Ramp angle(°) | Approach angle 20 | |
| Departure angle 10 | ||
| Equipment | ||
| Engine | Model | EQD140N-20 |
| Type | 4 strake cycle,Water cooling,6L,valve in head,mechanical blender,CNG Injecting Engine | |
| Rated power(Kw/r/min) | 104/2800 | |
| Max.torque(N.m/r/min) | 400/1200-1600 | |
| Gearbox | Model&Operation way | Mabual 5 gears,Flexible shaft EQ145 |
| Files bit rate ratio | 4.76,2.80,1.59,1.00,R4.99 | |
| Front axle pattern | Fist type & I axle | |
| Rear axle | Pattern | Overall weld rear axle case/Overall cast rear axle case |
| Differential Ratio | 4.875 | |
| Frame | Overall cast rear axle | |
| Clutch | ||
| Steering Gear | Power Steering Wheel | |
| Suspension system | Multiple Spring | |
| Braking system | Double Route Brake, Drum Brake | |
| Braking system | Spring Brake | |
| Tire specification | 7.50-20,7.50R20 | |
| Alternator | 24V,45A, 90A | |
| Note | Front CNG (long Front Suspension) | |
