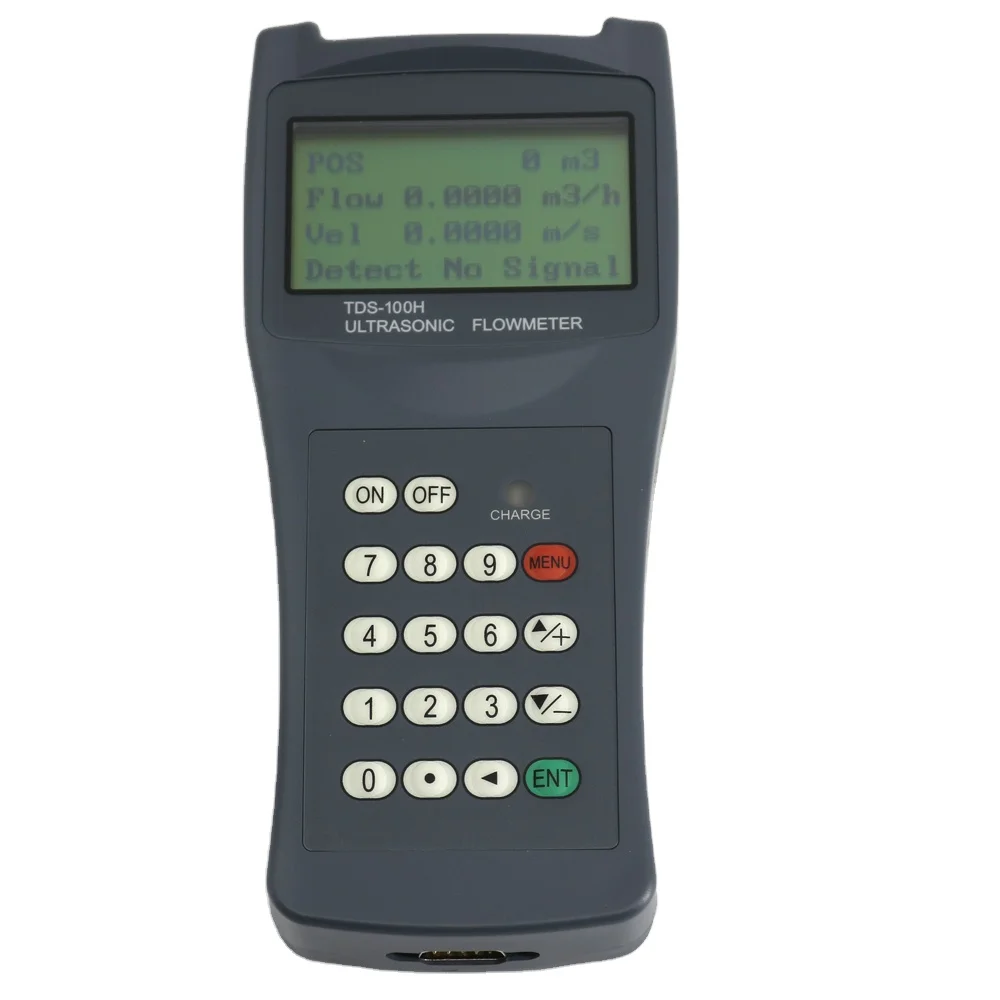

Портативный ультразвуковой расходомер жидкости

  Item

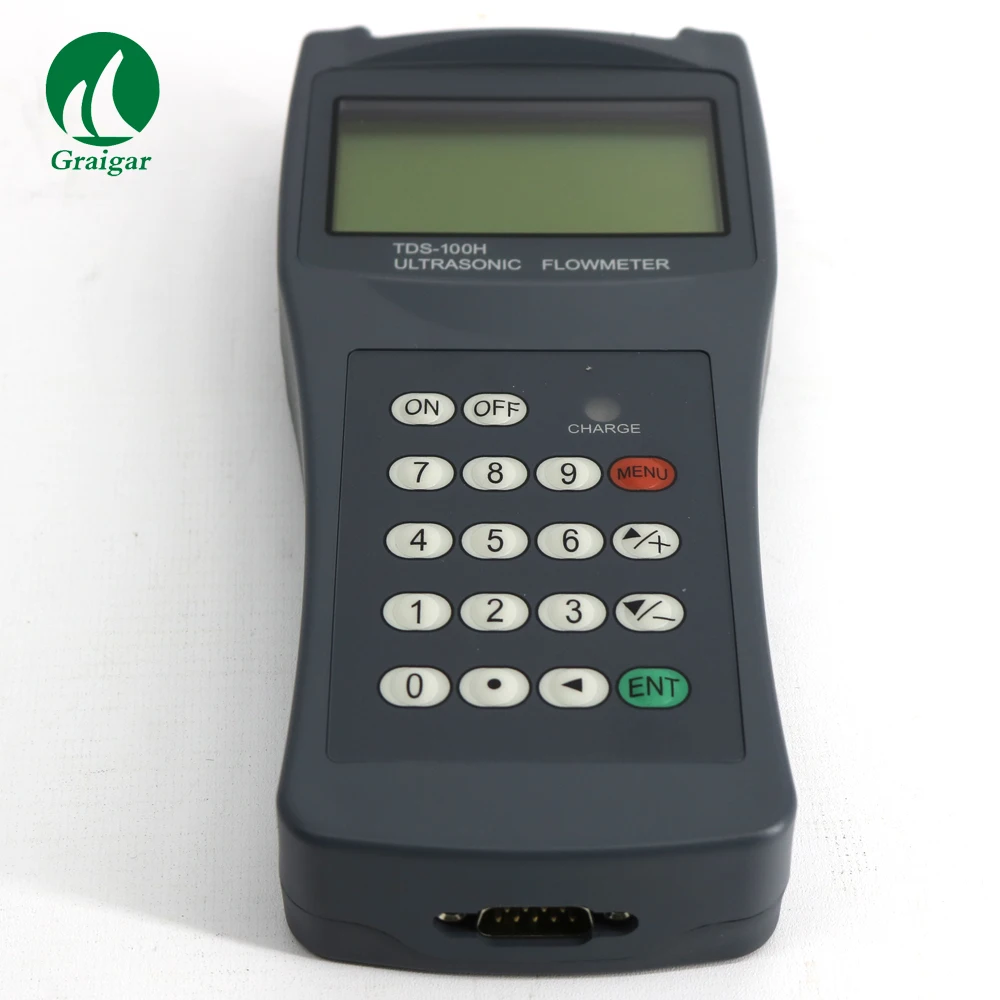

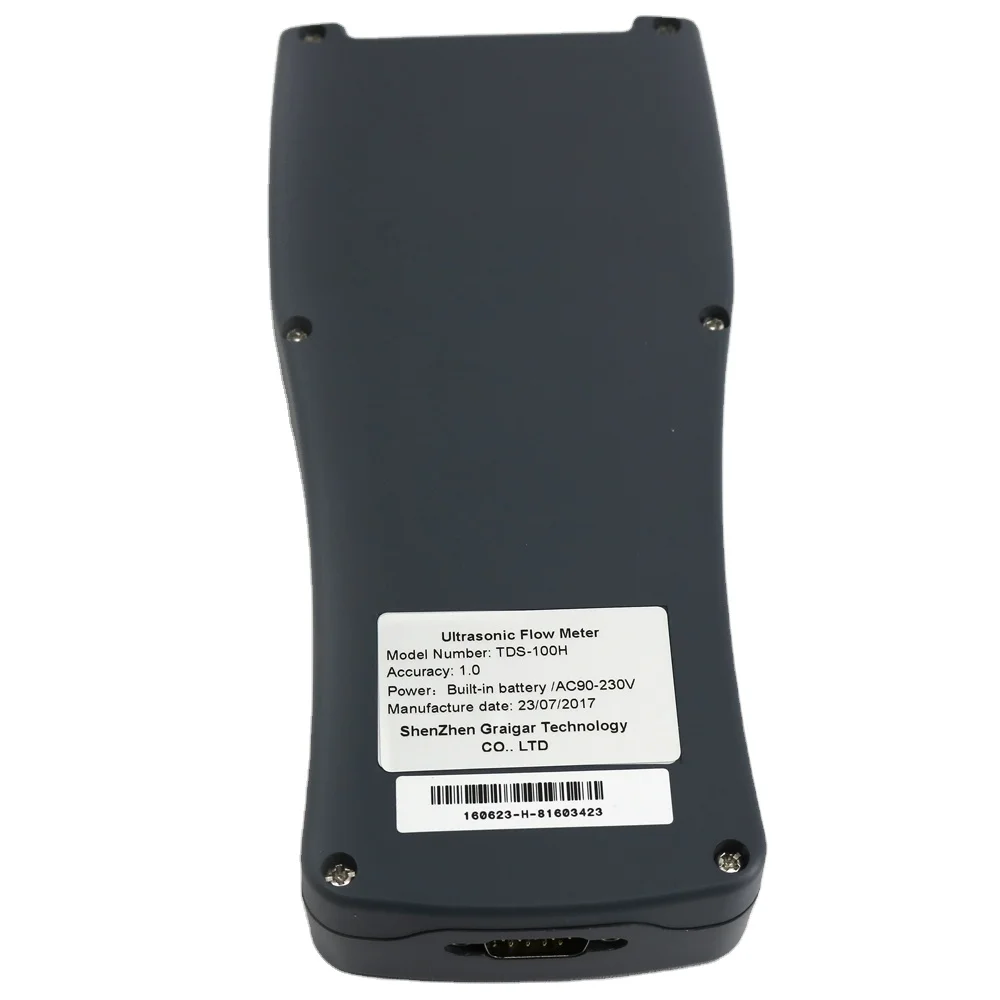

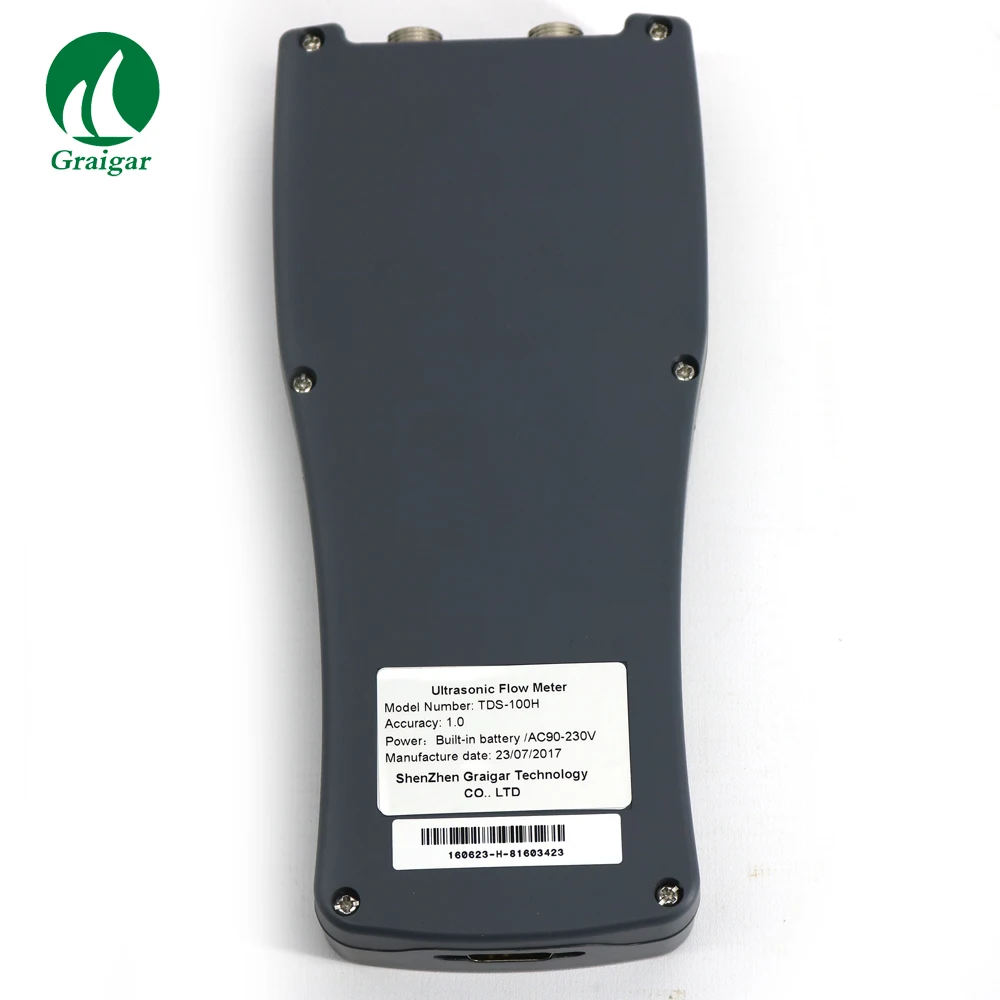

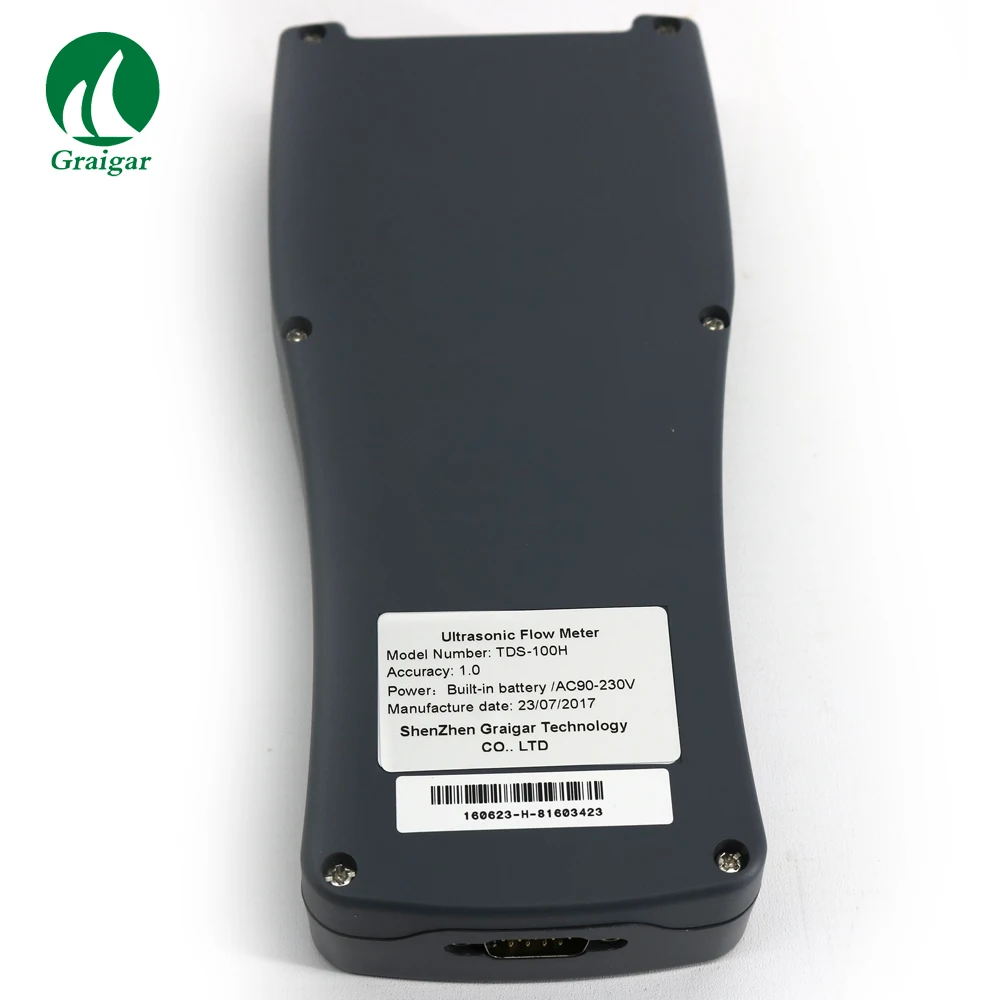

 Specification  of  handheld ultrasonic flowmeter TDS-100H

Linearity

0.5%

Accuracy

±1%  first to meet the accuracy in domestic

Repeatability

0.2%

Response Time

0-999 seconds, user-configurable

Velocity

0.01±32m/s

Pipe Size

20mm-6000mm

Applicable to

Applicable for steel, stainless steel, cast steel, PVC, FRP and other uniform dense quality pipe

Liquid types

water, sea water, sewage, alcohol, various oils such as uniform, single, stable liquid

Output Signal

OCT output of positive and negative, the net cumulative pulse signal and frequency signal (1-9999Hz optional)

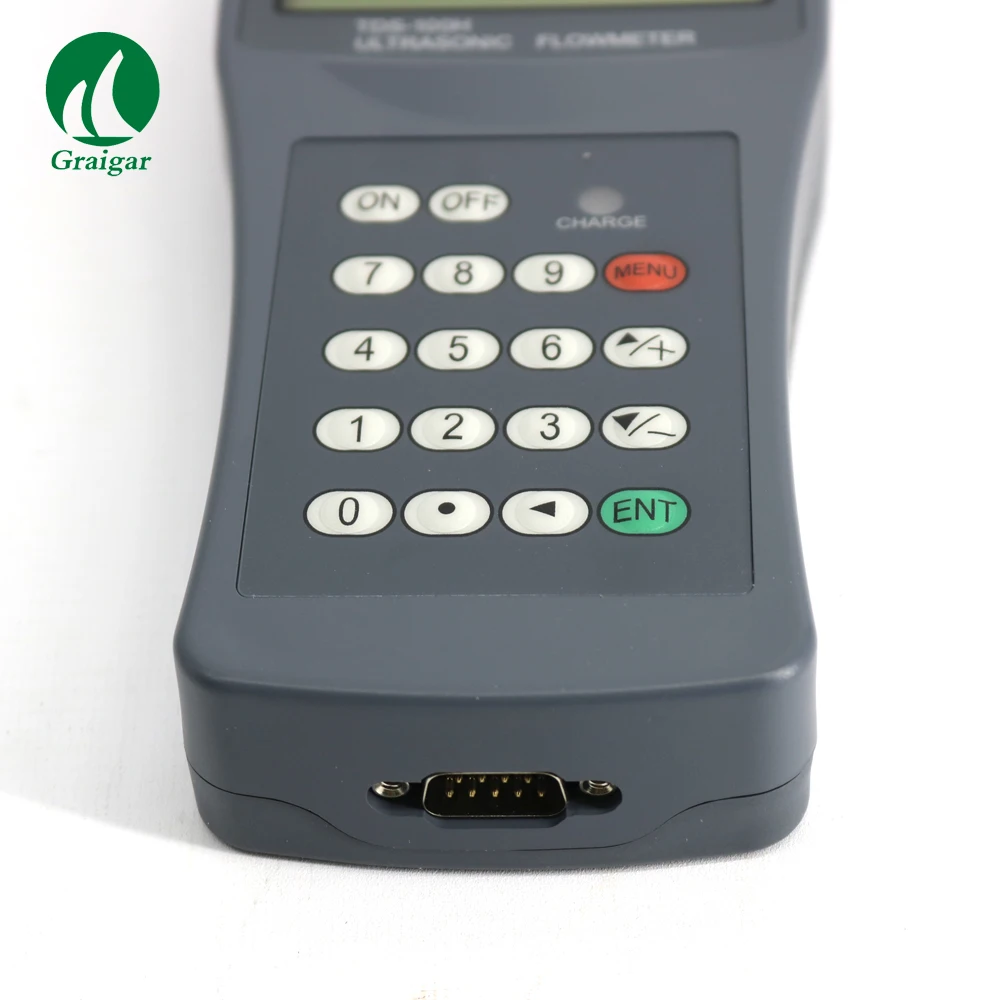

Data Interface

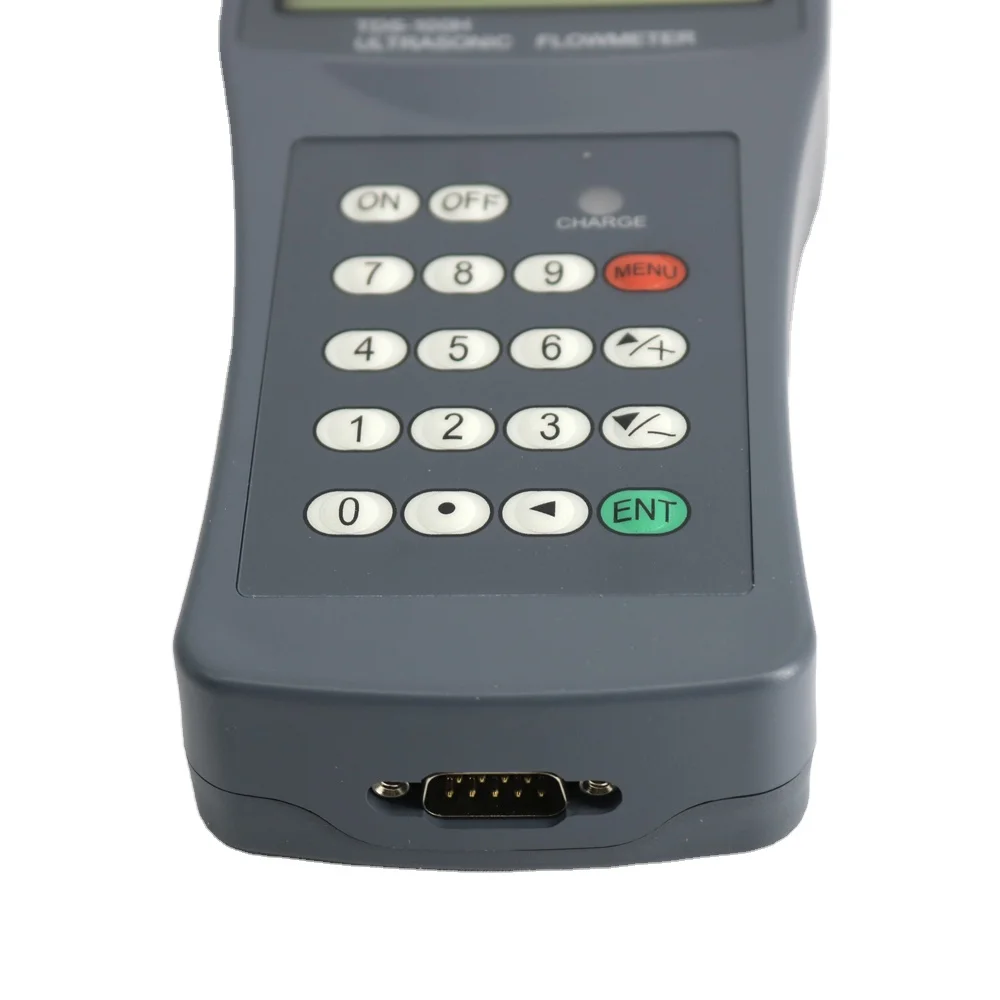

RS232 interface is used for plastic net testing or export the record data. RS-232C, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry.

Security

Setup values Modification Lockout. Access code needs unlocking

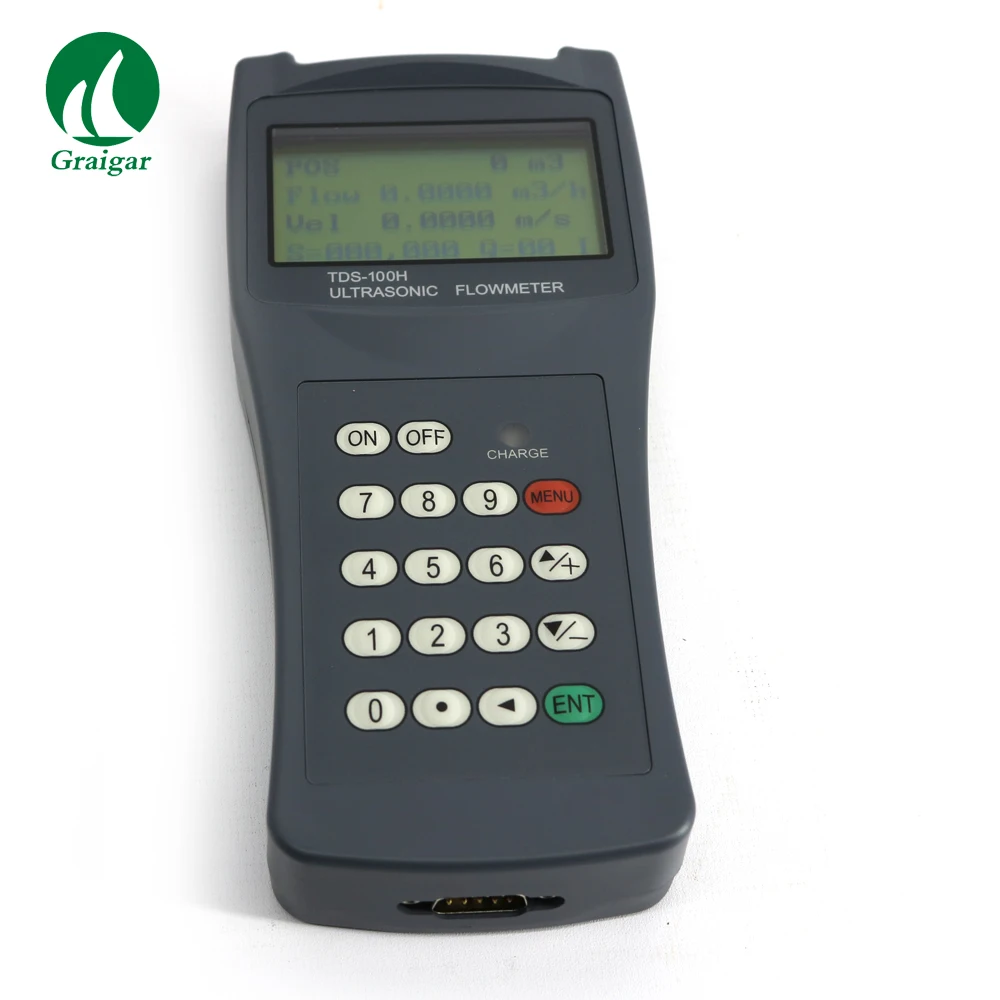

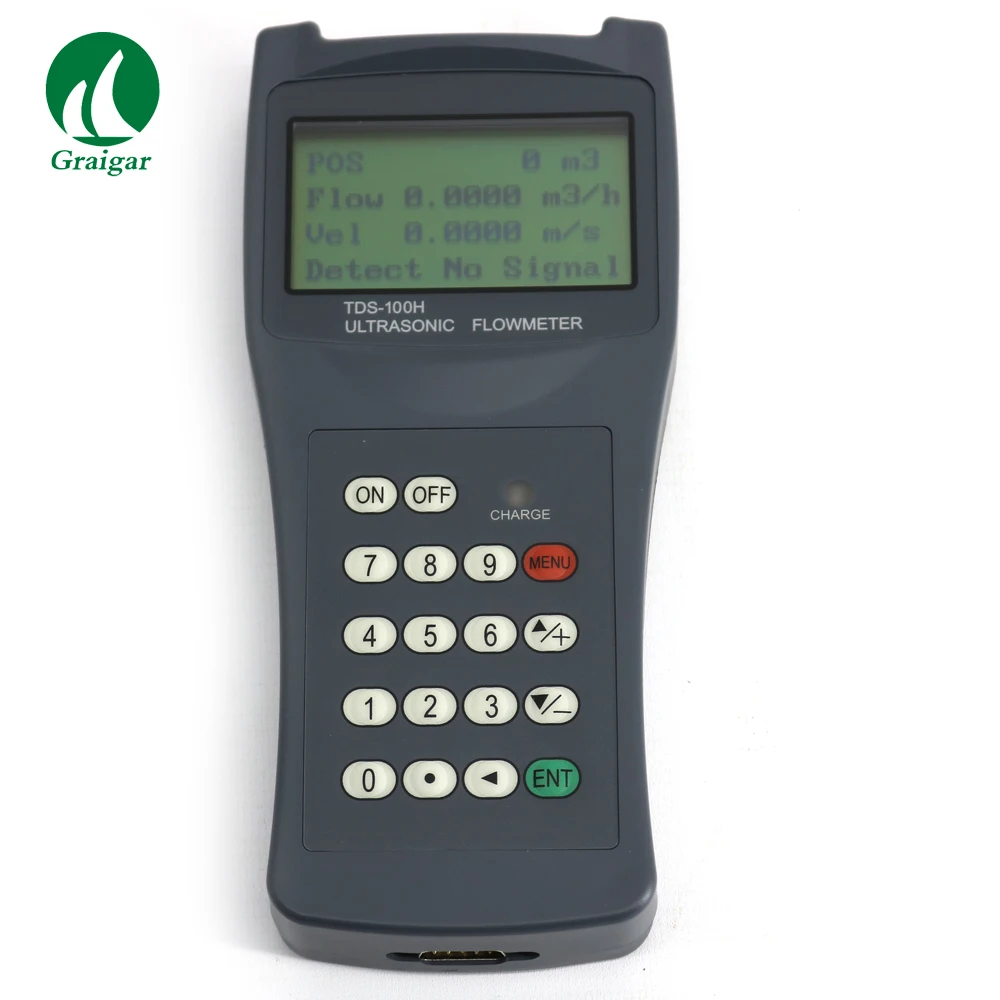

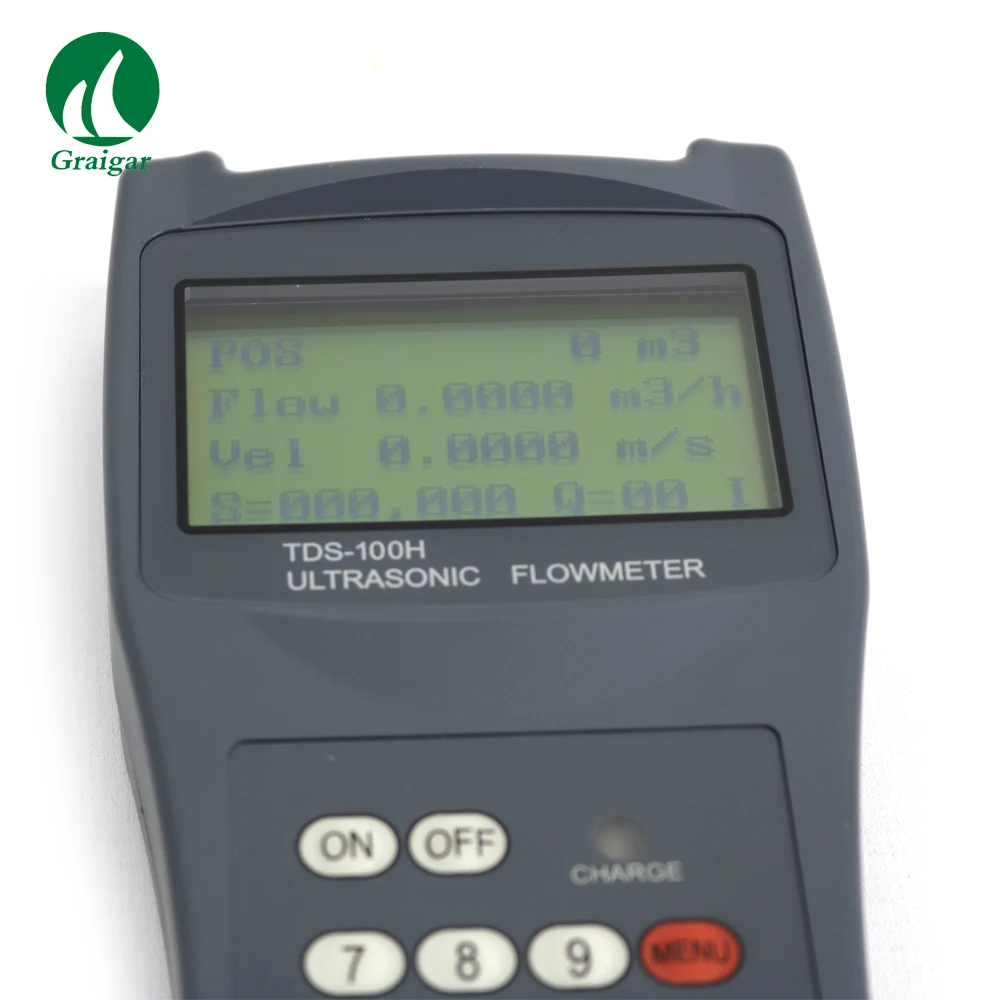

Display

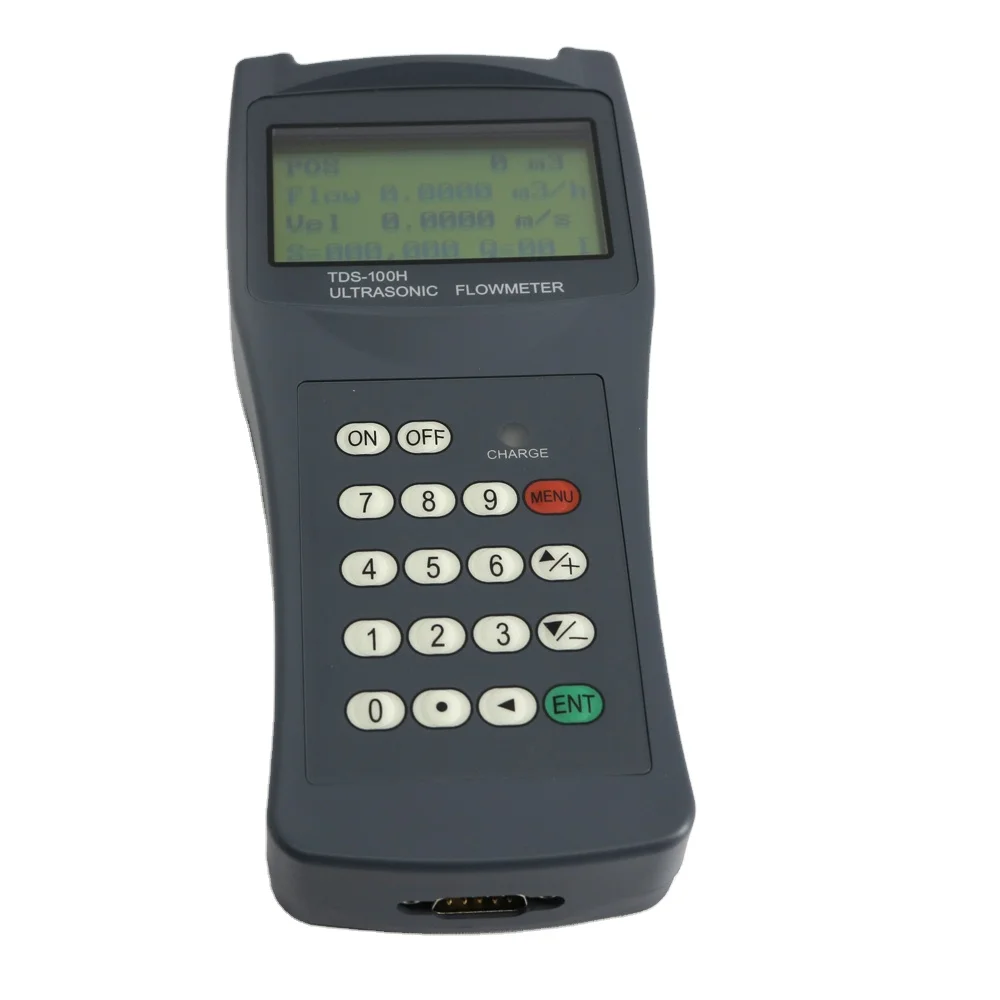

4 lines English characters on-screen display instantaneous flow, velocity,, cumulative flow, signal status working hours and so on .

Straight pipe length

Upstream≥10D,Downstream≥5D, Length from pump exit≥30D

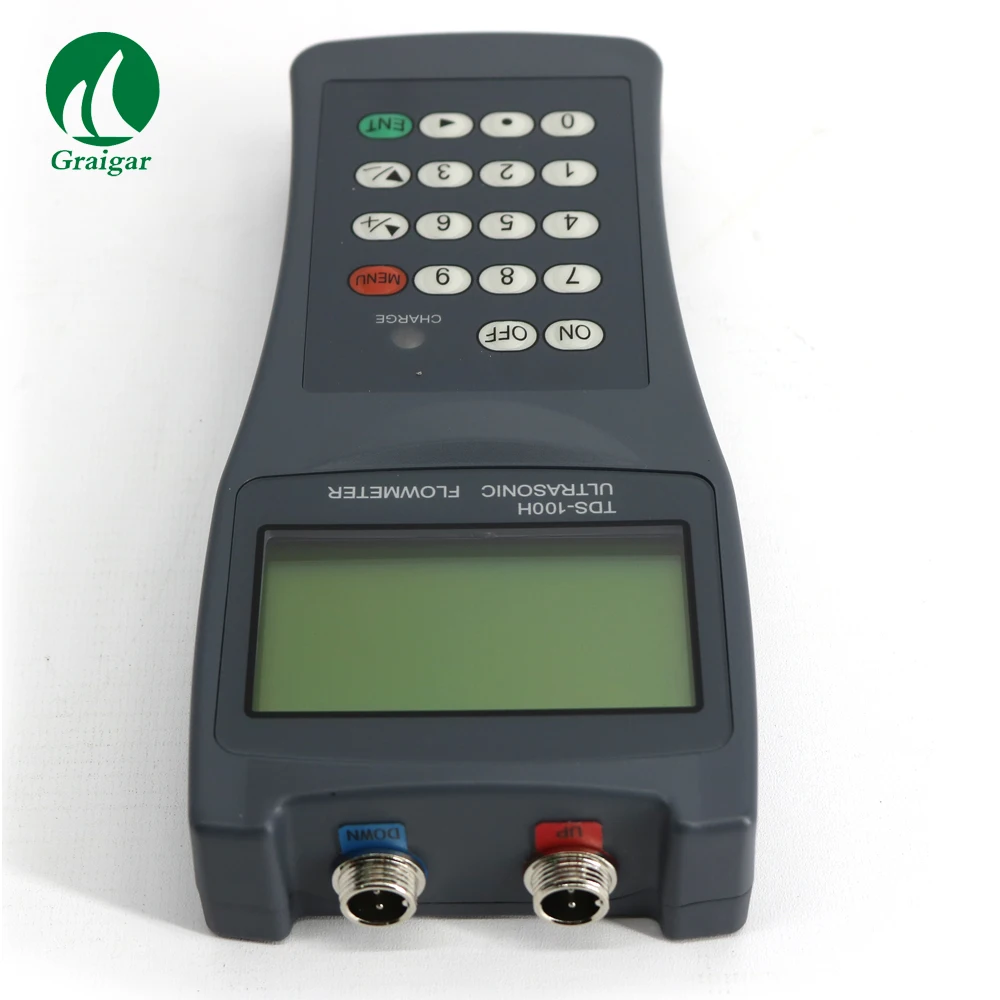

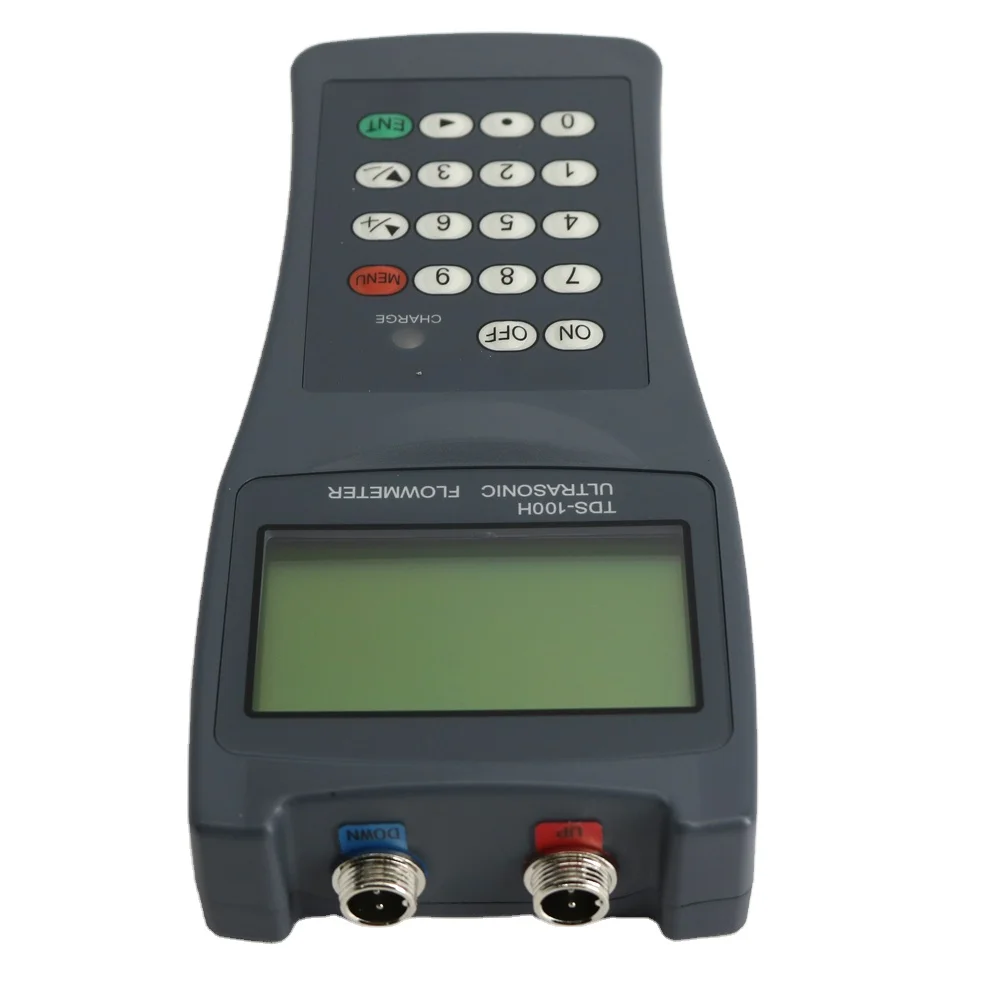

Transducers

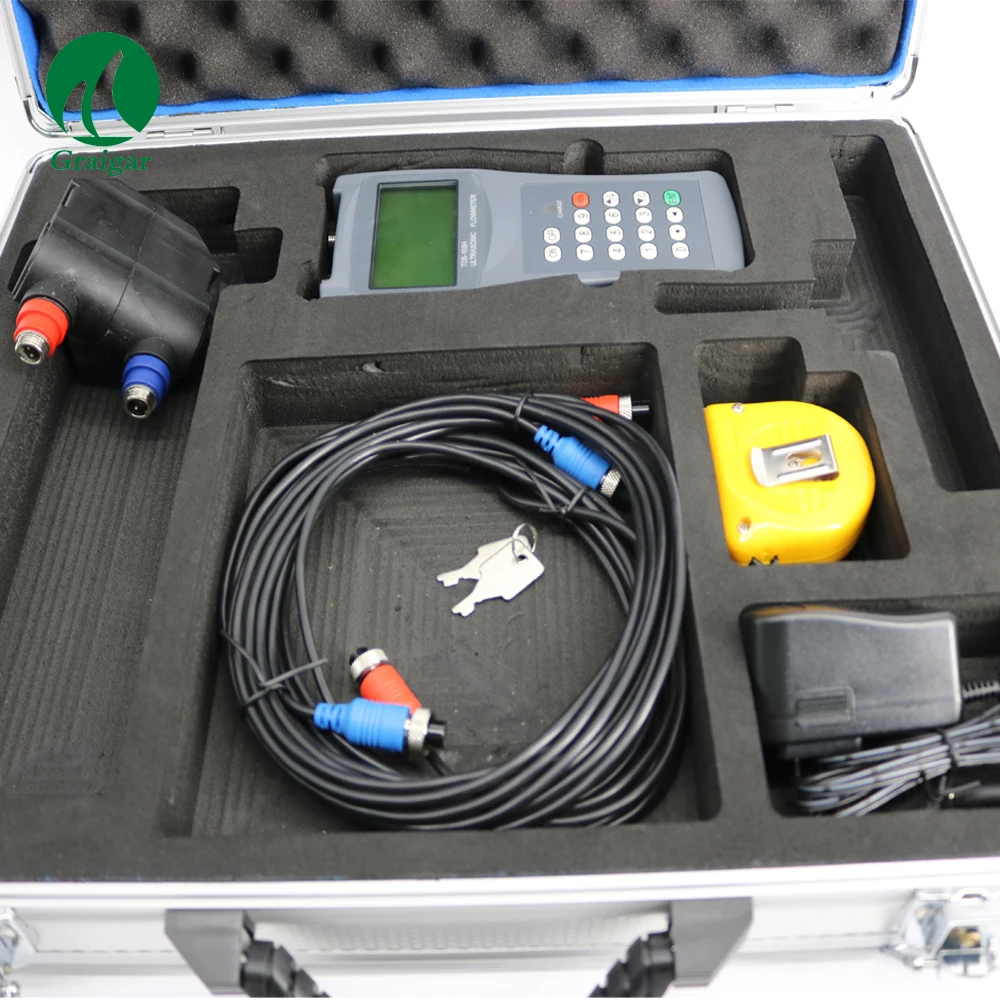

Model M1 for standard, other 3 models for optional

Transducer Cord Length

Standard 2x10 meters, optional 2x 500 meters

Power Supply

3 AAA Ni-H built-in batteries. When fully recharged it will  last over 10 hours of operation. 100V-240VAC for the charger

Data Logger

Built-in data logger can store over 2000 lines of data

Housing Material

ABS

Size

Small size 220×92×32mm

Weight

Light weight 538g with batteries
