LCR-5030 30KHz 100ohm LCR Digital Bridge Meter LCR Digital Tester Meter High Precision Capacitance Inductance Resistance Meter
Share on:
Product Overview
Description
Product Description

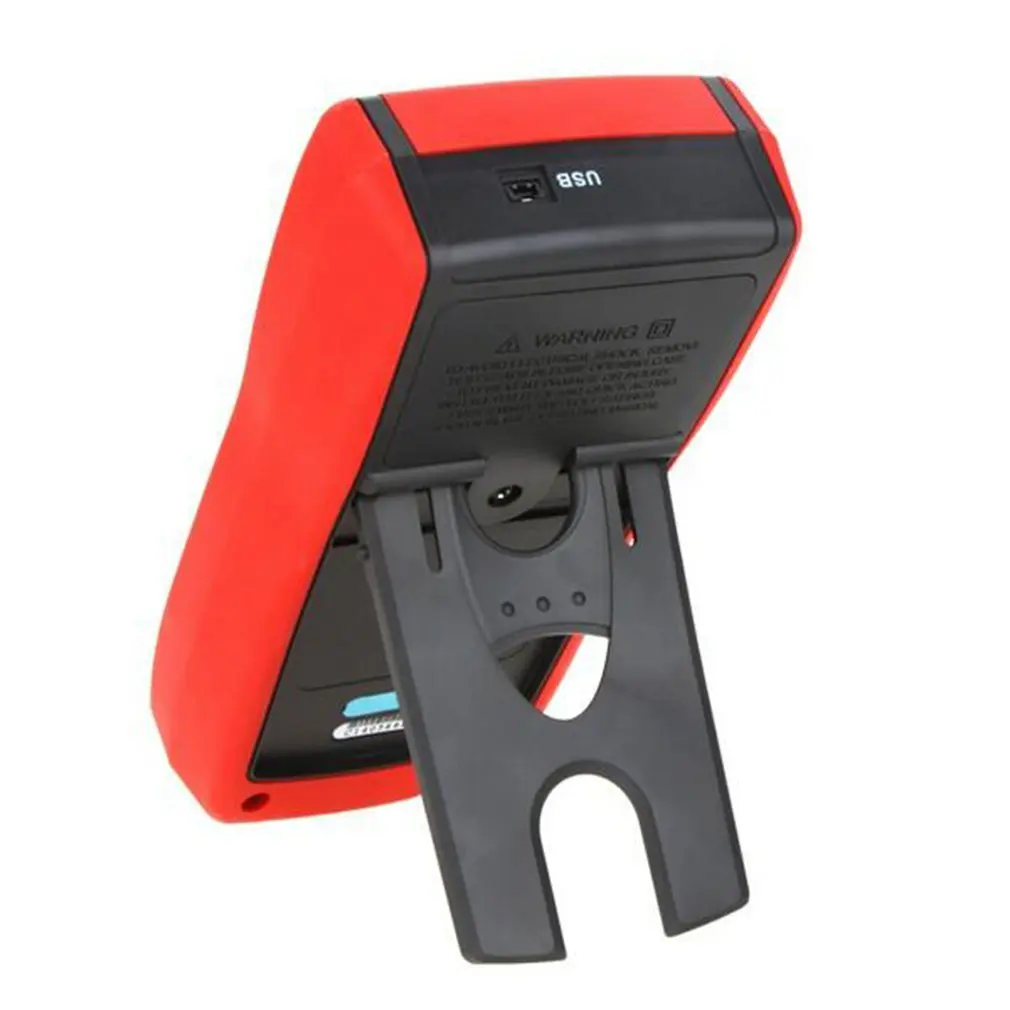

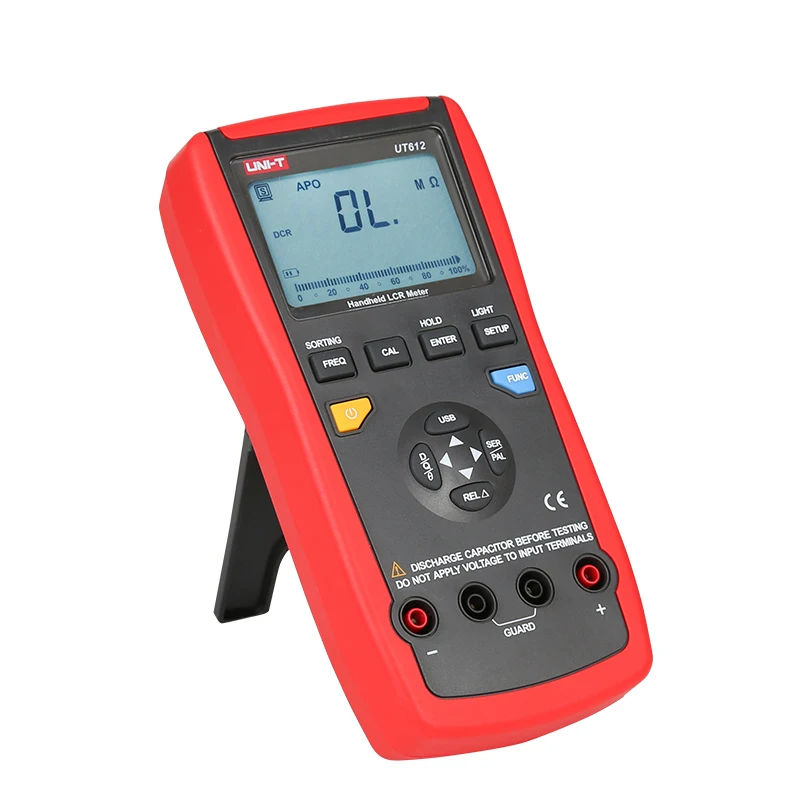

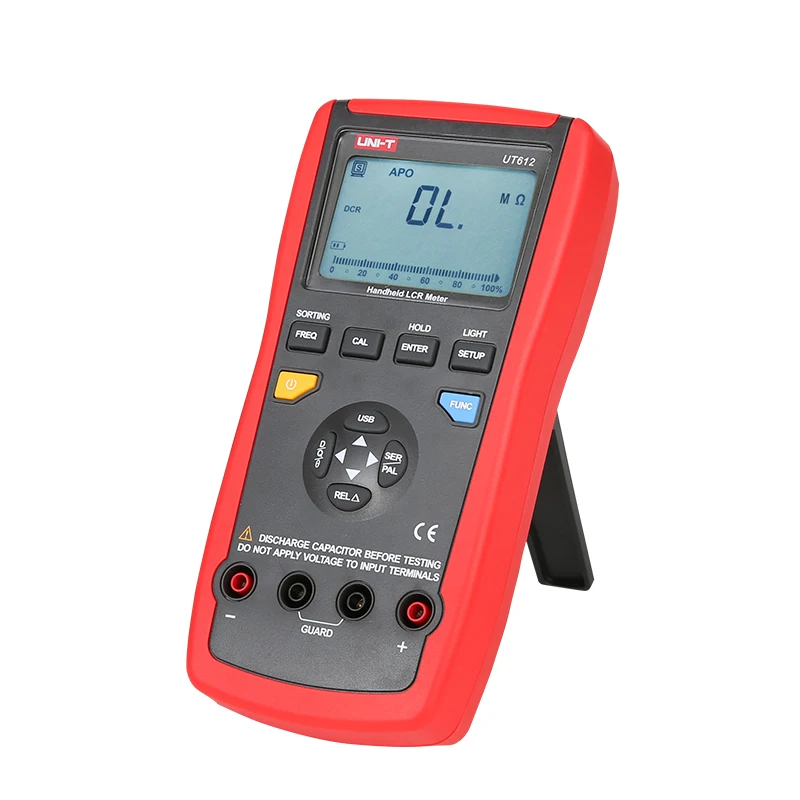

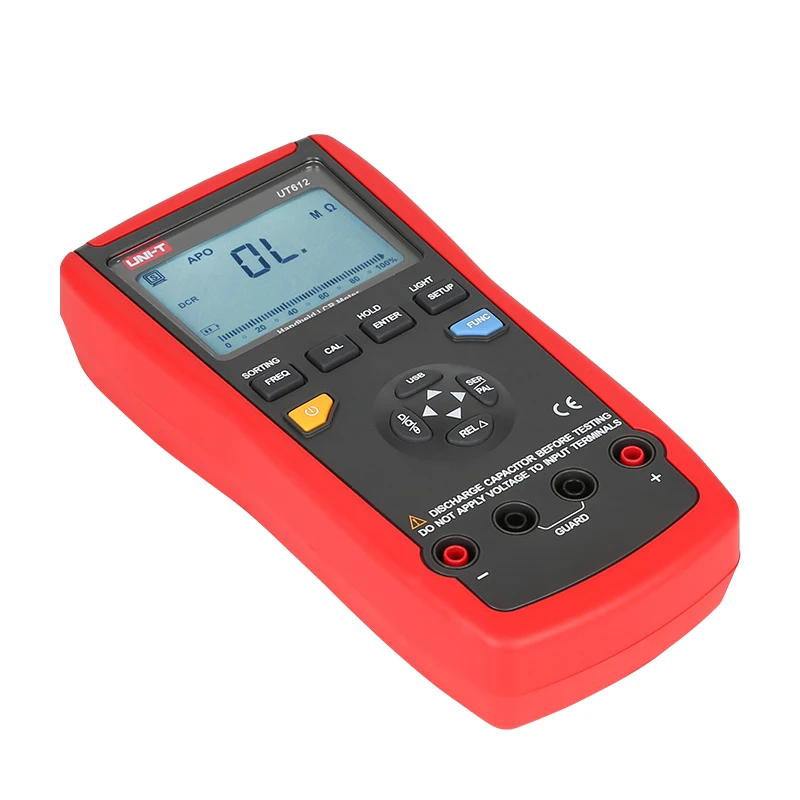

UT612
LCR Meter
UT610 series LCR meters are more advanced meters used to measure inductance, capacitance and resistance. Advanced features include
series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 kinds
of measurement frequency in AC mode for selection.
Applications:
UT610 series can be easily operated in production lines, component inspection and electronic maintenance.
LCR Meter
UT610 series LCR meters are more advanced meters used to measure inductance, capacitance and resistance. Advanced features include
series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 kinds
of measurement frequency in AC mode for selection.
Applications:
UT610 series can be easily operated in production lines, component inspection and electronic maintenance.
Specification
Specifications | Range | UT611 | UT612 | |||
Inductance (H) | 600uH~200H | ±(0.4%+2) | ||||
20uH~2000H | ±(0.5%+5) | |||||
Capacitance (F) | 600pF~10mF | ±(0.4%+2) | ||||
200pF~20mF | ±(0.5%+5) | |||||
Resistance (Ω) | 60Ω~20MΩ | ±(0.4%+2) | ||||
20Ω~200MΩ | ±(0.3%+5) | |||||
Test frequency (Hz) | 100Hz/120Hz/1kHz/10kHz | √ | ||||
100Hz/120Hz/1kHz/10kHz/100kHz | √ | |||||
Operating voltage | 0.5Vrms | √ | ||||
0.6Vrms | √ | |||||
Test parameters | L/C/R/DCR/Q/D/θ/ESR | √ | √ | |||
Features | ||||||
Display count | 6000 | 20000 | ||||
D/Q display count | 1000 | 2000 | ||||
D/Q resolution | 0.001 | √ | √ | |||
Auto range | √ | √ | ||||
Test frequency real-time display | √ | √ | ||||
Measurement mode | Series/Parallel | √ | √ | |||
Auto power off | √ | √ | ||||
Low battery indication | ≤6.8V | √ | √ | |||
Data hold | √ | √ | ||||
Relative mode | √ | √ | ||||
USB interface | √ | |||||
USB interface/PC data records | 60000 | |||||
Data storage | 1000 | |||||
LCD backlight | √ | √ | ||||
Analog bar graph | 30 | 26 | ||||
Deviation ratio measurement | √ | |||||
Comparison function | √ | √ | ||||
Calibration function | √ | √ | ||||
Output impedance | 120Ω | √ | √ | |||
Auto LCR check and measurement | √ | √ | ||||
General Characterisitics | ||
Power | 9V battery (6F22) or USB | |
Display | 40mm x 63mm | |
Product color | Red and grey | |
Product net weight | 374g | |
Product size | 96mm x 193mm x 47mm | |
Standard accessories | Battery, SMD test clamp, USB interface cable (UT612), multi-purpose socket (UT612), PC software CD (UT612) | |
Standard individual packing | Gift box, English manual | |
Standard quantity per carton | 10pcs | |
Standard carton measurement | 370mm x 305mm x 475mm (0.097 CBM per standard carton) | |
Standard carton gross weight | 13.2kg | |
Optional accessory | USB power adaptor | |
