Factory alimentatore uscita 110vdc 110 vdc 24 vdc convertidor 110v dc 24v dc dntrc with low price
Why Choose Us
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Product Description

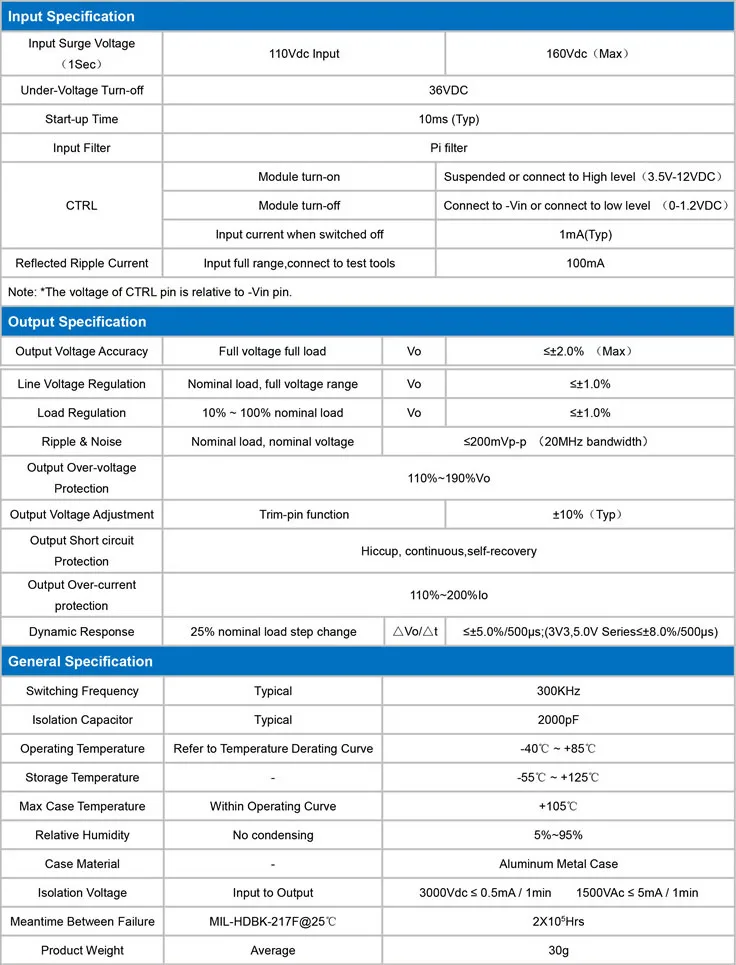

Product Typical Features
Wide input voltage range(4:1)Output Power 50W

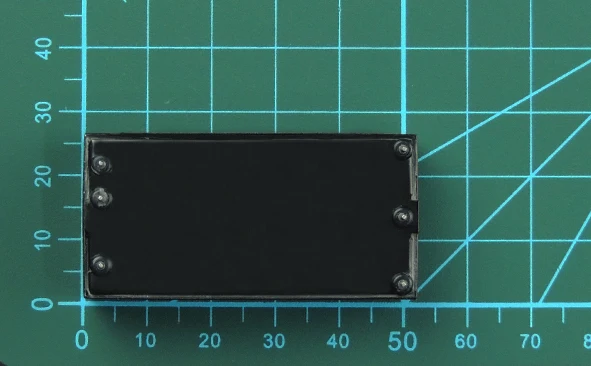

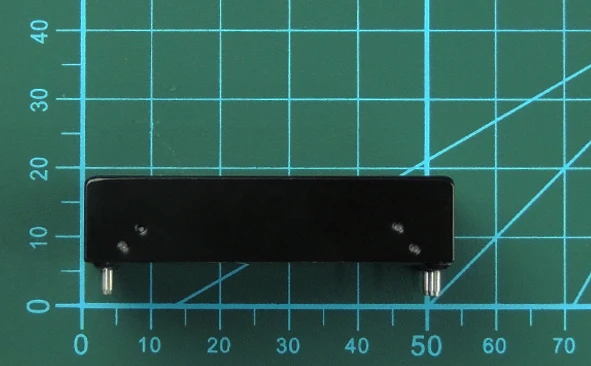

Ultrathin Package:13mm
Transfer Efficiency up to 90%
Stand-by Power Consumption as low as 3W
Output super-fast start up as low as 10ms
Continuous Short Circuit protection, Self-recovery
Input under voltage, output over voltage, short circuit, over current protection
Switching Frequency 300KHz
Isolation Voltage 3000VDC/1500VAC
Operating Temperature: -40°C~+85°C
Good EMI performance
International standard pin-out

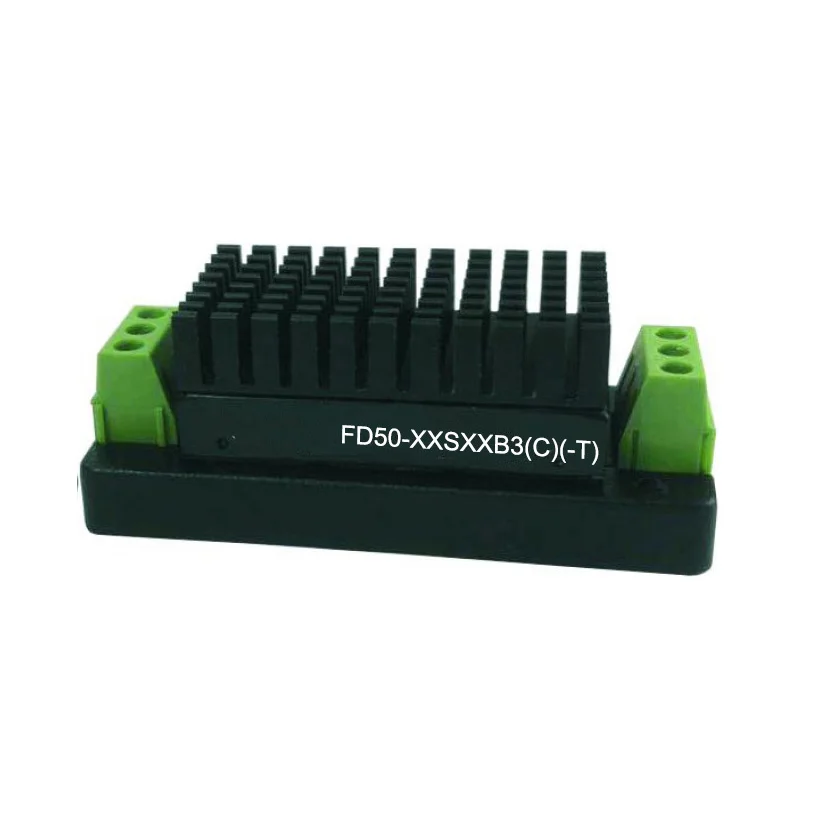

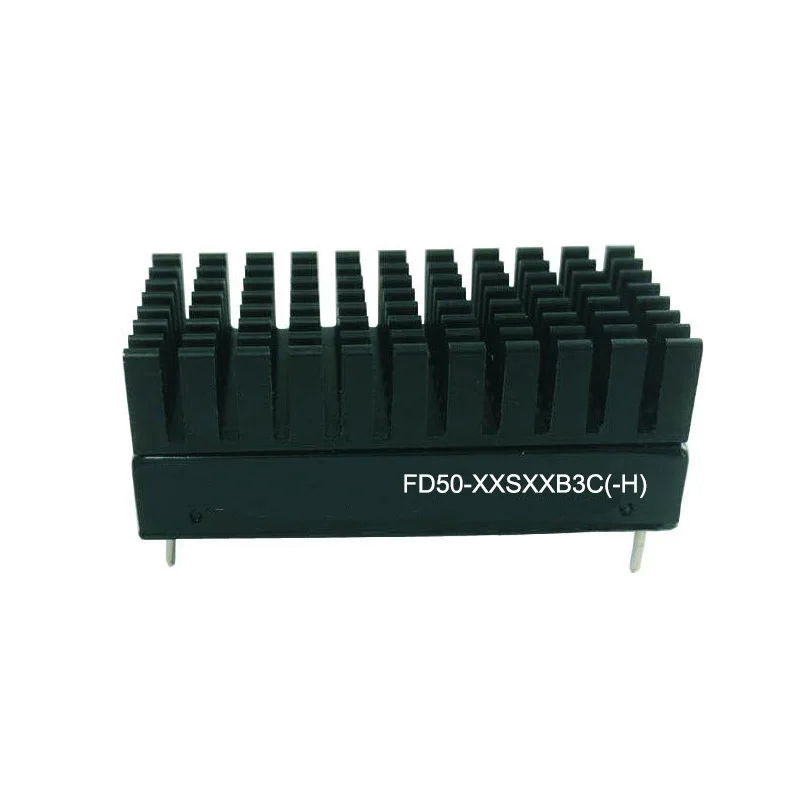

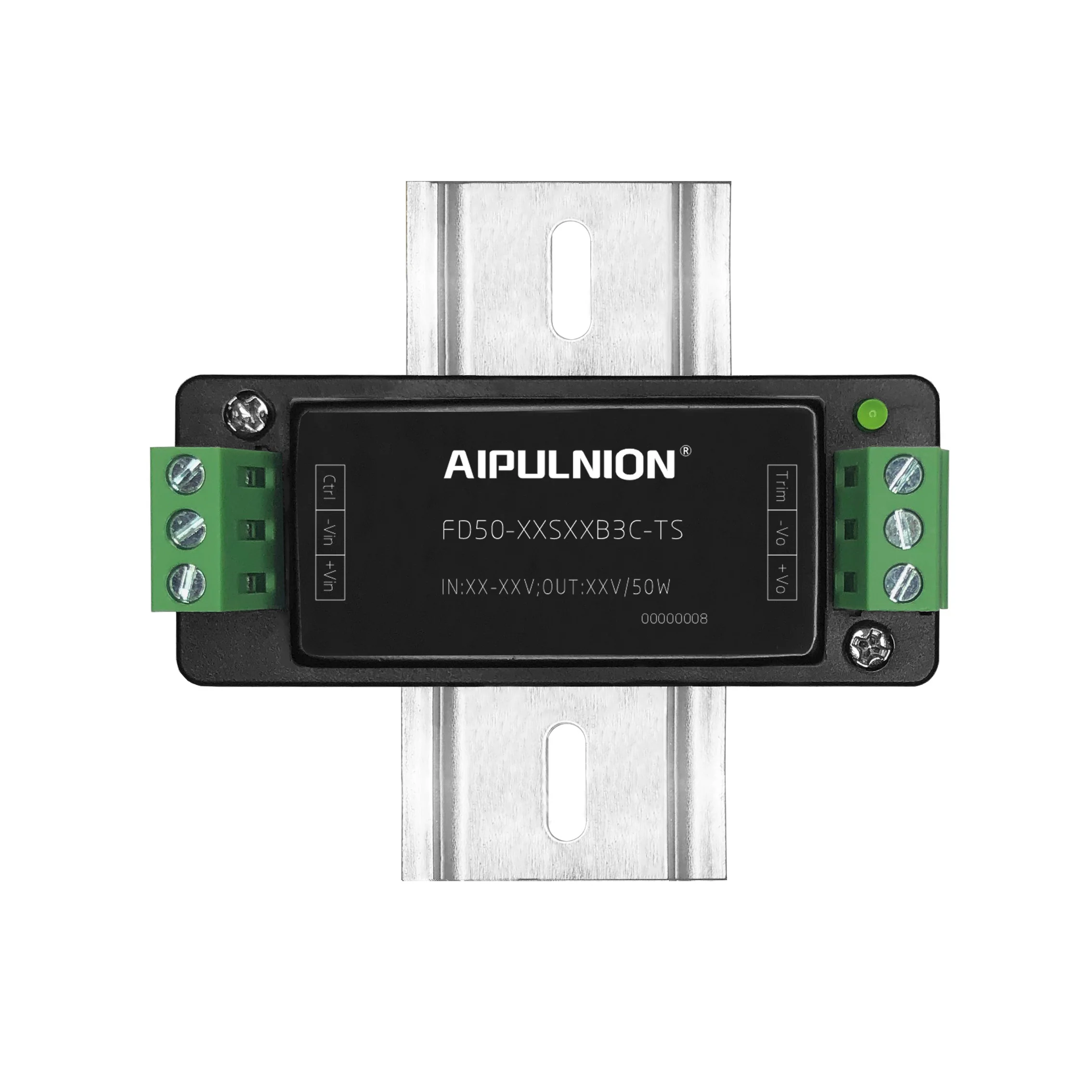

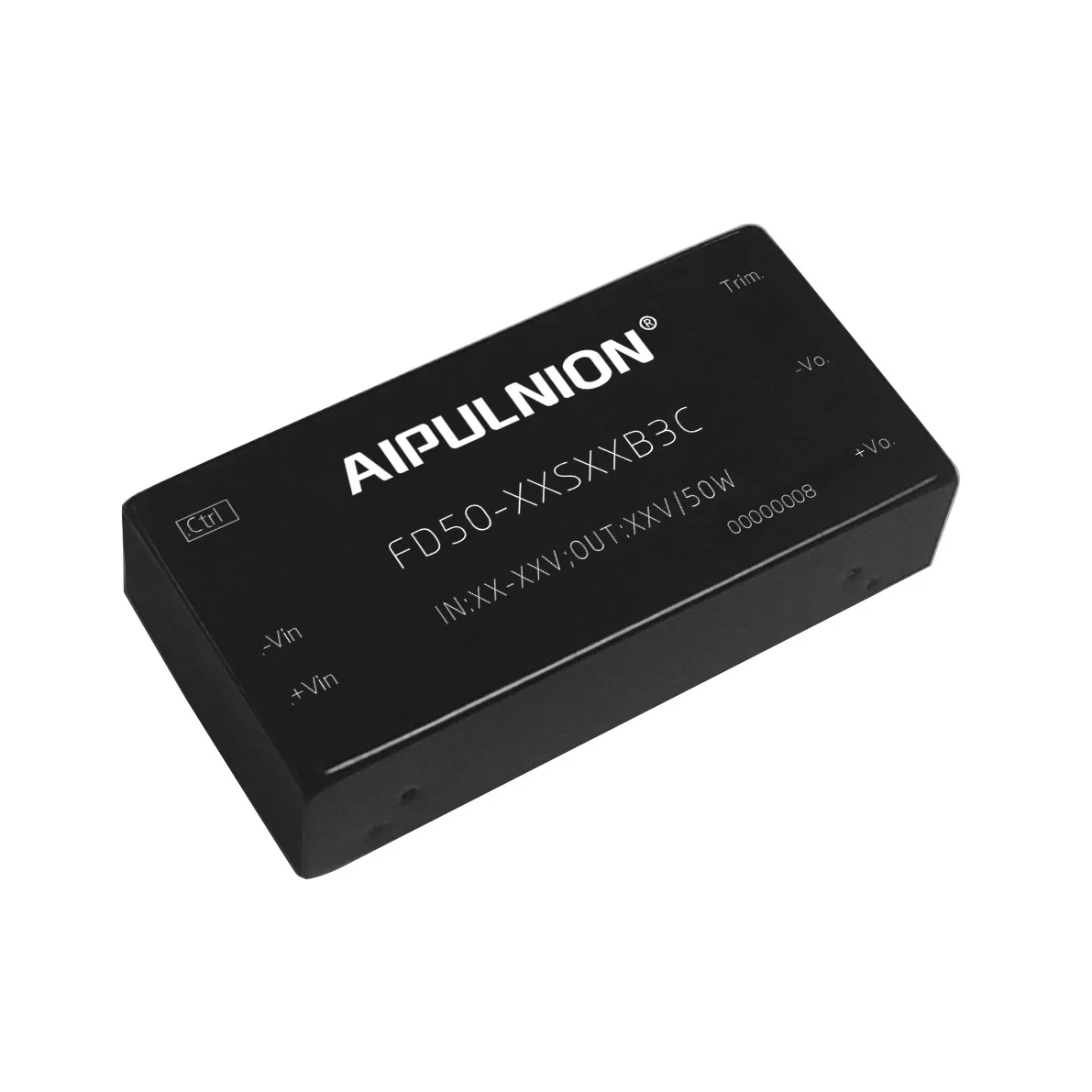

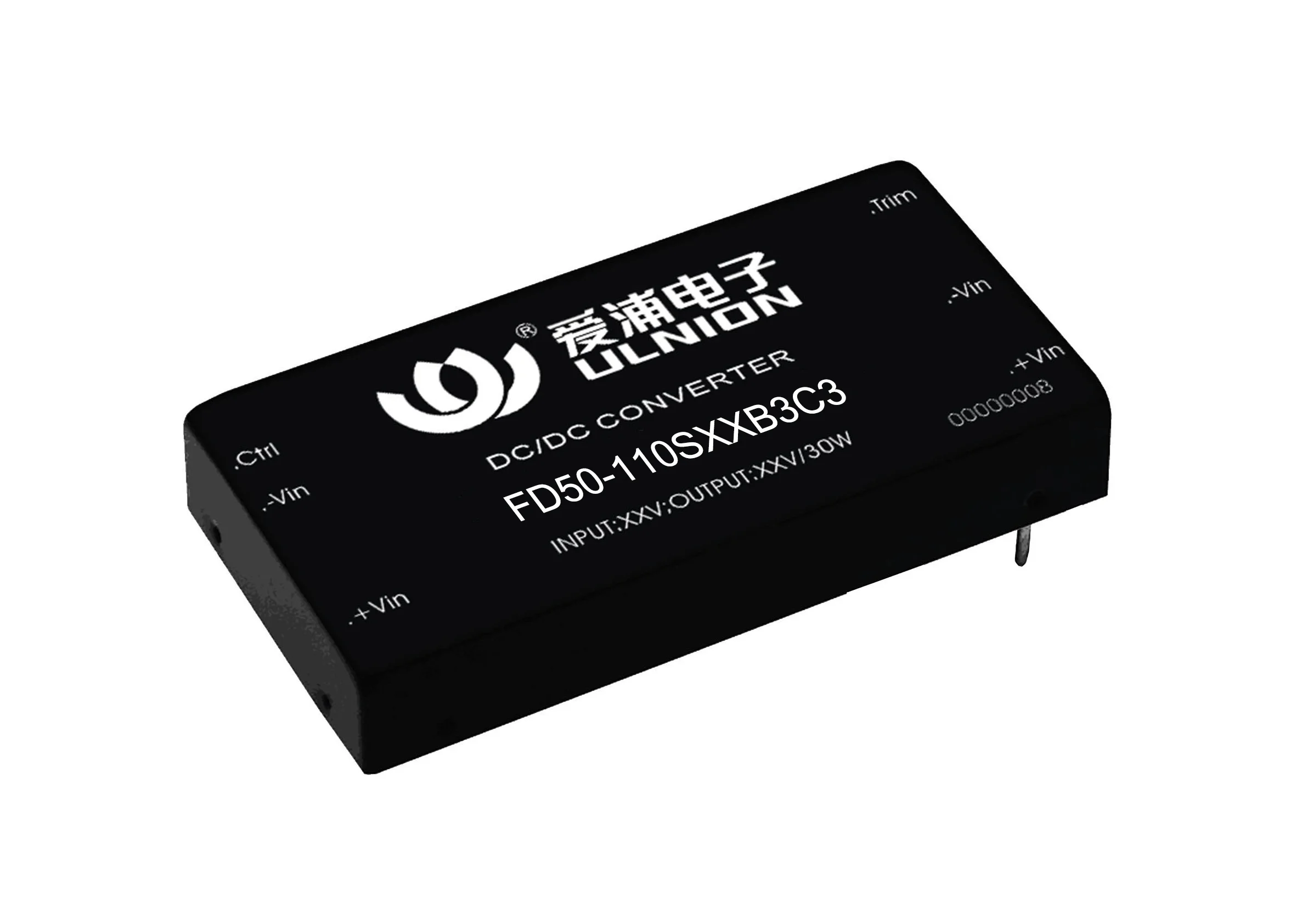

FD50-XXSXXB3(C) is a new designed 50W output DC DC Converter with wide input voltage range(4:1), super-fast start up, isolated®ulated output, DIP/chassis mounting/DIN-Rail mounting, single output, isolation(3000VDC/1500VAC) function. It features the protection function of under-voltage, output over current, output short circuit, and output over voltage. It is widely used in the 72V,96V,110V of industrial control, electrical power, communication, engine, industrial robot, etc.
Part No
Input
Voltage
Range (VDC)
Output Voltage/
Current (Vo/Io)
Input Current
(mA)
(Nominal Voltage)
Max.
Capacitive
Load
Ripple
& Noise
20MHz
(MAX)
Efficiency
(%)
Nominal
Range
Voltage
(V)
Current
(A)
Full load
(mA)
No Load
(mA)
u F
mVp-p
(mV)
Min
Typ
FD50-110S3V3B3C3
110
40-160
3.3
10
345
25
10000
100
85
88
FD50-110S05B3C3
5
10
525
25
8000
100
86
88
*FD50-110S12B3C3
12
4.167
525
2
3300
200
87
89
*FD50-110S15B3C3
15
3.333
525
2
1200
200
87
89
*FD50-110S24B3C3
24
2.083
525
2
680
200
87
89
*FD50-110S48B3C3
48
1.042
525
2
470
200
87
89
