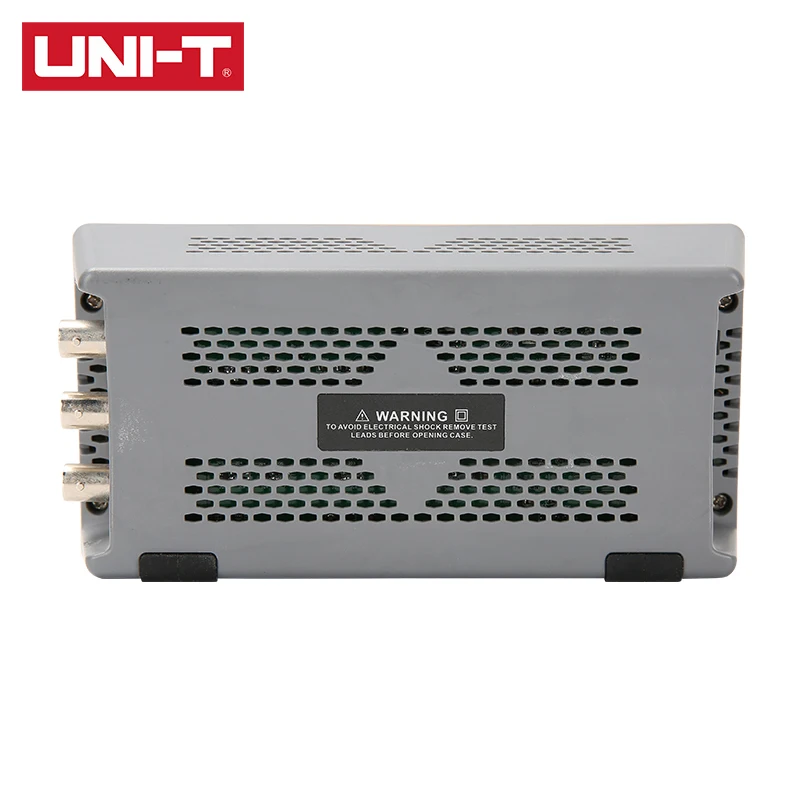

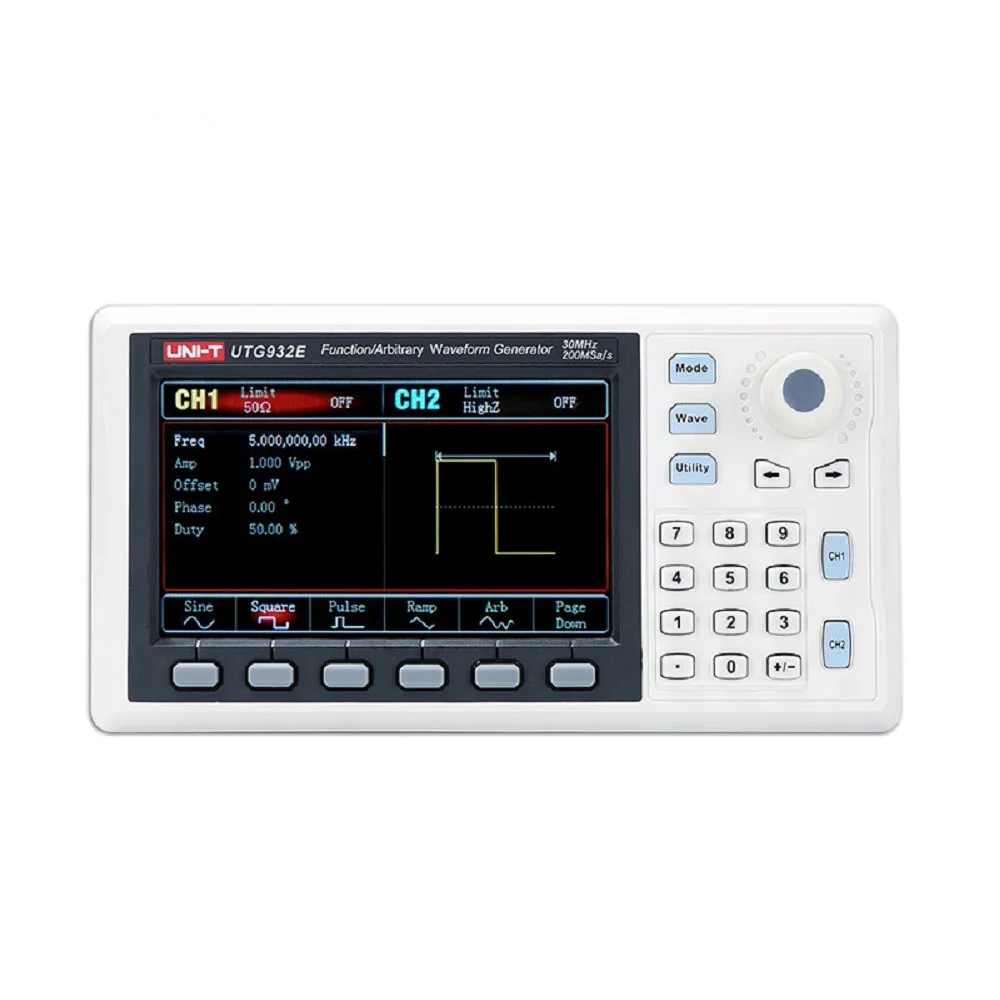

UNI-T UTG932E 30MHz Function/Arbitrary Waveform Generator 4.3 Inch DDS Support Frequency Sweep Output
The UTG900 series function arbitrary waveform generator uses direct digital synthesis technology to produce accurate and stable waveform output, with a resolution as low as 1μHz. It is an economical, high-performance, and versatile function arbitrary waveform generator. It can generate accurate, stable, pure, low-distortion output signals, convenient operation, superior technical indicators and humanized graphic display. It is a multi-purpose device that meets the needs of learning and testing and improves work efficiency.
Features
● Output waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary
● Output frequency range: 1μHz-30MHz/60MHz
● High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz
● Two equivalent-performance channels
● 4.3 inches TFT LCD
UTG900 Series Function Arbitrary Waveform Generator
The UTG900 series function arbitrary waveform generator uses direct digital synthesis technology to produce accurate and stable waveform output, with a resolution as low as 1μHz. It is an economical, high-performance, and versatile function arbitrary waveform generator. It can generate accurate, stable, pure, low-distortion output signals, convenient operation, superior technical indicators and humanized graphic display. It is a multi-purpose device that meets the needs of learning and testing and improves work efficiency.
Features
● Output waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary
● Output frequency range: 1μHz-30MHz/60MHz
● High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz
● Two equivalent-performance channels
● 4.3 inches TFT LCD

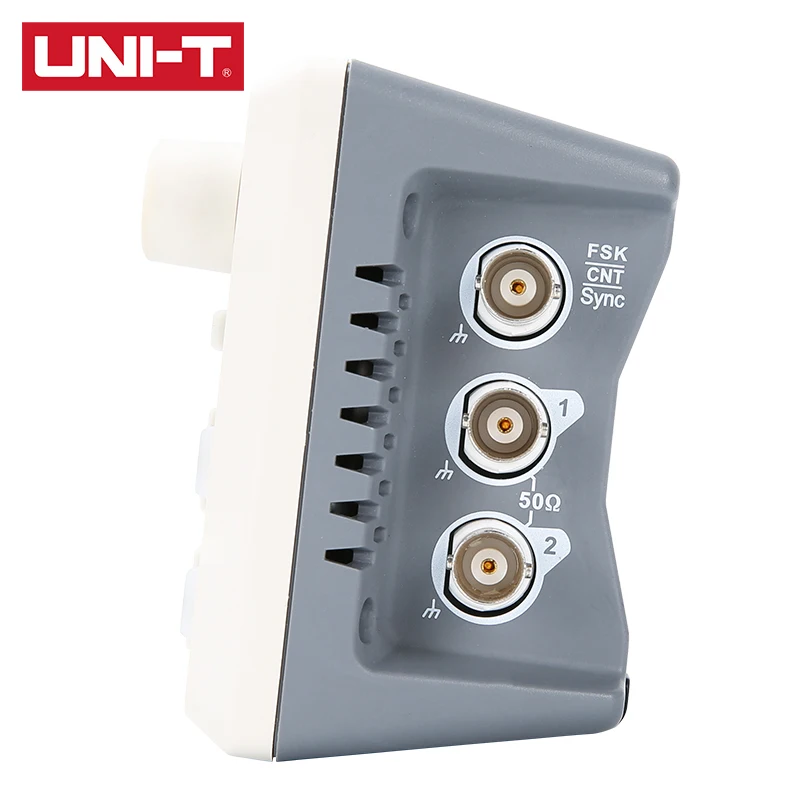

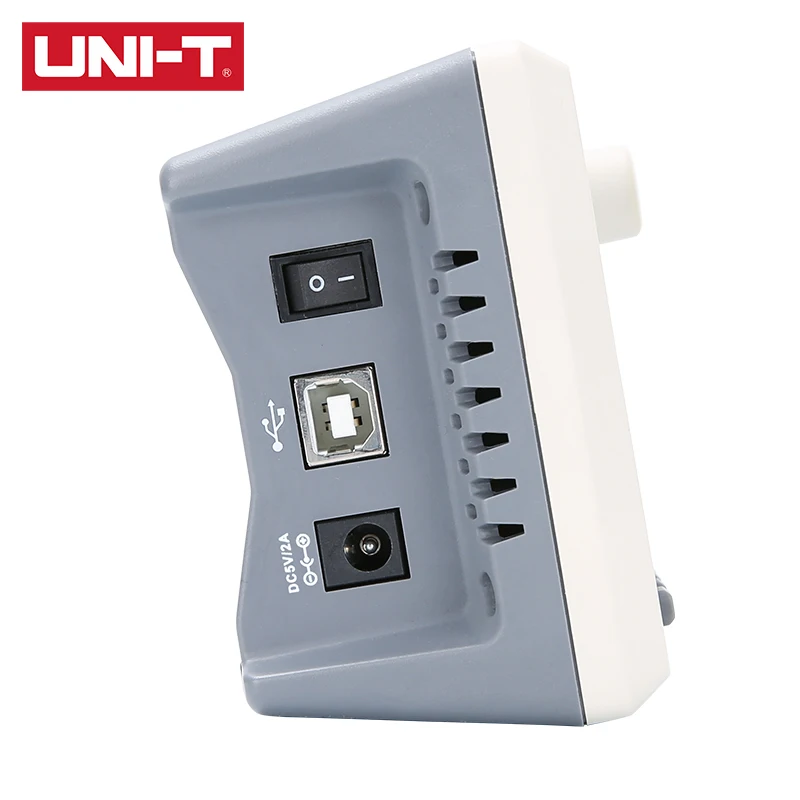

Specifications | ||||
Model | UTG932E | UTG962E | ||
Channel | 2 | |||
Max frequency | 30MHz | 60MHz | ||
Sampling rate | 200MS/s | |||
Vertical resolution | 14 bits | |||
Waveforms | Sine, square, pulse, ramp, noise, DC, arbitrary | |||
Sweep modes | Logarithmic, linear | |||
Frequency Characteristics | ||||
Sine | 1μHz~30MHz | 1μHz~60MHz | ||
Square | 1μHz~15MHz | 1μHz~20MHz | ||
Ramp | 1μHz~400kHz | 1μHz~400kHz | ||
Pulse | 1μHz~15MHz | 1μHz~20MHz | ||
Arbitrary | 1μHz~10MHz | 1μHz~10MHz | ||
Resolution | 1μHz | |||
Accuracy | Within 90 days ± 50ppm | |||
Within 1 year ± 100ppm | ||||
18℃~28℃ | ||||
Output Characteristics | ||||
Impedance | 50Ω/High Z | |||
Amplitude range | 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z) | |||
DC offset range (AC+DC) | ±5V (50Ω); ±10V (high Z) | |||
Amplitude resolution | 1mV | |||
General Characterisitics | ||||
Power | 100~240VAC, 50Hz/60Hz | |||
Display | 4.3”TFT LCD (480×272) | |||
Product color | White and grey | |||
Product net weight | 0.33kg | |||
Product size | 172mm x 90mm x 68mm | |||

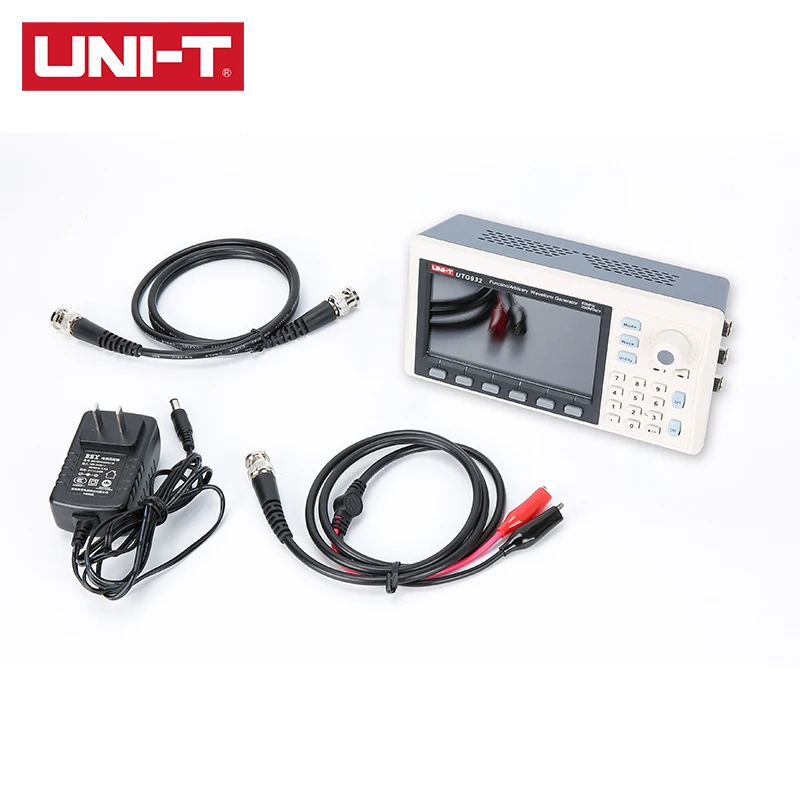

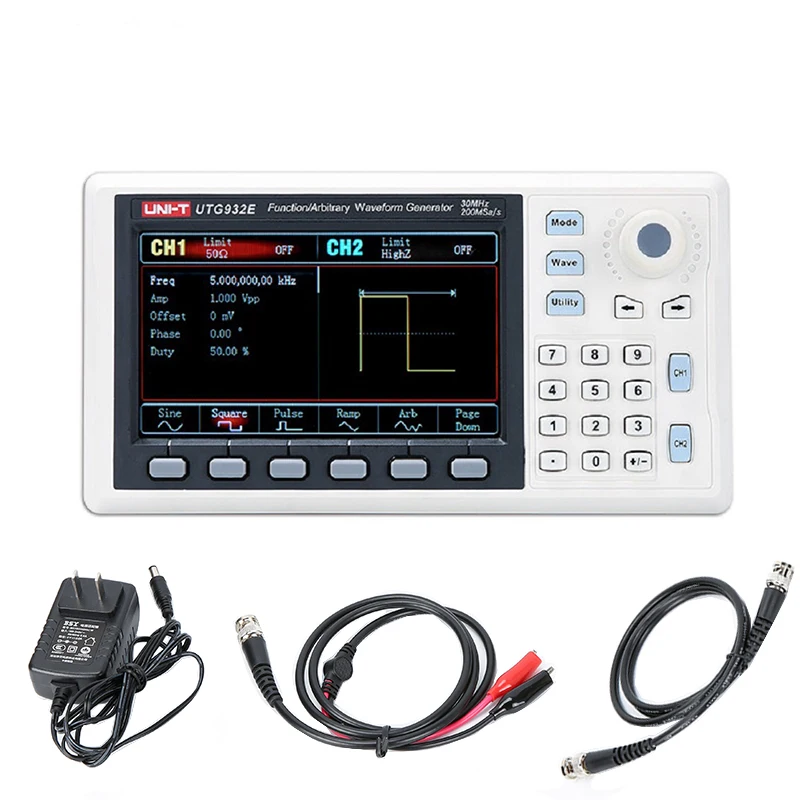

Standard accessories | USB interface cable, power cord, BNC cable with alligator clips | |||
Standard individual packing | Carton box | |||
Standard quantity per carton | 4pcs | |||
Standard carton measurement | 435mm x 360mm x 125mm | |||
Standard carton gross weight | 3.8kg | |||
