Product Overview
Description
Product Description

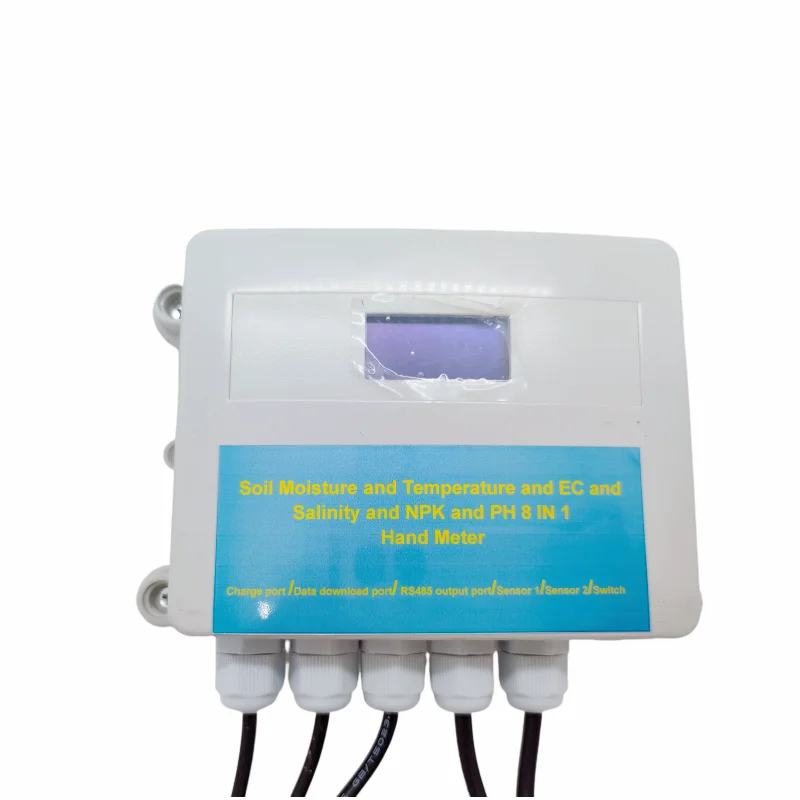

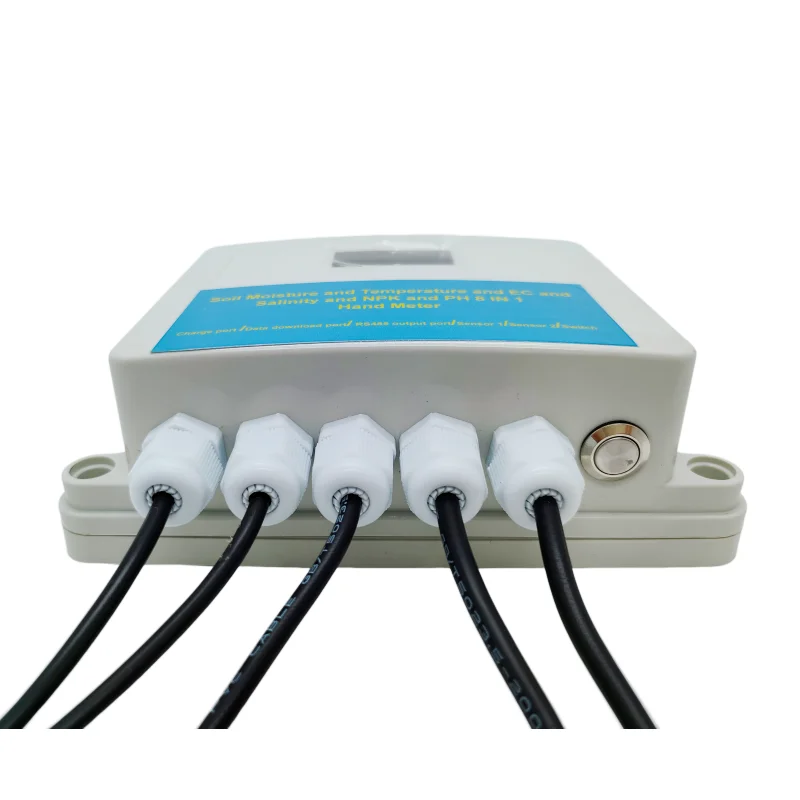

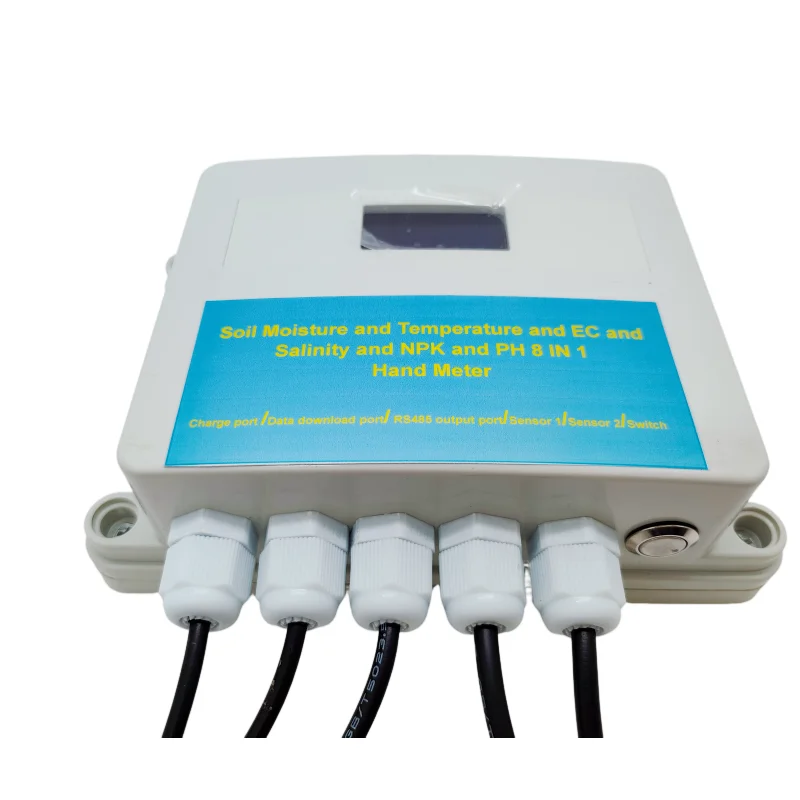

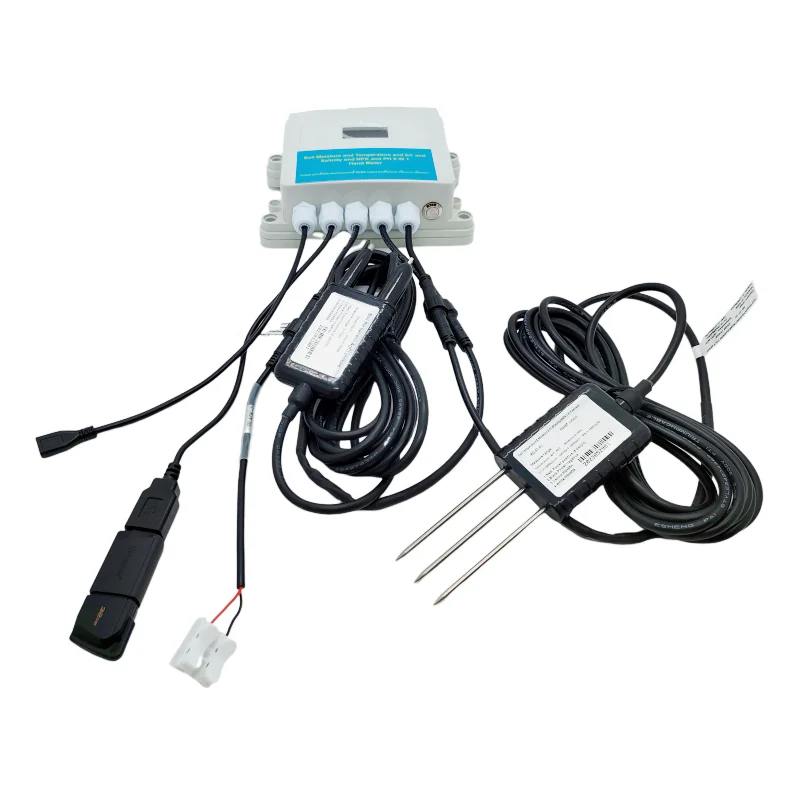

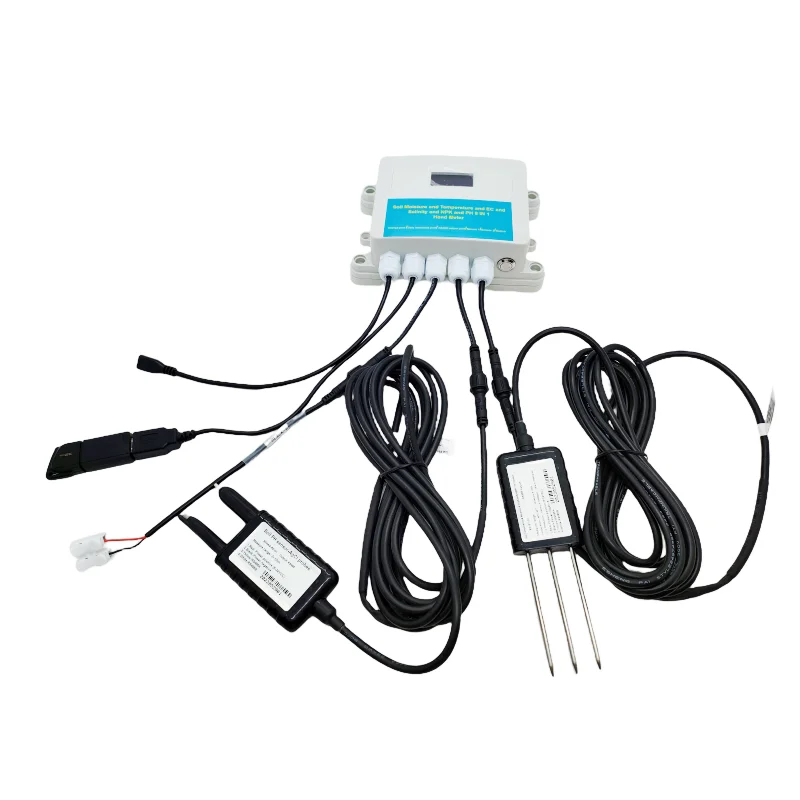

Product Name | Soil NPK moisture temperature EC salinity PH 8 in 1 sensor with screen and data logger |
Probe type | Probe electrode |
Measurement parameters | Soil Soil NPK moisture temperature EC salinity PH Value |
NPK Measuring range | 0 ~ 1999mg/kg |
NPK Measurement accuracy | ±2%FS |
NPK Resolution | 1mg/Kg(mg/L) |
Moisture measuring range | 0-100%(Volume/Volume) |
Moisture Measurement accuracy | ±2% (m3/m3) |
Moisture Measurement resolution | 0.1%RH |
EC Measuring range | 0~20000μs/cm |
EC Measuring accuracy | ±3% in the range of 0-10000us/cm; ±5% in the range of 10000-20000us/cm |
EC Measuring resolution | 10 us/cm |
Salinity Measuring range | 0~10000ppm |
Salinity Measuring accuracy | ±3% in the range of 0-5000ppm ±5% in the range of 5000-10000ppm |
Salinity Measuring resolution | 10ppm |
PH measuring range | 3 ~ 7 PH |
PH Measurement accuracy | ±0.3PH |
PH Resolution | 0.01/0.1 PH |
Outputsignal | Screen Datalogger with data store in excel |
Supply voltage | 5VDC |
Working temperature range | -30 ° C ~ 70 ° C |
Stabilization time | 5-10 seconds after power on |
Response time | <1 second |
Sensor sealing material | ABS engineering plastic, epoxy resin |
Cable specification | Standard 2 meters |
Details Images
Product advantages

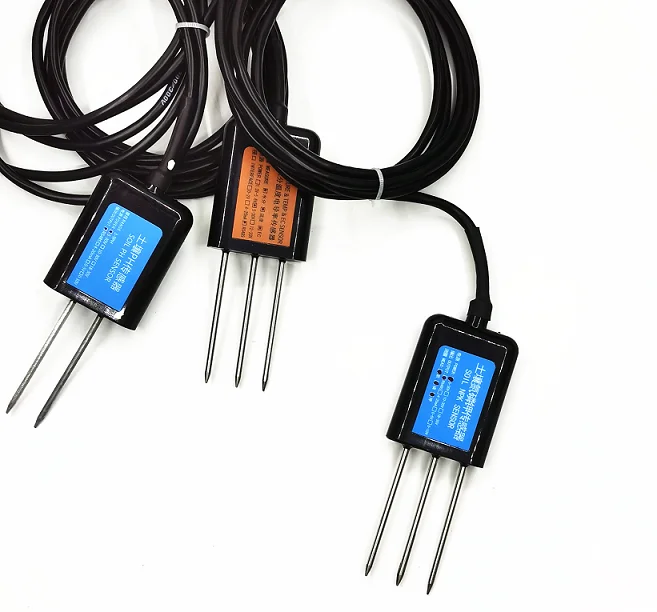

1. Soil moisture temperature EC salinity 4 in 1 type
2. Soil NPK sensor
3. Soil PH sensor
time data
3. Store the data in the U
disk
Product Usage
Soil Surface measure method
1. Select a representative soil environment to clean up surface debris and vegetation
2. Insert the sensor vertically and completely into the soil
3. If there is a hard object, the measurement location should be replaced and re-measured
4. For accurate data, it is recommended to measure multiple times and take the average
2. Insert the sensor vertically and completely into the soil
3. If there is a hard object, the measurement location should be replaced and re-measured
4. For accurate data, it is recommended to measure multiple times and take the average
Buried measure method
1. Make a soil profile in the vertical direction, slightly deeper than the installation depth of the bottommost sensor, between 20cm and 50cm in diameter.
2. Insert the sensor horizontally into the soil profile
3. After the installation is completed, the excavated soil is backfilled in order, layered and compacted, and horizontal installation is guaranteed.
4. If you have the conditions, you can put the removed soil in a bag and number it to keep the soil moisture unchanged, and backfill it in reverse order.
2. Insert the sensor horizontally into the soil profile
3. After the installation is completed, the excavated soil is backfilled in order, layered and compacted, and horizontal installation is guaranteed.
4. If you have the conditions, you can put the removed soil in a bag and number it to keep the soil moisture unchanged, and backfill it in reverse order.
Three-tier installation
Six-tier installation
Measure Notes
1. All probe must be inserted into the soil during measurement.
2. Avoid excessive temperature caused by direct sunlight on the sensor. Pay attention to lightning protection in the field
3. Do not pull the sensor lead wire with force, do not hit or violently hit the sensor.
4. The protection grade of the sensor is IP68, which can soak the entire sensor in water.
5. Due to the presence of radio frequency electromagnetic radiation in the air, it should not be energized in the air for a long
time.
2. Avoid excessive temperature caused by direct sunlight on the sensor. Pay attention to lightning protection in the field
3. Do not pull the sensor lead wire with force, do not hit or violently hit the sensor.
4. The protection grade of the sensor is IP68, which can soak the entire sensor in water.
5. Due to the presence of radio frequency electromagnetic radiation in the air, it should not be energized in the air for a long
time.
SOIL NUTRIENTS INES | ||||||||
Grade | Available Nitrogen (N: mg/Kg) | Available Phosphorus (P: mg/Kg) | Available Potassium (K: mg/Kg) | Fertility rating | ||||
First grade | 150 | 40 | 200 | Fertile | ||||
Second grade | 120~150 | 20~40 | 150~200 | Medium to high fertility | ||||
Third grade | 90~120 | 10~20 | 100~150 | Medium fertility | ||||
Fourth grade | 60~90 | 5~10 | 50~100 | Lack of fertilizer | ||||
Related Products
Packing&Shipping
Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this soil 8 IN 1 sensor?
A: It is small size and high precision,good sealing with IP68 waterproof, can totally burried in the soil for the 7/24 continuous monitoring and it can measure the soil NPK moisture temperature EC salinity PH 8 values at the same time.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply ?
A: It is built-in rechargeable battery and you can also use the power bank.
Q: How can I collect data?
A: The data can be collected in the U disk in excel type.
Q: What's the standard cable length?
A: Its standard length is 2m.
Q: What's the lifetime of this Sensor?
A: At least 3 years or more.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be deliveried in 1-3 working days after receiving your payment. But it depends on your quantity.
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this soil 8 IN 1 sensor?
A: It is small size and high precision,good sealing with IP68 waterproof, can totally burried in the soil for the 7/24 continuous monitoring and it can measure the soil NPK moisture temperature EC salinity PH 8 values at the same time.
And the data can be stored in the data logger in excel type and you can also see the real time data in screen.
Q: What's the data store frequency?
The data store frequency can be custom made, like 1 minutes, 5 minutes, half an hour, or the others.
The data store frequency can be custom made, like 1 minutes, 5 minutes, half an hour, or the others.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply ?
A: It is built-in rechargeable battery and you can also use the power bank.
Q: How can I collect data?
A: The data can be collected in the U disk in excel type.
Q: What's the standard cable length?
A: Its standard length is 2m.
Q: What's the lifetime of this Sensor?
A: At least 3 years or more.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be deliveried in 1-3 working days after receiving your payment. But it depends on your quantity.
