C1200+ NEW DEVISER, 5MHz to 1010MHz Analog and Digital TV Analysis DVB-C Signal Meter

NO.

Item

Technical Parameter

1

Working Voltage

110V ~ 260V (global voltage)

2

Frequency Range

87-108 MHz

3

Frequency step value

100KHz

4

Modulation

FM, peak deviation ± 75KHz

5

Frequency deviation

<± 100Hz

6

Frequency step

100KHz

7

Frequency stabilization mode

PLL

8

Environmental Operating temperature

-20 to 45 ° C

9

RF output impedance

50Ω

10

RF output power

0 ~ 50w ± 0.5dB

11

Harmonic suppression

<- 65dBc

12

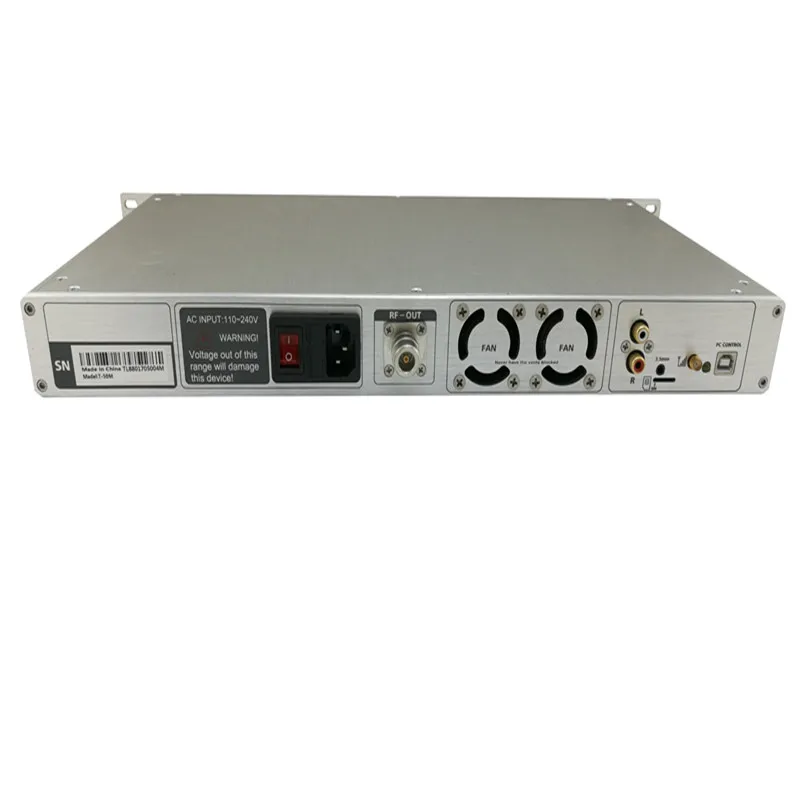

RF output connector

L29

13

Audio input connector

3.5MM / AV lotus seat

14

U disk decoding rate

320KPS

15

Remote control

GSM network (support Unicom \\ mobile card)

16

Timing tasks

support 68 tasks

17

The whole point of time

support the whole point of time (voice can be changed)

18

Clock error

10PPM (1 year less than 60 seconds)

 19

SCA and RDS input connectors (option)

20

Pre-emphasis

50us, 75us (user selectable)

21

S / N ratio Mono

> 70 dB (20 to 20 kHz)

22

S / N than stereo

> 65 dB (20 to 15 kHz)

23

Stereo resolution

-40dB

24

Audio frequency response

80 ~ 15000Hz

25

Audio distortion

<0.5%

26

Modulation

10%

27

Input level

-15 ~ 15dBV Modulation degree: 10%

28

Work

continuous work

29

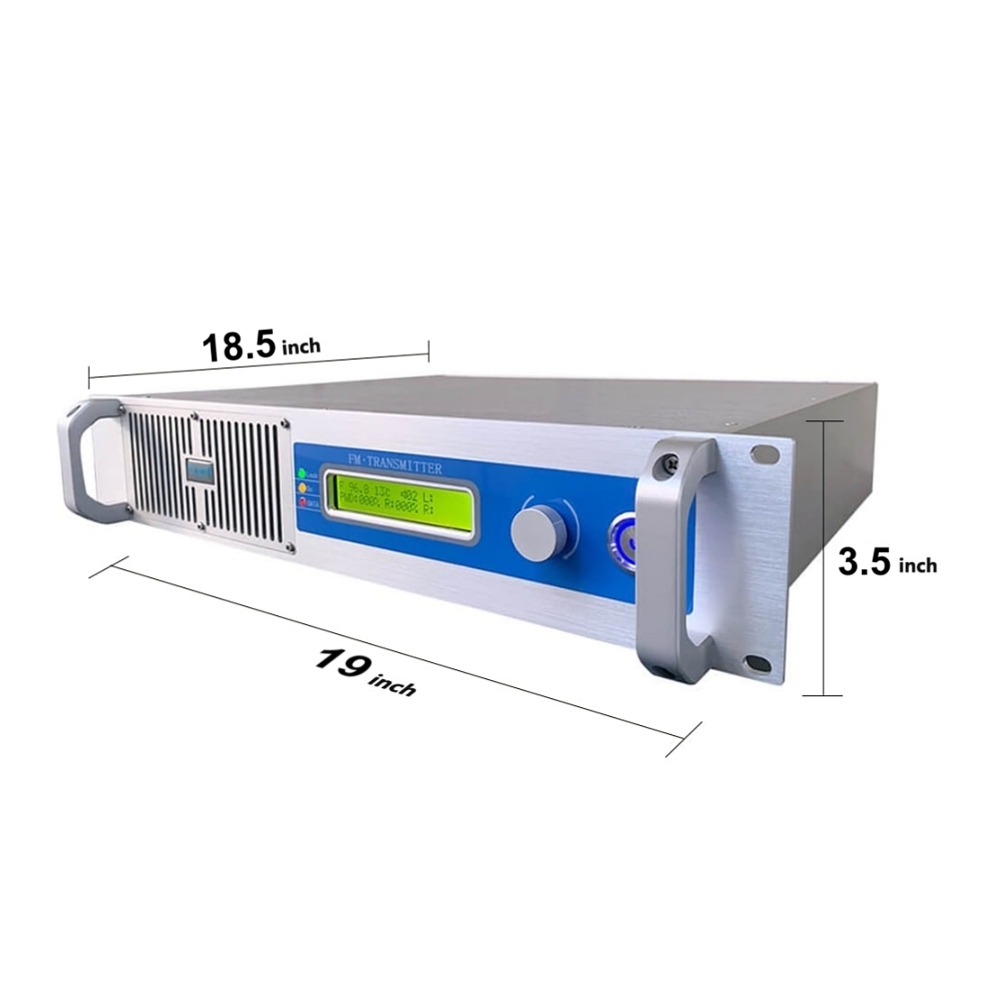

Size

483 x 88x 320 mm (without handle), standard rack 1 "1U.

30

Reference distance

25Km-35Km

31

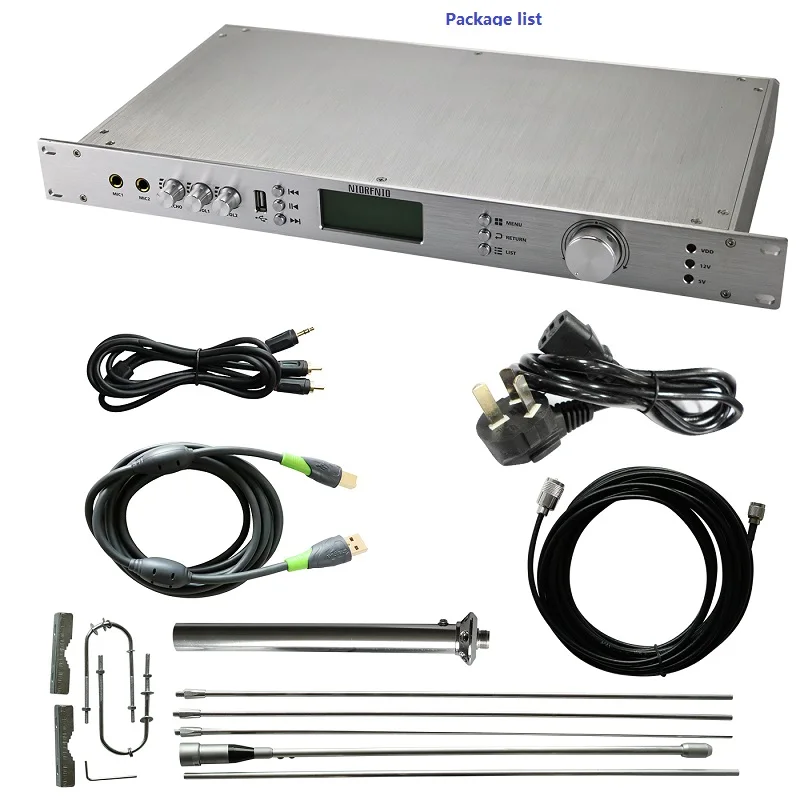

Standard accessories

a host, a power cord, manual 1 copies.

32

Weight: 4KG
