200L vacuum emulsifying homogenizer mixer mayonnaise paste cream making machine
Share on:
Product Overview
Description
Product Overview
200L vacuum emulsifying homogenizer mixer mayonnaise paste cream making machine
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
Features and Advantages

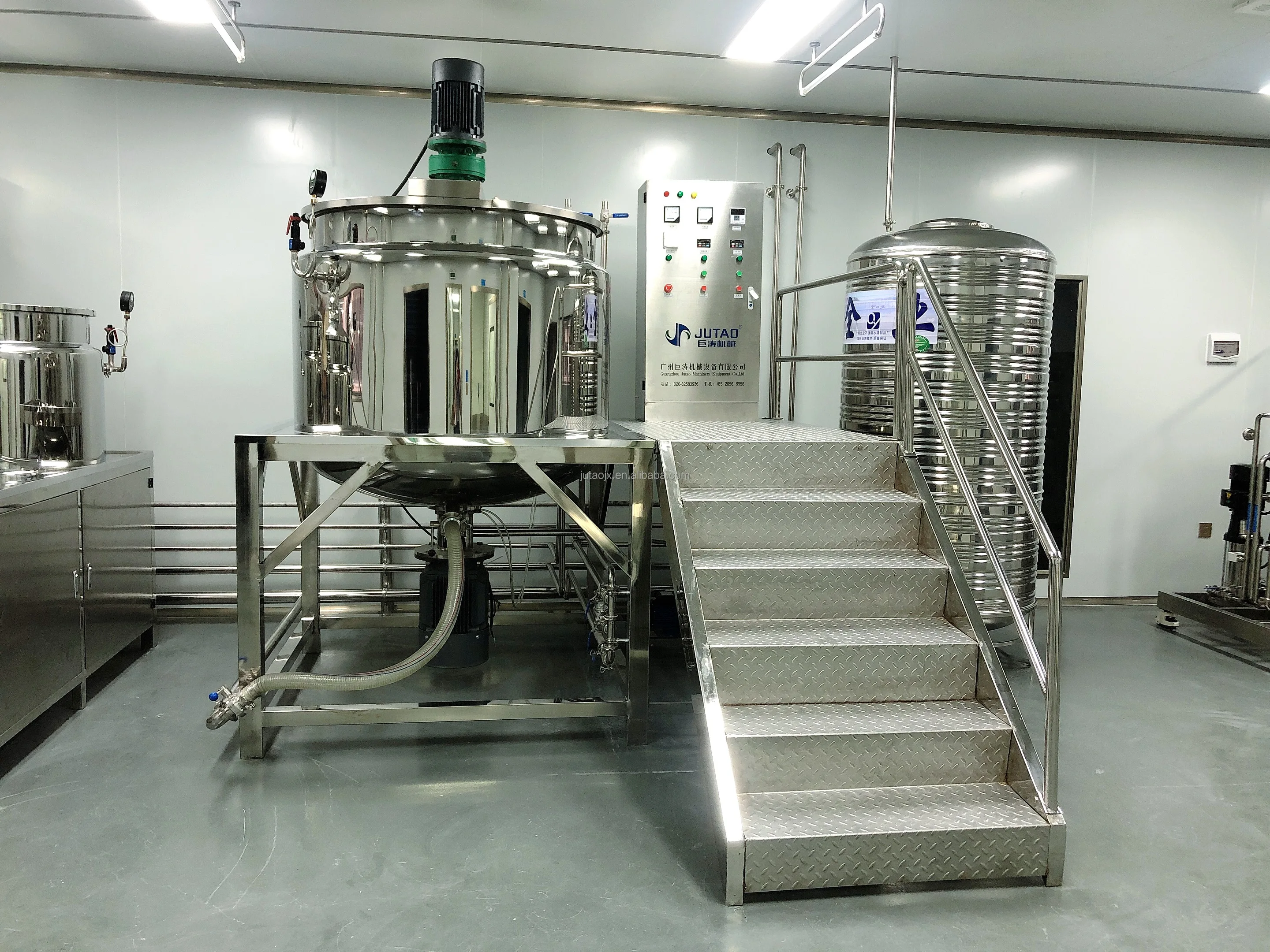

1. The vacuum emulsifying mixer machine is composed of water pot, oil pot, emulsifying pot, operation platform, vacuum system, lifting system etc.
2. Material can be heating or cooling according to technological requirements. The heating methods such as steam or electric heating can be selected according to customer's requirements.
3. The tank body are made of the high quality stainless steel and all contact parts adopt the SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing.
4. Various forms of blending vanes are suitable for production of different types of production of products.
5. The wall scraping mixer adopts frequency converter to adjust the mixing speed, suitable for various products based on clients' requirements.
6. The mixing system includes single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include
single-cylinder lifting and double-cylinder lifting. According to your request, we can customized the suitable machine for you.
7. Vacuum defoaming can make the material reach requirement of aseptic. It adopts the vacuum to suck the material especially for the powder material, which can avoid the dust.
8. It is fully in accordance with the GMP standard production and passed CE certification.
2. Material can be heating or cooling according to technological requirements. The heating methods such as steam or electric heating can be selected according to customer's requirements.
3. The tank body are made of the high quality stainless steel and all contact parts adopt the SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing.
4. Various forms of blending vanes are suitable for production of different types of production of products.
5. The wall scraping mixer adopts frequency converter to adjust the mixing speed, suitable for various products based on clients' requirements.
6. The mixing system includes single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include
single-cylinder lifting and double-cylinder lifting. According to your request, we can customized the suitable machine for you.
7. Vacuum defoaming can make the material reach requirement of aseptic. It adopts the vacuum to suck the material especially for the powder material, which can avoid the dust.
8. It is fully in accordance with the GMP standard production and passed CE certification.
Technical parameter
Model | Capacity(L) | Mixing power(kw) | Mixing speed(r/min) | Homogenizing power(kw) | Homogenizing speed(r/min) | Heating method | ||||||
JT-E-20 | 20 | 0.37 | 0-63 | 0.75 | 0-3000 | |||||||
JT-E-50 | 50 | 0.37 | 0-63 | 2.2 | 0-3000 | |||||||
JT-E-100 | 100 | 1.5 | 0-63 | 3 | 0-3000 | |||||||
JT-E-150 | 150 | 1.5 | 0-63 | 3 | 0-3000 | |||||||
JT-E-200 | 200 | 1.5 | 0-63 | 4 | 0-3000 | |||||||
JT-E-350 | 350 | 2.2 | 0-63 | 4 | 0-3000 | |||||||
JT-E-500 | 500 | 2.2 | 0-63 | 5.5 | 0-3000 | |||||||
JT-E-1000 | 1000 | 5.5 | 0-63 | 9 | 0-3000 | |||||||
JT-E-2000 | 2000 | 5.5 | 0-63 | 11 | 0-3000 | |||||||
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail. | ||||||||||||
Details Images
For the machine, there are two design.
Hydraulic lifting design: the main pot can lift up or down. can be tilting discharge.
Fixed cover design: the main pot can not lift up or down. bottom discharge and be not tilting discharge.

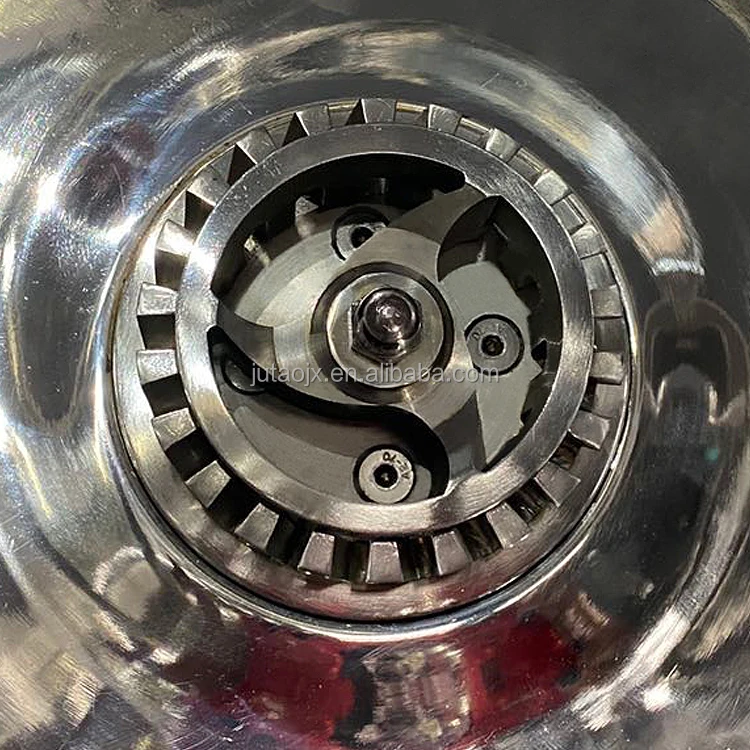

Homogenizer
Rotor and stator adopts wire-cutting finish machining high shearing homogenizer. Made of high quality stainless steel SUS316L. The homogenizing speed is 0-3000rpm.

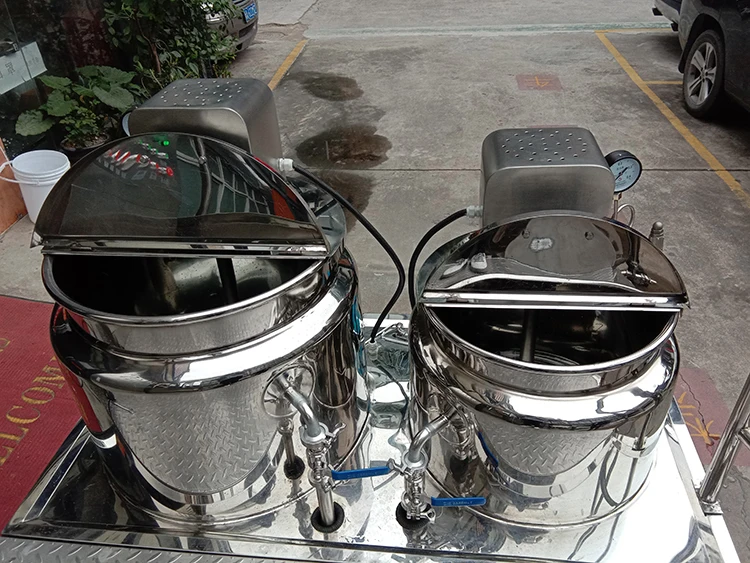

Water and oil pot
Half open lid, east to operate. The tank body is mirror polishing. There are three layers for the tank, inner is SUS316L, outer and middle are SUS304.
Emulsifying pot lid
There are view window, spice inlet, material inlet, air filter, sight glass light on the emulsifying pot lid.
Button control panel
Press the button to control the mixing, homogenizing etc. Easy to operate. Can choose the button control panel or touch screen panel according to your requirement.
Touch screen panel
Touch the screen to adjust the mixing, homogenizing etc. Easy to learn and operate.
Double way mixing paddle
Made of high quality stainless steel SUS316L. Equipped with the wall scraper which can scrap the material sticked on the tank. Can choose the double way mixing or single way mixing according to your requirement.
Single way mixing paddle
Made of high quality stainless steel SUS316L. Equipped with the wall scraper which can scrap the material sticked on the tank.
Application
It is suitable for cosmetic, hand cream, facial cream, body lotion, toothpaste products and so on.
Company Profile

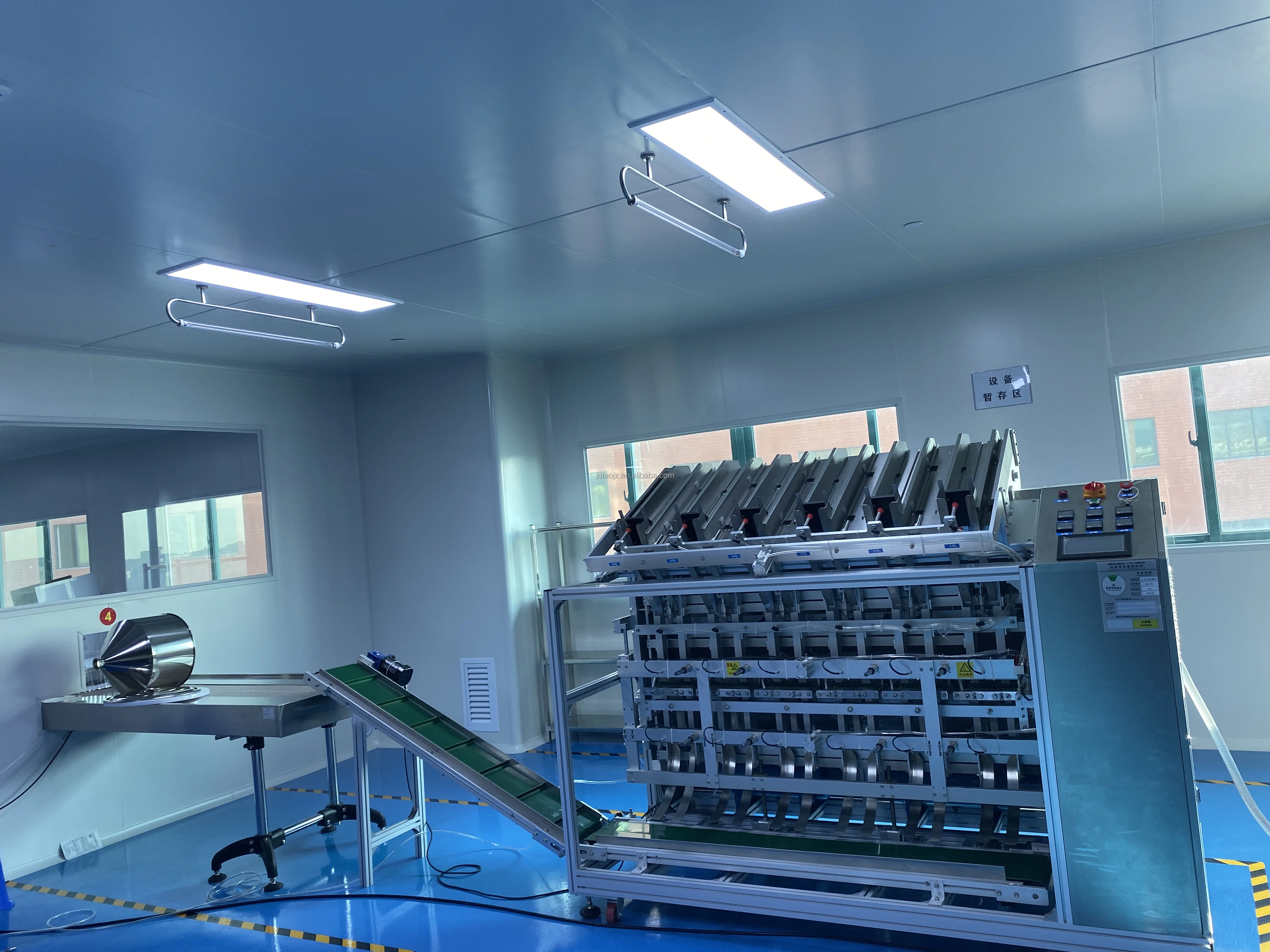

Our Factory
Founded in 1997, with 5 production lines and covering an area of 12,000 square meters, our factory has developed into a professional manufacturer of cosmetics machinery and equipment, by integrating R&D, manafacturing, sales and service. Advanced production equipments are the guarantee for high quality products.
Exhibition Center
Our product categories mainly include: Vacuum emulsifying mixer, Liquid washing mixer, Water treatment equipment, Perfume machine, Filling machine, Packing machine, Labeling machine etc. We are able to supply a wide range of high quality products for your One-stop sourcing in our exhibition center.

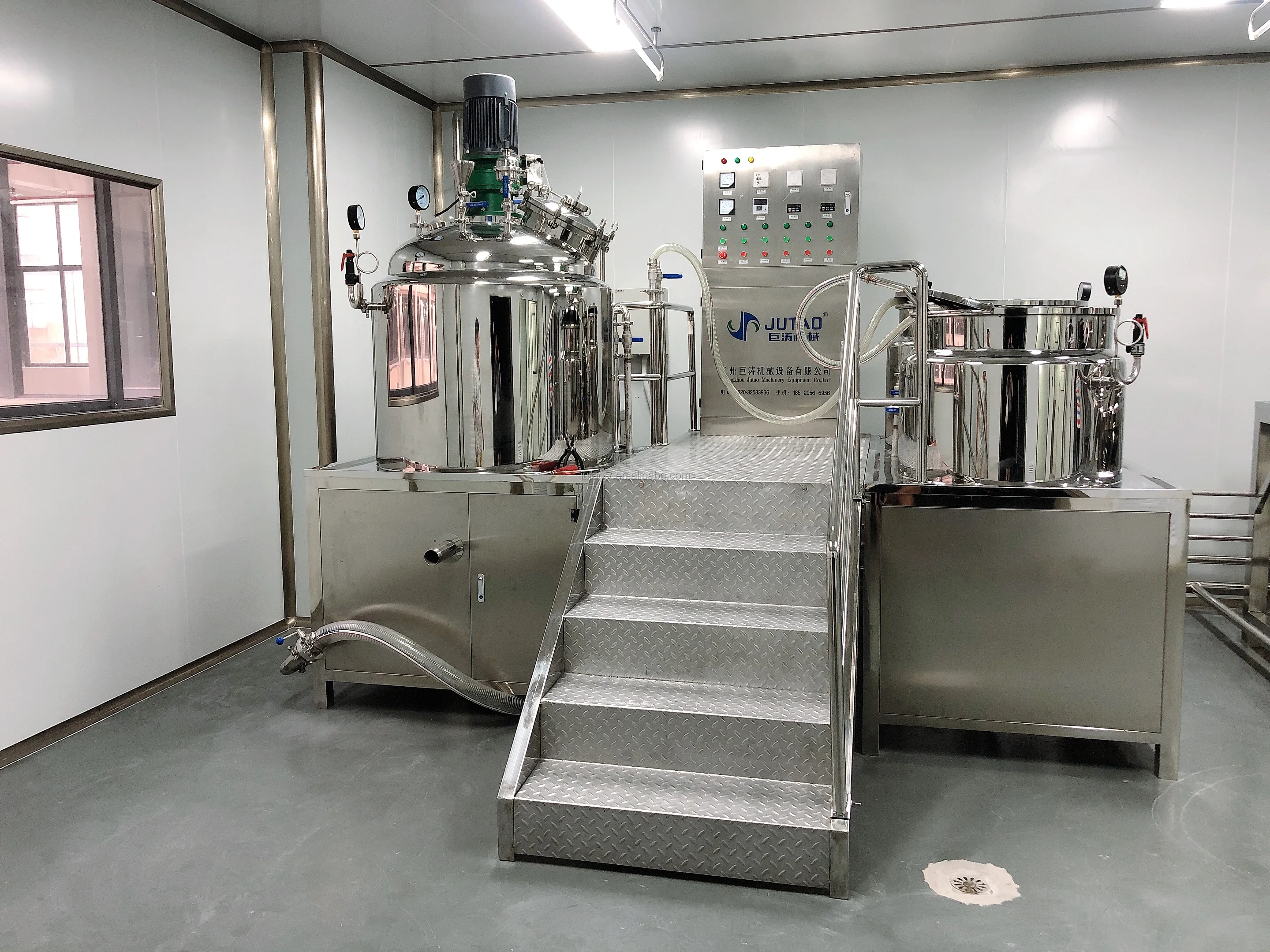

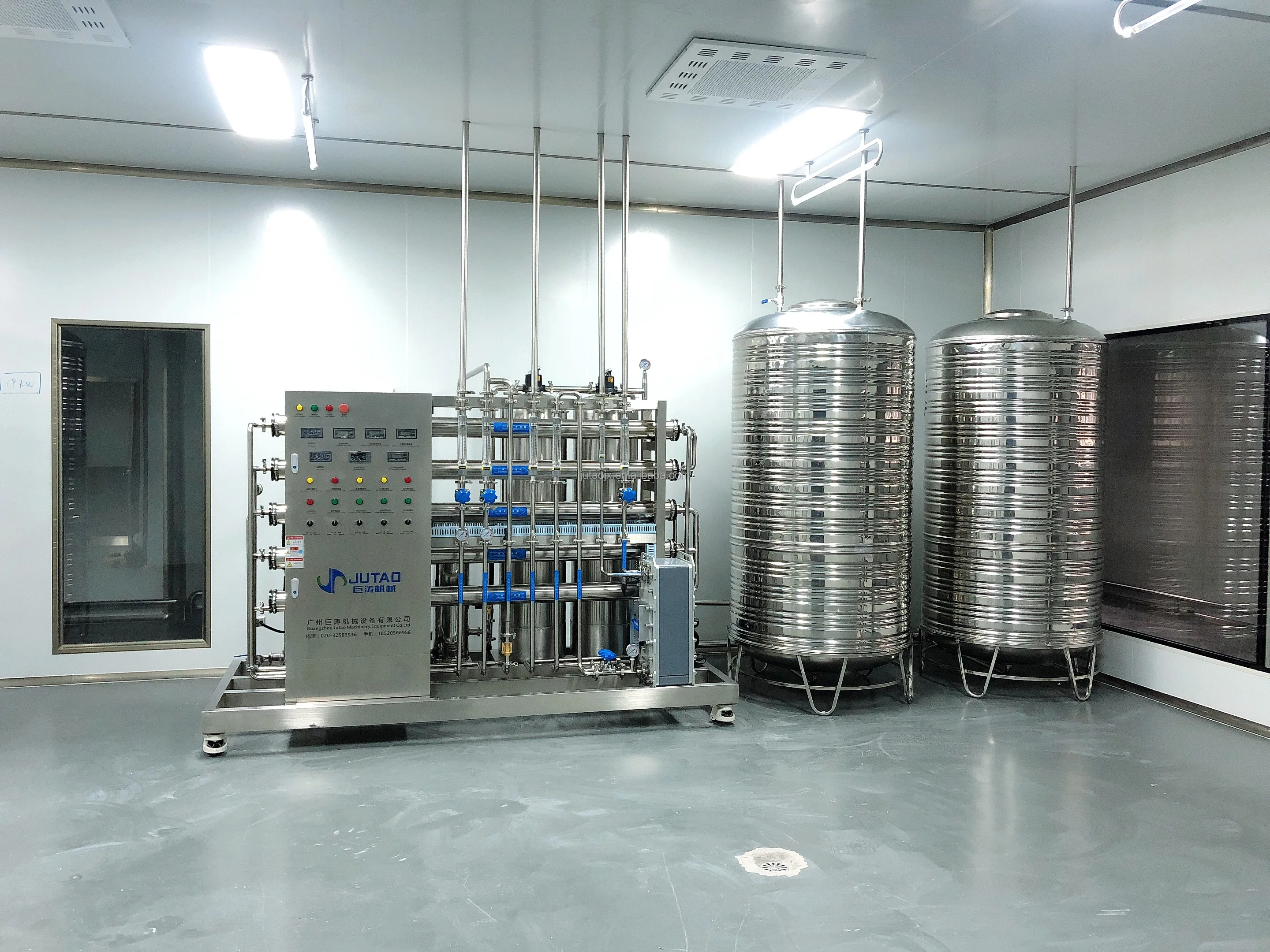

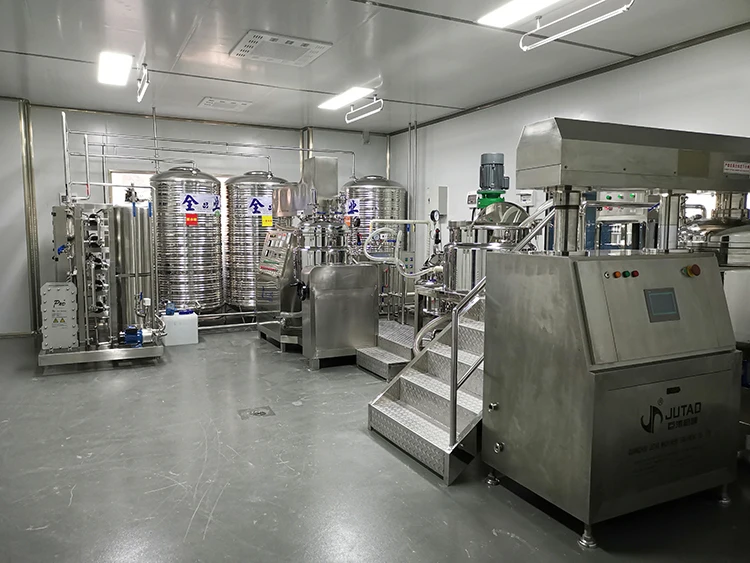

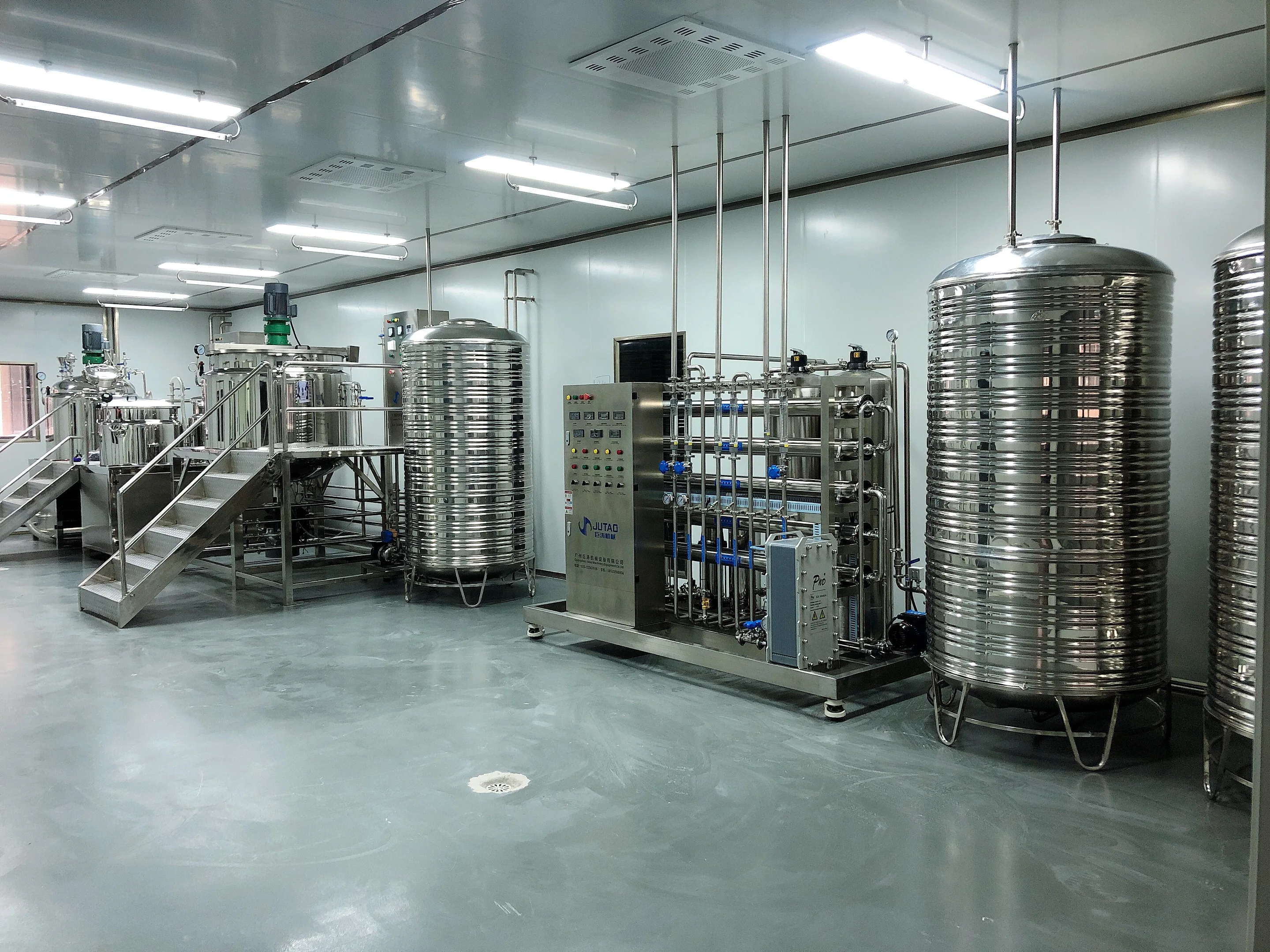

Project Case
We have exported our machine to lots of countries and have world-wide customers over 45 countries. We supply the whole production line, such as cream, ointment, liquid soap, shampoo, hand wash, lotion, detergent etc. And if you only need the single machine, we can also accept.
Certifications

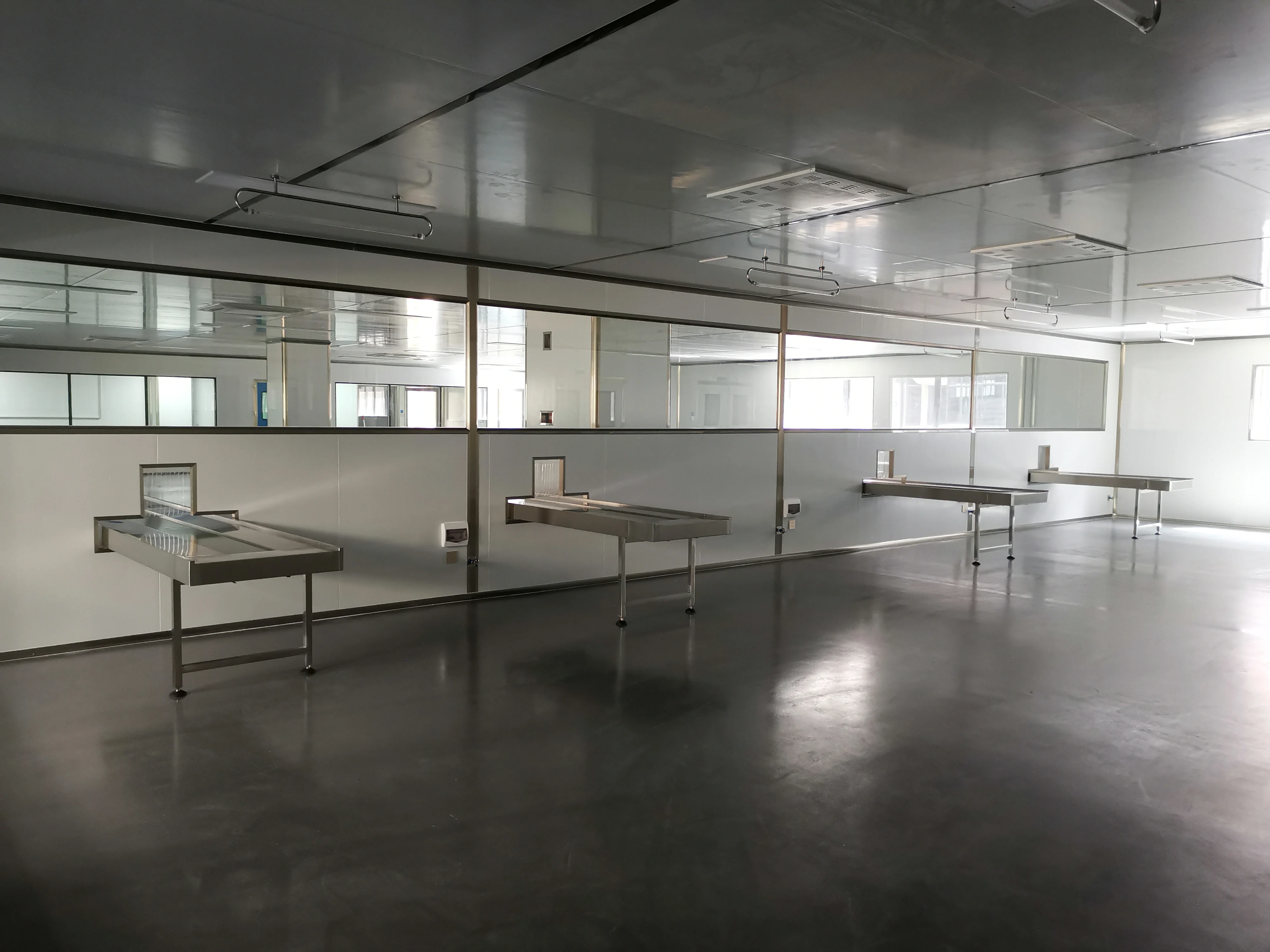

Customer Photos

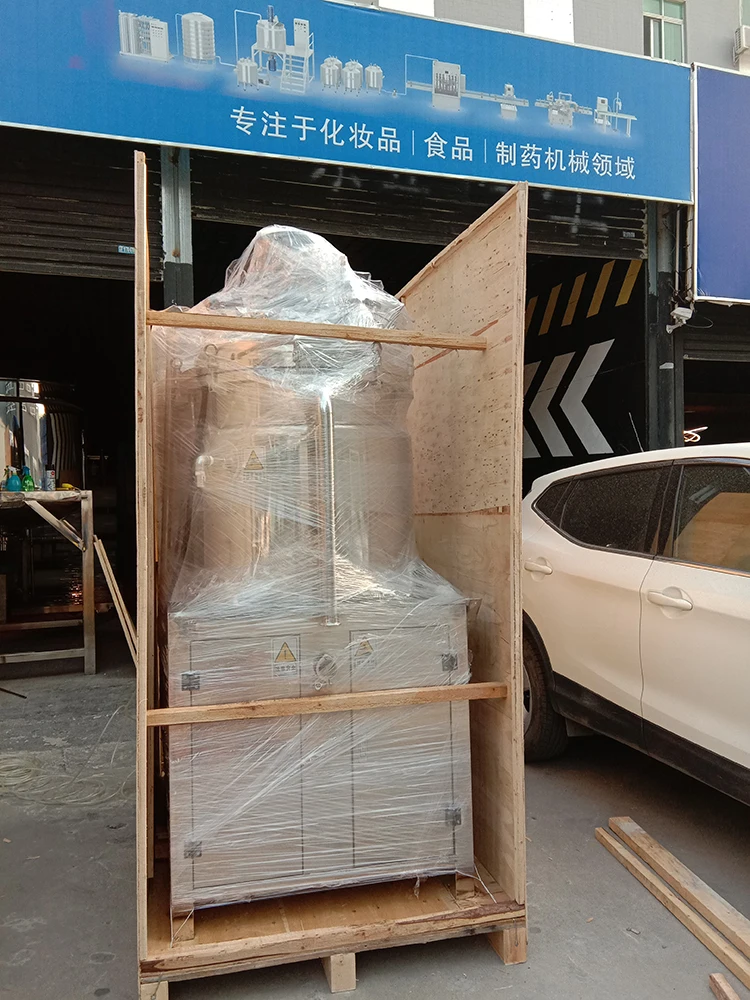

Product packaging
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory specialized in machinery over 17 years. We have skilled workers and rich experience to manufacturer machine.
2. Q: I want to set up a factory, but I am new in our industry, can you design the suitable project to me?
A: Yes, sure. You can tell me your detailed requirements for the machine and we can suggest the suitable machine to you.
3. Q: How does your factory do regarding quality control?
A: Don't worry! Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment. Also our machines meet the GMP standard.
4. Q: What’s the guarantee and the after service if we purchase from you?
A: All the equipment ordered from us will provide one year guarantee from the delivery date. During this period, If you have any question, feel free to contact us.
5. Q: Are your machines difficult to operate? How do you teach us to use the machine?
A: Our machines are easy to operate. We will send you detailed operation manual before delivery. Also we can shoot instruction video to introduce machines' functions and to teach you how to use them.
6. Q: Can you make the machine according to customers' request?
A::Sure. Most of our machines are customized design based on customer's requirements or situation.
2. Q: I want to set up a factory, but I am new in our industry, can you design the suitable project to me?
A: Yes, sure. You can tell me your detailed requirements for the machine and we can suggest the suitable machine to you.
3. Q: How does your factory do regarding quality control?
A: Don't worry! Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment. Also our machines meet the GMP standard.
4. Q: What’s the guarantee and the after service if we purchase from you?
A: All the equipment ordered from us will provide one year guarantee from the delivery date. During this period, If you have any question, feel free to contact us.
5. Q: Are your machines difficult to operate? How do you teach us to use the machine?
A: Our machines are easy to operate. We will send you detailed operation manual before delivery. Also we can shoot instruction video to introduce machines' functions and to teach you how to use them.
6. Q: Can you make the machine according to customers' request?
A::Sure. Most of our machines are customized design based on customer's requirements or situation.
