NDT Portable Digital A/B Scan YUSHI Ultrasonic Thickness Gauge UM-5DL with Coating mode

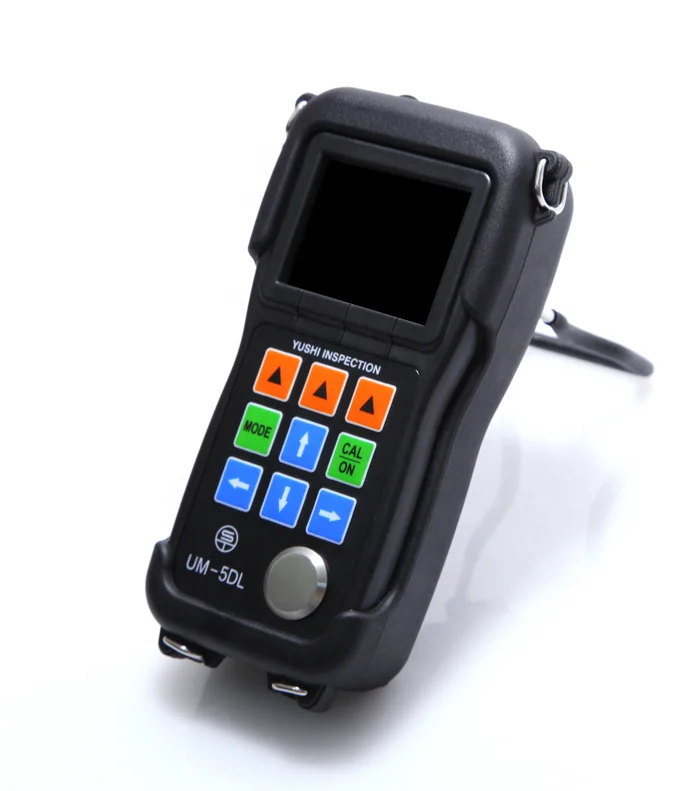

YUSHI UM-5DL Ultrasonic Thickness Gauge
UM-5 series ultrasonic thickness gauges are used for measuring Metal and Nonmetal materials i.e. Plastic, Steel, PVC, Glass Plates and Pipes. They can be widely used in the fields such as manufacturing and metal processing, etc. It can also make detection on various kinds of pipes and pressure vessels of the manufacturing facilities about their thickness lossing after corrosion.
Detailed Images

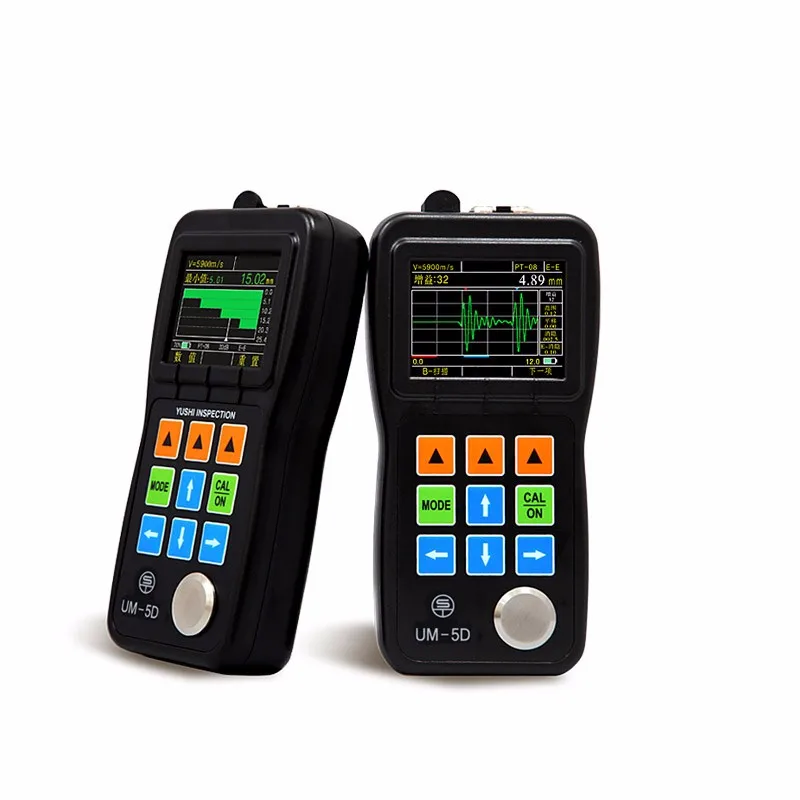

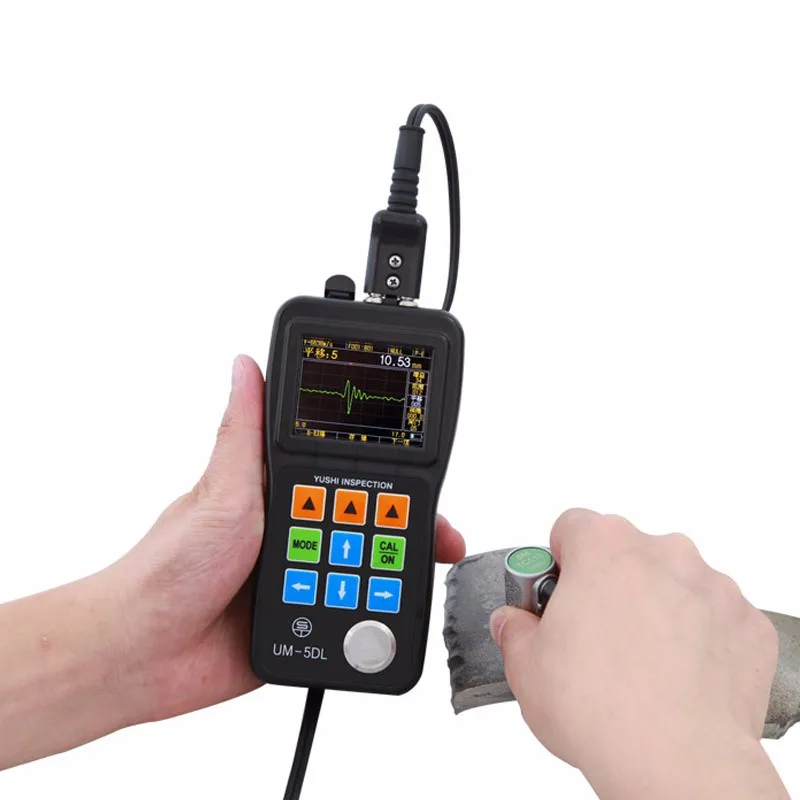

Time based A-Scan Thickness Gauge
YUSHI UM-5DL thickness meter directly see the color waveform of the ultrasonic sound on the screen, which is important for checking the correctness of the testing results.
Time based B-Scan Thickness Gauge
YUSHI UM-5DL thickness gauge move the probe along the workpiece surface, then the cross -sectional profile of the workpiece display, use for observe the underside contour of the workpiece.
Any point thickness value of the B-scan image can be seen by moving the pointer.

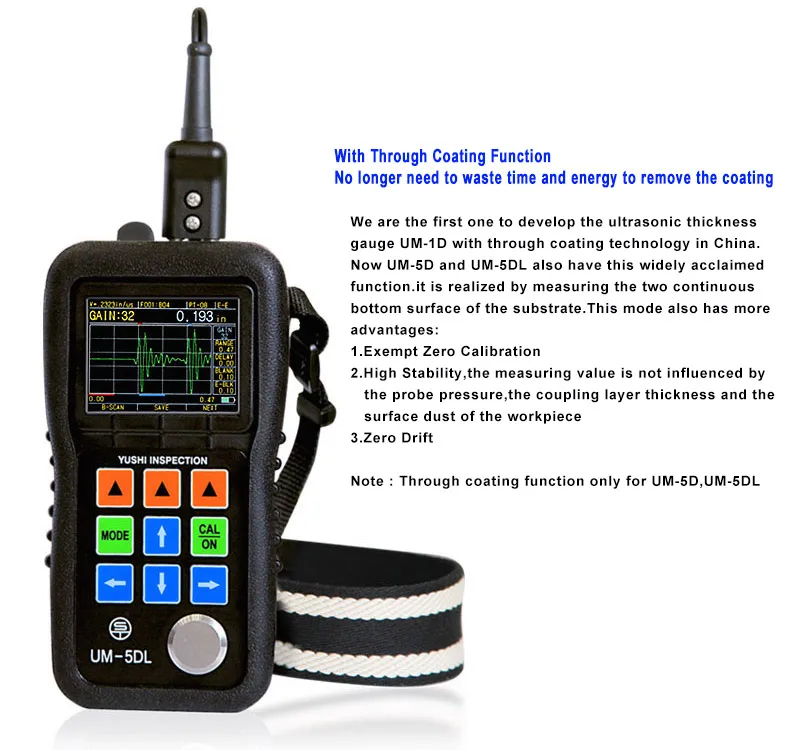

With Through Coating Function
No longer need to remove the coating to test the thickness of the basic substrate material
UM-5 Series A B Scan Ultrasonic Thickness Gauges is used for measuring the thickness of metal materials, pipes, pressure vessels,sheet metals (steel, aluminum), plastic, steel pipes, PVC pipes, glass and other materials. Also be widely used in manufacturing,metal processing industry, chemical industry, industry inspection and testing field.
YUSHI UM-5DL UT Thickness Tester 2.4 Color OLED, 320×240 Pixels Display, Live Time A-Scan and Thickness Display, Time-based B-Scan Display, Echo-Echo Mode ( Thru Paint & Coatings ), Stores 100,000 Measurement Values and 1000 waveforms, etc.

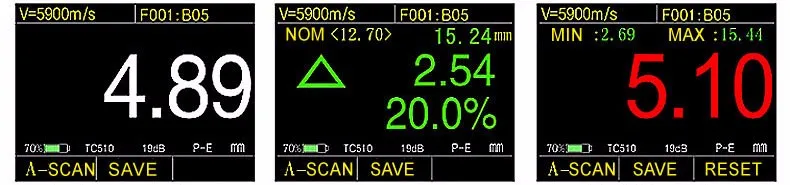

White means good coupling
DIFF/RR% MODE
MIN/MAN Capture Mode
Red color means alarming

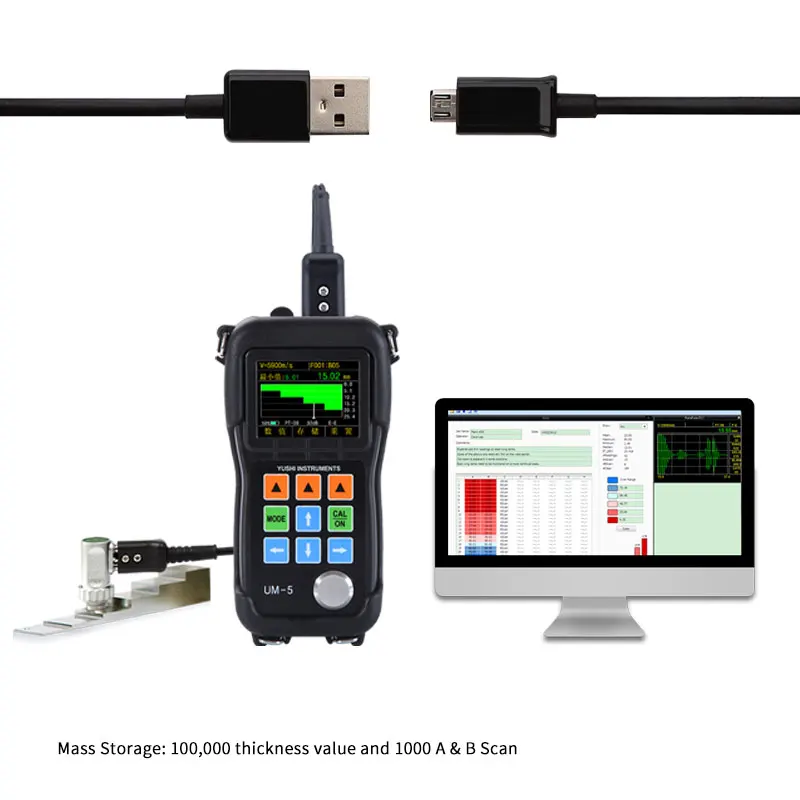

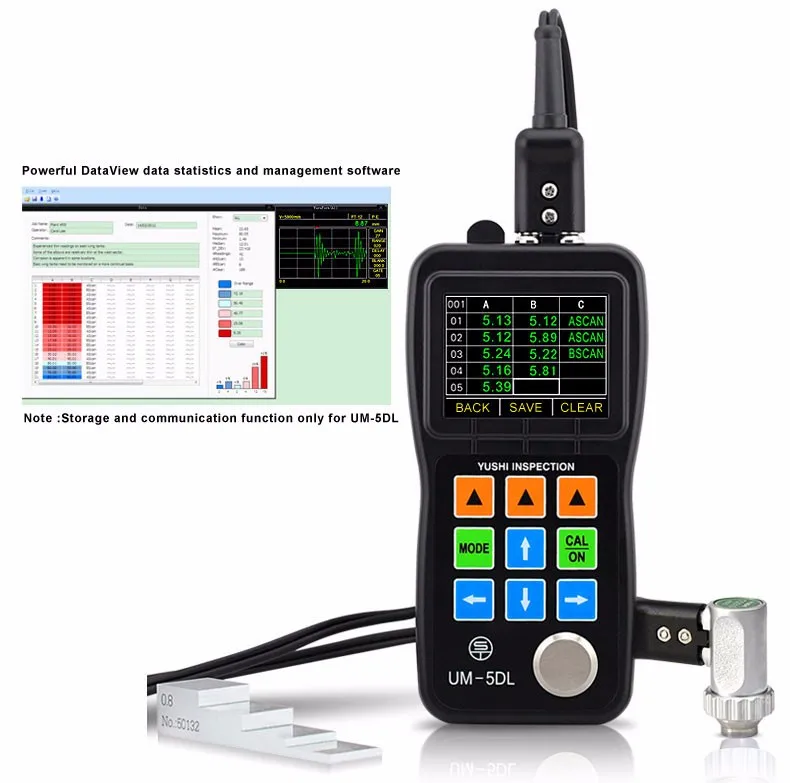

YUSHI UM-5DL thickness tester Larger and More convenient storage capacity
YUSHI Ultrasonic gauge meter um-5dl can save 100000 group thickness values and one thousand A/B-scan waveforms.

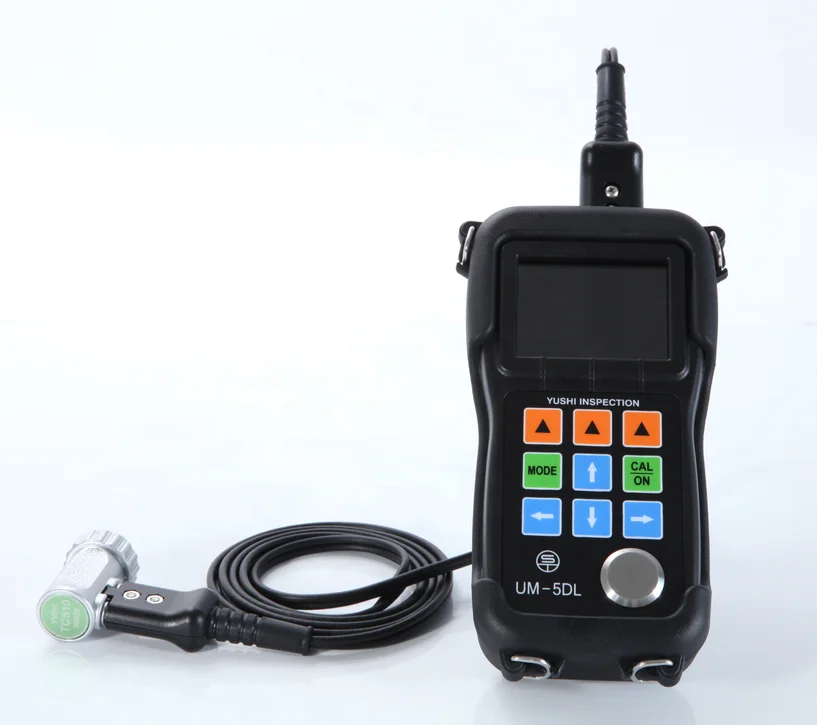

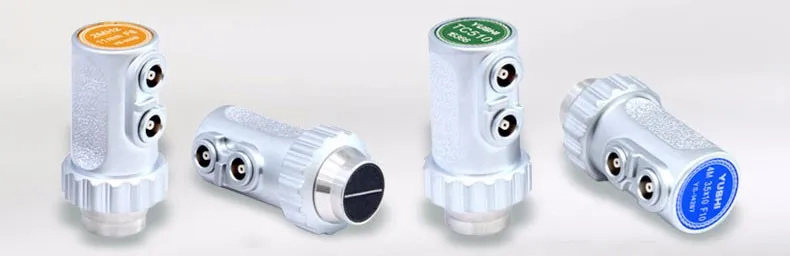

Stardand probe is TC510 dual element striaght probe with dual plug lemo00 cable, more ultrasonic thickness probes optional
YUSHI UM-5DL Thickness Gauge SPECIFICATION
Display Type | 2.4'' TFT color |
Operating Principle | Pulse echo with dual elemet transducers |
Measuring Range | 0.50mm to 508mm(0.02'' to 20.00''), depending on material, probe and surface condition |
Measuring Resolution | Selectable 0.01mm, 0.1mm(selectable 0.001'', 0.01'') |
Units | Inch or Millimeter |
Rectify Mode | RF+, RF-, HALF+, HALF-, FULL |
Display Mode | Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan |
V-Path Correction | Automatic |
Update Rate | Selectable 4Hz, 8Hz, 16Hz |
Material Velocity Range | 500 to 9999m/s(0.0197 to 0.3939 in/μs) |
Languages | English, French, German, etc. |
Alarm Settings | Minimum and Maximum alarms. Range of 0.25mm to 508 mm(0.010'' to 20.00''). Dynamic waveform color change on alarm |
Power Requirements | 2 AA size batteries |
Operating Time | Approximately 40 hours |
Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity |
Operating Temperature | -10℃ to +50℃(+10°F to +12°F ) |
Size | 153mm × 76mm × 37mm (H × W × D) |
Weight | 280g including batteries |

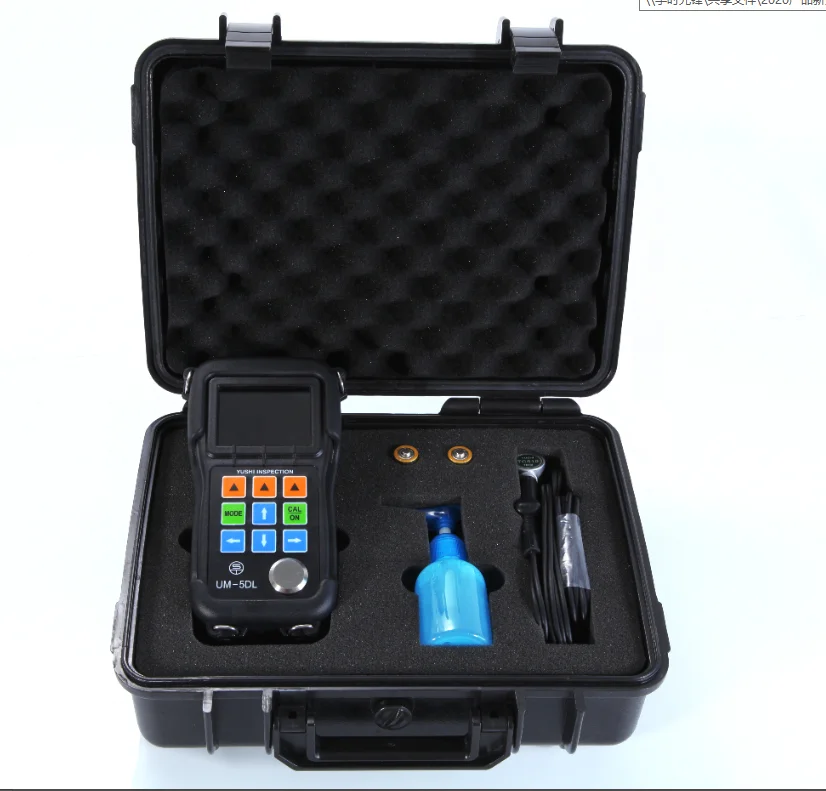

Packing & Delivery
Ultrasonic Thickness Gauge UM-5DL | 1 |
Standard YUSHI TC510 Probe | 1 |
Standard LEMO00 Dual Plug Cable | 1 |
Rubber Sheath | 1 |
Couplant Bottle | 1 |
Instruments Case | 1 |
Operating Manual | 1 |
Certification | 1 |
Packing List | 1 |
YUSHI Portable Digital ultrasonic thickness gauge um-5dl , standard configuration with TC-510 Probe and dual plug lemo00 cable and the CD Software. Will deliver by the International Express in 3 days.
Without the couplant and batteries, thanks
