Product Overview
Description

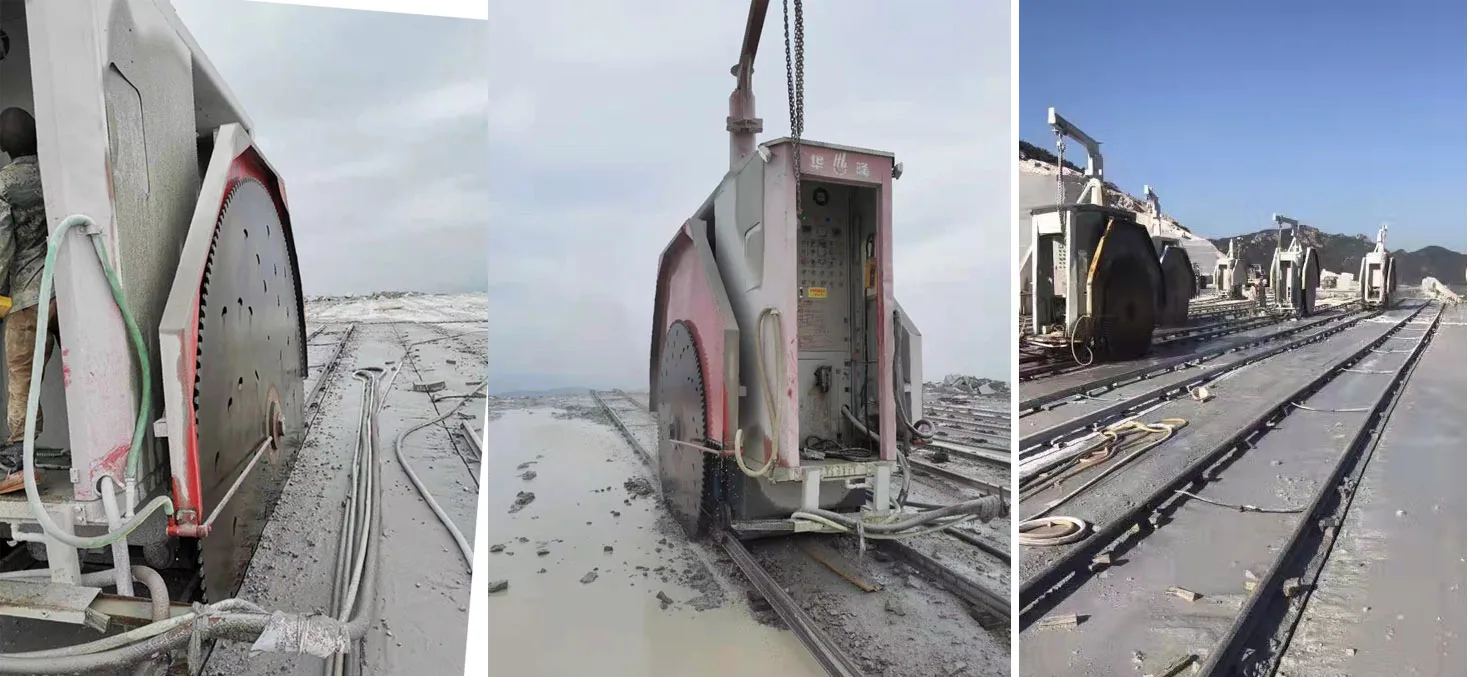

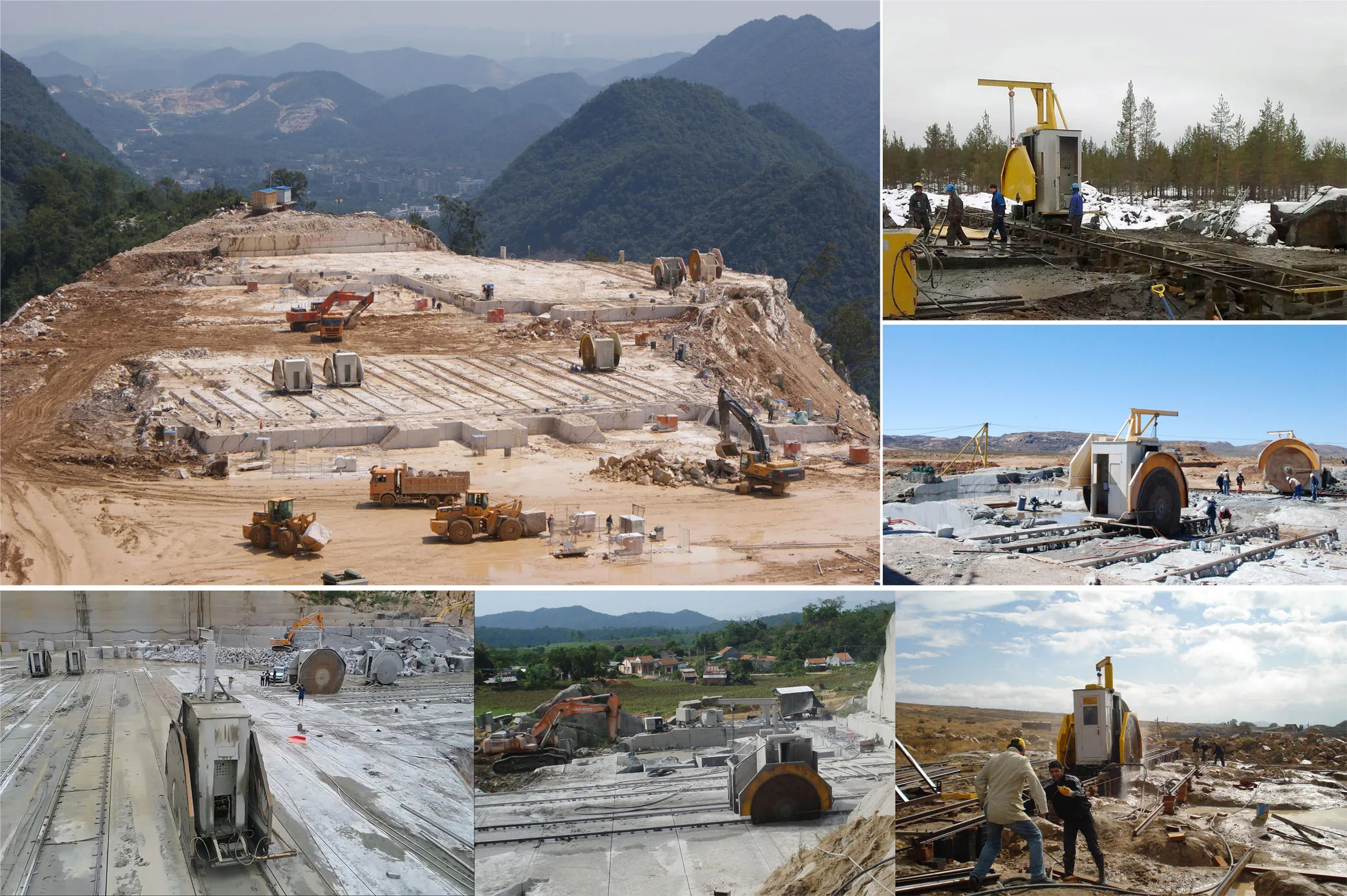

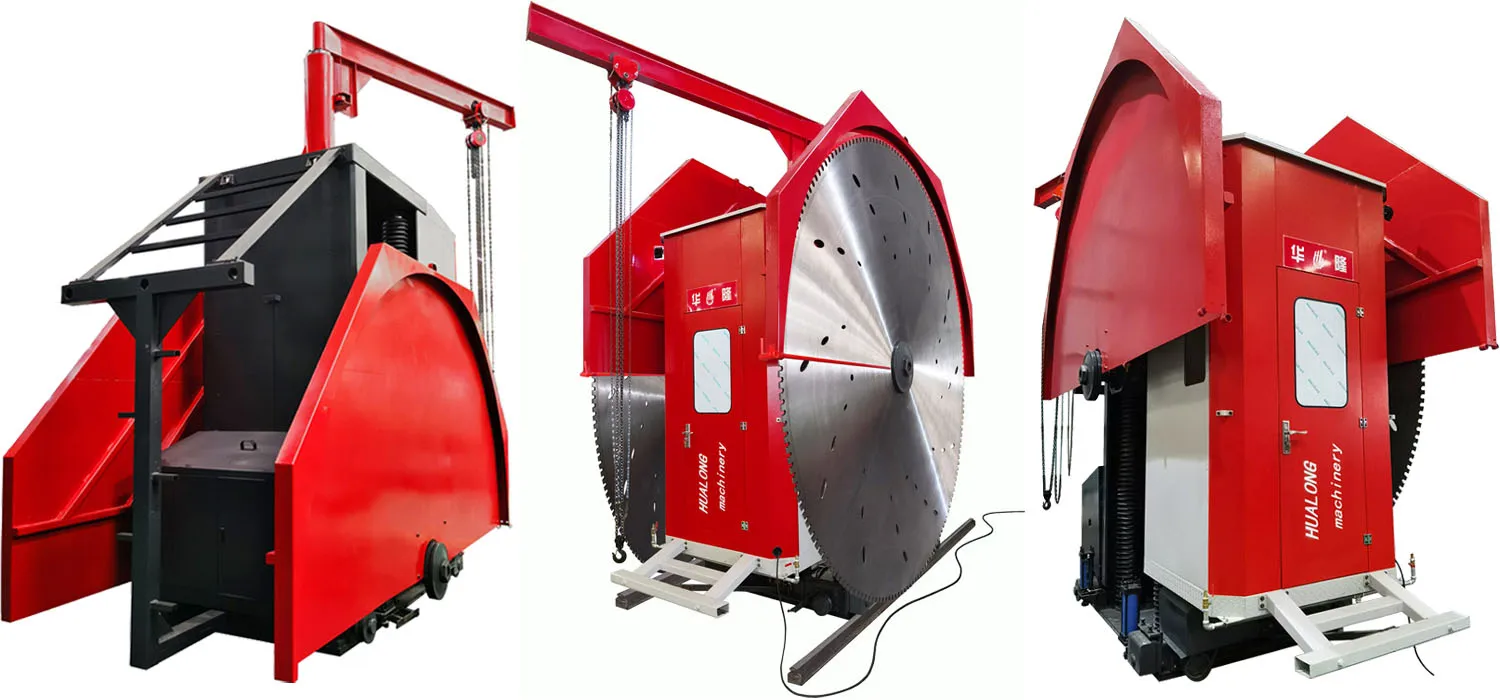

2QYK series Double Blade Stone Mining Machine is a new stone quarry machine other than wire saw, which was original created by Hualong Machinery with patents in 2002 , which working on railway, mining stone with double big blades, improve much the mining efficeincy while lower consumption. It's popular in China and more and used more worldwide in quarry for mining granite, also good for marble, quartz and other natural stone.
Thechincal Data | ||||||||||
Model No. | 2QYK-4600A | 2QYK-4600B | 2QYK-4600C | 2QYK-4600D | ||||||
Diameter of Blade | mm | 4600 | ||||||||
Cutting Depth | mm | 2050 | 1250 | 1250 | 1250 | |||||
Cutting Width | mm | 2000-2500 | 2400-2900 | 2800-3300 | 3200-3700 | |||||
Power of main motor | kw | 65x2 | 55x2 | 55x2 | 55x2 | |||||
Power of pump motor | kw | 4 | 3.5 | 3.5 | 3.5 | |||||
Power of stroke motor | kw | 3.5 | 2.2 | 2.2 | 2.2 | |||||
Power of rail switch motor | kw | 1.1x2 | 0.75x2 | 0.75x2 | 0.75x2 | |||||
Gross Power | kw | 139.7 | 117.2 | 117.2 | 117.2 | |||||
Dimensions (L x W x H) | mm | 5100x2800x3800 | ||||||||
More models | Diameter of Blade | Diameter of Blade | Cutting Depth | Gross Power | ||||||
2QYK-3000 | 2200mm | 950mm | 80.2kw | |||||||
2QYK-3000 | 3000mm | 1250mm | 116.8kw | |||||||
2QYK-3300 | 3300mm | 3300mm | 1400mm | 117.2kw | ||||||
2QYK-3600 | 3600mm | 3600mm | 1500mm | 117.2kw | ||||||
2QYK-4200 | 4200mm | 4200mm | 1850mm | 139.2kw | ||||||
2QYK-4800 | 4800mm | 4800mm | 2150mm | 140.2kw | ||||||
2QYK-5000 | 5000mm | 5000mm | 2250mm | 140.2kw | ||||||
Why choose Hualong double blade stone quarry machinery？
* High speed --- It can cut est. 15 sqm/hour, while the wire saw cuts about 10 sqm/hour.
* Low consumption --- It cost about USD1.00/sqm, while the wire saw cost USD1.5-2.3/sqm.
* Quality Assurance
--- Made with 25 years+ expertise and patents.
--- Strictly conforming to ISO9001:2105 quality management system.
* On-purchase Service
--- Many machines available for choice.
--- Customization available
--- Experienced techs for all your questions.
* After-sale Service
--- Parts & Accessories Quick supply for needs
--- Troubleshooting by phone, e-mail, or WhatsApp/Wechat
--- Installation and operation training for any machine
--- Qualified and experienced technicians available to overseas
* Quality Assurance
--- Made with 25 years+ expertise and patents.
--- Strictly conforming to ISO9001:2105 quality management system.
* On-purchase Service
--- Many machines available for choice.
--- Customization available
--- Experienced techs for all your questions.
* After-sale Service
--- Parts & Accessories Quick supply for needs
--- Troubleshooting by phone, e-mail, or WhatsApp/Wechat
--- Installation and operation training for any machine
--- Qualified and experienced technicians available to overseas

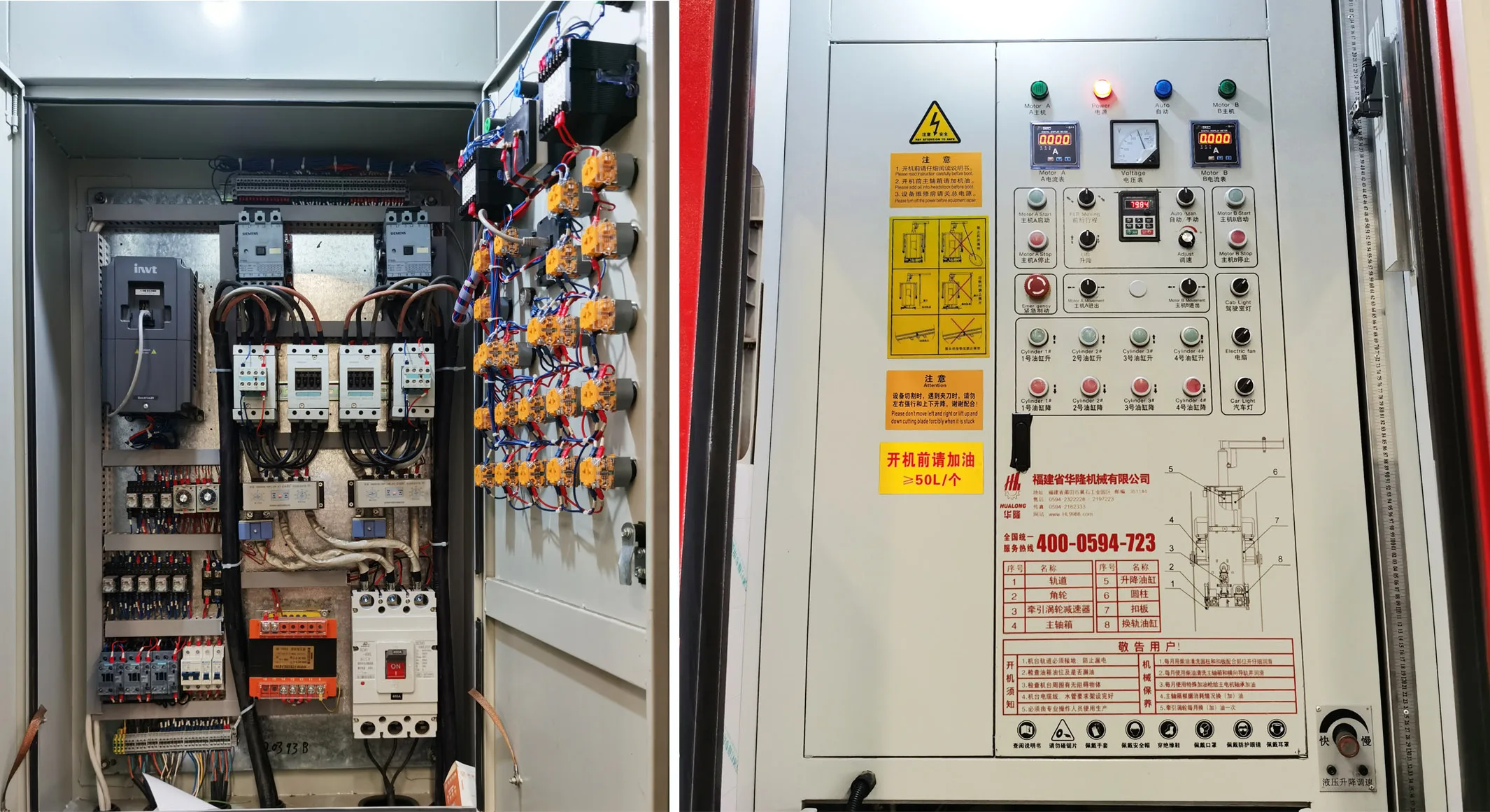

Power Connection & Operation Panel
Brand: Siemens, Schneider, Sinee, C-Lin..l
Original: China
Branded electric companents used for stable performacne.

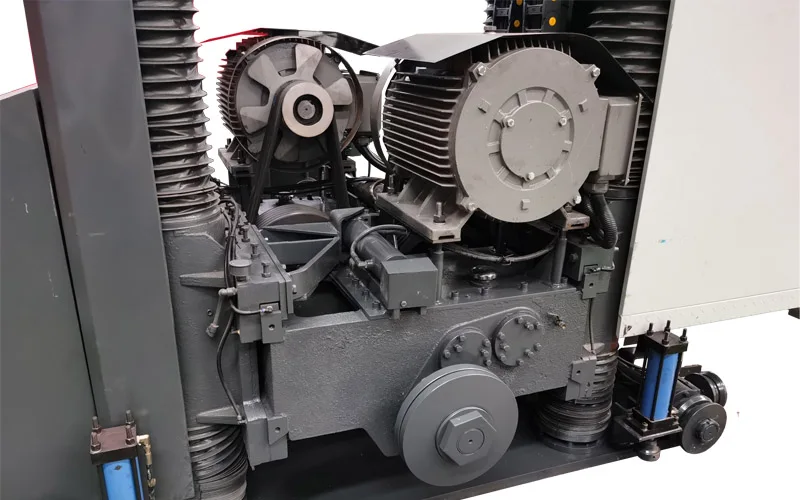

Main Motor
Name: Three-phase asymchronous motor
Brand: XDDJ
Efficiencty: 93.1%
Original: China
Domestic famous engines, strong driving force, good efficiency, high economic benefits.

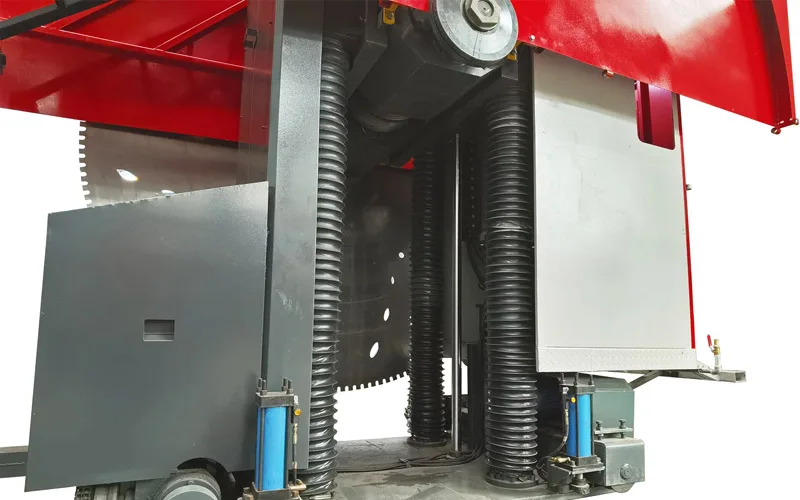

Hosit System
Adopts four strong steel cylinders as guide rail and hydraulic power for main spindle's up and down. So small gap, less wear and no viration.
The cylinder guide rails are fully enclosed and protected, equipped with automatic lubrication system, which has the advantages of simple maintenance, low cost and long life, and greatly improves the mining efficiency.

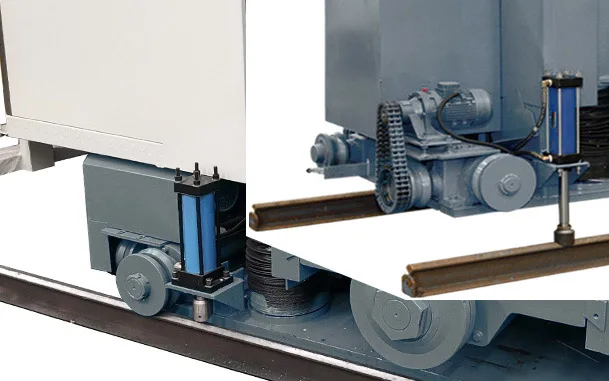

Railway Switch System
1) Four hydrocylinders jack the machine.
2) Put two rails cross on eht working rails and aim at thecorss wheels of the machine.
3) Come down the machine on the cross rail, go to the side/next working rail.

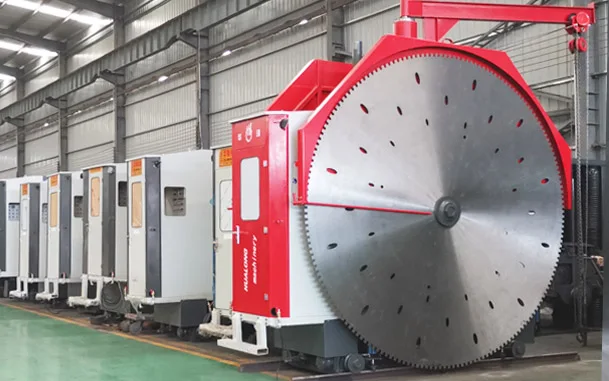

Advantage of Blade with cut hole design
1) Reduce dead weight, reduce load, reduce power loss by about 30%.
2) Both convenientwith cooling water into the joint, enhance the cooling effect of the saw blade deformation, and better will be the joint sand discharge, but also can release the stress generated in the use, more resistant to deformation, longer life.
Q: What the max. Thickness can 2QYK-3000 machine cut the stone at quarry?
A: 3000(diameter of blade)/2 -2500mm(deductive parameter) = 1250mm
A: 3000(diameter of blade)/2 -2500mm(deductive parameter) = 1250mm
Q: How thickness can the double blade machine cut per trip?
A: 150-200-250mm according to the hardness of the stone cutted.
Q: How fast can 2QYK-3600 double blade machine cut along with the rail?
A: 200m per day for marble, 150m per day for granite, based on cutting 20 hours per day.
Q: How wideth can the double bale machine cut?
A: The double blade can stretch out and cut 1360-3200mm wide depanded on different types.
Q: How many stone can be mined by one double blade machine per month?
A: About 4500-5000 gross cbm per machine if work 15-20 days day and night.
Q: We have a stone quarry. How many double blade machines are needed for our mining.
A: One machine per 3000 sqm working area is suggested to equip.
Q: How long rails should be equipped for the double balde machine?
A: 300 meter rails for one machine.
Q: How many blades should be equipped for the double blade machine?
A: Two sets for one machine, or Three sets for two machine.
Q: How many pieces of blade per set?
A: 4 pieces, including double small blades of 2200-2400 mm diameter for initial cutting and taking track shape, and double big blades for further deeper cutting.
Q: How long can a blade work without changing the diamond segments (blade tips)?
A: For cutting granite at 1500mm depth, the blade should be changed after the machine walking about 400 meters. For cutting marble, should be changed after walking about 1000-2000 meters.
A: 150-200-250mm according to the hardness of the stone cutted.
Q: How fast can 2QYK-3600 double blade machine cut along with the rail?
A: 200m per day for marble, 150m per day for granite, based on cutting 20 hours per day.
Q: How wideth can the double bale machine cut?
A: The double blade can stretch out and cut 1360-3200mm wide depanded on different types.
Q: How many stone can be mined by one double blade machine per month?
A: About 4500-5000 gross cbm per machine if work 15-20 days day and night.
Q: We have a stone quarry. How many double blade machines are needed for our mining.
A: One machine per 3000 sqm working area is suggested to equip.
Q: How long rails should be equipped for the double balde machine?
A: 300 meter rails for one machine.
Q: How many blades should be equipped for the double blade machine?
A: Two sets for one machine, or Three sets for two machine.
Q: How many pieces of blade per set?
A: 4 pieces, including double small blades of 2200-2400 mm diameter for initial cutting and taking track shape, and double big blades for further deeper cutting.
Q: How long can a blade work without changing the diamond segments (blade tips)?
A: For cutting granite at 1500mm depth, the blade should be changed after the machine walking about 400 meters. For cutting marble, should be changed after walking about 1000-2000 meters.
Pre-sale Service
* Inquiry and consulting support.
* Configure best machine line according customer condition
* View our Factory.
* Configure best machine line according customer condition
* View our Factory.
After-sale Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
