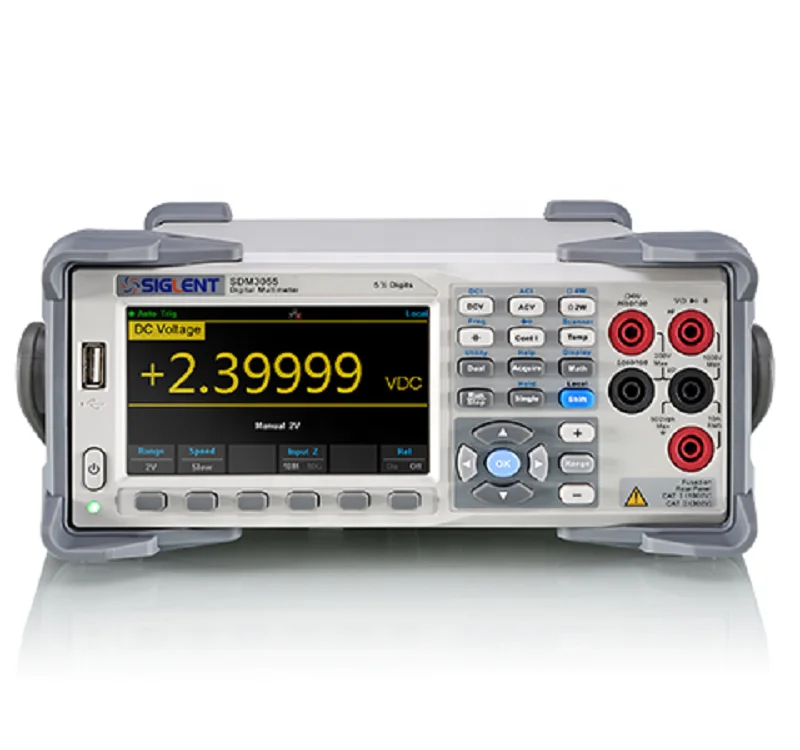

Product Overview
The SDM3055/SDM3055-SC is a digital multimeter designed with 5 ½
digits readings resolution and dual-display, especially fitting to the needs
of high-precision, multifunction and automatic measurement.
User-Friendly Design
• 4.3” TFT-LCD, 480*272 display
• Supports dual-display, Chinese and English Menu
• Built-in front panel accessible help system
• File management ( support for U-disc and local storage )

Math Function

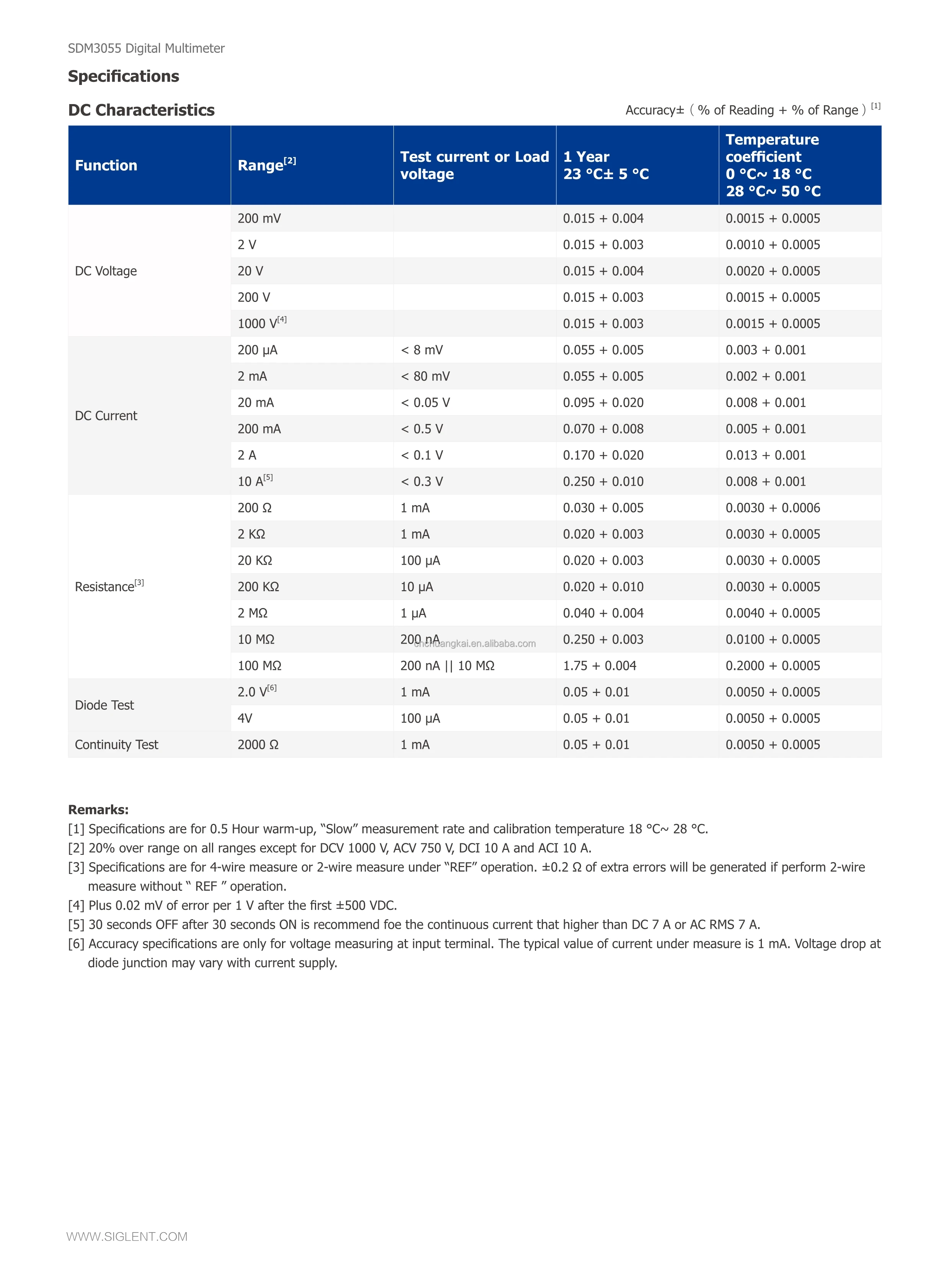

Basic Measurement Function

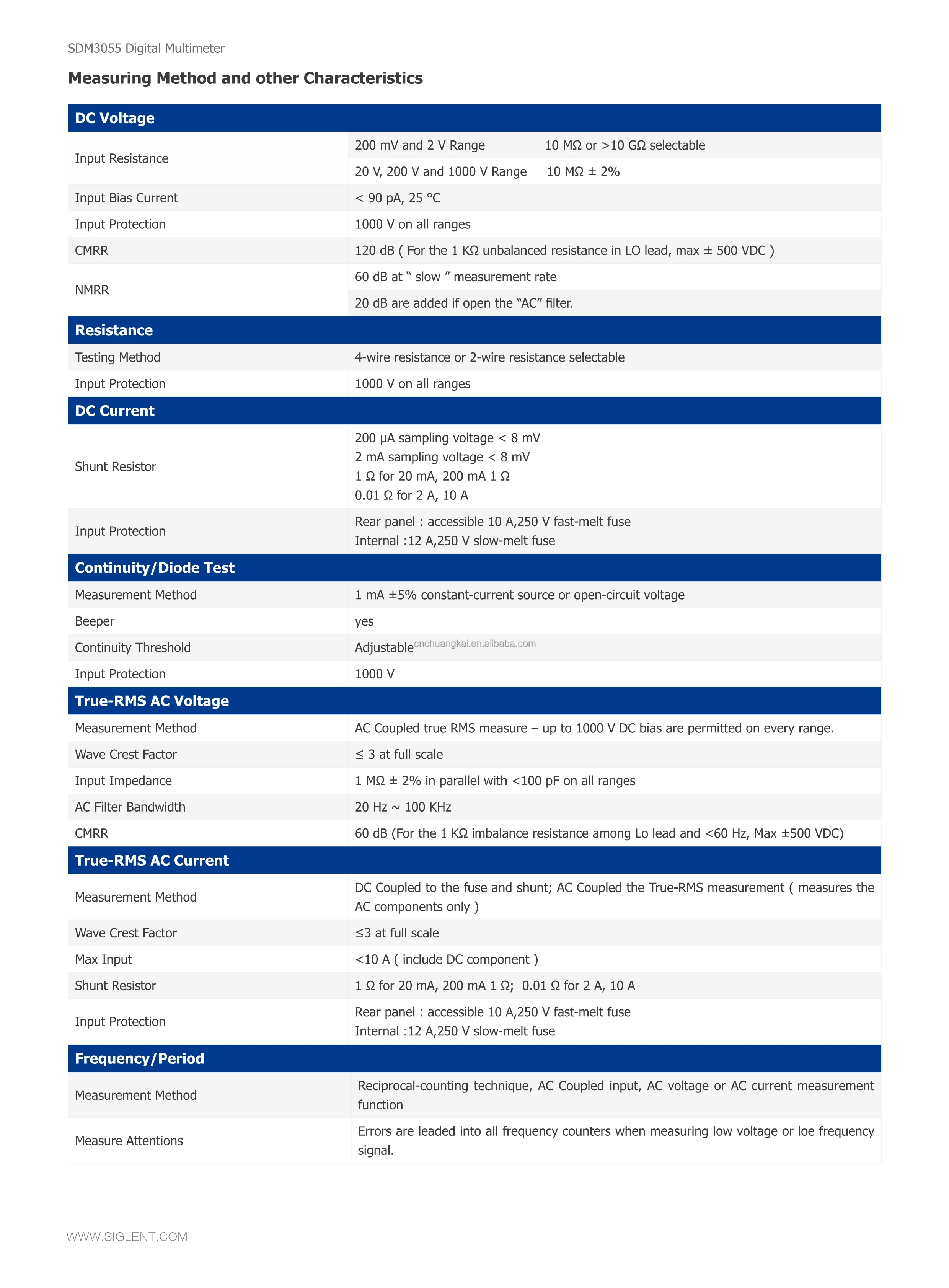

• DC Voltage: 200 mV - 1000 V
• DC Current: 200 μA - 10 A

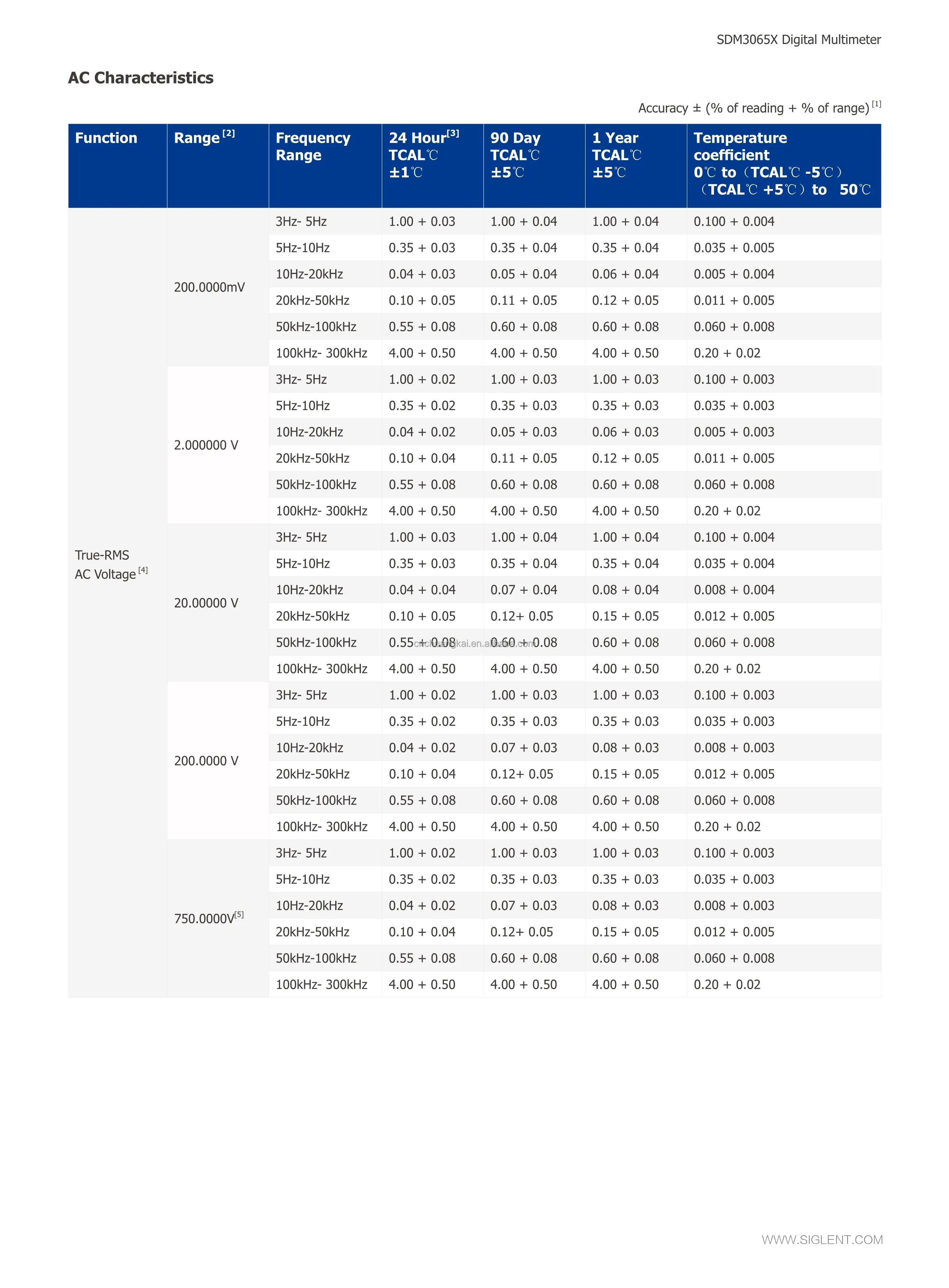

• AC Voltage: True-RMS, 200 mV - 750 V

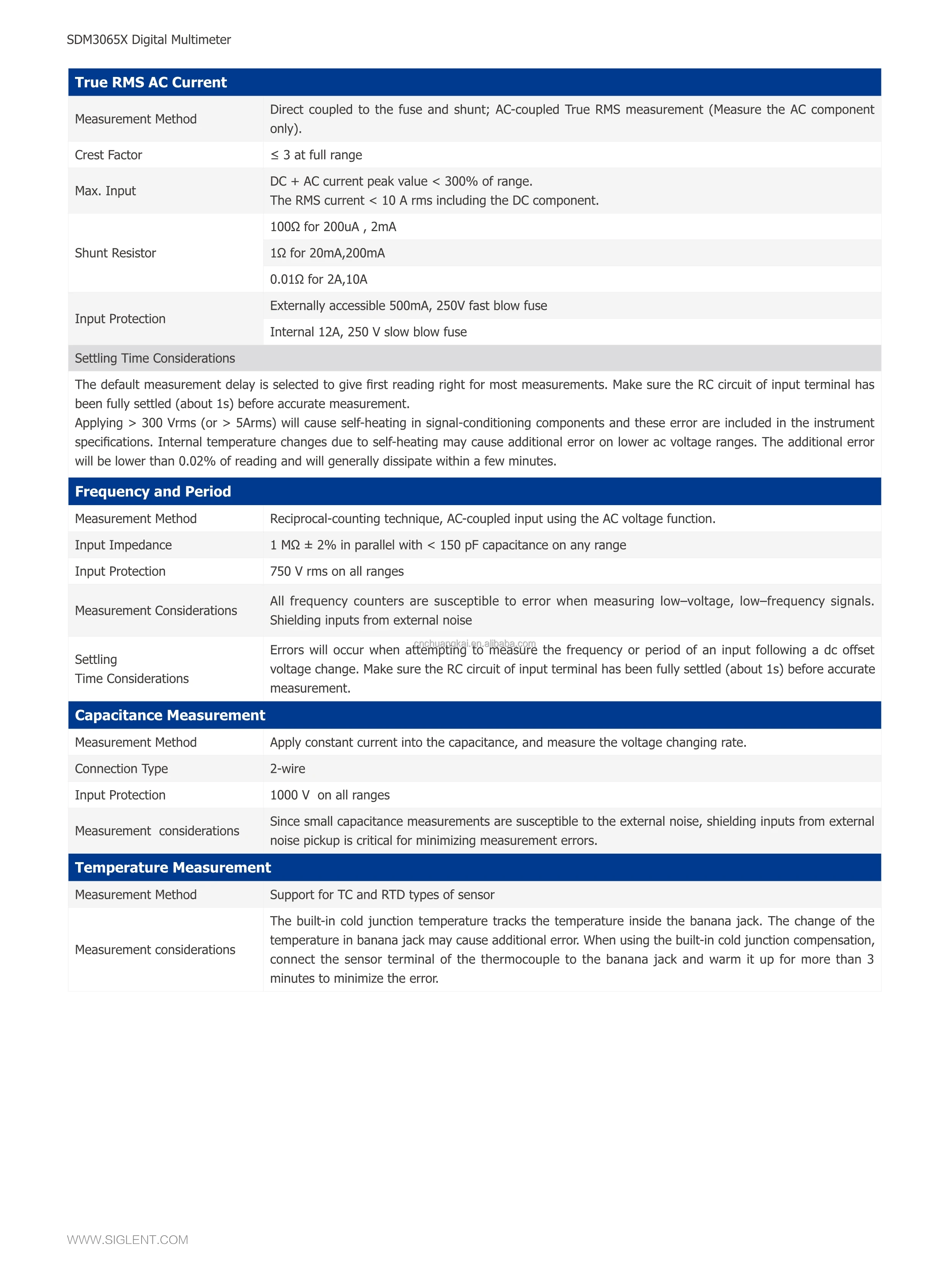

• AC Current: True-RMS, 20 mA - 10 A
• 2/4-Wire Resistance: 200 Ω - 100 MΩ
• Capacitance: 2 nF - 10000 μF
• Continuity Test: Range is fixed at 2 kΩ
• Diode Test: Adjustable range is 0 - 4V

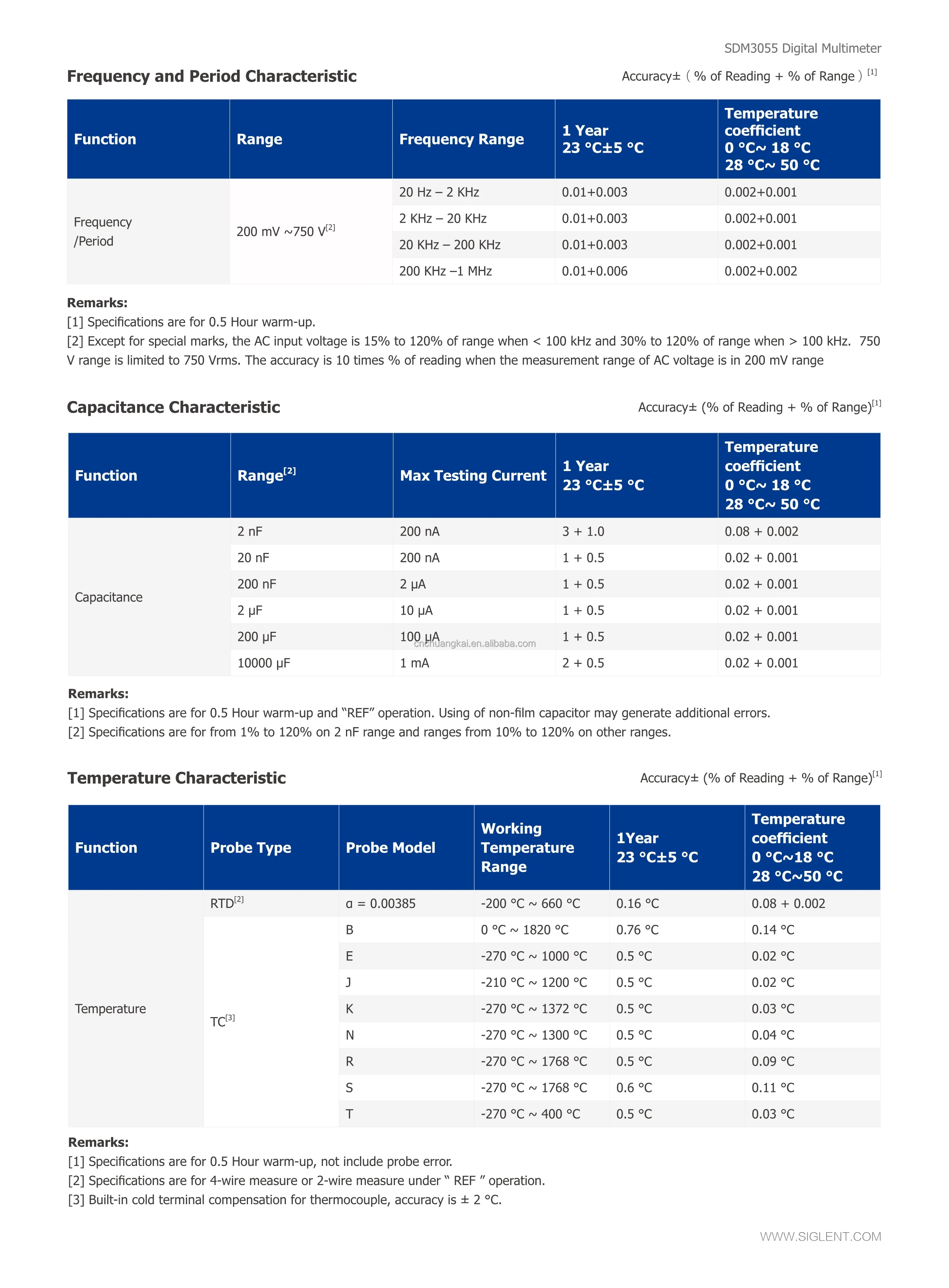

• Frequency Measurement: 20 Hz - 1 MHz
• Period Measurement: 1 μs - 0.05 s
• Temperature: Support for TC and RTD sensor
Math Function

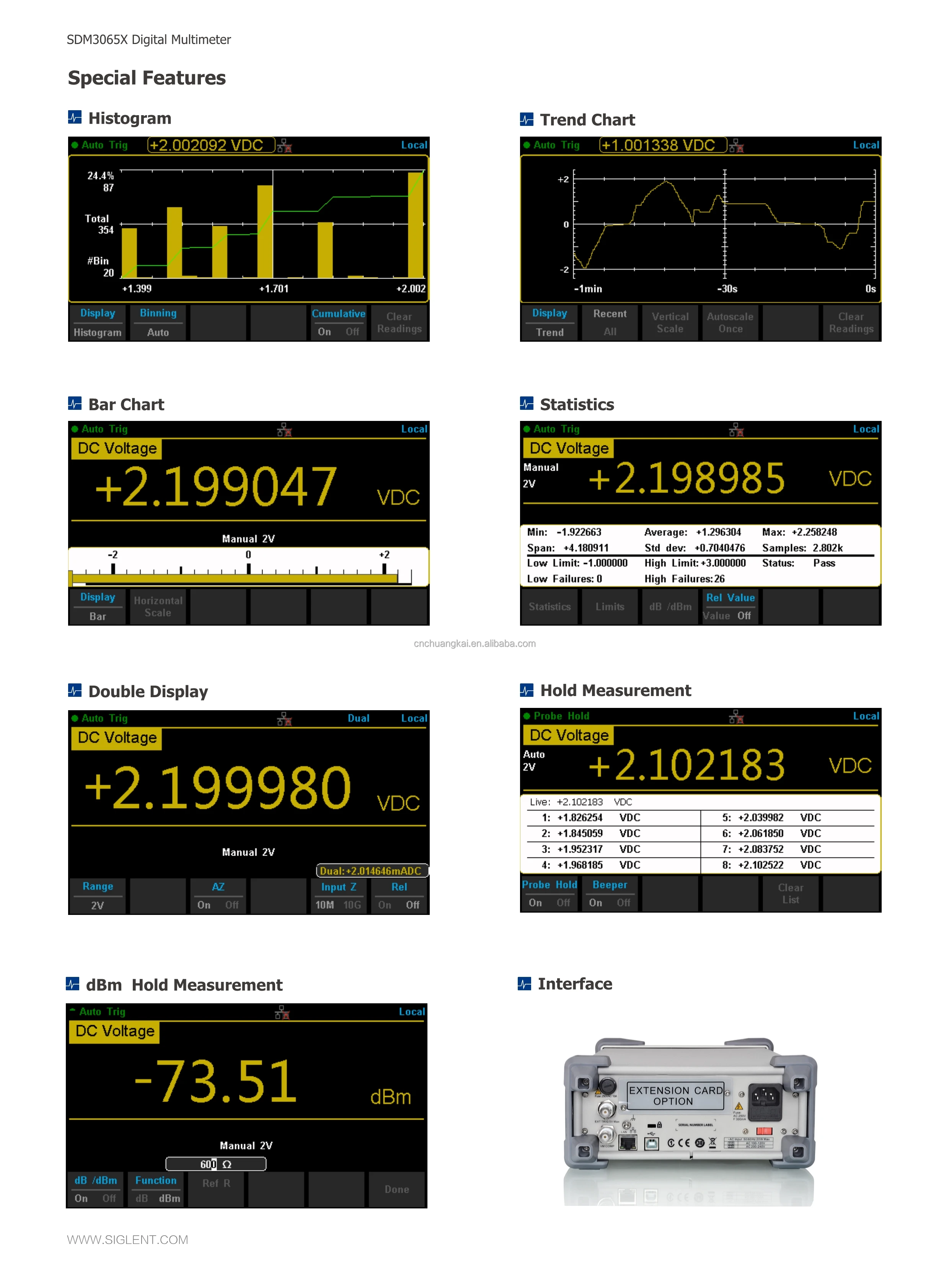

• Max, Min, Average, Standard Deviation,
dBm/dB,Relative Measurement, Pass/Fail Histogram, TrendChat
Main Features
• Real 5½ digits readings resolution ( 240, 000 counts )
• Up to 150 rdgs/s measurement speed
• True-RMS AC Voltage and AC Current measuring
• 1 Gb Nand flash size, Mass storage configuration files and data
files
• Built-in cold terminal compensation for thermocouple
temperature measurements
• With easy, convenient and flexible PC software: EasyDMM

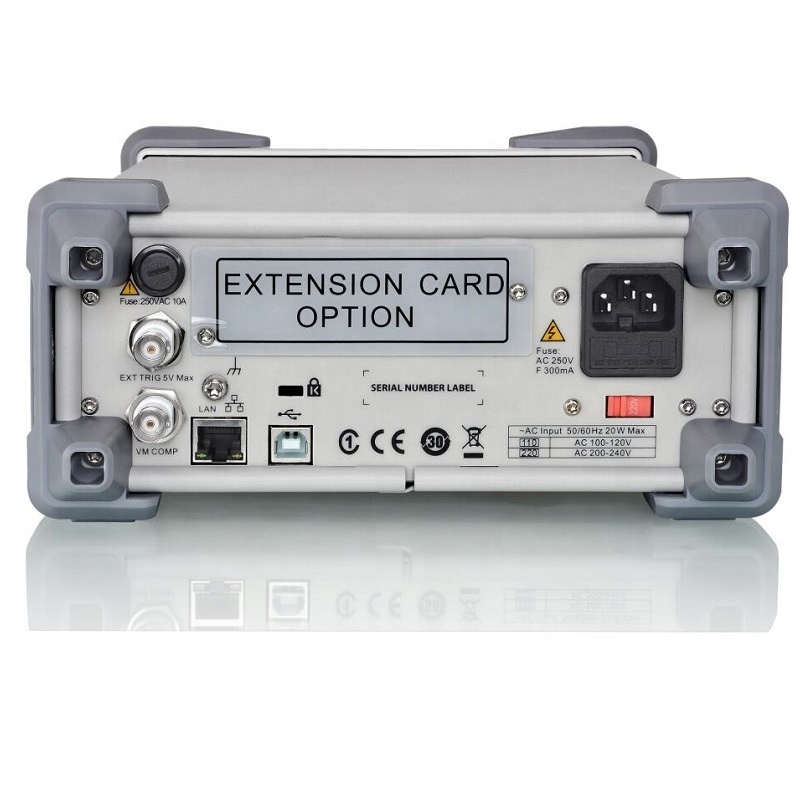

• standard interfaces: USB Host, LAN ( Optional Accessories
USB-GPIB Adapter )

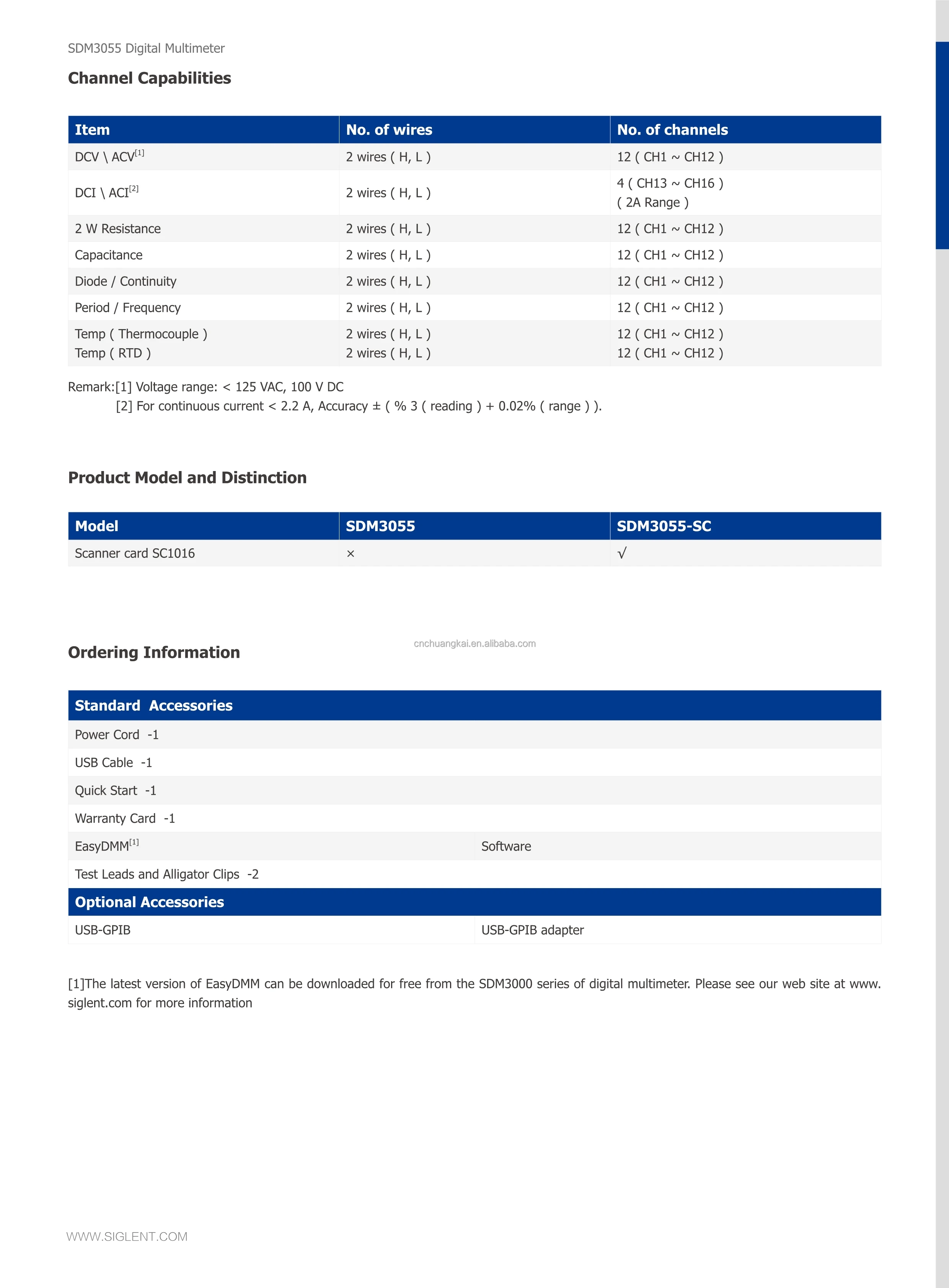

• Scanner Card SC1016 ( Only for SDM3055-SC )
• Support remote control operation via SCPI commands.
Compatible with commands of main stream multimeters

Application fields
• Research Laboratory
• Development Laboratory
• Repair and Maintenance
• Calibration LaboratoryGene
• Automatic Production Test
• General bench-top use
