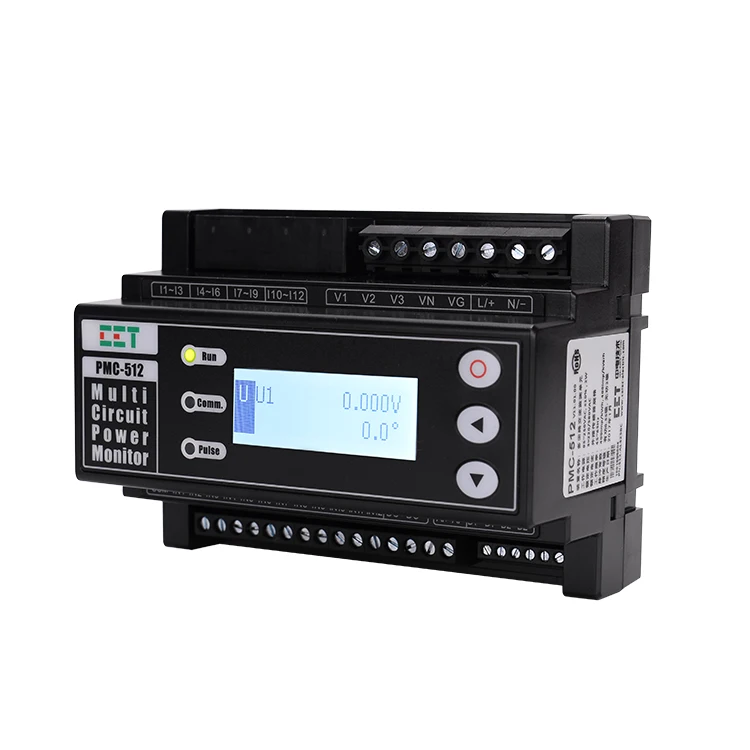

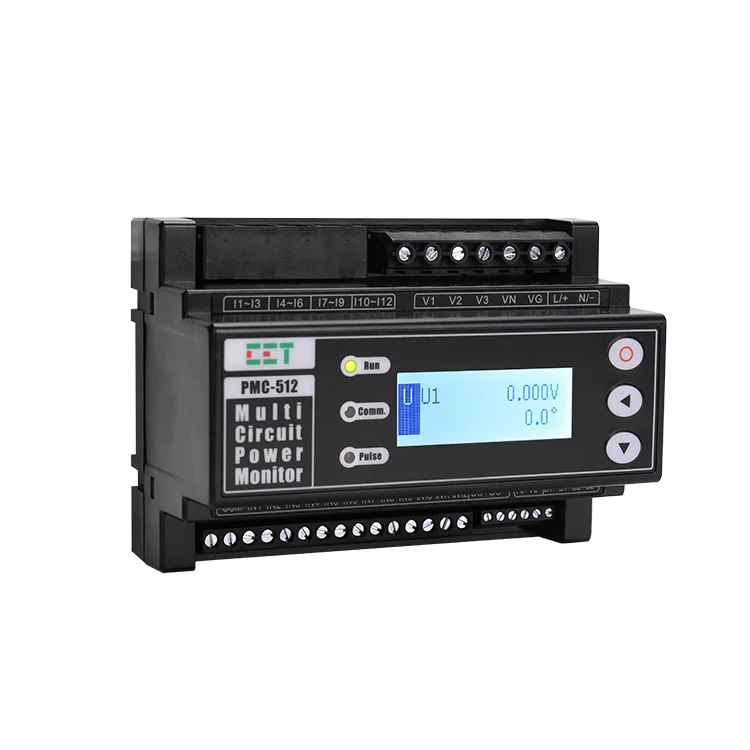

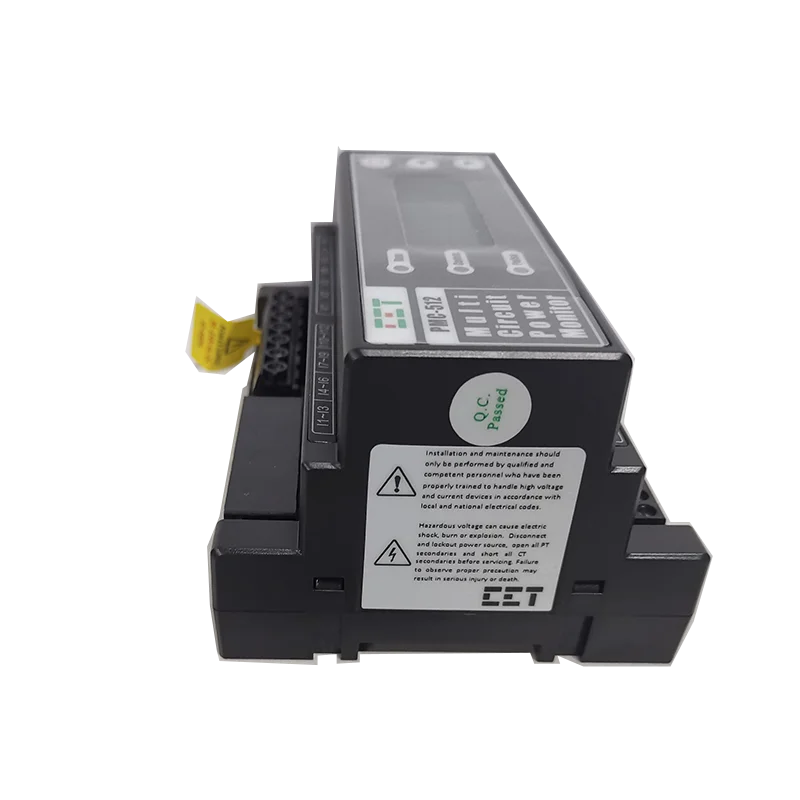

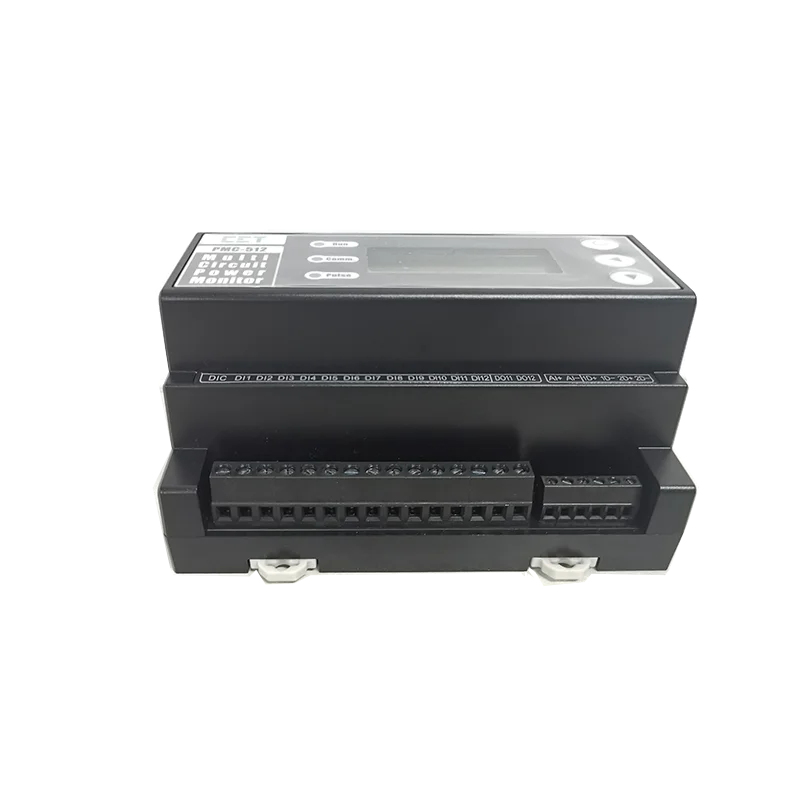

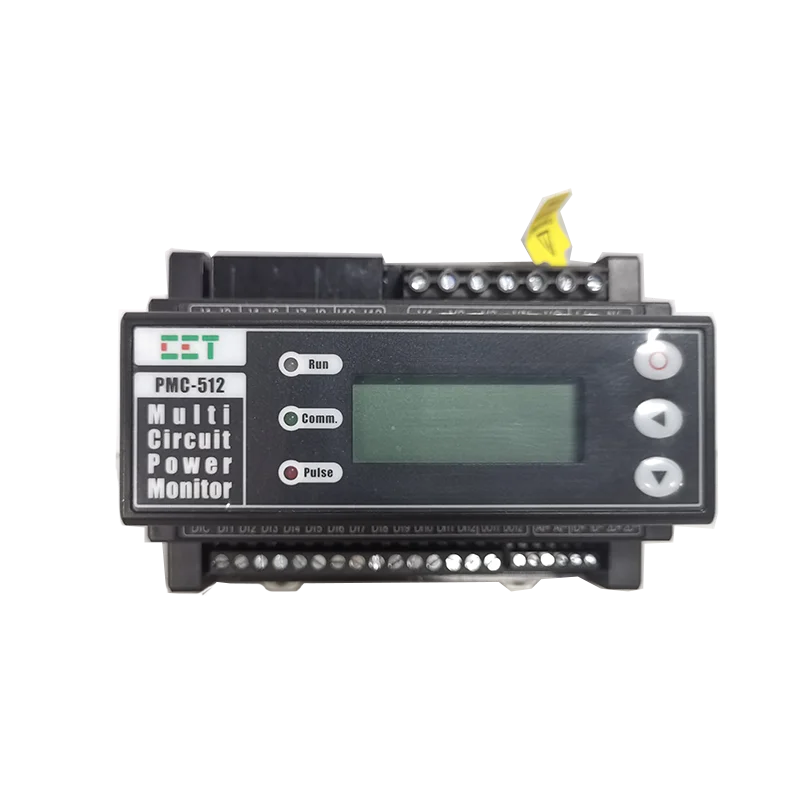

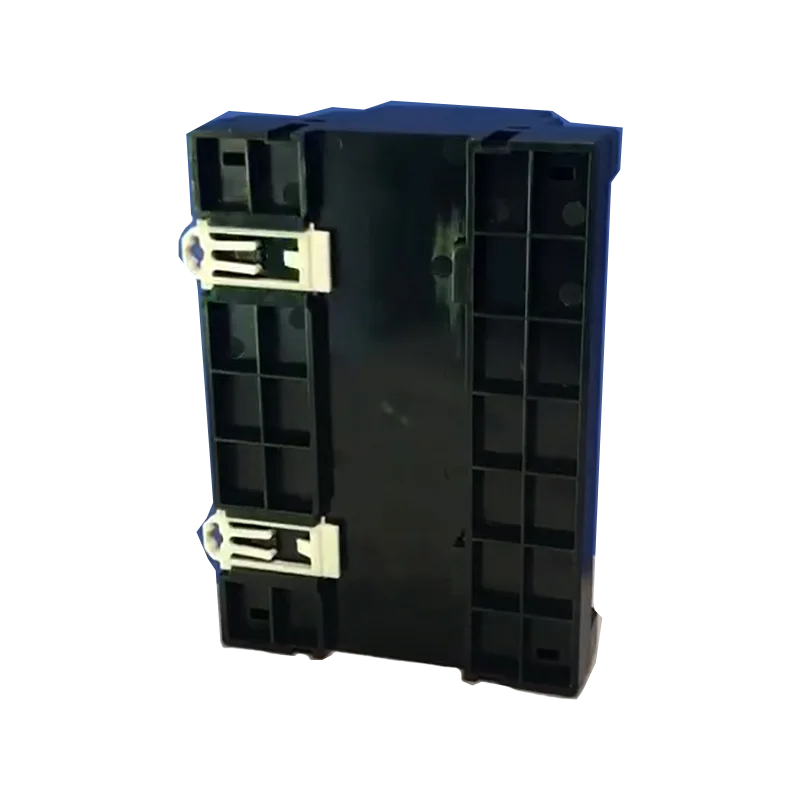

CET PMC-512A 35mm Din Rail 3 Phase Multi Channel Circuits Energy Electric Meter With 2*RS485 Modbus

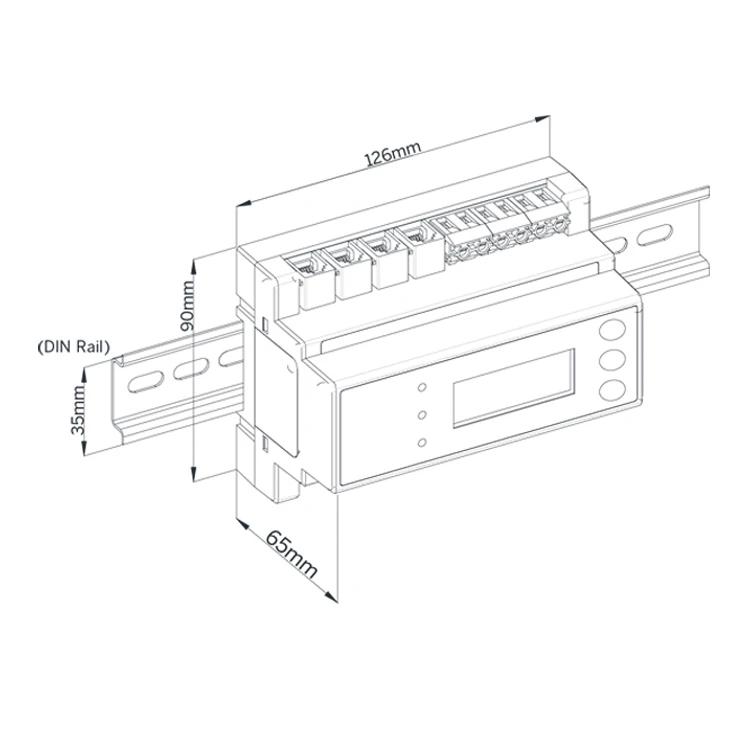

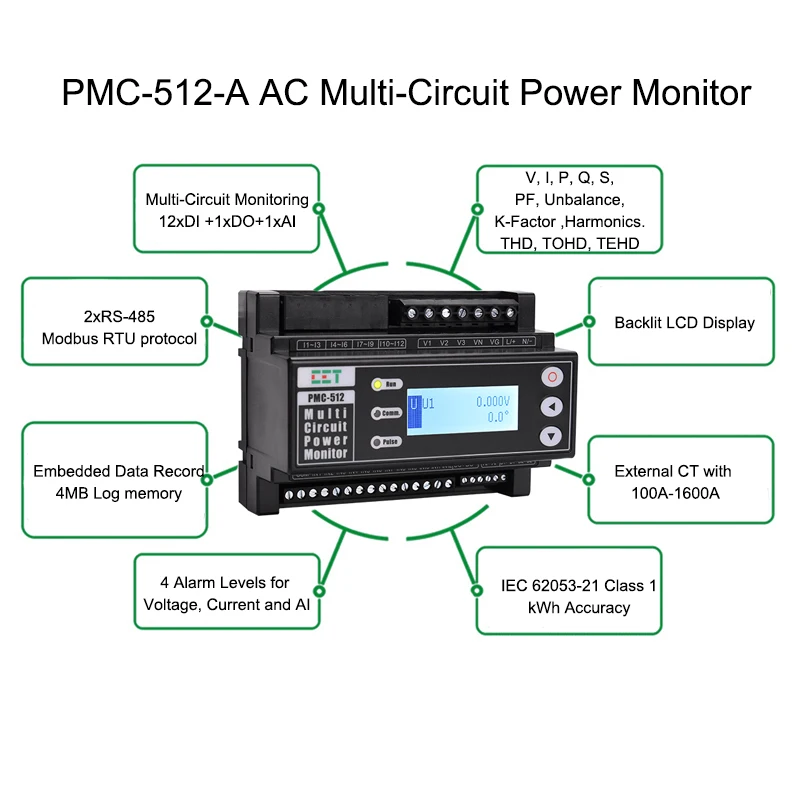

PMC-512-A is CET’s latest offer for the economical multi-circuit monitoring of Data Centers, Telecom Base Stations, Industrial & Commercial Buildings. Housed in a compact DIN Rail Mount enclosure, the PMC-512-A is perfectly suited for high-density metering applications. The PMC-512-A features quality construction with multifunction and Class 1 Energy Measurements. The PMC-512-A comes standard with a built-in LCD display, 12xDIs for status monitoring, 1xDO for control or alarming and 1xAI for temperature measurement or other analogue input applications. The standard SOE Log records all setup changes, alarms and DI/DO operations in 1ms resolution. With dual RS-485 as standard feature supporting Modbus RTU, the PMC-512-A can easily be deployed in a stand-alone system with an optional 7" touch-screen HMI that supports up to 32 devices over a RS-485 network, or simultaneously with a centralized monitoring and control system for an AC power distribution network.
