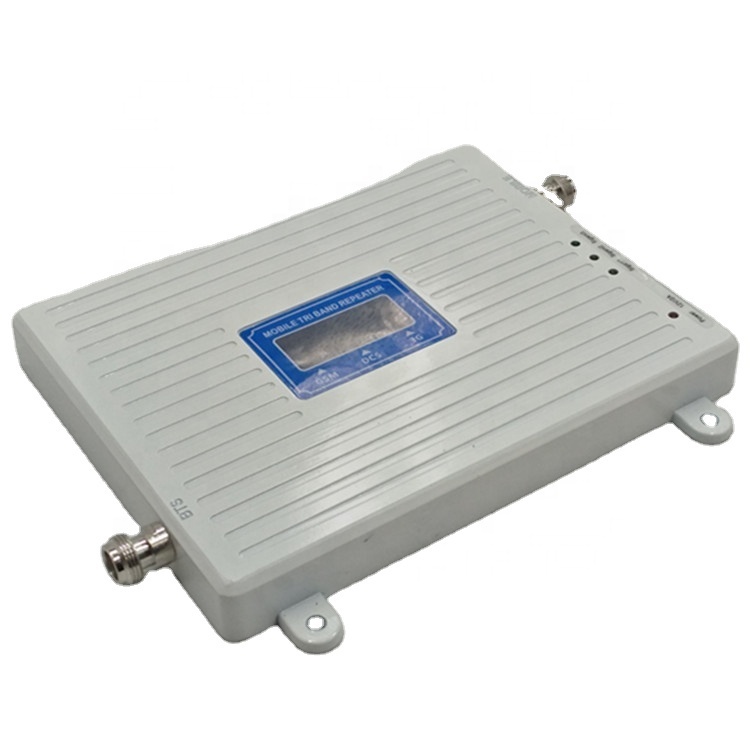

2022 Best-selling Tri-band 2g 3g 4g 5G Mobile Signal Booster 900/1800/2100mhz LTE Repeater for Indoor
- Category: Repeater >>>
- Seller: Shenzhen,Jiayi,Communication,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | Guangdong China |
Brand Name | JIAYI |
Model Number | JY016 |
Operating Temperature | -10℃-60℃ |
Gain | 60±3DB |
Frequency | GSM900/DCS1800/3G WCDMA |
Export power | 23dBm±3dBm |
Package Size | 340*280*240mm |
Max Output Power | +23dBm/±3DBM Total power |
Color | White |
Package Weight | 3kg |
Coverage area | 300-500 Square Meters |
Quality warranty | 24month |
Company Profile
Shenzhen Jiayi Communication Technology Co., LTD. Has been in the communication industry for 20 years.
We have a strong design and development of signal amplifier technology, the production of signal amplifier manufacturing capacity.
Can solve Europe and the United States.
Asia, the Middle East and other regions poor mobile signal problem, with strong technology, quality products, service customers around the world, to solve the problem of numerous customers mobile phone no network signal, poor network signal, our company will continue to research and development, innovation.
In the 5G era, our 5G mobile signal enhancer will also come out.
I hope that our company will continue to develop, innovate and serve more customers
We have a strong design and development of signal amplifier technology, the production of signal amplifier manufacturing capacity.
Can solve Europe and the United States.
Asia, the Middle East and other regions poor mobile signal problem, with strong technology, quality products, service customers around the world, to solve the problem of numerous customers mobile phone no network signal, poor network signal, our company will continue to research and development, innovation.
In the 5G era, our 5G mobile signal enhancer will also come out.
I hope that our company will continue to develop, innovate and serve more customers

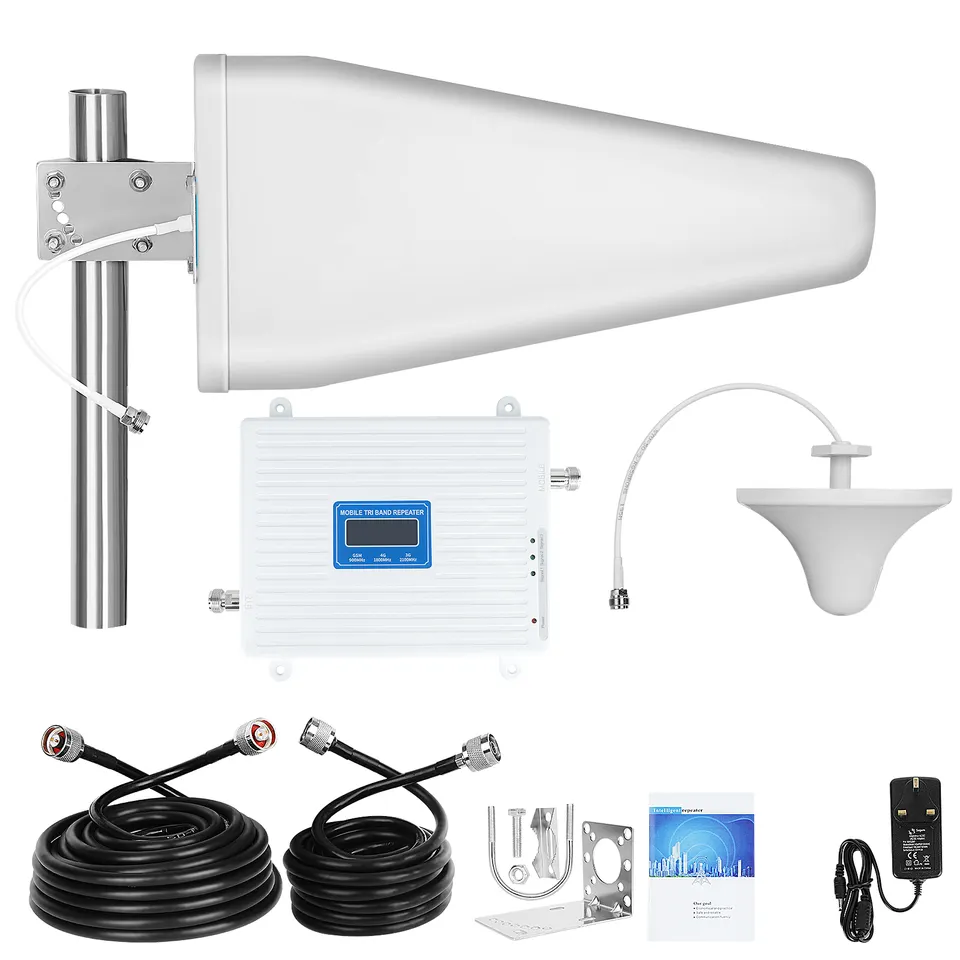

Accessories and Installation
Packing list | ||
Item | Quantity(pcs) | |
Amplifier | 1pcs | |
Logarithm outdoor antenna | 1pcs | |
Ceiling antenna | 1pcs | |
Cable 3 meters | 1pcs | |
Cable 10 meters | 1pcs | |
Power supply | 1pcs | |
Installation Method:
1. Find the strongest direction and position of the received signal for mobiles at the top or the periphery of the building, as the location for installing the outdoor antenna, pay attention that the location should be paid to lightning protection. The installation height should not be higher than the lightning protection network of the building. If it is higher than the lightning protection network. If it is necessary, install a lightning rod 1 meter above the outdoor antenna and ground it well.
2. After selecting the appropriate location, fix the outdoor antenna to the wall or bracket.
3. Select an appropriate location in the relevant indoor location (close to the power supply and the outdoor antenna end, rain-proof, sunshine-proof and ventilation is best location) install indoor straight machine, and fixed to the wall or bracket.
4. Lead the outdoor antenna to the 'BTS' (outdoor) interface, and the connection between the outdoor antenna and the amplifier is completed.
5. After defining the indoor antenna installation position, fix the antenna.
6. The indoor antenna connected to the amplifier, one port connecting to the indoor antenna interface, and the other port connecting to the repeater's 'MOBILE' (indoor) port.
2. After selecting the appropriate location, fix the outdoor antenna to the wall or bracket.
3. Select an appropriate location in the relevant indoor location (close to the power supply and the outdoor antenna end, rain-proof, sunshine-proof and ventilation is best location) install indoor straight machine, and fixed to the wall or bracket.
4. Lead the outdoor antenna to the 'BTS' (outdoor) interface, and the connection between the outdoor antenna and the amplifier is completed.
5. After defining the indoor antenna installation position, fix the antenna.
6. The indoor antenna connected to the amplifier, one port connecting to the indoor antenna interface, and the other port connecting to the repeater's 'MOBILE' (indoor) port.
