UNI-T UT505A Industrial Precision Insulation 1000V PI/DAR Measurement COMP Comparison Function Insulation Resistance Tester

Function

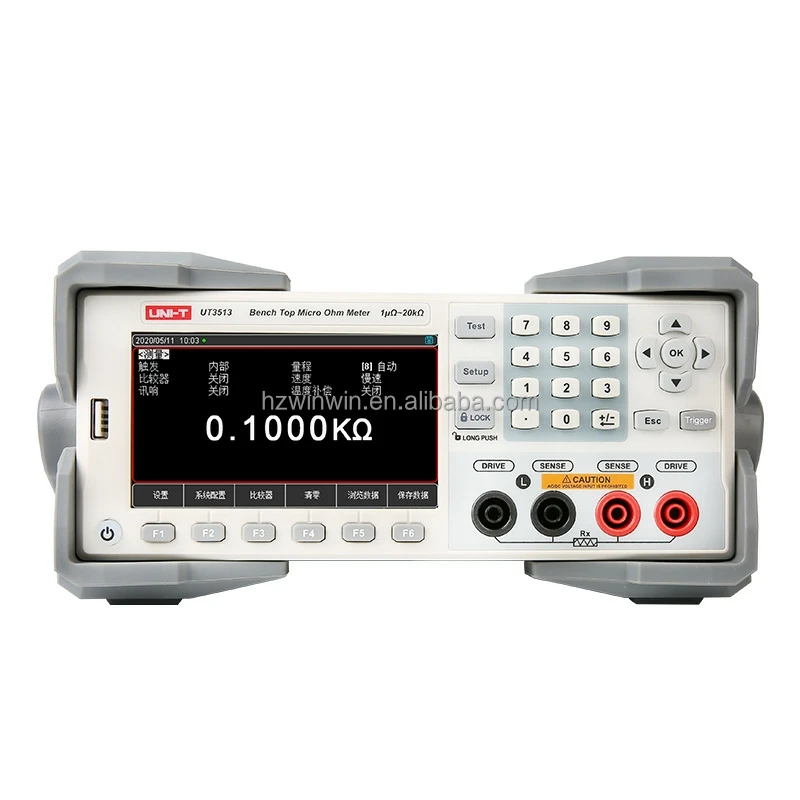

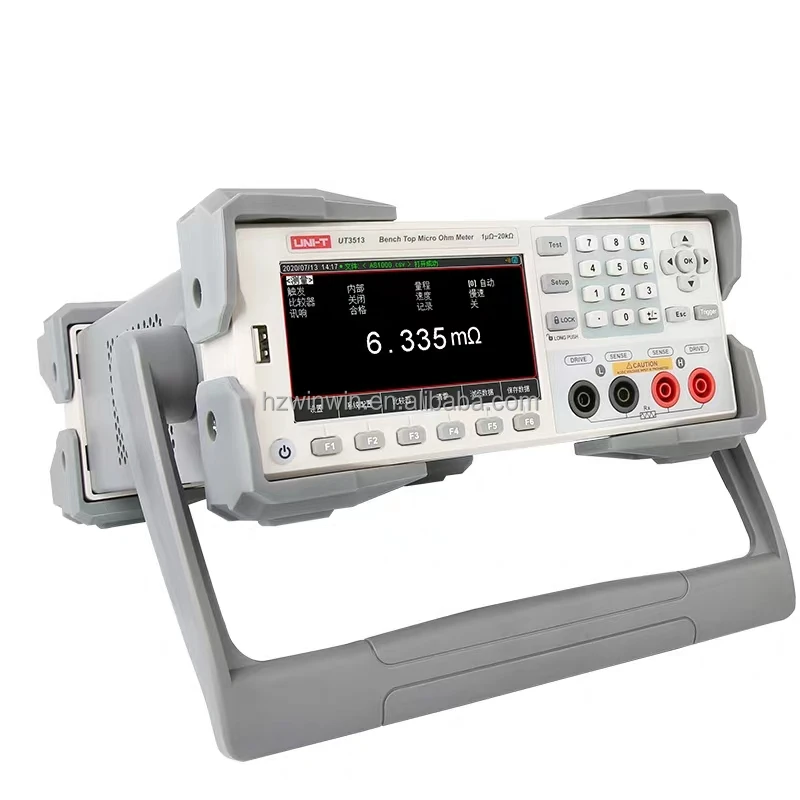

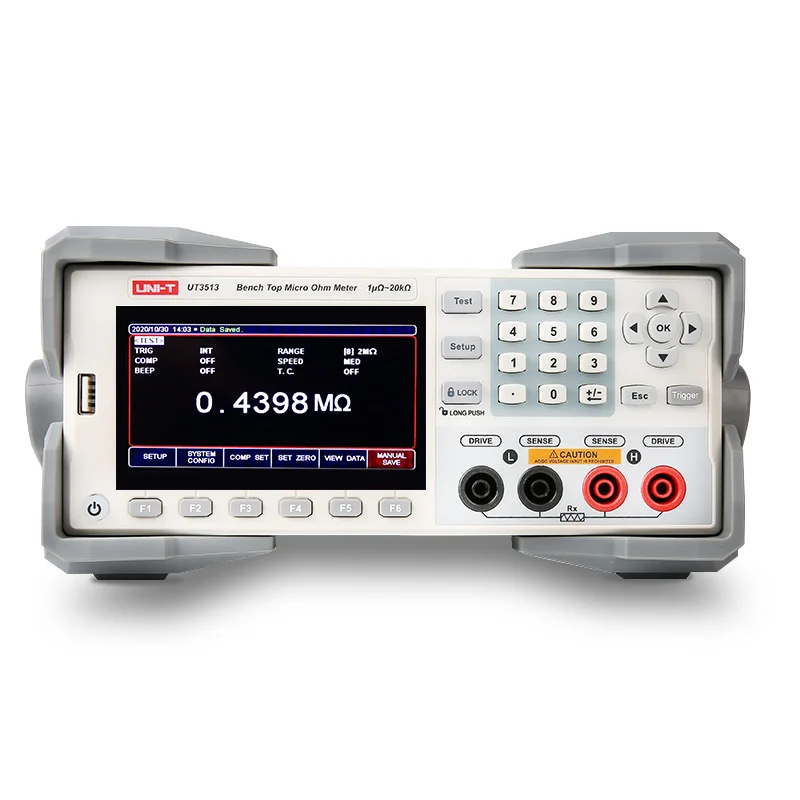

UT3513

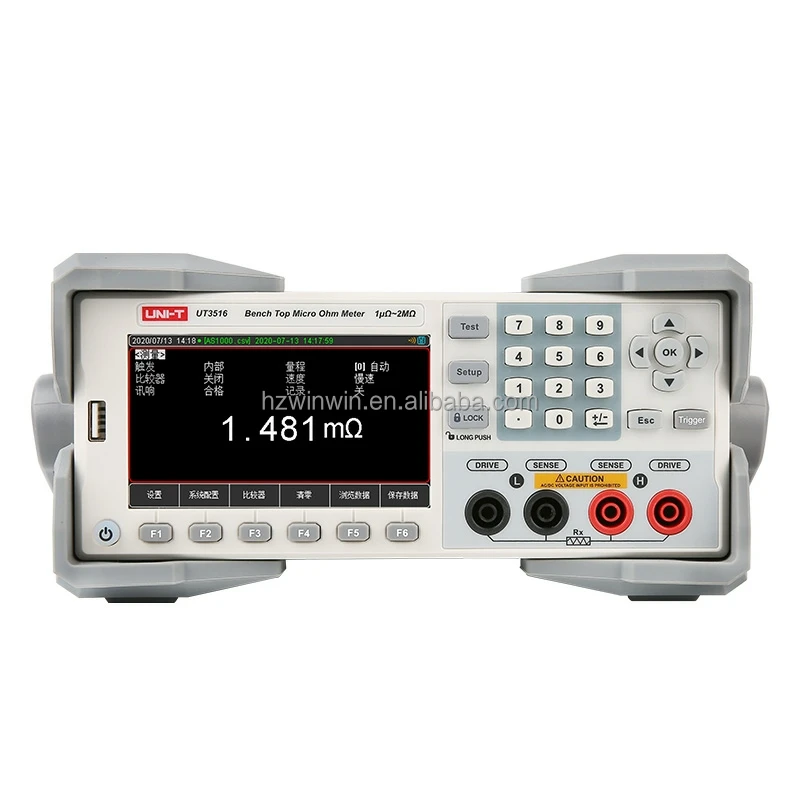

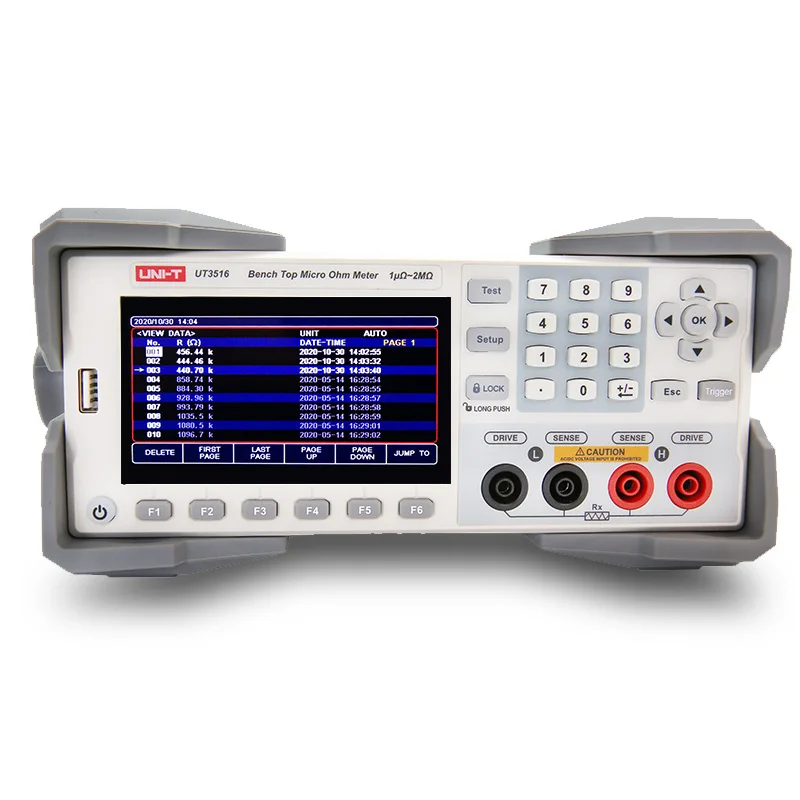

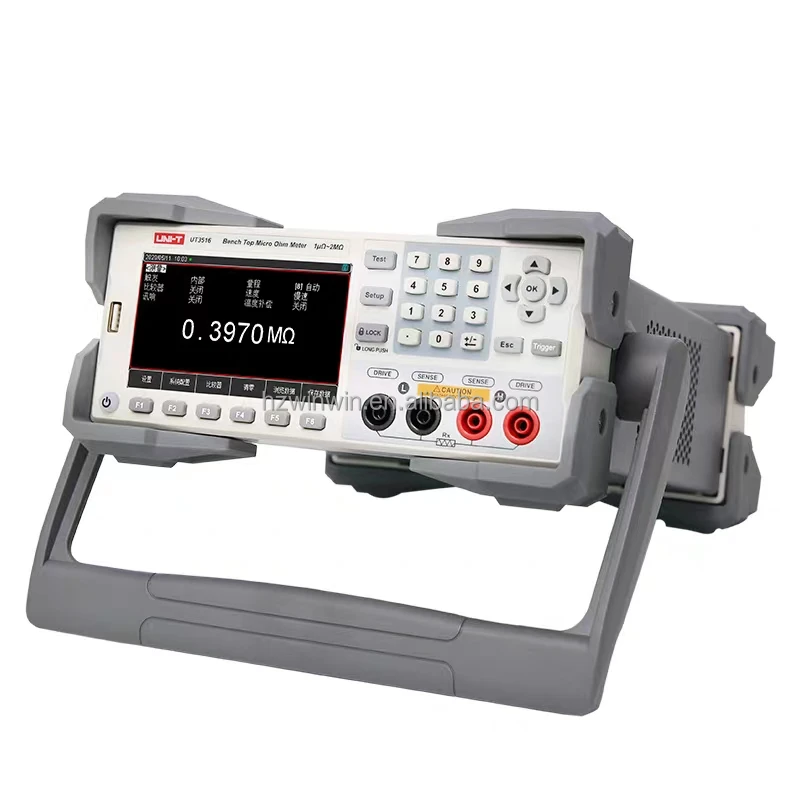

UT3516

Resistance range

1μΩ~20KΩ

1μΩ~2MΩ

Measurement parameter

Direct current resistance

Basic accuracy

0.2% Slow: 0.1% ;

Maximum Reading

22000

Range selection

Automatic, manual and nominal

Test speed

Slow: 3/S Medium Speed: 18/s fast: 60/S (UT3516 only)

Calibration

Full range short circuit reset

 Sorting function

There are three kinds of output, PASS and FAIL

Comparison mode

Direct reading comparison, absolute tolerance, percentage tolerance

Trigger mode

Inside, outside

Test end

Four-terminal test

Key function

Lock keyboard Lock function, OK button screen capture function

System setup

Switch between Chinese and English, set key tone

Interface & protocol

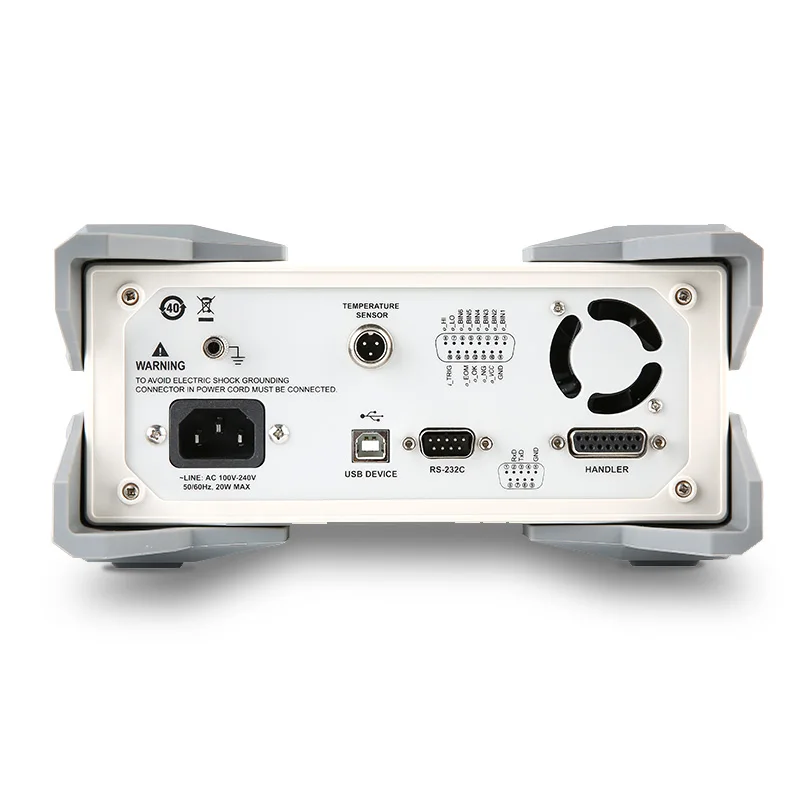

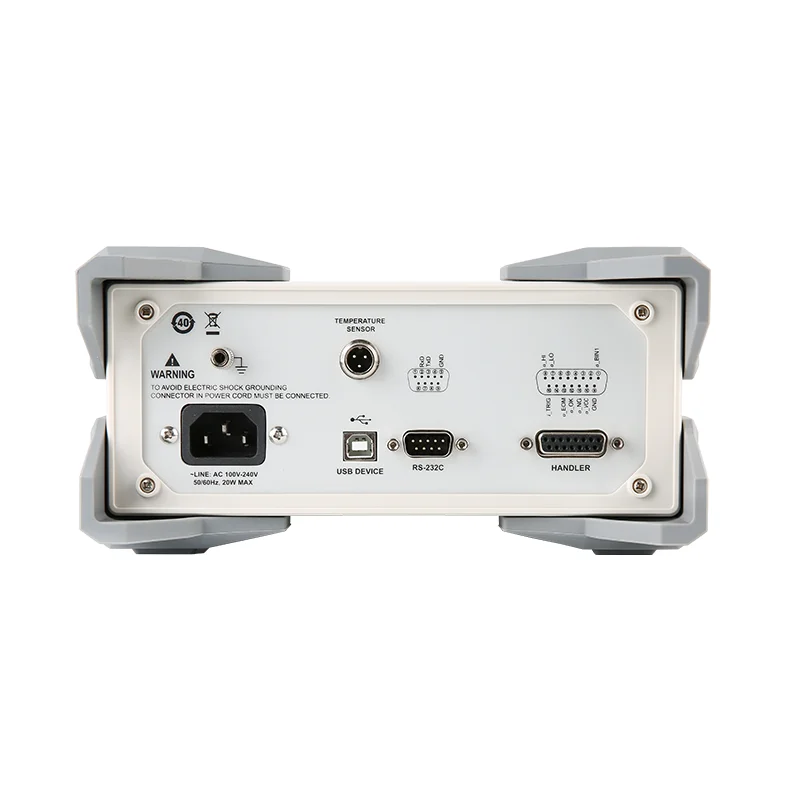

Handler interface, RS232 communication interface, USB DEVICE, USB HOST; SCPI and Modbus protocol

PC software

Yes

Fuselage size

214mm (width) x 89mm (height) x 340mm (depth)

Weight

3kg
