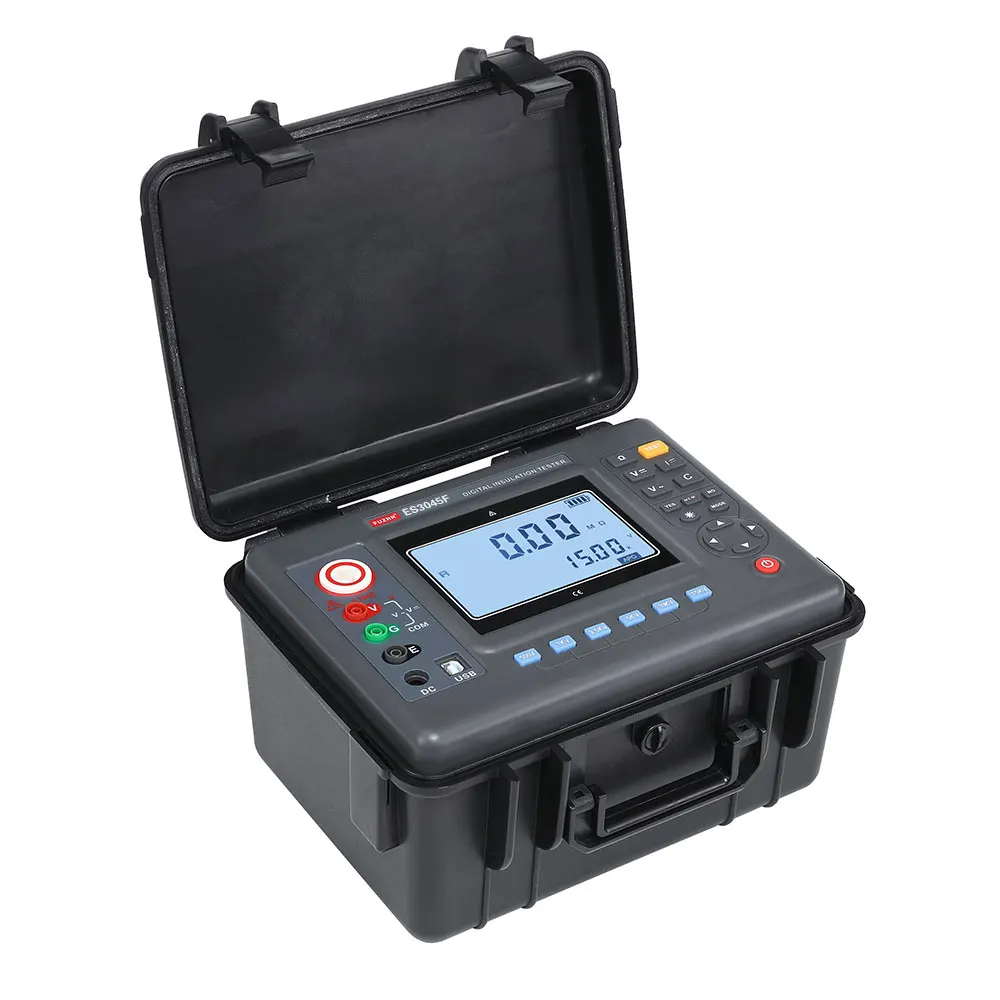

100MG OHM High Voltage 5000V Insulation Resistance Tester 5 KV IR Test Of Transformer

Function

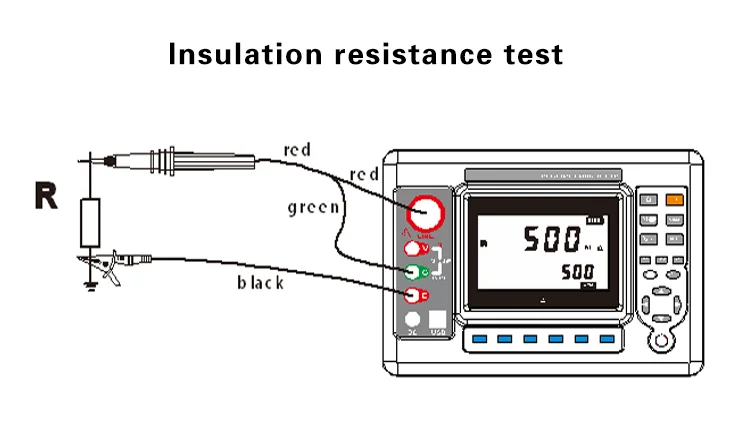

Insulation resistance test, voltage test

Base conditions

23°C±5°C,below 75%rh

Rated voltage(V)

250;500;1000;2500;5000V;10KV

Test voltage(V)

rated voltage×(1±10%)

Insulation Resistance Range(GΩ)

0.01MΩ~1000GΩ accuracy±3%rdg±5dgt

Insulation Resistance Insulation

0.01MΩ

DC Voltage Range

0~1000V

DC Voltage resolution

0.1V

AC Voltage Range

0~750V

AC Voltage resolution

0.1V

Output short-circuit Current

≥5mA(10KV)

Absorption Ratio and Polarization Index Measurement

Have

Power Supply

12V rechargeable battery

Backlight

Controllable gray screen backlight, suitable for use in dim places

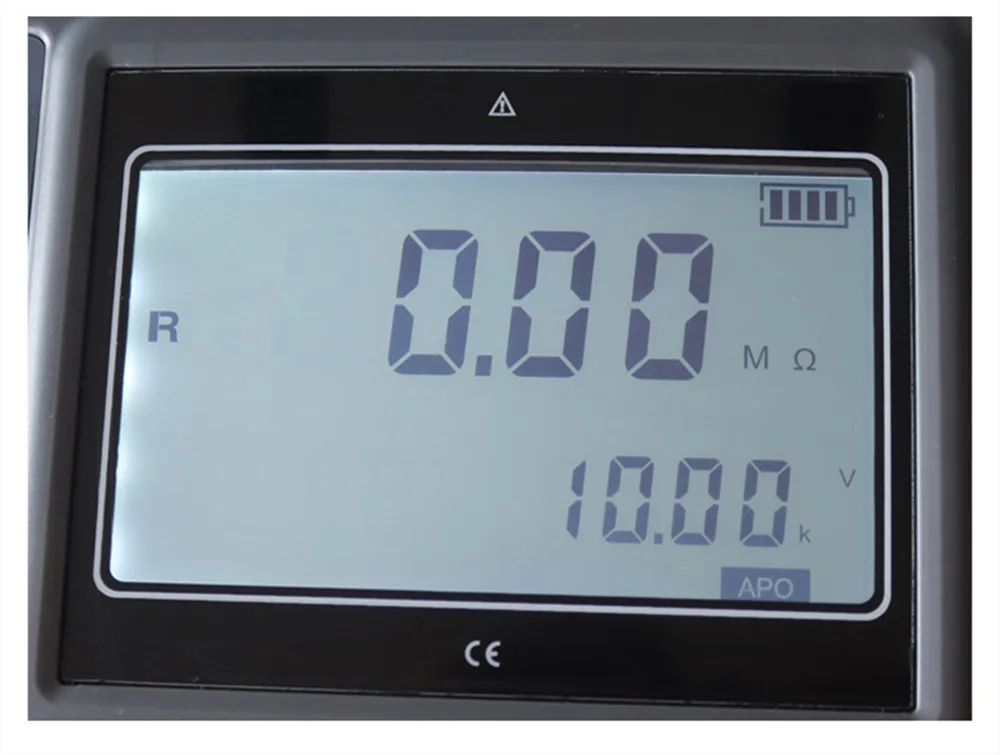

Dispaly mode

4-bit large LCD display, gray screen backlight

LCD display size

108mm×65mm

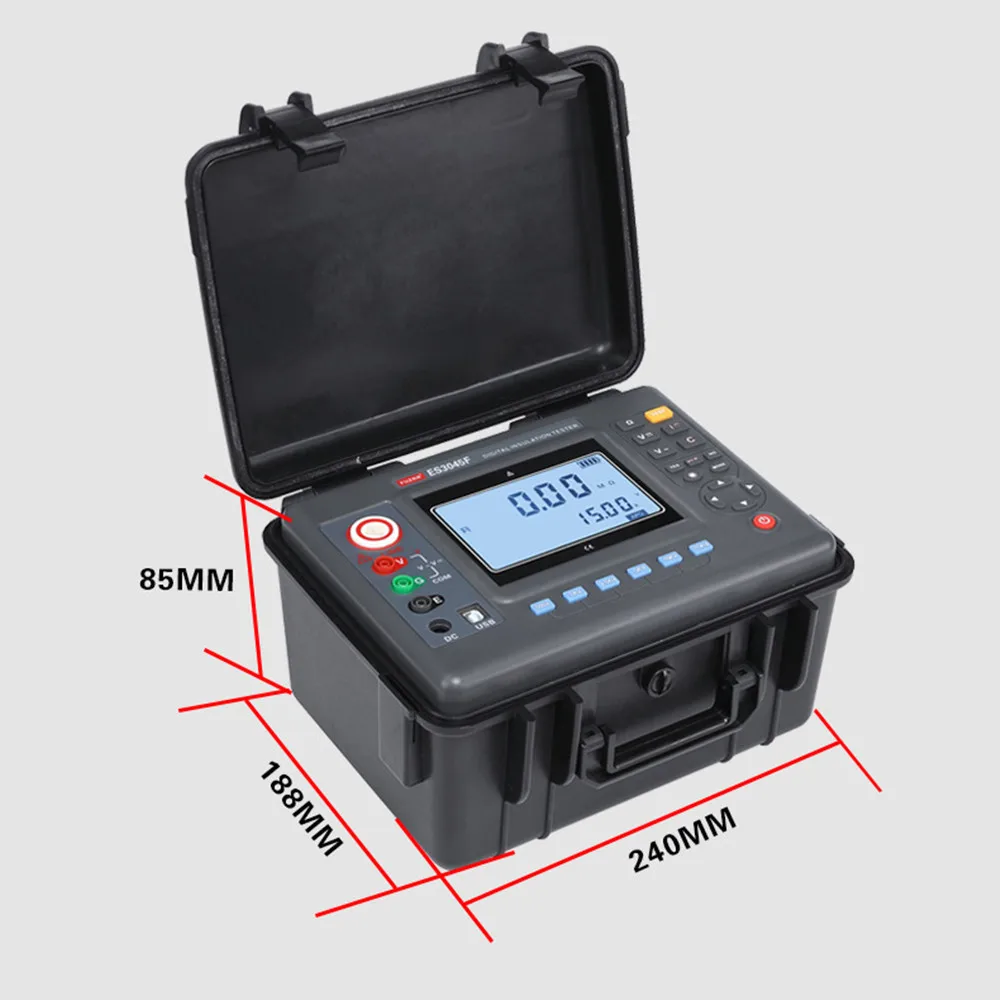

Instrument size

L/W/H:277.2mm×227.5mm×153mm

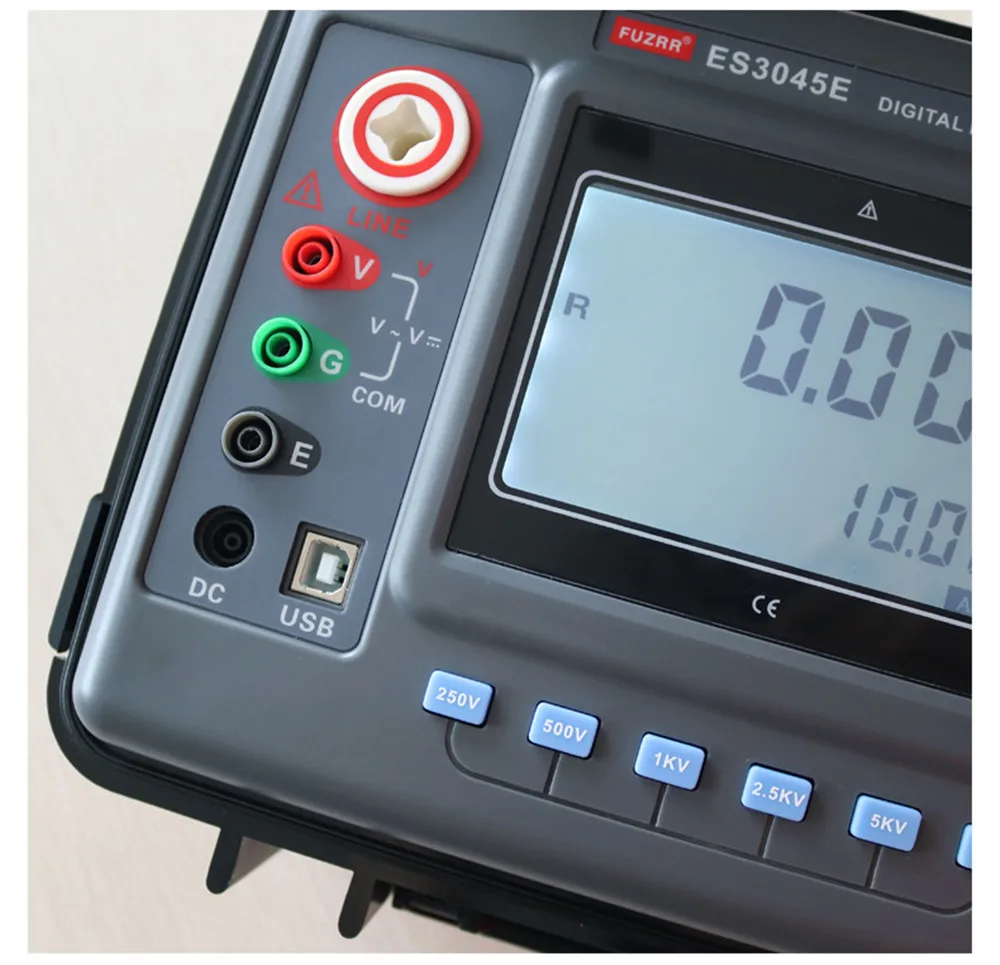

USB interface

With USB interface, software monitoring, storage data can be uploaded to the computer, save the print

Communication Line

USB communication line 1PC

High voltage test line red 3 meter, black 1.5 meter, green line 1.5 meter

Data Storage

500 groups, "FULL" symbol indicates that storage is full

Data Review

Data review function: "MR" symbol display

Overflow Display

Exceed measurement range overflow function: “OL ” symbol display

Alarm Function

Alarm when the measured value exceeds the alarm setting value

Standby: 30mA Max(backlight off)

Turn on backlight: 42mA Max

Measure:200mA Max(backlight off)

Instrument weight

2720g(including battery)

When the battery voltage is low, low battery symbol “    ”will display

Automatic shut-down

automatic shutdown after 15 minutes boot

Insulation Resistance

≥50MΩ(between Measuring line and housing)

Pressure Resistance

AC3kV/50Hz 1min

Working Temperature and Humidity

-10℃~+50℃<85%RH

Storage Temperature and Humidity

-15℃~+55℃<90%RH

Suitable for Safety Regulations

IEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54) pollution grade 2,CAT Ⅲ 300V
