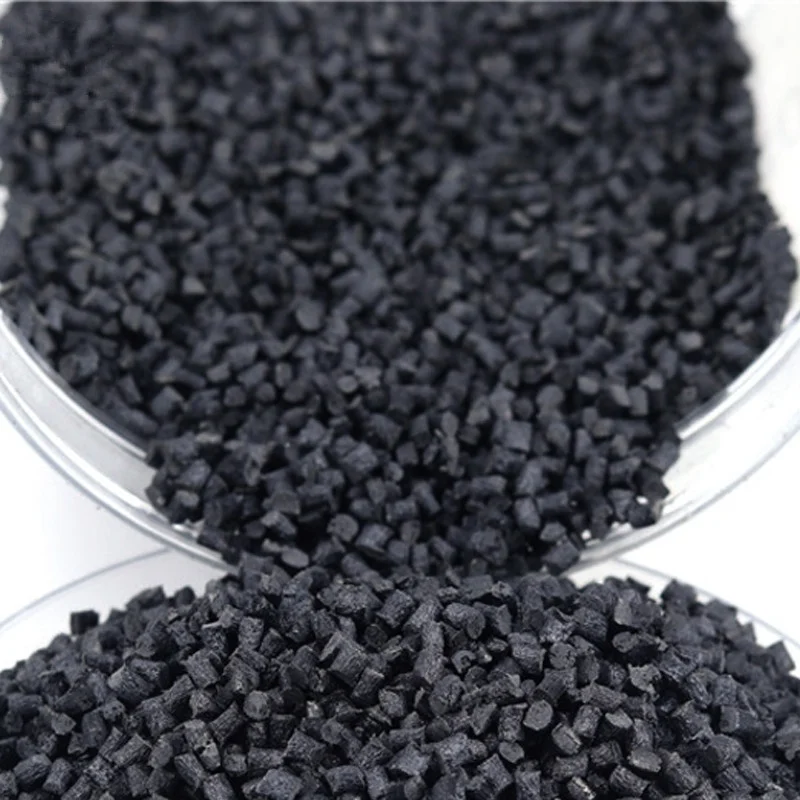

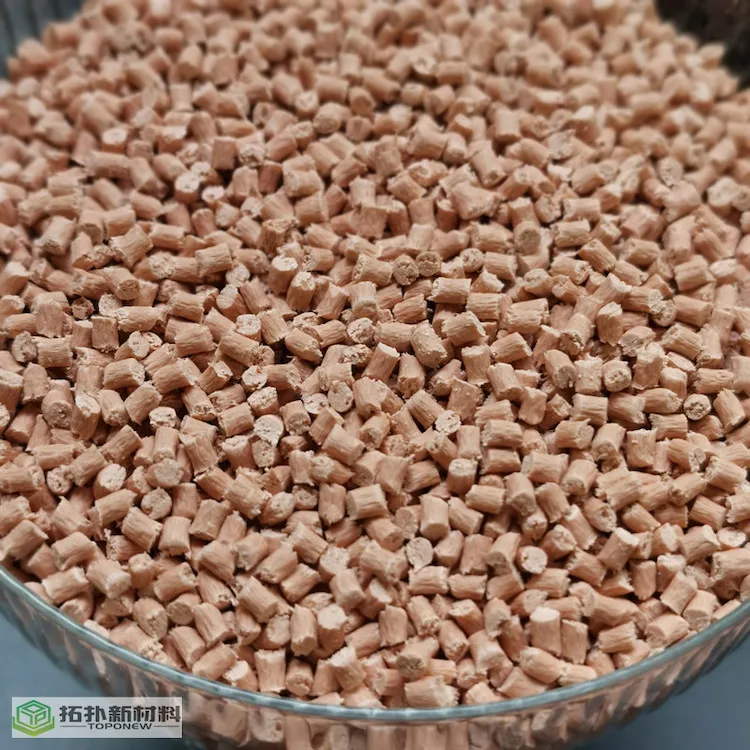

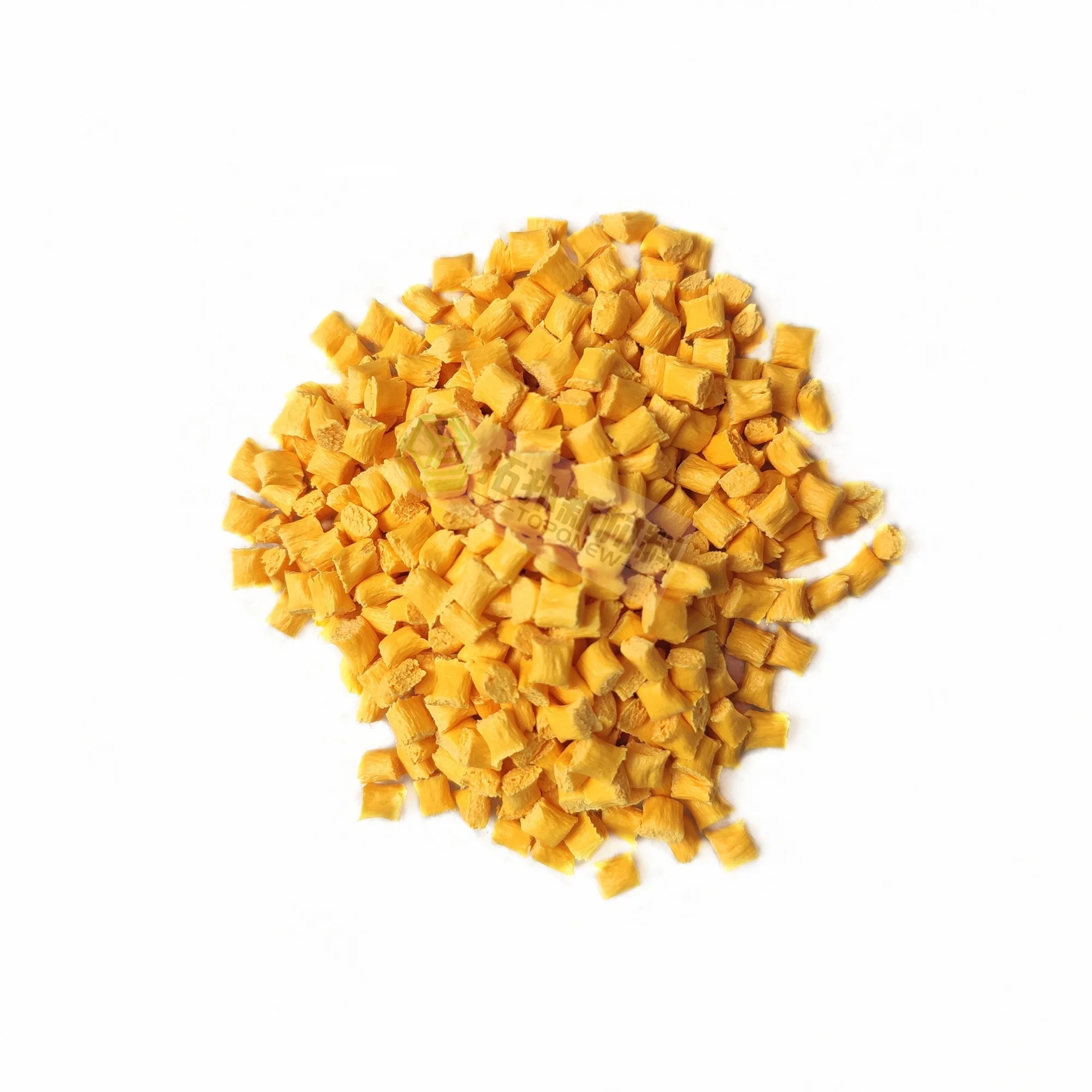

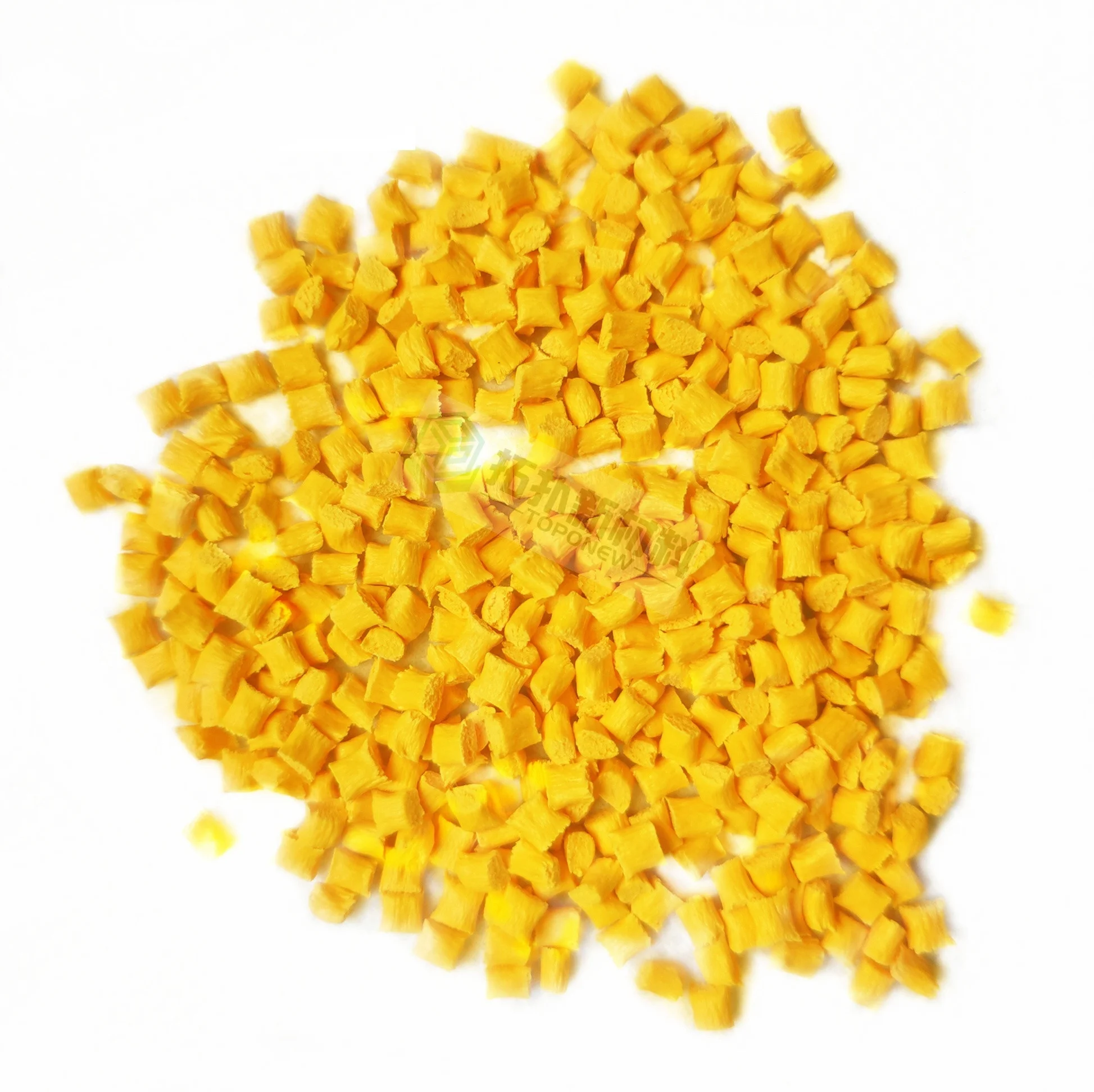

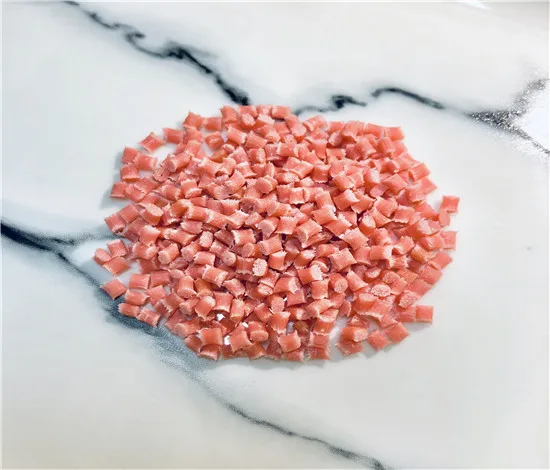

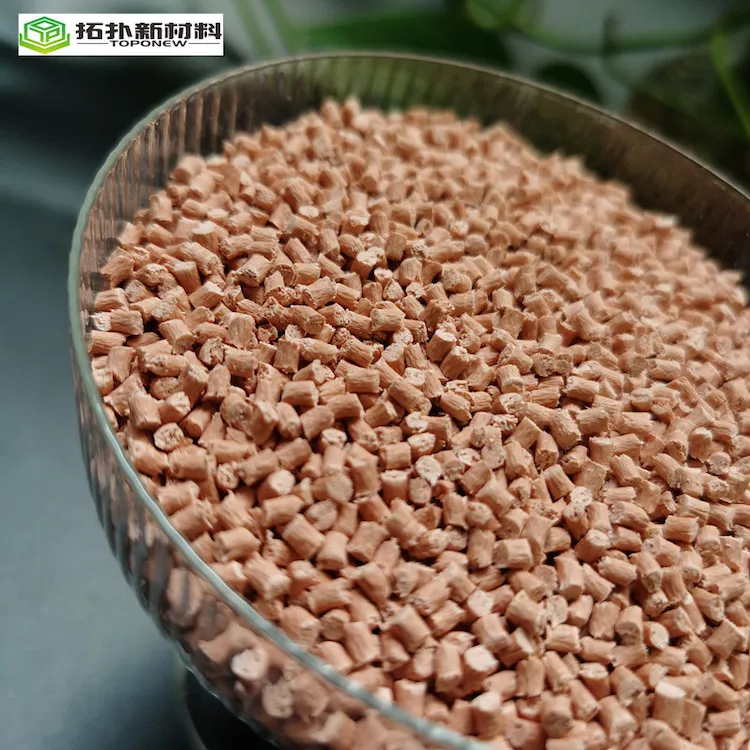

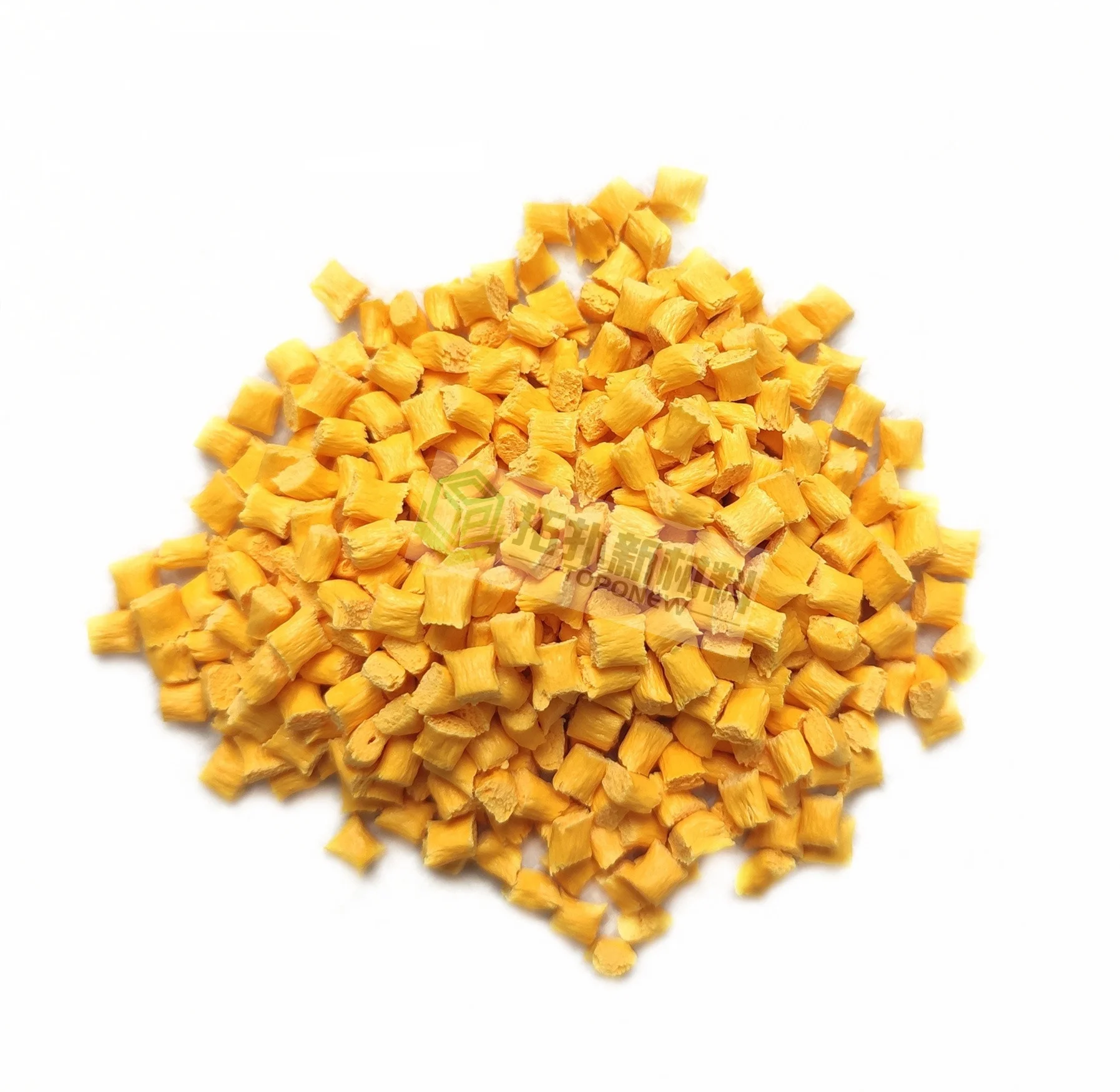

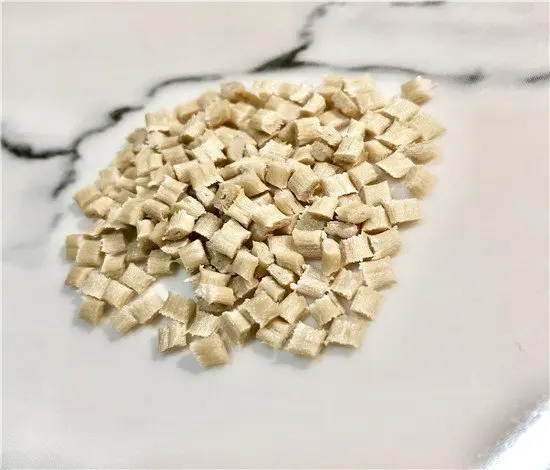

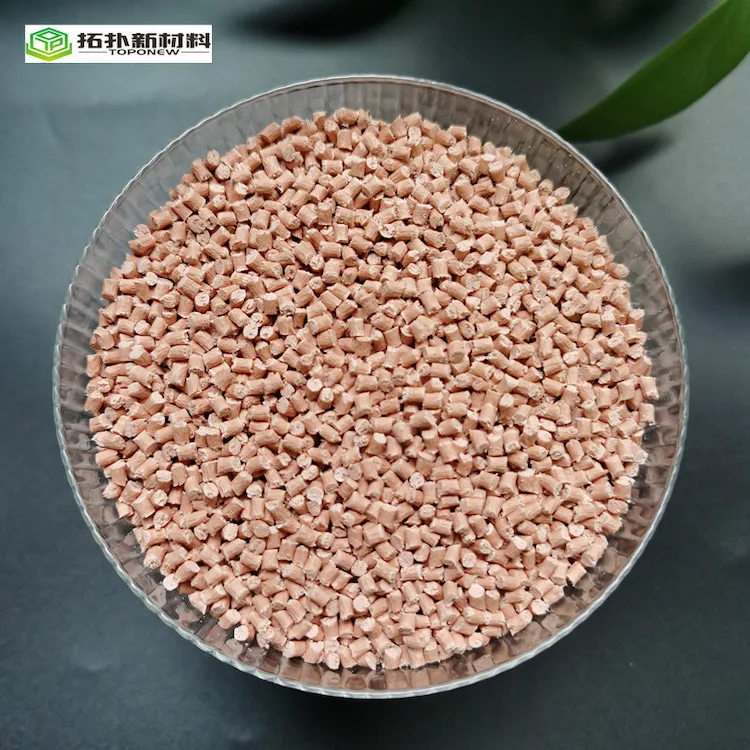

Polymer Resin plastic Materials PA66 Polyamide Polymer Resin
Description:
Glass fiber reinforced nylon PA66 is a material obtained by taking PA66 resin as the base material and adding 10-35% glass fiber for reinforcement. It has the characteristics of high rigidity and heat resistance, dimensional stability, good electrical insulation, good surface smoothness, easy molding, and processing, etc. All materials are widely used in various electric tools, other electronic and electrical appliances, mechanical parts, and automobile industries. TOPO engineering plastic can provide customized services according to customers' specific requirements. It is your trusted modified plastic manufacturer.
Properties | Test Method | Test Condition | Unit | Typical Values |
Physical properties | ||||
Specific Gravity | ISO 1183 | 23℃ | g/cm3 | 1.085 |
Mechanical properties | ||||
Tensile Strength | ISO 527 | 50mm/min | MPa | 53.3 |
Elongation at Break | ISO 527 | 50mm/min | % | 39.9 |
Tensile Modulus | ISO 527 | 1mm/min | MPa | 2060 |
Flexural Strength | ISO 178 | 80*10*4 | MPa | 70 |
Flexural Modulus | ISO 178 | 2mm/min | MPa | 1750 |
Charpy Notched Impact Strength | ISO 179-1eA | 23℃ | kJ/m2 | 75 |
Charpy Notched Impact Strength | ISO 179-1eA | -30℃/4h | kJ/m2 | 14 |
Thermal properties | ||||
Heat deflection temperature | ISO 75 | 1.80MPa | ℃ | 68.1 |
Heat deflection temperature | ISO 75 | 0.45MPa | ℃ | 145 |
Melting Point | DSC | — | ℃ | 255 |
Other properties | ||||
Flammability | UL94 |
| 1.6mm | HB |
Tip: The technical datasheet is for reference only. We supply the OEM service per your request.
Are you trading company or manufacturer?
We are manufacturer.
About Sample:
5 KG Free Sample can be offered per your request.
About Material Color:
We can make the material to your appointed color according to Pantone/RAL#.
