Product Overview
Description
Features Of Multi-parameter Analyzer
Customized multi-parameter analyzer

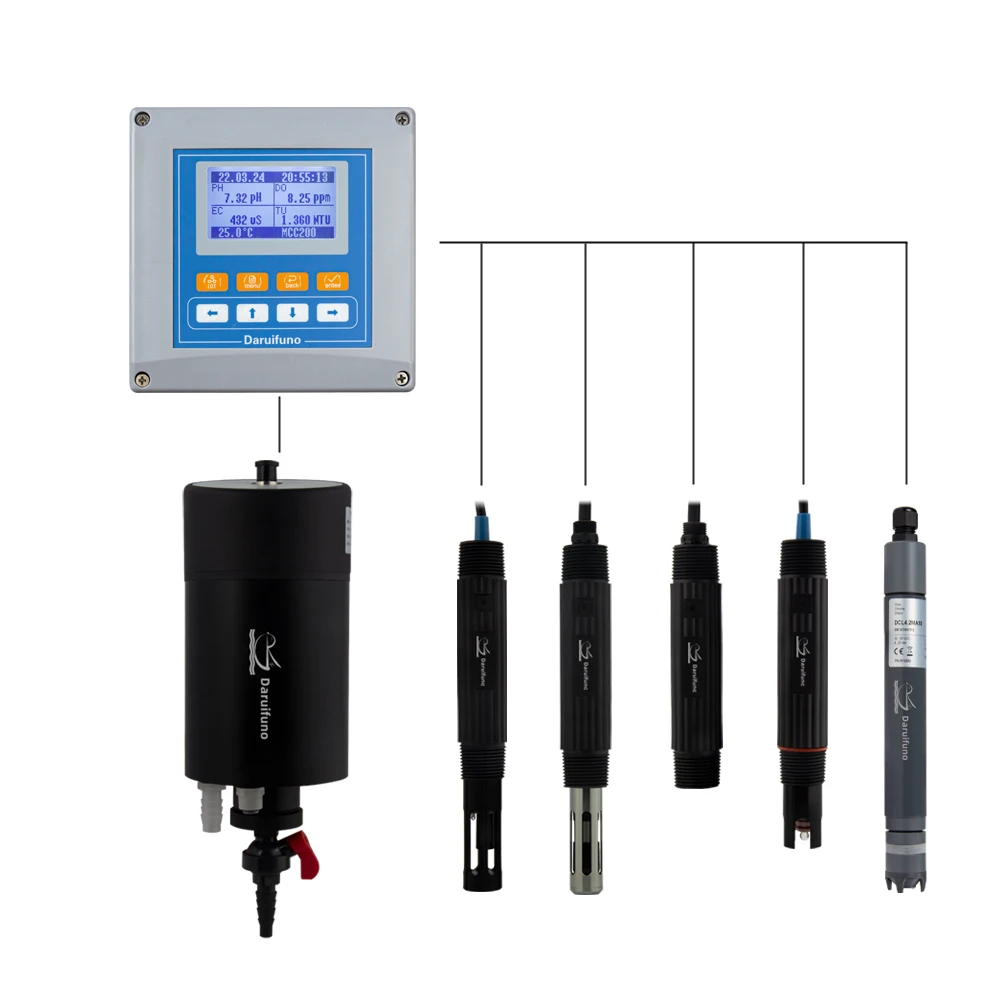

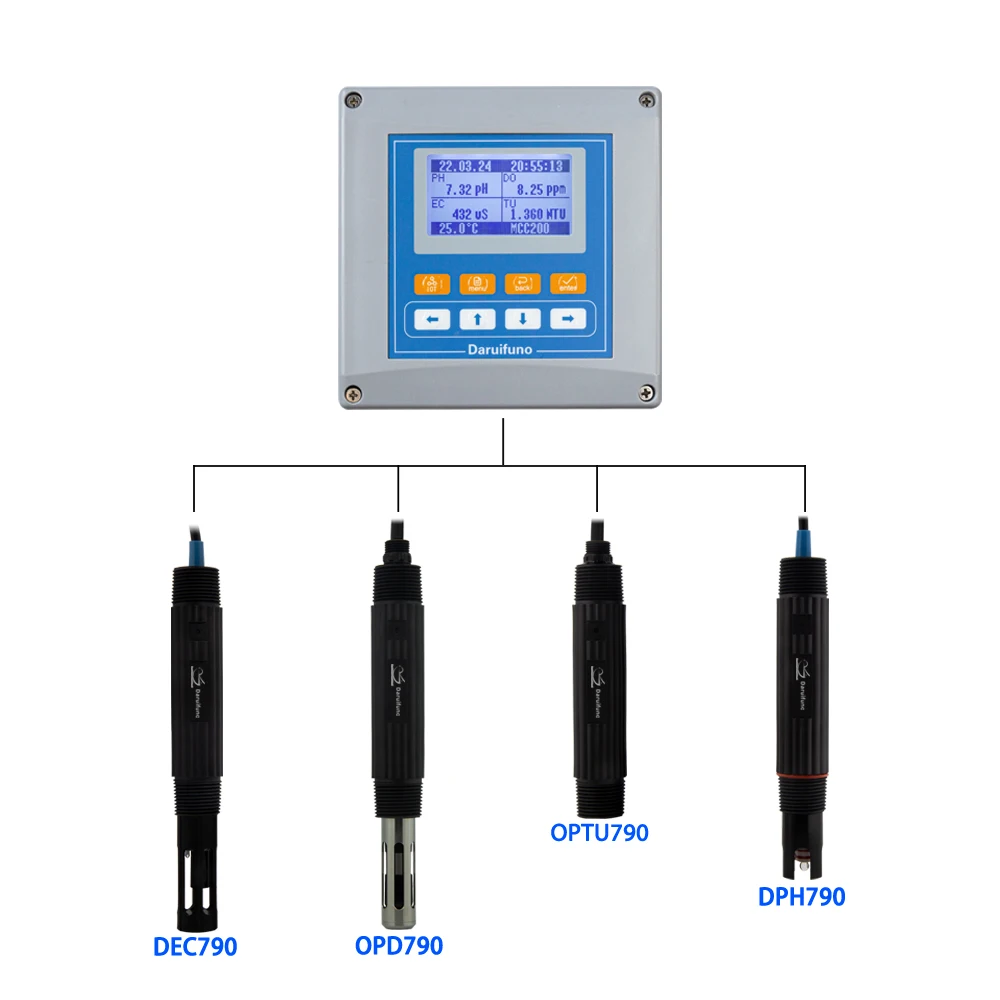

Daruifuno MCC200 analyzer has 4 digital channels, it can be connected with upto 4 digital sensors. The measuring parameters can be pH, ORP, dissolved oxygen, conductivity, TDS, salinity, turbidity or chlorine.
Different measurement range
The MCC200 controller can be connected with different electrodes to realize the measurement. The measuring range is determined by different sensors.
Accurate and stable data
MCC200 requires these authorized sensors to upload the detected data in a special encrypted communication way to ensure that the controller can collect high-precision data more stably.
Communication and control
The MCC200 multi-parameter water quality analyzer has a RS485 interface and the communication protocol is Modbus RTU. The water tester has a wash relay for control the cleaning of the sensors with brush.
Various installation methods

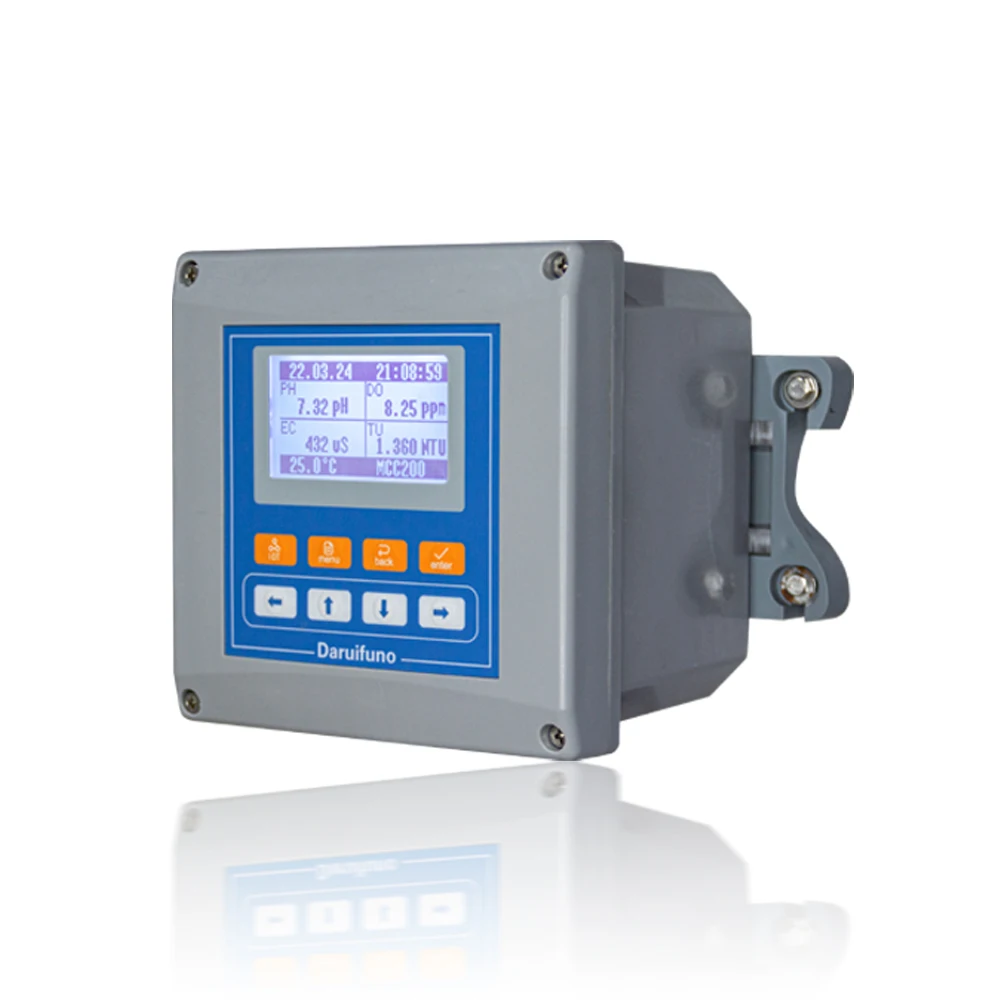

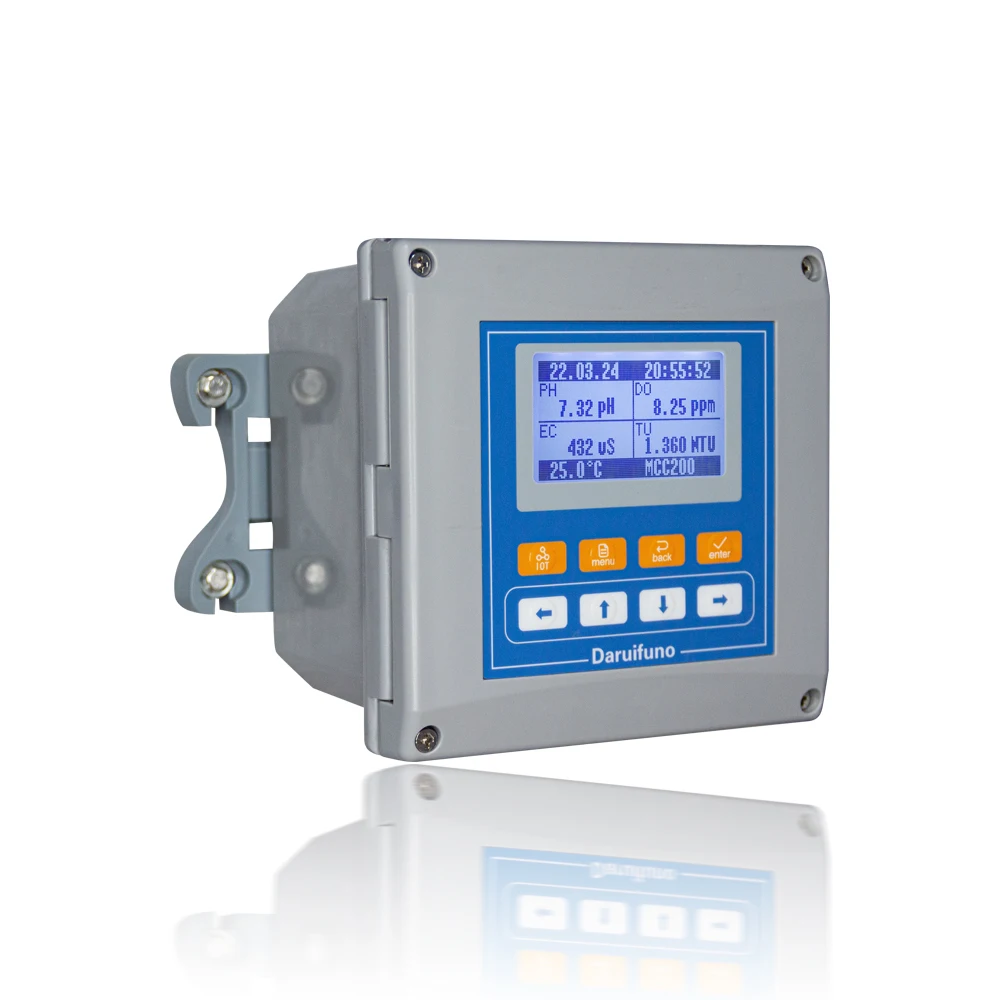

The dimension of the controller is 144*144*120mm, support wall mount, pipe clamping, panel.
Specification Of Multi-parameter Analyzer
Product Name | Multi-parameter Water Quality Meter |
Product Model | MCC200 |
Brand Name | Daruifuno |
Detection Object | pH, ORP, Temp, conductivity, dissolved oxygen, turbidity, chlorine |
pH Sensor | principle: glass electrode method range: 0~14pH, 0~50℃ accuracy: 0.01pH |
Conductivity Sensor | principle: 2-electrode or 4-electrode range: 0~10mS/cm automatic switching, 0~50℃ accuracy: 1% of the measuring range |
Dissolved Oxygen Sensor | principle: fluorescence method range: 0~20mg/L, 0~50℃ accuracy: ±0.1mg/L |
Turbidity Sensor | principle: infrared 850nm 90° scattered light method range: 0~1000NTU, 0~4000NTU accuracy: <±1% of the measuring range |
Configuration Information | Power failure protection, indefinite retention of parameters |
TEMP Sensor Input | PT1000 or NTC10K |
Temperature Compensation | Automatic or manual |
Operating Temperature | 0~60℃ RH<95% |
Storage Temperature | -20~70℃ RH<55% |
Relay Output | A wash relay, max. load 3A/250VAC |
Communication Method | RS485 interface |
Communication Protocol | Modbus RTU, support JSON text |
Time/Data Logging | Accurate to the second, record 7800 historical data, support data download Recording interval can be set between 1 and 999 minutes |
Maintain Records | Last 100 times |
Display | 3.2 inch 128*64 LCD screen |
Language | English |
Protection Grade | IP66 |
Material | Enhanced ABS |
Dimensions | 144*144*120mm |
Mounting | wall mounting, pipe clamp, panel mounting (open hole size 138*138mm) |
Power Supply | AC: 100~240V, 50/60Hz; DC: 18~36V |
Power Consumption | <24W |
Weight | 1600g |
FAQ
1. What data can be measured by your multi-parameter analyzer and can it be customized?
A: Our MCC100 model multi-parameter analyzer has 4 digital channels, it can connect with pH, conductivity, dissolved oxygen, turbidity sensors. The temperature will display at the same time. If you want to change one or more parameters, you can contact us, we will customized for you.
2. Do you have any sensors for this multi-parameter controller?
A: Certainly. We have different measuring range sensors designed for this controller. They are high quality digital sensors. Our company has pH, ORP, conductivity, dissolved oxygen, turbidity, chlorine, COD, BGA, etc. sensors.
3. Can your instrument achieve data output?
A: The multi-parameter water quality meter has a two-wire RS485 interface, the communication protocol is standard MODBUS RTU, and it can support JavaScript Object Notation text data format.
