Product Overview

Description

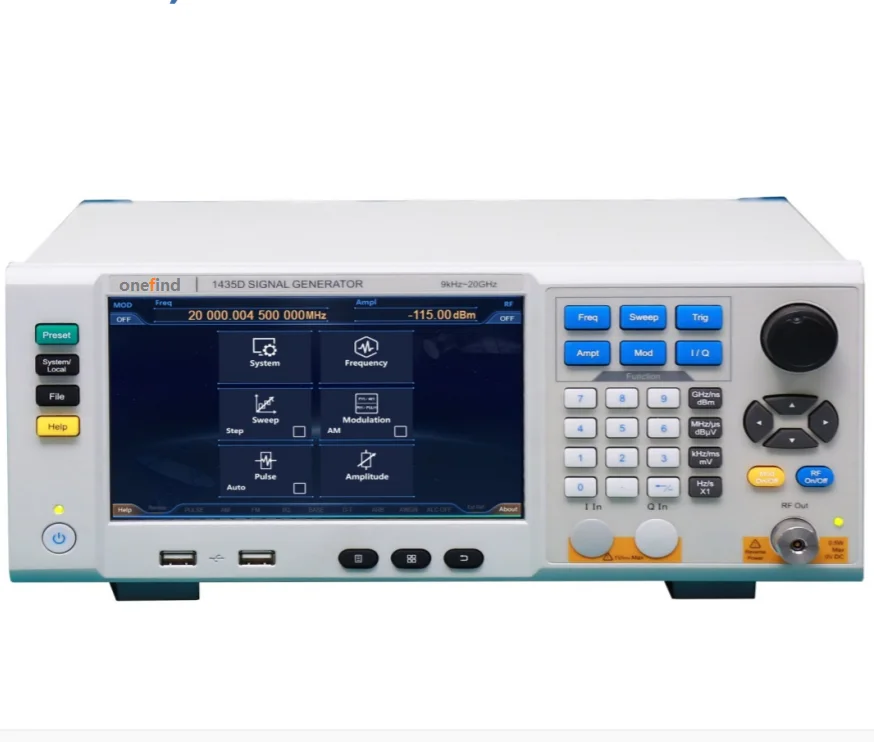

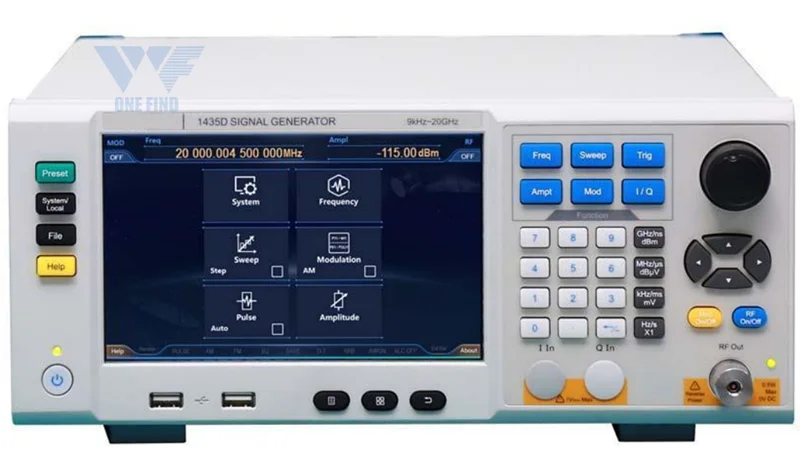

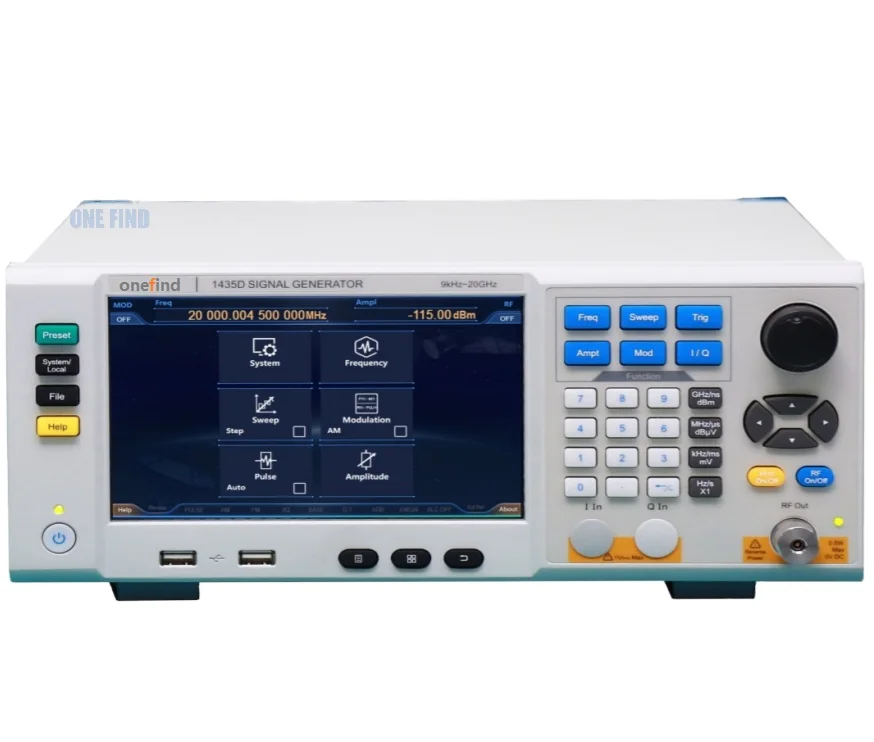

1435 A/B/C/D/F Signal Generators


                                                     (9kHz~3GHz/6GHz/12GHz/20GHz/40GHz)




product description

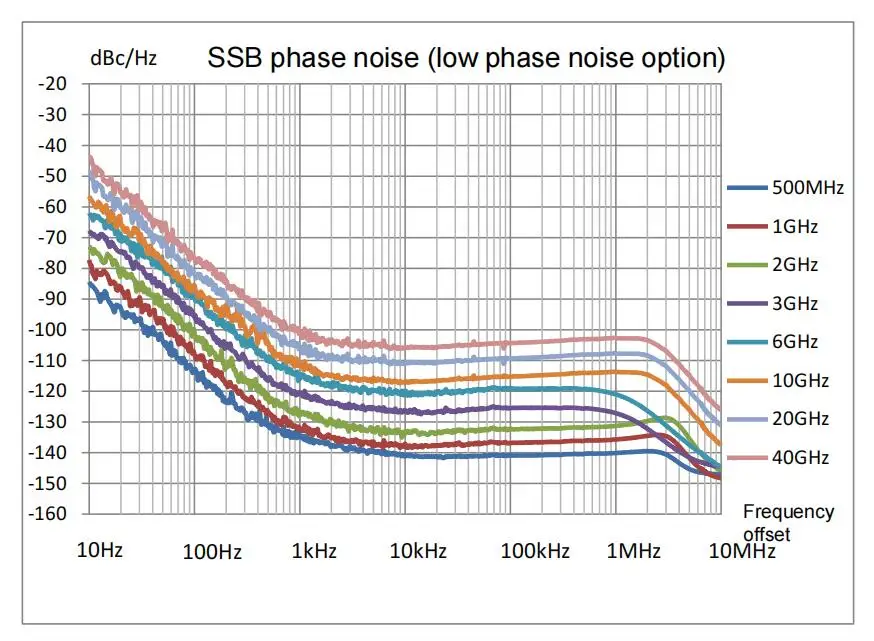

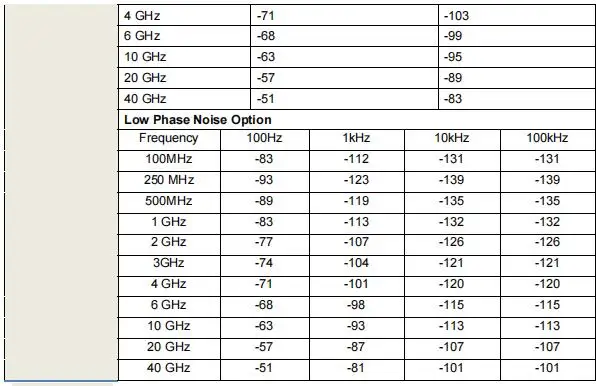

Based  on  innovative  technologies,  the  1435  series  signal  generator has excellent spectral purity, with a single side band (SSB) phase noise of -136dBc/Hz (when the carrier is 1GHz and the frequency offset is 10kHz) or   -116dBc/Hz (when the carrier is 10GHz and the frequency offset is 10kHz). It provides a high power output and a large dynamic range, with the maximum output power up to 20dBm@20GHz and an output power dynamic range greater than 150dB. It responds fast and switches to another frequency in only   1ms, which shortens the test time and improves test efficiency, meeting the needs of massive data testing; in addition, it also has excellent analog modulation and pulse modulation functions.  It is equipped with a 7-inch high-sensitivity LED touch screen,  and  supports  operation  by touch  screen,  panel  buttons,  rotary  knobs,  external  mouse  and keyboard, etc., which fully upgrades the users’ operation experience.  It adopts  portable 3U chassis structure and is featured by small size and light weight, and thus is easy to carry.



features

Main features:



  • Wide frequency coverage

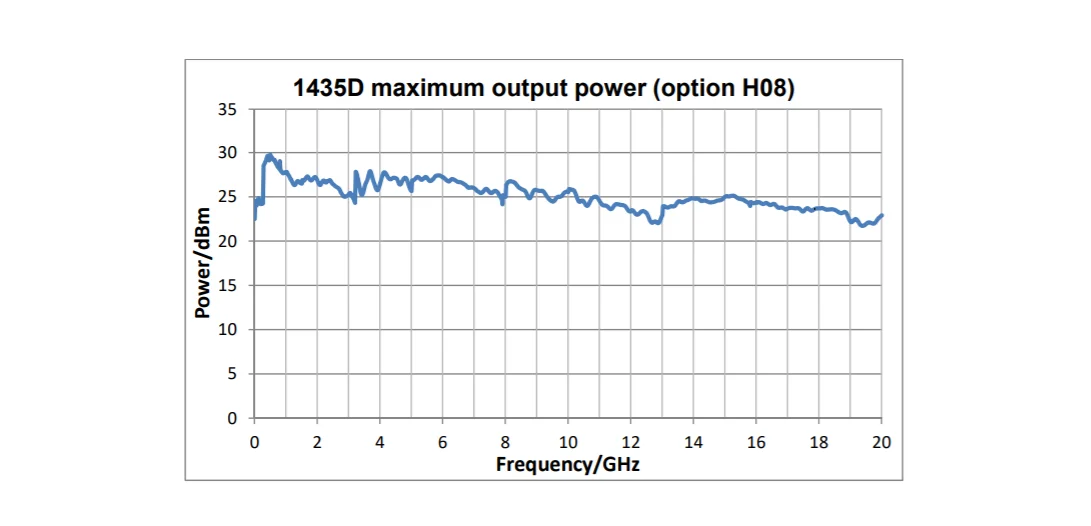

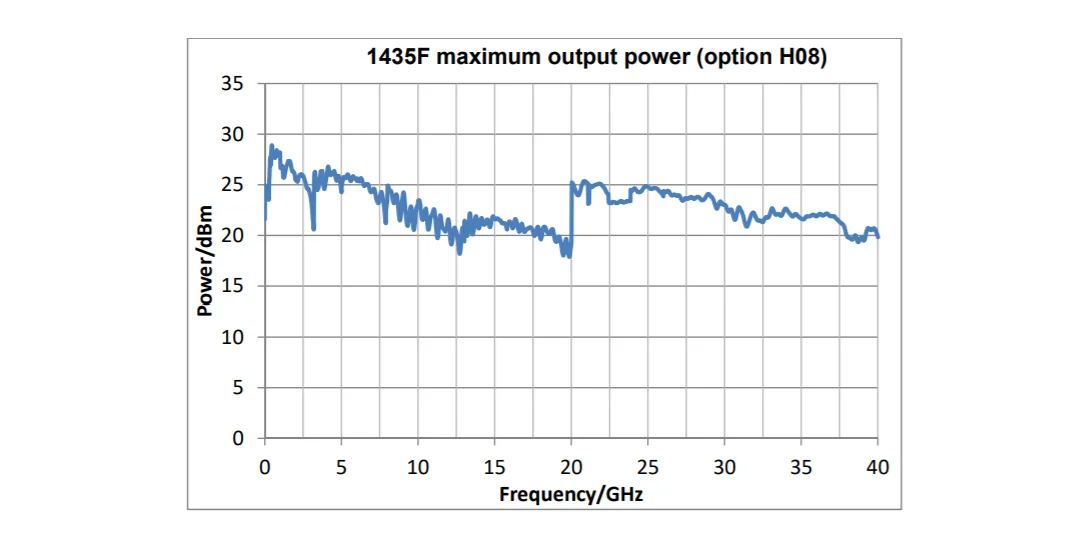

  • High output power

  • Excellent SSB phase noise

  • Extremely short frequency switching time

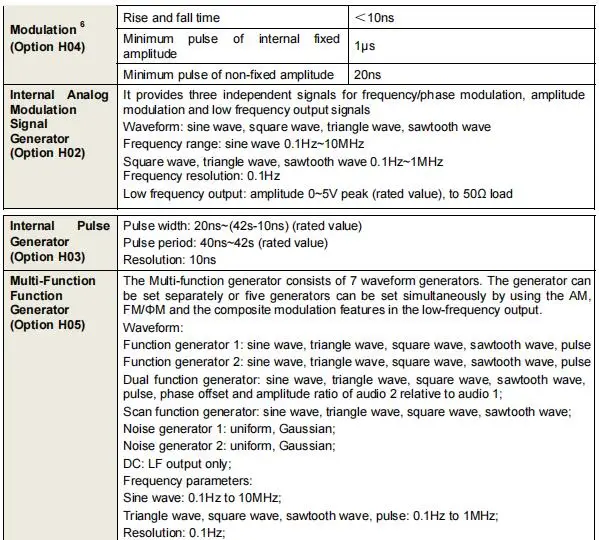

  • High performance pulse modulation

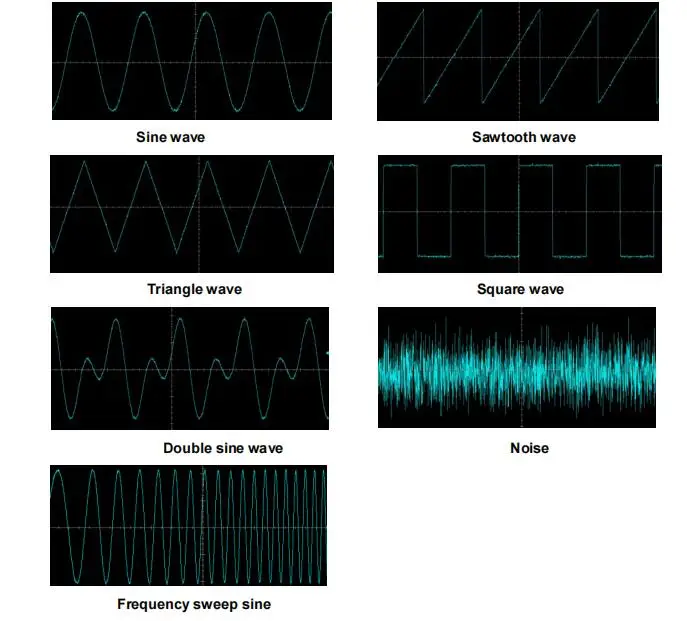

  • Built-in multi-function function generator

  • Small size and light weight

  • High-sensitivity LED touch screen

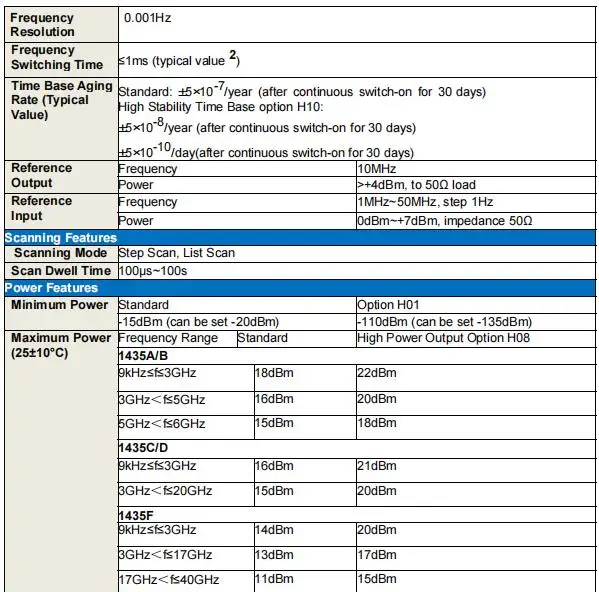

specifications





















































Frequency Features





















Frequency


Range















1435A:9kHz~3GHz


1435B:9kHz~6GHz


1435C:9kHz~12GHz


1435D:9kHz~20GHz


1435F:9kHz~40GHz



Frequency



N   (number   of   internal harmonic waves)



9kHz≤f<250MHz



1/8



250MHz≤f≤375MHz



1/16



375MHz<f≤750MHz



1/8



750MHz<f≤1.5GHz



1/4



1.5GHz<f≤3GHz



1/2



3GHz<f≤6GHz



1



6GHz<f≤12GHz



2



12GHz<f≤24GHz



4



24GHz<f≤40GHz



8
