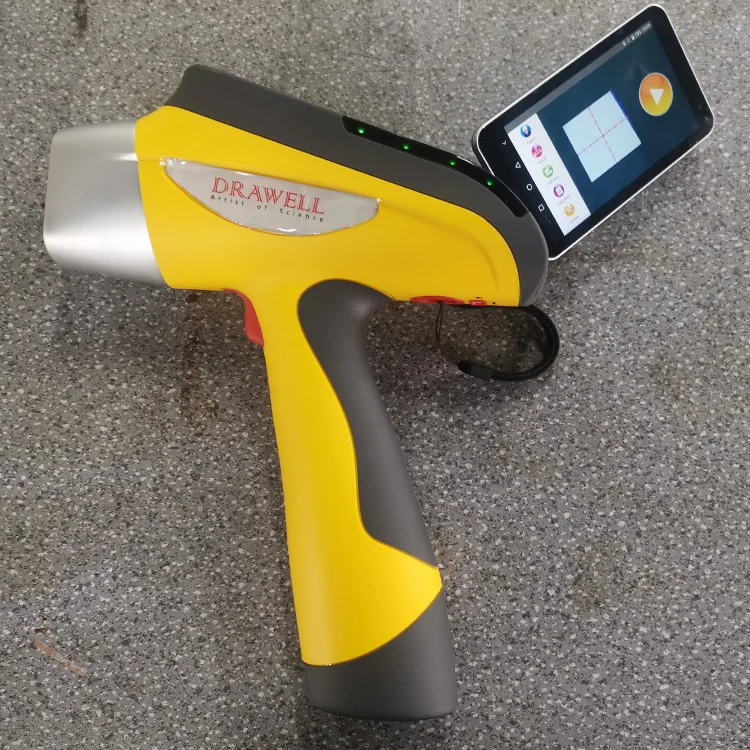

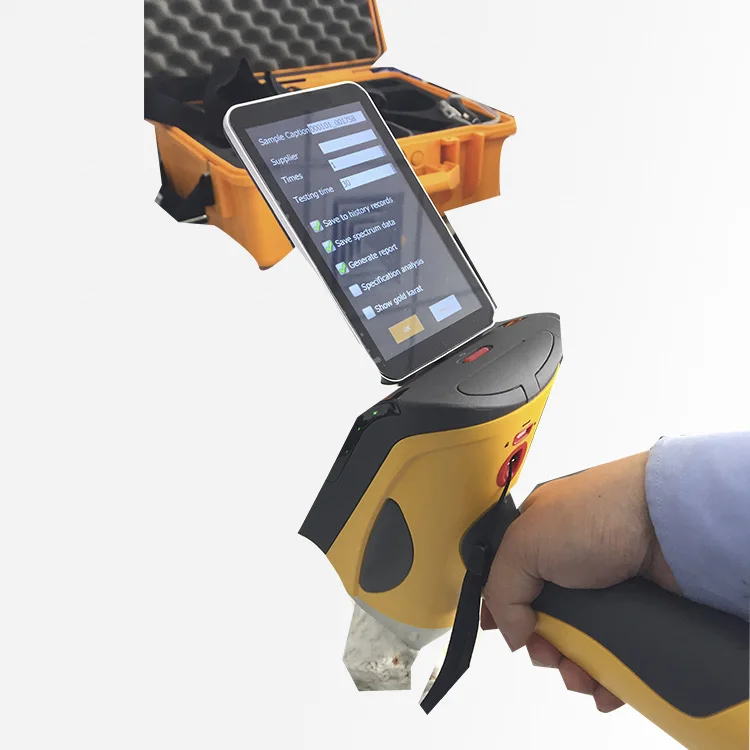

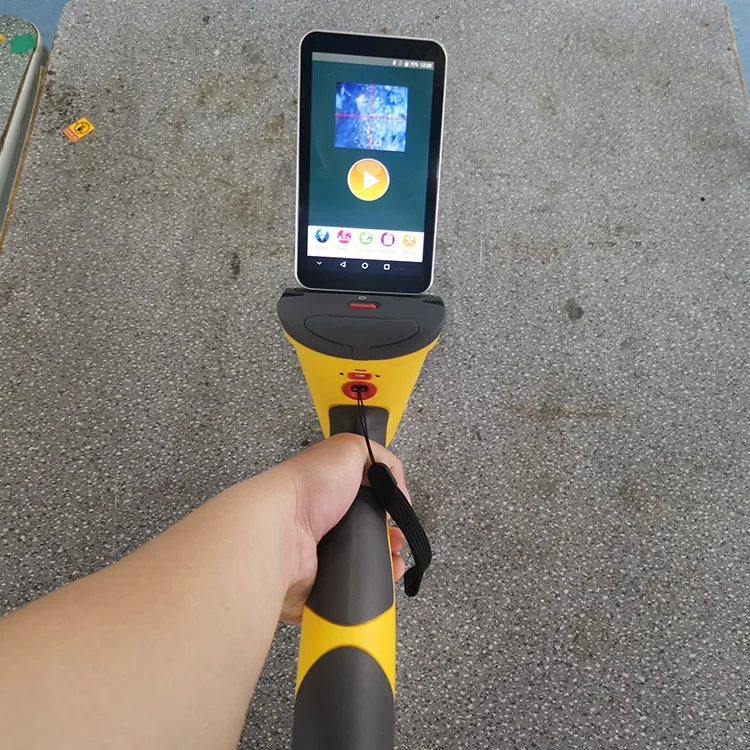

Product Overview

Description





Product Description


Features

1.Personalized customization work mode
Selections of various Ore -sample一models and free to add unlimited-number - models, the work model can be customized by customer's demand.

2.The accurate definition of mining boundary
The built-in GPS function helps to receive signals from satellite anytime at anywhere, and can record the measurements of altitude, latitude and longitude during anytime of testing period, which determine the geographic location information of sampling points, and save as test reports automatically.
It can draw the ore distribution pictures by obtained coordinate analytical data, screen large area range rapidly and grasp the lode mine accurately, then define the mining boundary, in order to prior to find rich mining area to improve the production efficiency.
A built in Bluetooth function, which can recognize the key mining areas on site when the instrument collocates with a Bluetooth printer.

3.Environmental monitoring
To monitor and detect the heavy metals in the soil around the mines, to evaluate mine repair environments, in order to maximize the monitoring the surrounding environment of good mines

4.Discover the mines' full- value
HD camera function, observes the detected vein and point position more intuitive, manages and controls the process of mining exploitation better, detects the grade of ore at any time.
During ore dressing, the quick and accurate analysis of raw ore, concentrate and tailings , provides the value judgment basis for the determination of ore grade, mineral trade, processing and recycling.




Analytical Method

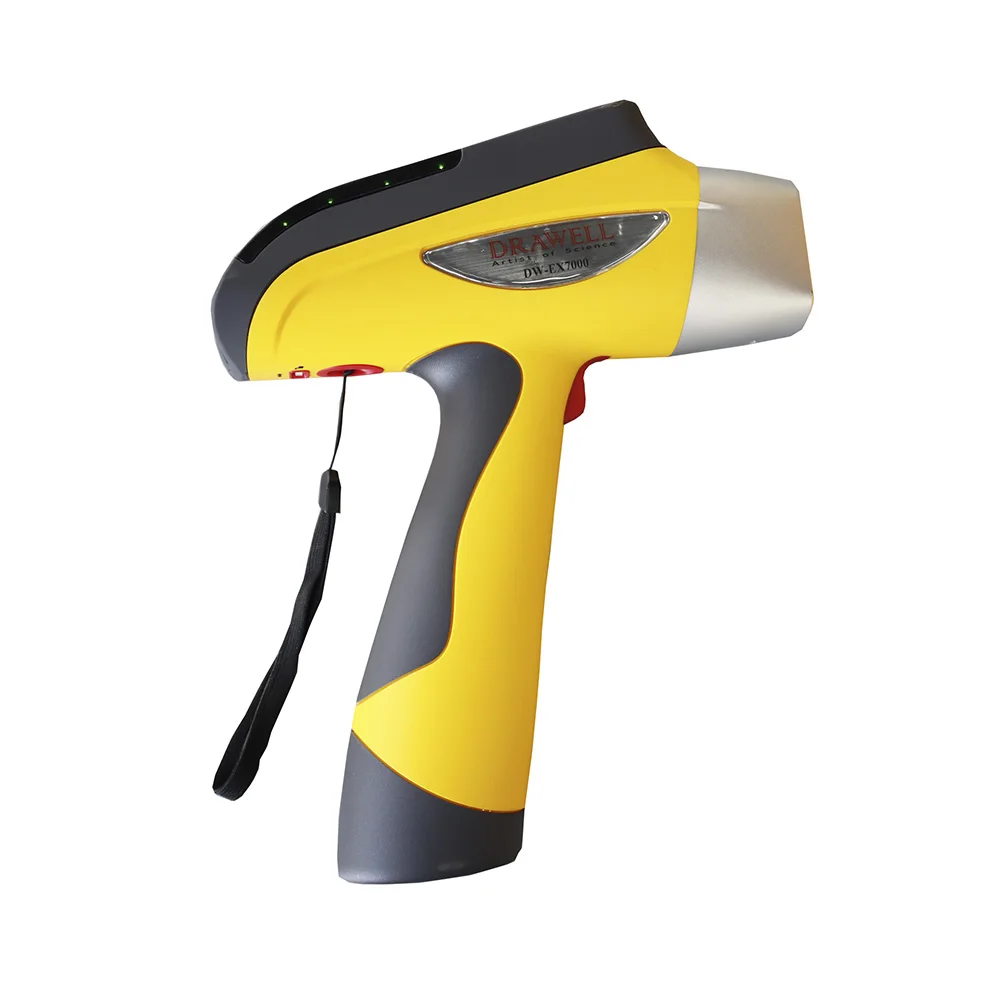

Energy dispersive X ray fluorescence analytical Method
Elements Measuring Range
Atomic number from 12 to 92 [elements from magnesium (Mg) to uranium (U)] can be measured
Simultaneous detector elements
Simultaneous analyze 40 elements
Microcomputer system
Customized system; CPU: 1G ;
System memory: 1G ; extended stored maximum support 32G ; standard 4G for mass storage data
The content range
ppm ~ 99.99%
The detection time
1 〜60 seconds (one second report results)
A built-in system
GPS, WIFI, Bluetooth
Power Supply
Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh superbattery with wide
voltage 110V ~ 220V universal adapter for recharging power supply
Detection Objective
Solid, liquid, powder
Detector
SDD detector or Fast-SDD detector (optional)
Detector resolution
Minimum can reach 128eV
The excitation source
50KV/200uA- silver target end window integrated miniature X-ray tube and high voltage power supply
Collimator and filter
collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions
Video system
500W pixel high resolution camera

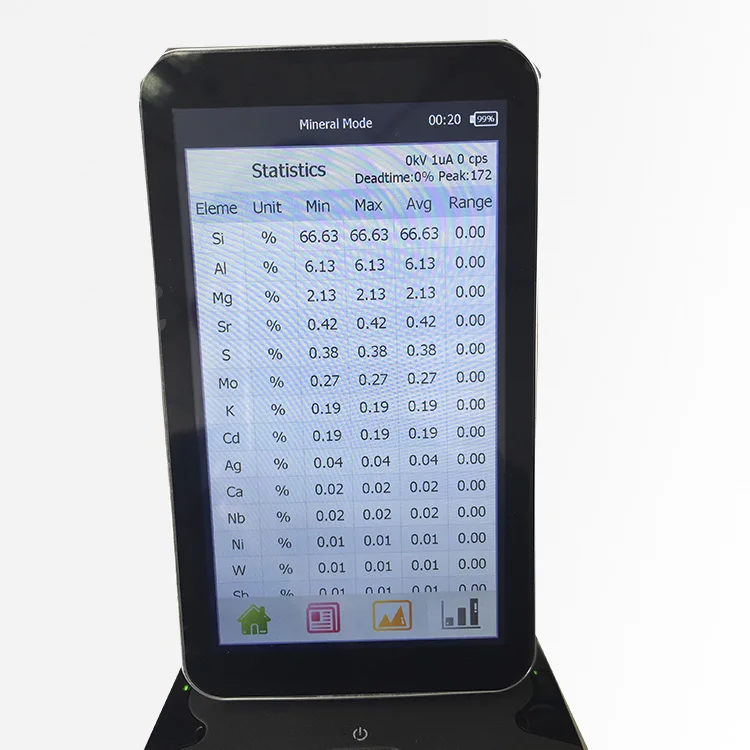

Display screen
Brand new 5 inch semi-reflecting and semi-transmitting LCD touch screen, its resolution is 1080*720.
Detection limit
The minimum detection limits at 1 ~ 500 ppm
Safety
Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards, and
has no sample telemetry, automatic -turn -off X-Ray tube function. Standard radiation shields, thickened instrument's alloy
testing wally test instrument
Specialty
Special edition of ore's analytical software, and intellectualized one- key- testing.
Convenience of application
No need to select curves, intellectualized one- key-selecting will select the best matching curve
Data transmission
Digital multi-channel technology, SPI data transmission, quick analysis, the high count rate; waterproof mini USB, and can be
connected with a desktop computer
Operating ambient humidity
≤90%
Operating environmental temperature
-20°C~+50°C
Instrument dimension
244mm ( Length) x 90mm (Width) x330mm ( Height)
Instrument weight
1.7Kg
Intelligent warning signals Indicator system
Green light means power on, red flushing means testing and yellow flushing means the errors

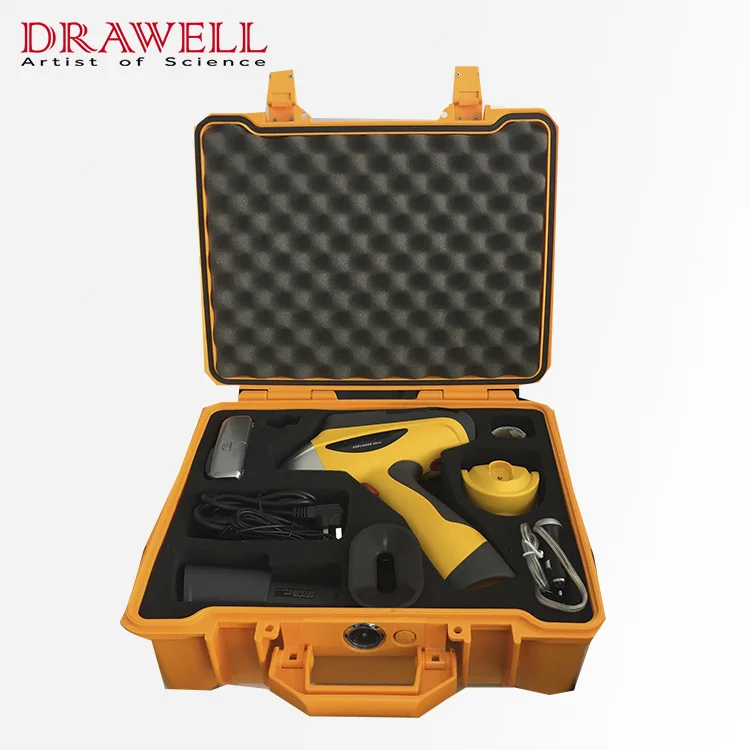

Accessories
Three-military-protection-box is compression, waterproof and shock absorption.
Universal charger and car charger, 4G SD memory card and card reader
Two lithium battery and charger, PDA accessories, radiation shield.
Optional accessories
the large battery, seat type test support, Bluetooth printer, mill, manual pressure machine, and different meshes of sieves
