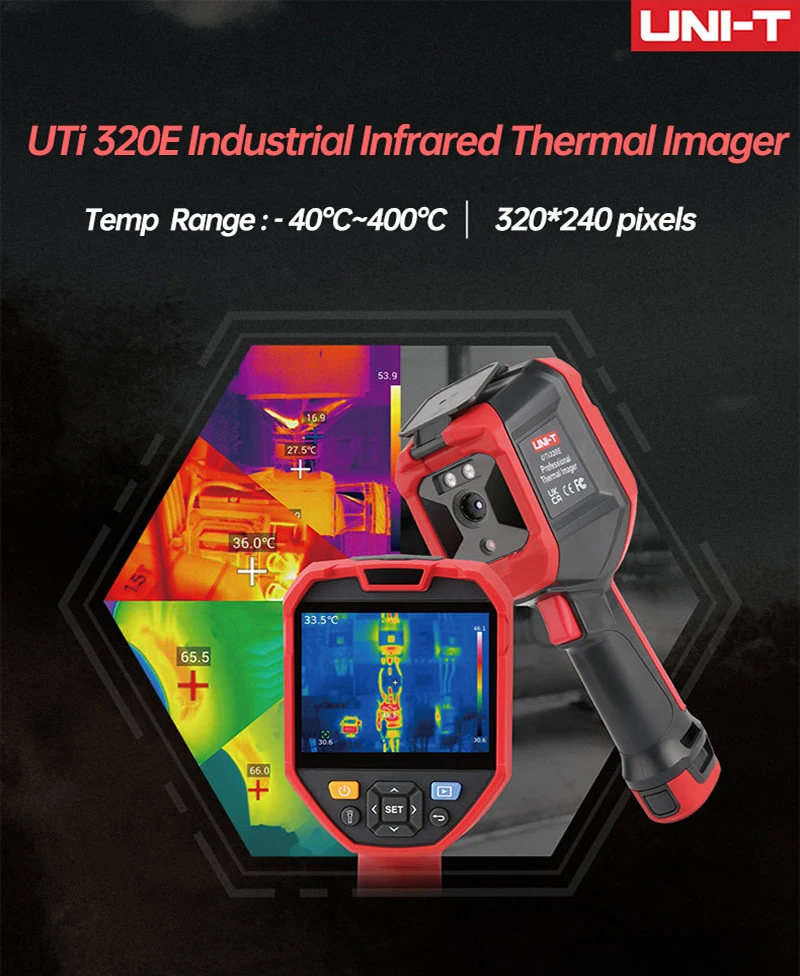

Handheld Thermal Camera UTi320E WIFI 320 x 240 Pixel Imager PCB Circuit Floor Heating Detector Industrial Infrared Thermal
UTi320E Enhanced Thermal Imagers provide various functions compared with Classic and Echo series, such as flexible
measurement presets, high resolution digital camera (2Megapixel), WiFi, Isotherm etc. The imager size is bigger which
allows a bigger screen (3.5''IPS) for excellent display quality. Its replaceable battery modules allow the imager to have
minimal down time, greatly improving productivity.
Features
1. Infrared resolution: 320x240
2. Temperature measurement range:--40℃~400℃
3. 2 Megapixel digital with 2x, 4x digital zoom
4. Image blending and Picture in Picture
5. WiFi download photos

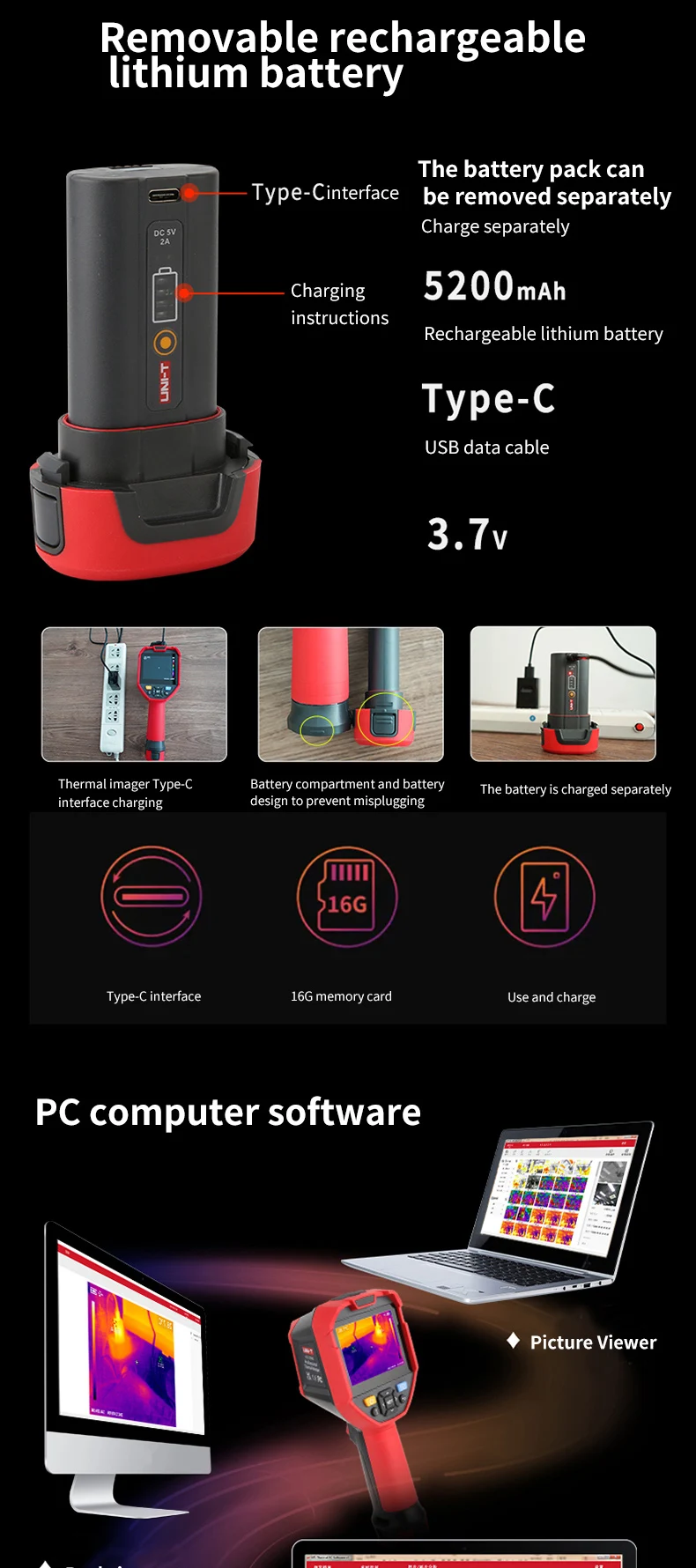

6. Battery replaceable
7.16G memory storage

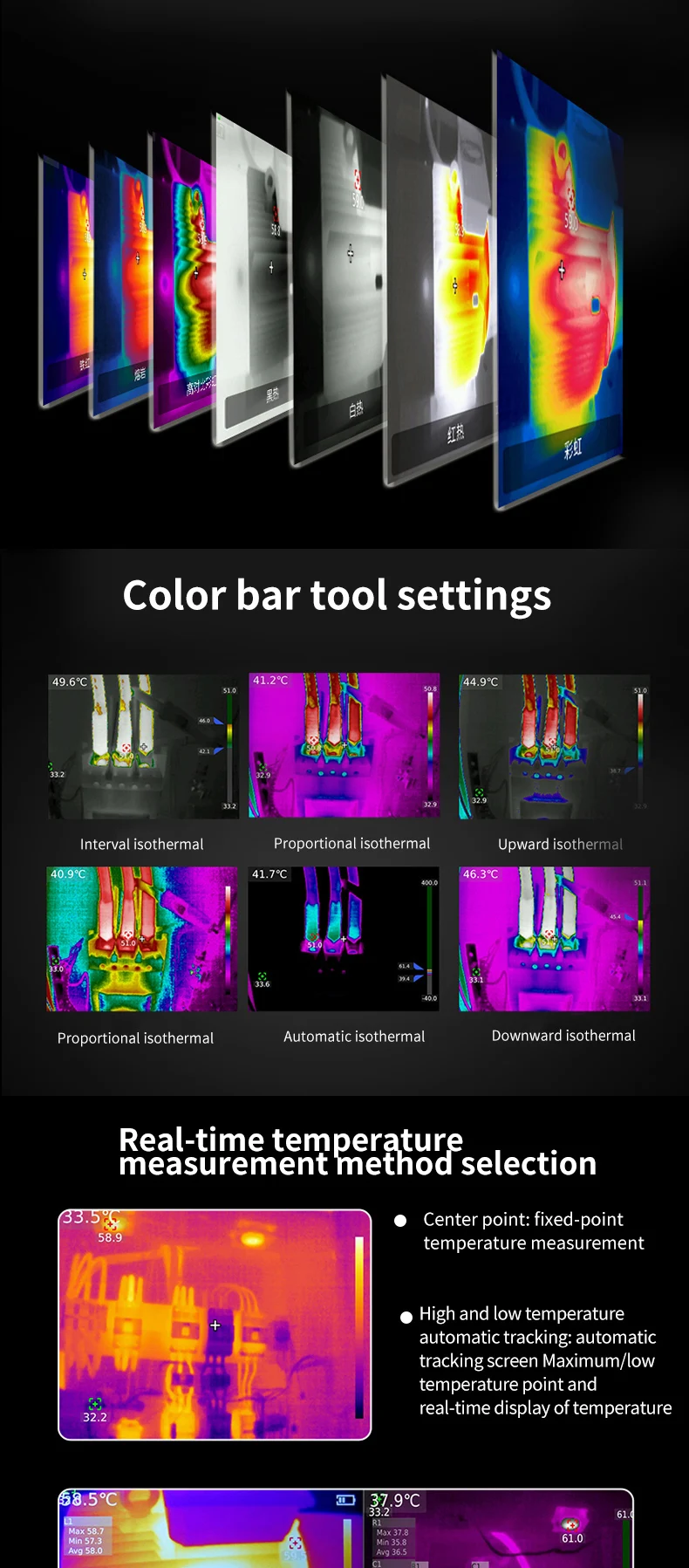

8.7 palette modes
9. PC-side software analysis
Specification:
Model | UTi320E |
IR resolution | 320x240 pixel |
Screen Display | 3.5”IPS |
Field of view (FOV) | 56°x 42° |
Thermal sensitivity (NETD) | 65mK |
Spatial resolution (IFOV) | 3mrad |
Focus | Focus free |
Frame rate | 9Hz |
Object Temperature range | -40~400℃ |
Measurement accuracy | ±2℃ or ±2% whichever is greater |

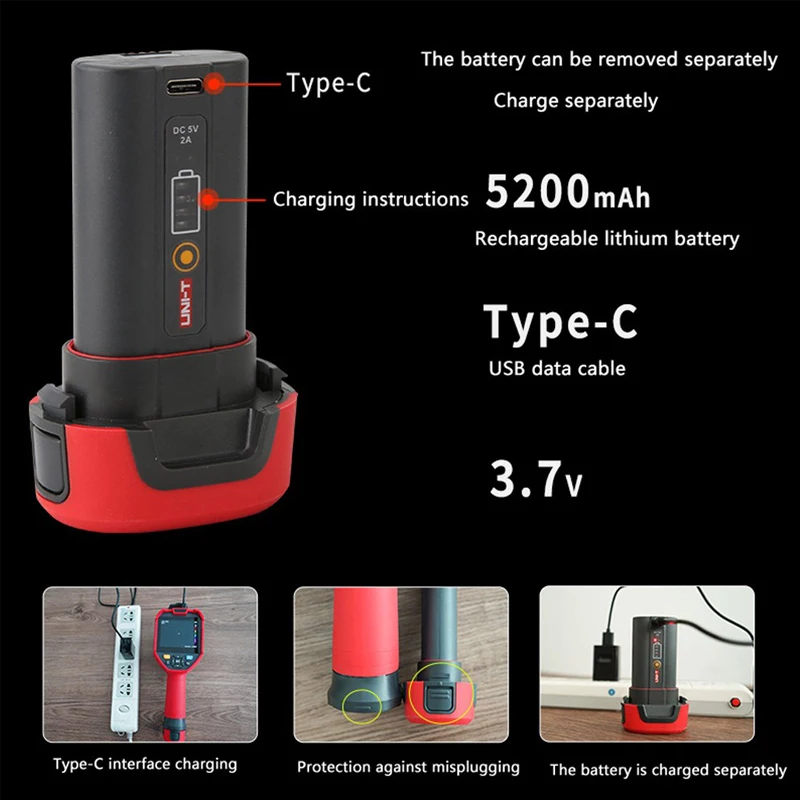

Battery | Li-ion battery pack(5200mAh) |
Battery Type | Replaceable |
Battery operating time | around 4 hours |
Founctions | |
Palettes | 7 |
Emissivity | Adjustable (0.01-0.99) |
Measurement presets | Point x5, Line x1, Area x6 |
Digital camera | 2MP |
Digital zoom | 2x, 4x |
Image Model | Thermal, visible, blending, PiP |
LED | √ |
WiFi download photo | √ |
ROI (eliminates interference) | √ |
Isotherm | √ |
Atuo tracking for Lo/Hi temperature | √ |
Alarm | √ |
Storage | 16G Mcro SD Card |
PC software | Analysis, Real-time display |
Protection | IP54/2m |

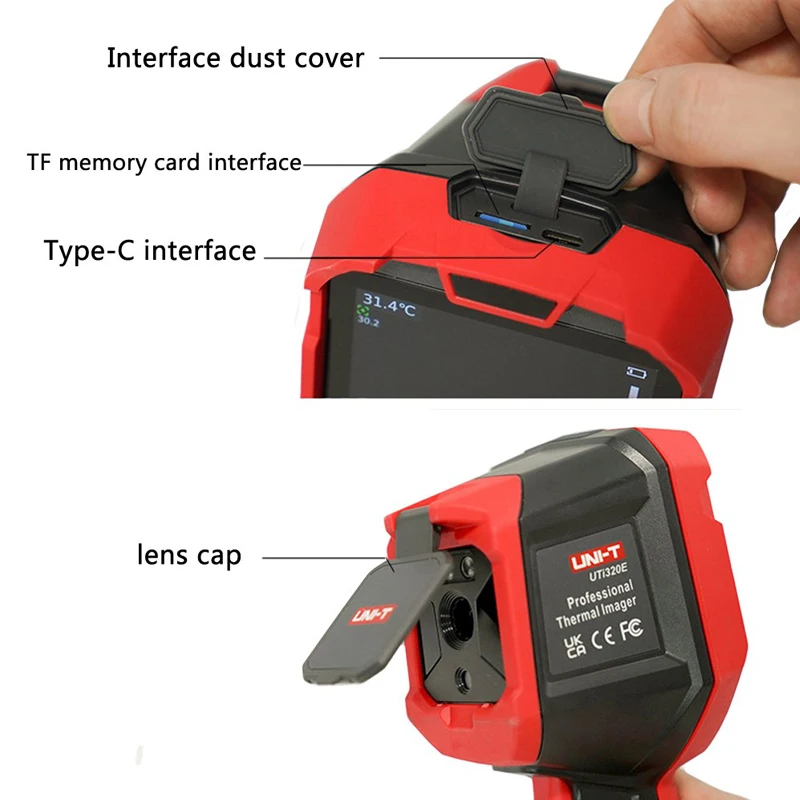

Communication interface | Type-C |
Package | |
Product net size | 260mmx97mmx99mm |
Product net weight | 630g |

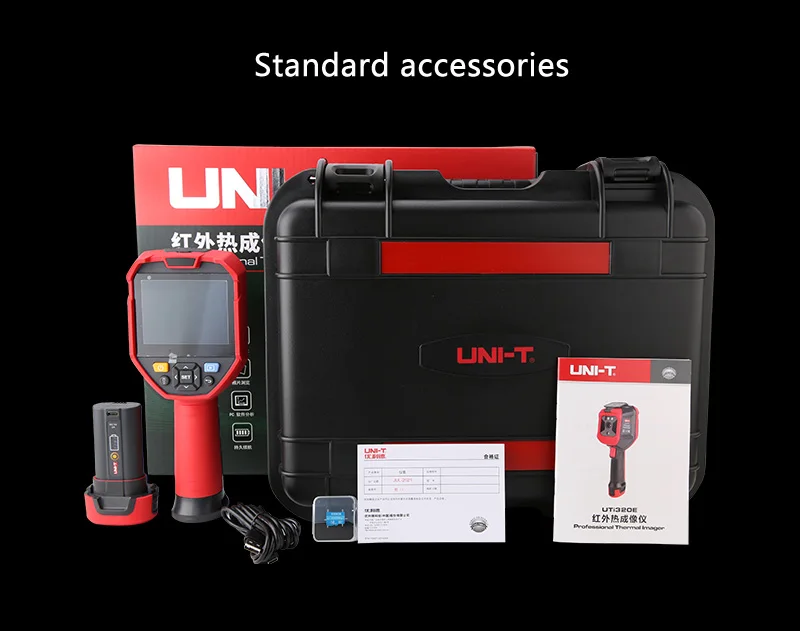

Standard accessories | Micro SD card, Type-C USB cable, manual, Li-ion battery pack |
