2015 Vending Breathalyzer with LCD TV OEM
US $2.99-$3.99
Smart Portable Breath Alcohol Tester Monitor Alcohol breathalyzer Sensor Meter Alcohol Checker with Bluetooths Mobile Tuya APP
- Category: Alcohol Tester >>>
- Seller: Guangzhou,Guigao,Electronics,Co.,Ltd.
Share on:
Product Overview
Description

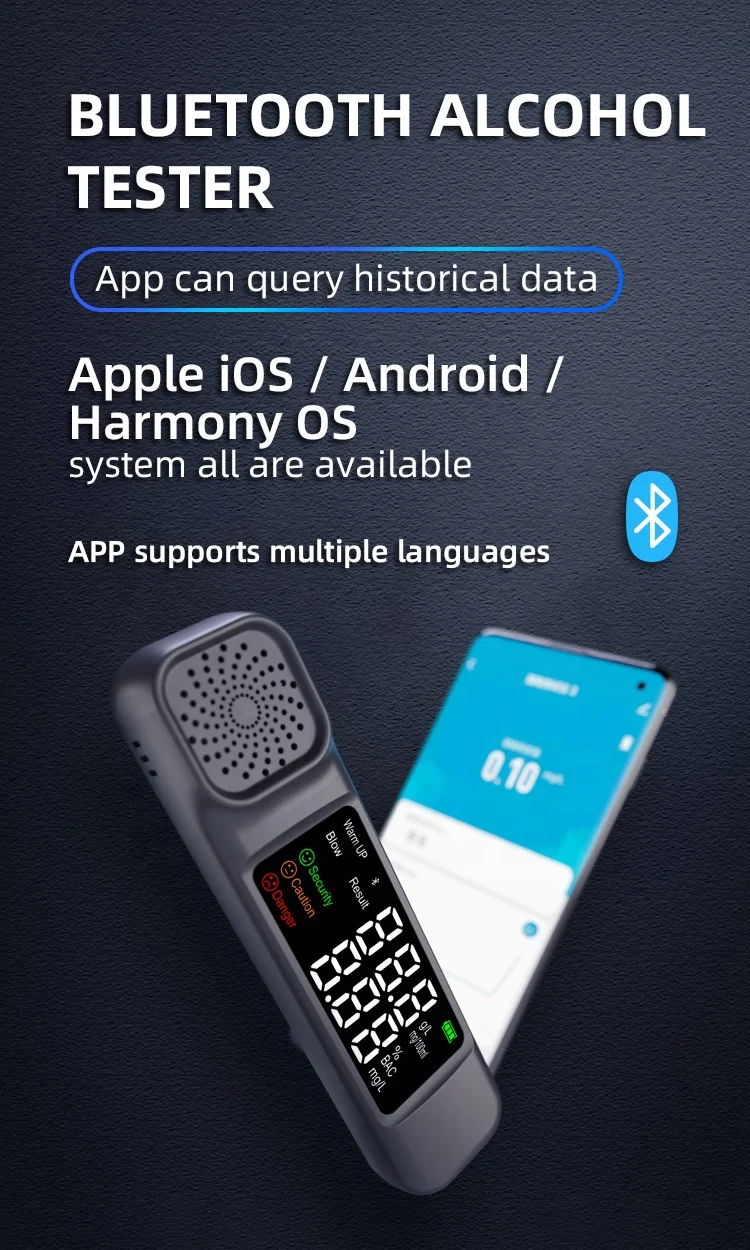

Smart Portable Breath Alcohol Tester Monitor Alcohol breathalyzer Sensor Meter Alcohol Checker with Bluetooths Mobile Tuya APP
Product Specification
Product Name | Smart Portable Breath Alcohol Tester Monitor Alcohol breathalyzer Sensor Meter Alcohol Checker with Bluetooths Mobile Tuya APP |
Model No. | AT68B |
Language | Japanese |
Material | ABS |
Function | Aocohol Contraction Detection |
Sensor | Semiconductor |
Size | 100*26.5*17.3mm |
Charging Input | 5V1A |
Measuring Range | 0-0.95mg/L (BrAC) for and 0-0.19% or 1.9g/L BAC |
Package | Color Box |
Details Images
How to use this alcohol tester ?
1. Press and hold the power button for 1 second,the LCD screen will be activated after a beep sound.
2. Warm up" would display on the screen, and the numbers start to count down from 010 to 000.
3. After Warm Up is completed, it enters blow state, the display shows “blow”,and the numbers start to count down from 010 to 000. Blow at any time during the countdown, after the device detect the air, the buzzer will make a beep to stop blowing.
3. After Warm Up is completed, it enters blow state, the display shows “blow”,and the numbers start to count down from 010 to 000. Blow at any time during the countdown, after the device detect the air, the buzzer will make a beep to stop blowing.
4. Display results: The test results would show for 10S and the device automatically shuts down. Power on again for the next test.
5. Read the test results from the display of the tester:

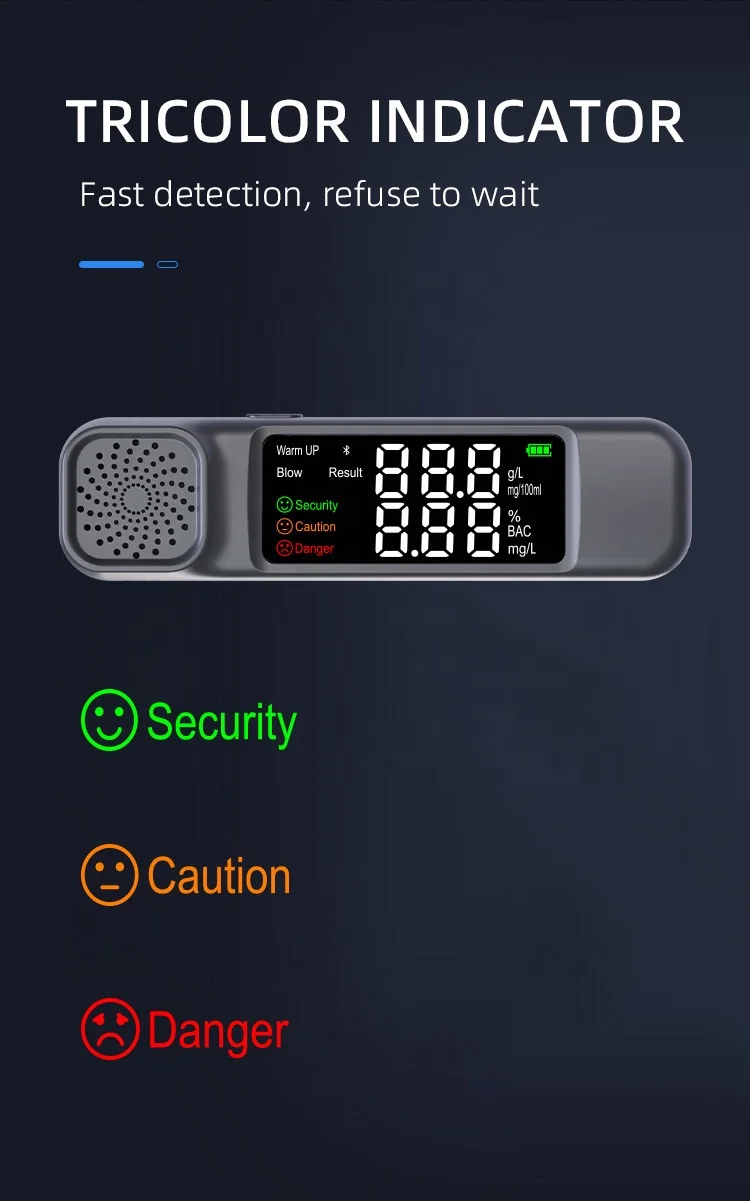

(1) If the alcohol concentration result is in the following display range, "Security" will appear on the display, and the green
warning light will be on.
0% BAC> Alcohol concentration <0.02% BAC or 0.2g/L
(2) If the alcohol concentration is below the display range of the result, the "Caution" will appear on the display screen and
accompanied by a beep, and the yellow warning light will be on.
0.02% BAC≥ Alcohol concentration <0.08% BAC or 0.8g/L
(3) If the alcohol concentration result is in the following display range, "Danger" will appear on the display screen and
accompanied by a warning tone, and the red warning light will be on.
Alcohol concentration ≥0.08% BAC or 0.8g/L
6. Press and hold the power button for 1 second, it would display the latest test result. Continue to press the power button, the display shows "01", which means the last test result,thencontinue to press the power button to display "02", which means the penultimate test result,....and so on, a maxium of 50 times test results can be recorded and displayed.And It would automatically power off after stopping operation for 10 seconds. Press the poweragain to start the next test.
5. Read the test results from the display of the tester:
(1) If the alcohol concentration result is in the following display range, "Security" will appear on the display, and the green
warning light will be on.
0% BAC> Alcohol concentration <0.02% BAC or 0.2g/L
(2) If the alcohol concentration is below the display range of the result, the "Caution" will appear on the display screen and
accompanied by a beep, and the yellow warning light will be on.
0.02% BAC≥ Alcohol concentration <0.08% BAC or 0.8g/L
(3) If the alcohol concentration result is in the following display range, "Danger" will appear on the display screen and
accompanied by a warning tone, and the red warning light will be on.
Alcohol concentration ≥0.08% BAC or 0.8g/L
6. Press and hold the power button for 1 second, it would display the latest test result. Continue to press the power button, the display shows "01", which means the last test result,thencontinue to press the power button to display "02", which means the penultimate test result,....and so on, a maxium of 50 times test results can be recorded and displayed.And It would automatically power off after stopping operation for 10 seconds. Press the poweragain to start the next test.
Product packaging
1.. Product Size: 100*26.5*17.3mm
2. Net Weight: 23g
3. Gross Weight: 49g
4. Box Size： 75*115*18mm
5. Packing : 150pcs / ctn
2. Net Weight: 23g
3. Gross Weight: 49g
4. Box Size： 75*115*18mm
5. Packing : 150pcs / ctn
6. Carton size: 365*400*230mm
7. Carton Weight：8.5KGS
7. Carton Weight：8.5KGS
Delivery & Payment
For Sample order : The delivery time for sample order is normally 3-7 working days after full payment received. And samples can be sent via DHL, UPS,TNT, Fedex express.
For bulk order : it's about 10~30 working days after deposit received, And shipment by air and by sea normally.
Payment:
1. Payment method: T/T, Paypal, Western Union.
2. For sample order, full payment after order confirmed. For bulk order, 30% deposit, 70% balance before delivery.
For bulk order : it's about 10~30 working days after deposit received, And shipment by air and by sea normally.
Payment:
1. Payment method: T/T, Paypal, Western Union.
2. For sample order, full payment after order confirmed. For bulk order, 30% deposit, 70% balance before delivery.
Company Introduction
Guangzhou GUIGAO Electronics Co.,Ltd.has been committed to the research and development of medical
electronic solutions, instruments, sensors, motion controllers, brushless motor controllers and other fields.
At the beginning of the company, we were based on innovation and technology. So far, we have independently developed carbon
dioxide detector, alocohol tester, brushless motor, fingertip oxymetre and other products
We are committed to providing customers with the highest quality products and services. Our goal is to do everything well at the
first time. We will strive to continuously improve our products, production process and management system to meet customers' needs and expectations.
electronic solutions, instruments, sensors, motion controllers, brushless motor controllers and other fields.
At the beginning of the company, we were based on innovation and technology. So far, we have independently developed carbon
dioxide detector, alocohol tester, brushless motor, fingertip oxymetre and other products
We are committed to providing customers with the highest quality products and services. Our goal is to do everything well at the
first time. We will strive to continuously improve our products, production process and management system to meet customers' needs and expectations.
