2G 3G 4G Tri Band Signal Repeater mobile signal booster
- Category: Repeaters >>>
- Seller: Shenzhen,Ayision,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Notice
Note: This product is only a single product and does not come with any other products, if you need it, please contact customer service
Product Description
Product Usage
Product description

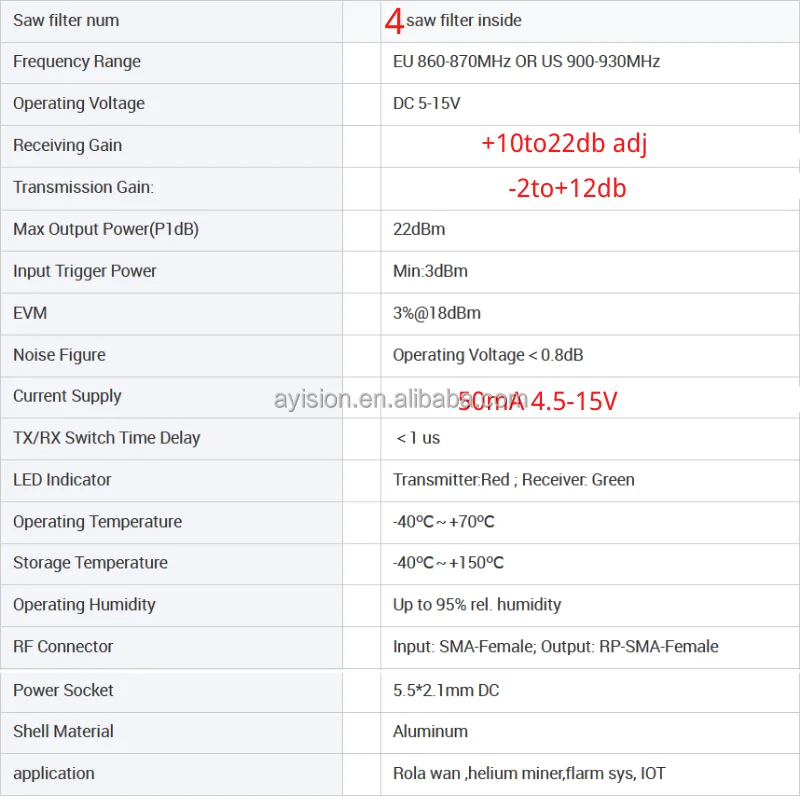

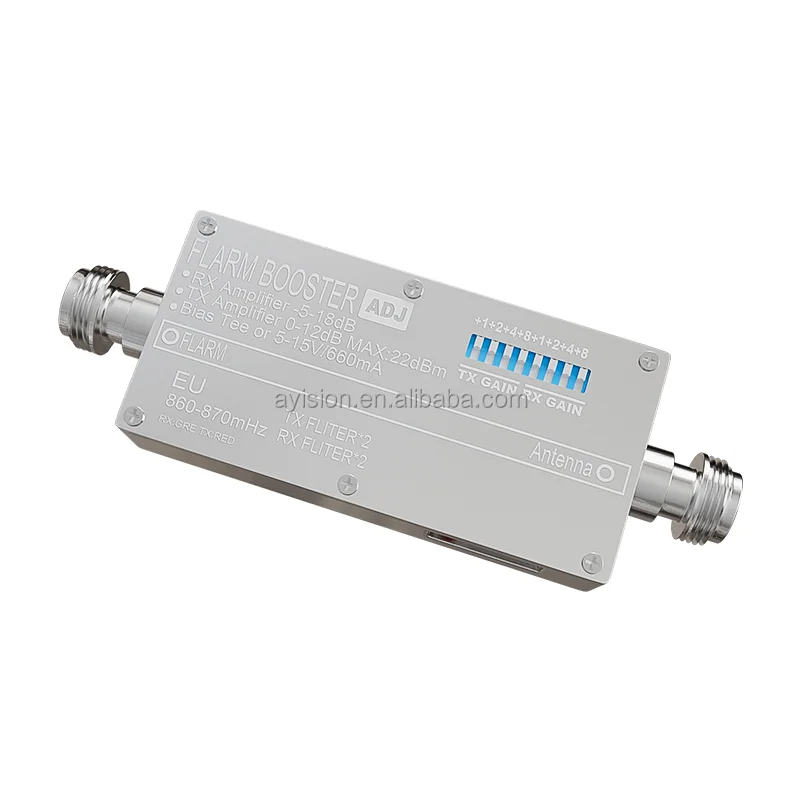

Ayision Flarm Booster for EU and US countries FLARM BOOSTER acts as a receive preamp with RX boost and TX pass through automatically in transmit mode. It is a good helper for helium miners to optimize the LORA network. EU's specific operating frequency is 860-870MHz with TX and RX. However, 900-930MHz will work in the US. Power can be plugged in via USB or viacoax on the RX side. A built-in filter avoids interference from out-of-band signals. The FLARM BOOSTER acts as a receive preamp,but is automatically bypassed in transmit mode.
Need more FLARM range for your aircraft? Helium miners?
Need more FLARM range for your aircraft? Helium miners?
Because other FLARM transmitters in your airspace detected it too late FLARM-receiver, then FLARM BOOSTER is exactly what you need. Improve your personal situational awareness in the airspace. The FLARM BOOSTER amplifies the antenna signal by +12dB,
increasing the FLARM receiving radius by about 4 times. Your own FLARM transmissions are simply routed. Power is very simple.
increasing the FLARM receiving radius by about 4 times. Your own FLARM transmissions are simply routed. Power is very simple.

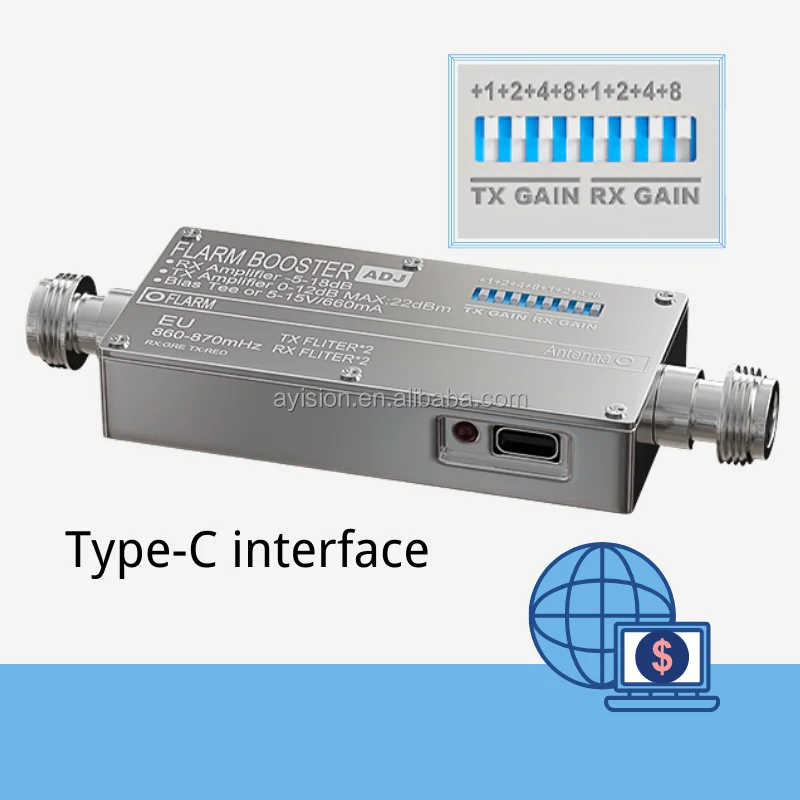

You can use a normal DC input of 5-15V, or you can use an appropriate BIAS TEE to power it through the antenna input. This also enables use cases away from DC power sources (eg antennas in vertical tails). Also available as FLARM BOOSTER PLUS with additional antenna or as bundled FLARM BOOSTER plus BIAS TEE.
Details Images
Related Products
Company Introduction
FAQ
WHY MINER FLARM BOOSTER?
There are many MINER hosts that are generally installed indoors, or have small GAIT antennas that come with them directly. In this way, the signal will be weak, resulting in the signal that cannot be connected to the network, and the invalid share is too high. In this way, the benefits that MINER should have can't be better. There is also a situation where the indoor host will cause a decrease in signal when a long line is passed. These problems can be effectively solved by adding FLARMBOOSTER.
There are many MINER hosts that are generally installed indoors, or have small GAIT antennas that come with them directly. In this way, the signal will be weak, resulting in the signal that cannot be connected to the network, and the invalid share is too high. In this way, the benefits that MINER should have can't be better. There is also a situation where the indoor host will cause a decrease in signal when a long line is passed. These problems can be effectively solved by adding FLARMBOOSTER.

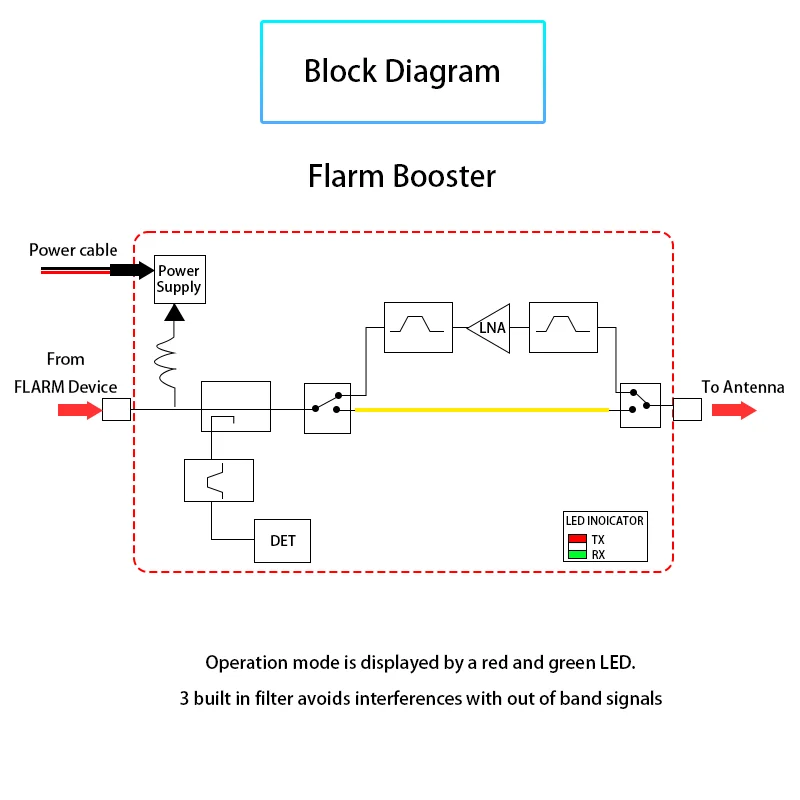

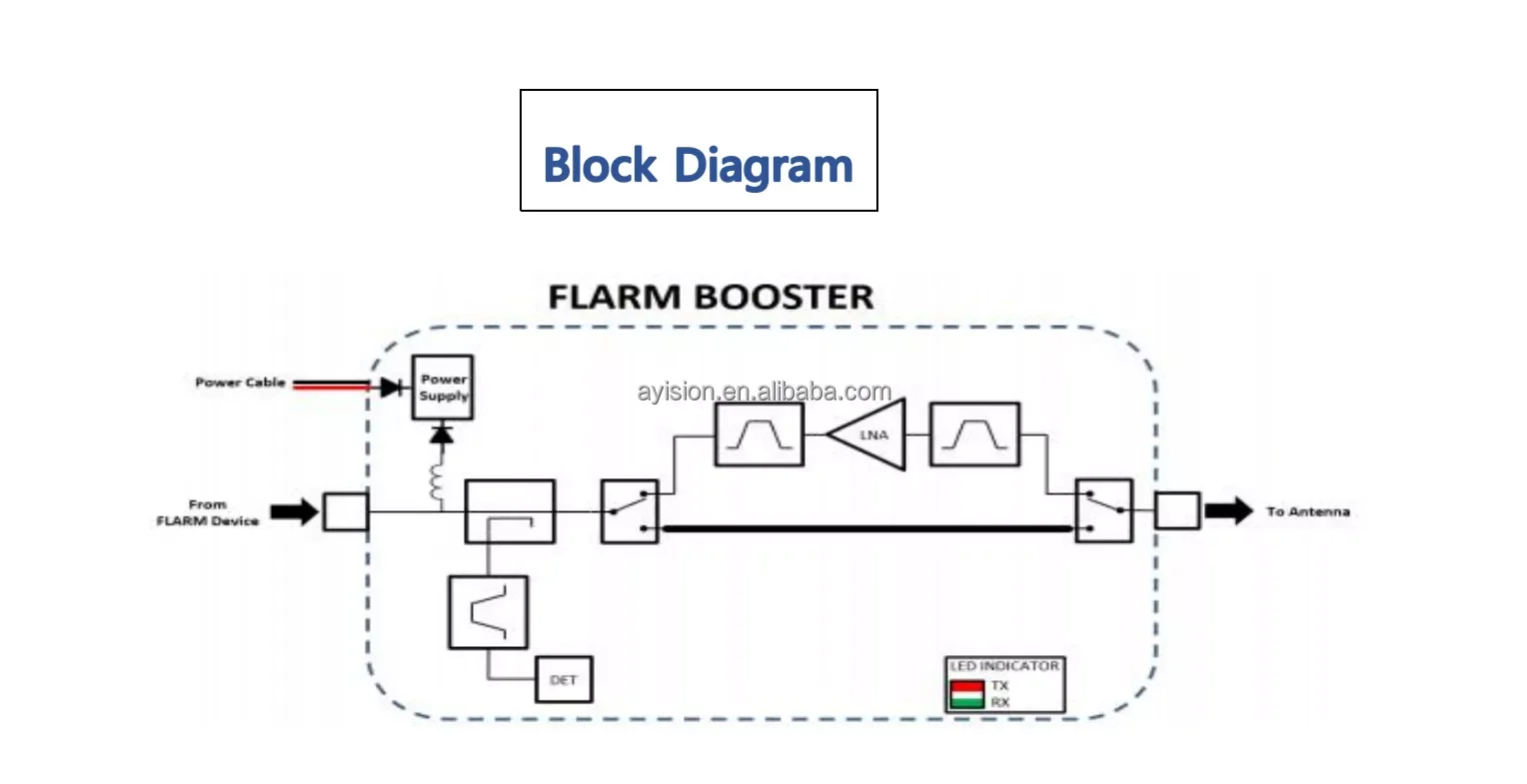

The principle of the FLARM BOOSTER amplifier. with characteristics.
1. Built-in 865M or 915M filter, which can
effectively reduce interference. Unlike broadband amplifiers seen on the market. A FLARM BOOSTER is a band-specific amplifier that
selects only the desired signal.
2. FLARM BOOSTER is an amplifier that automatically switches between transceivers. Unlike unidirectional amplifiers on the market.
This point is very important.
3.FLARM BOOSTER In addition to the PA tube, it also has a built-in LNA low-noise amplifier. Smaller signals can be amplified more
effectively. Let your machine receive more shares. more responsive. more stable.
1. Built-in 865M or 915M filter, which can
effectively reduce interference. Unlike broadband amplifiers seen on the market. A FLARM BOOSTER is a band-specific amplifier that
selects only the desired signal.
2. FLARM BOOSTER is an amplifier that automatically switches between transceivers. Unlike unidirectional amplifiers on the market.
This point is very important.
3.FLARM BOOSTER In addition to the PA tube, it also has a built-in LNA low-noise amplifier. Smaller signals can be amplified more
effectively. Let your machine receive more shares. more responsive. more stable.
Why is the output power of RX (receive) not very high.
Because MINER does not need a super strong signal, even too large output signal to the machine may cause damage to the receiving part of the machine. My focus is on how to improve sensitivity. So there is no need for too high output power.
Because MINER does not need a super strong signal, even too large output signal to the machine may cause damage to the receiving part of the machine. My focus is on how to improve sensitivity. So there is no need for too high output power.
Why does Jianyi FLARM BOOSTER install the antenna as short as possible?
There will be loss of signal through the line, and after the FLARM BOOSTER is installed behind the antenna, it can
compensate for these losses. That suggested to choose BIAS TEE. In this way, the FLARM BOOSTER can be powered by the BIAS TEE without powering the FLARM BOOSTER outside. This is very convenient.
There will be loss of signal through the line, and after the FLARM BOOSTER is installed behind the antenna, it can
compensate for these losses. That suggested to choose BIAS TEE. In this way, the FLARM BOOSTER can be powered by the BIAS TEE without powering the FLARM BOOSTER outside. This is very convenient.
How to visually check if it is working properly
Observe the LED status indicator of FLARM BOOSTER, whether there is red light and green light switching. Lights up red when MINER is sending out a signal. But for a short time.
Observe the LED status indicator of FLARM BOOSTER, whether there is red light and green light switching. Lights up red when MINER is sending out a signal. But for a short time.
Precautions:
When directly supplying power to the FLARM BOOSTER, please note that the red wire is connected to the positive pole, and the black wire is connected to the negative pole. Of course, the reverse will not damage the machine. When the line between BIAS TEE and FLARM BOOSTER exceeds 5M, it is recommended to use the supply voltage of BIAS TEE above 9V and below 15V. You can DIY it. If you choose BIAS TEE, please pay attention to his direction. The FLARM terminal of the
FLARM BOOSTER is connected to the ANT terminal of the BIAS TEE. The RX of the BIAS TEE is connected to the MINER host. Do not reverse, it may damage your MINER. Please power on the FLARM BOOSTER first and then power on the MINER host. We also recommend that you choose a lightning protection device, which can effectively prevent lightning flashes.
When directly supplying power to the FLARM BOOSTER, please note that the red wire is connected to the positive pole, and the black wire is connected to the negative pole. Of course, the reverse will not damage the machine. When the line between BIAS TEE and FLARM BOOSTER exceeds 5M, it is recommended to use the supply voltage of BIAS TEE above 9V and below 15V. You can DIY it. If you choose BIAS TEE, please pay attention to his direction. The FLARM terminal of the
FLARM BOOSTER is connected to the ANT terminal of the BIAS TEE. The RX of the BIAS TEE is connected to the MINER host. Do not reverse, it may damage your MINER. Please power on the FLARM BOOSTER first and then power on the MINER host. We also recommend that you choose a lightning protection device, which can effectively prevent lightning flashes.
