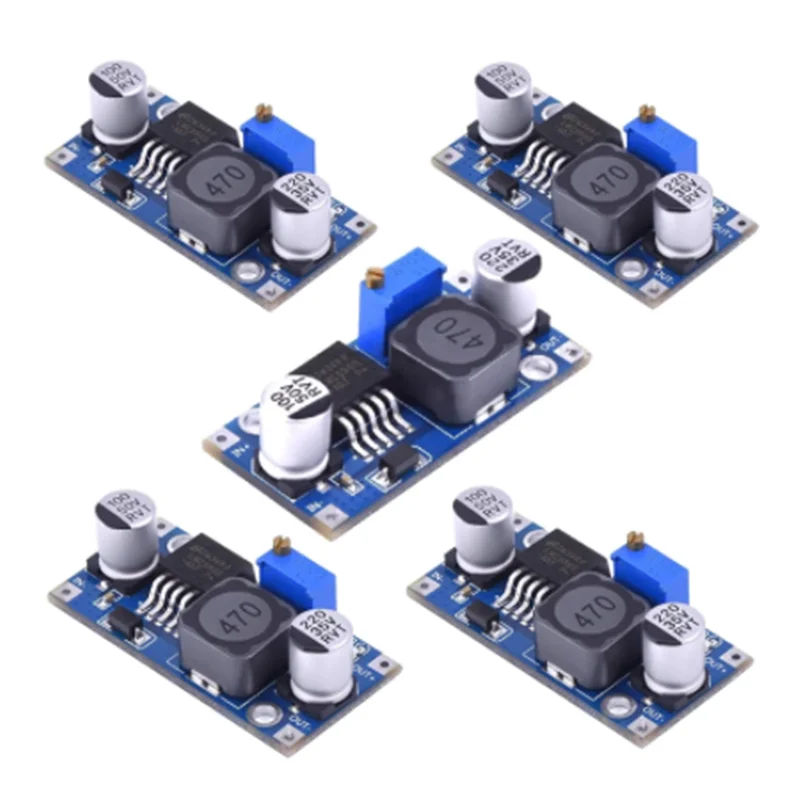

5 PCS/LOT LM2596 LM2596s DC-DC Step Down Power Supply Module 3A Adjustable Step Down Module LM2596S-ADJ Voltage Regulator 24V 12V 5V 3V

•

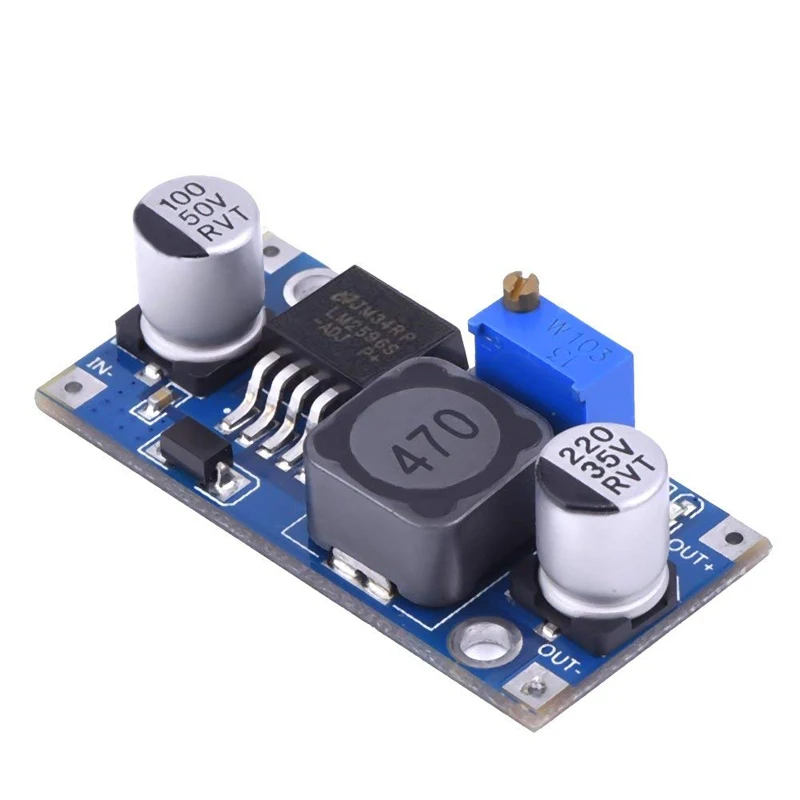

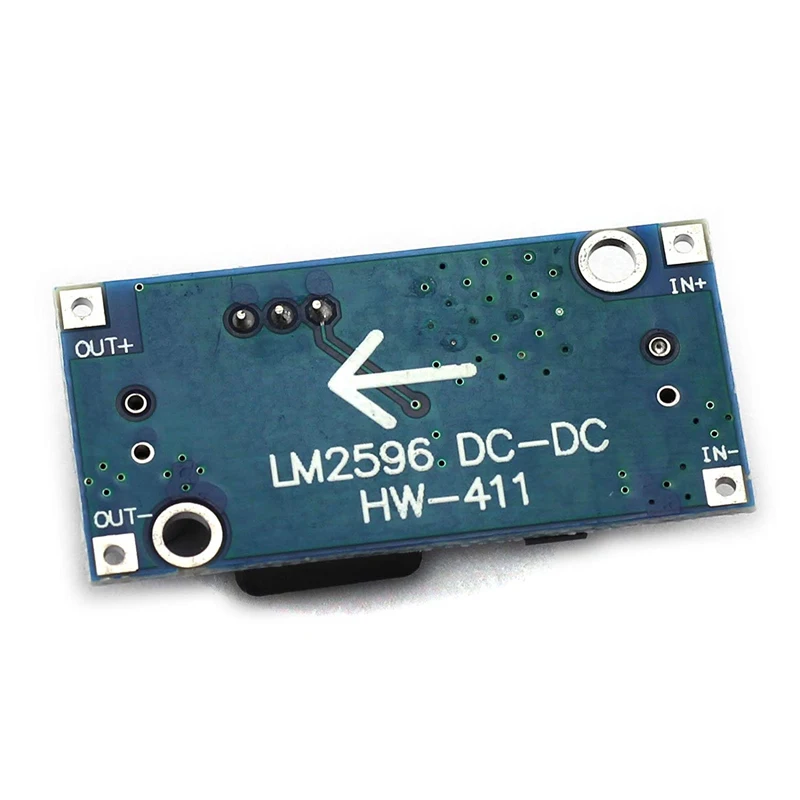

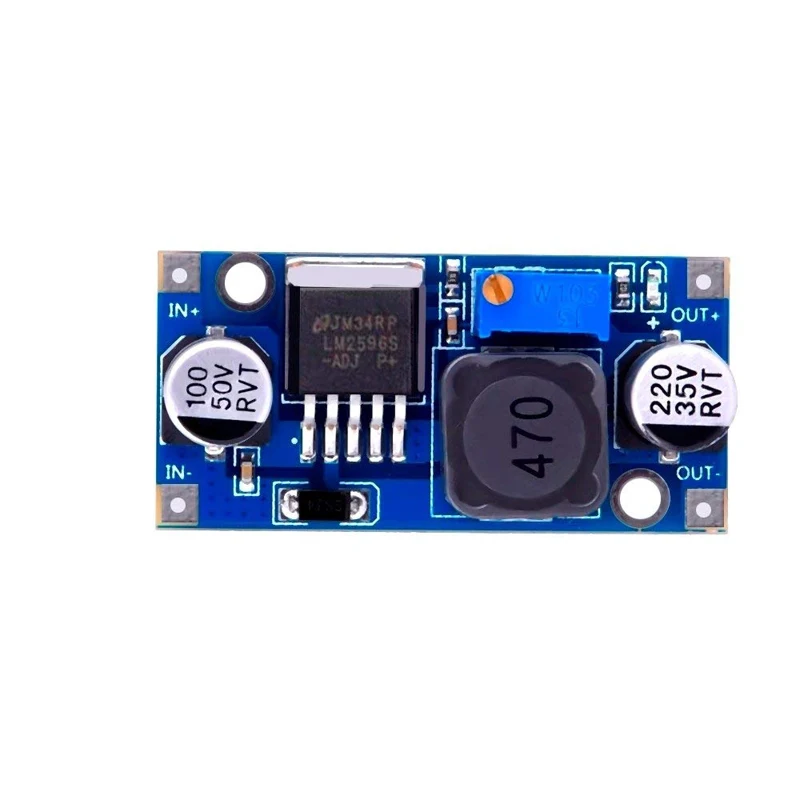

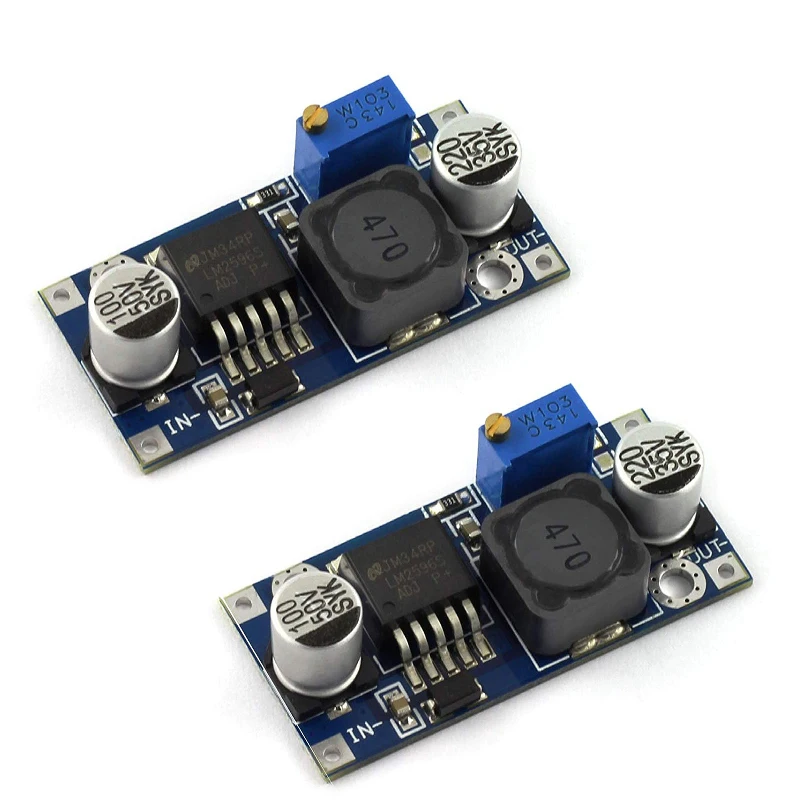

  Name : LM2596 DC-DC Buck module





•


  Input voltage :4V ~ 35V





•


  The output voltage : 1.23V ~ 30V





•


  Output Current :3A( Max)





•


  Conversion efficiency:92%( MAX )





•


  Output ripple: <30mV





•


  Switching frequency: 150KHz





•


  Working temperature: -forty Five~ +85





•

  Size :43mm * 21mm * 14mm(Long*Width*Hight)



  Features:

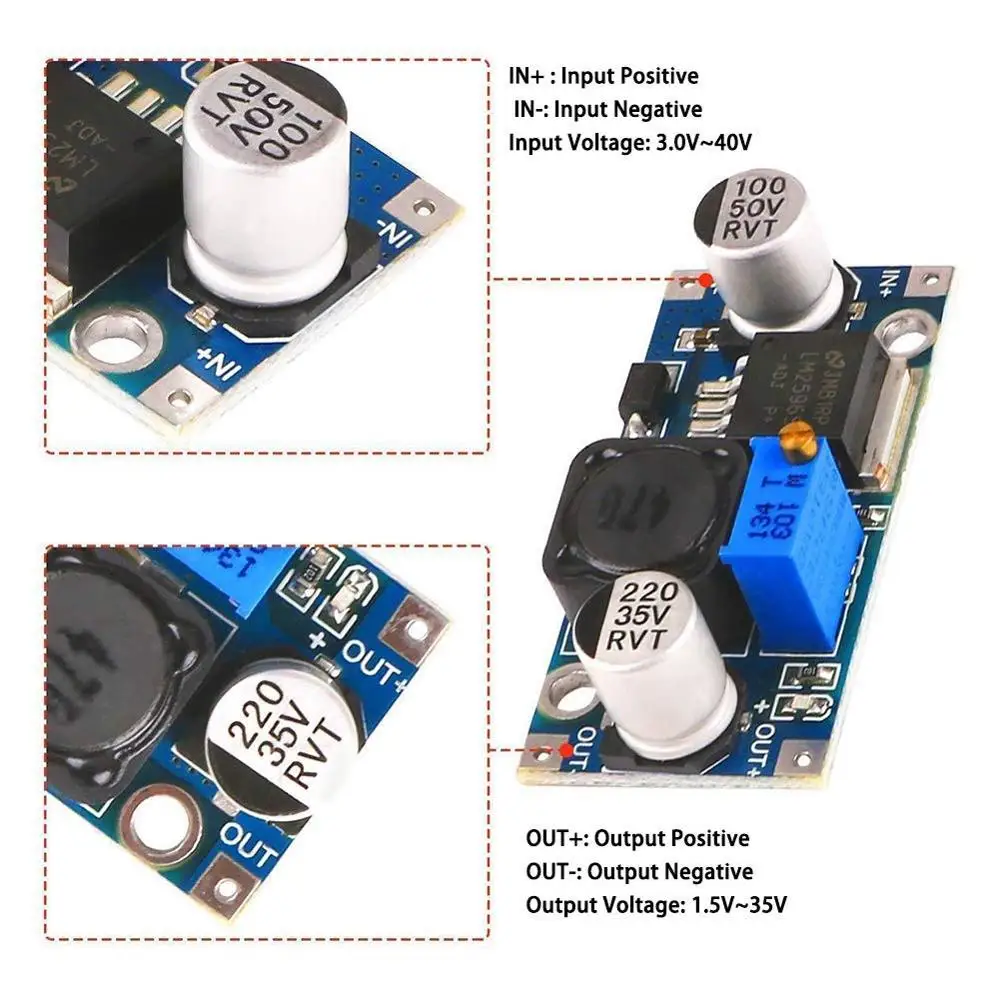

  1. the range of input voltage: 3.2 V to 40 V dc (input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)





  2. the range of output voltage: 1.25 V dc to 35 V voltage adjustable, high efficiency (92%)largest maximum output current is 3A.




  Instructions:

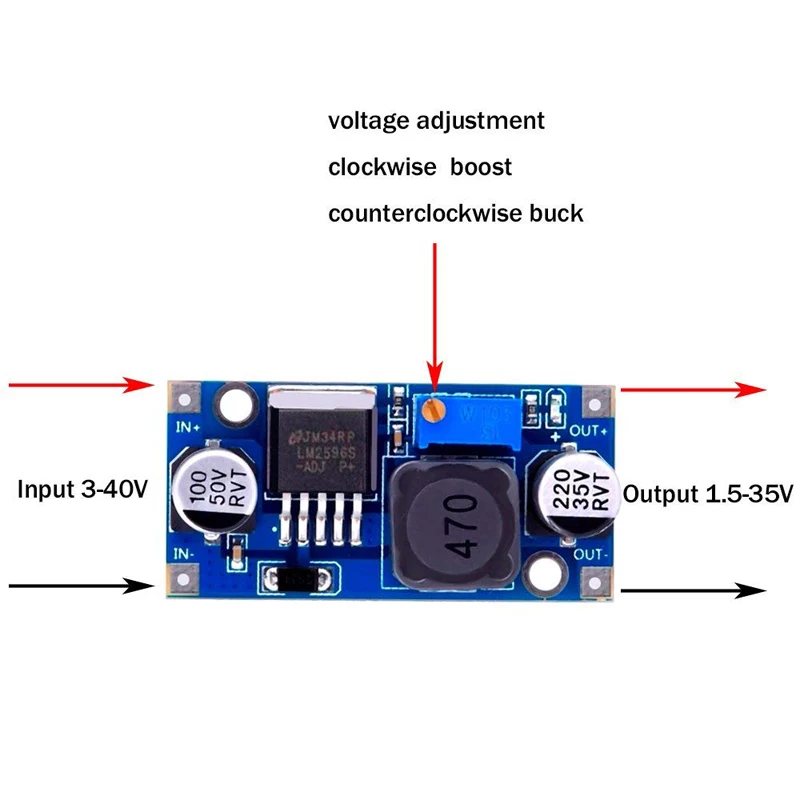

  1. Power (3-40V), power indicator light, the module is working properly.

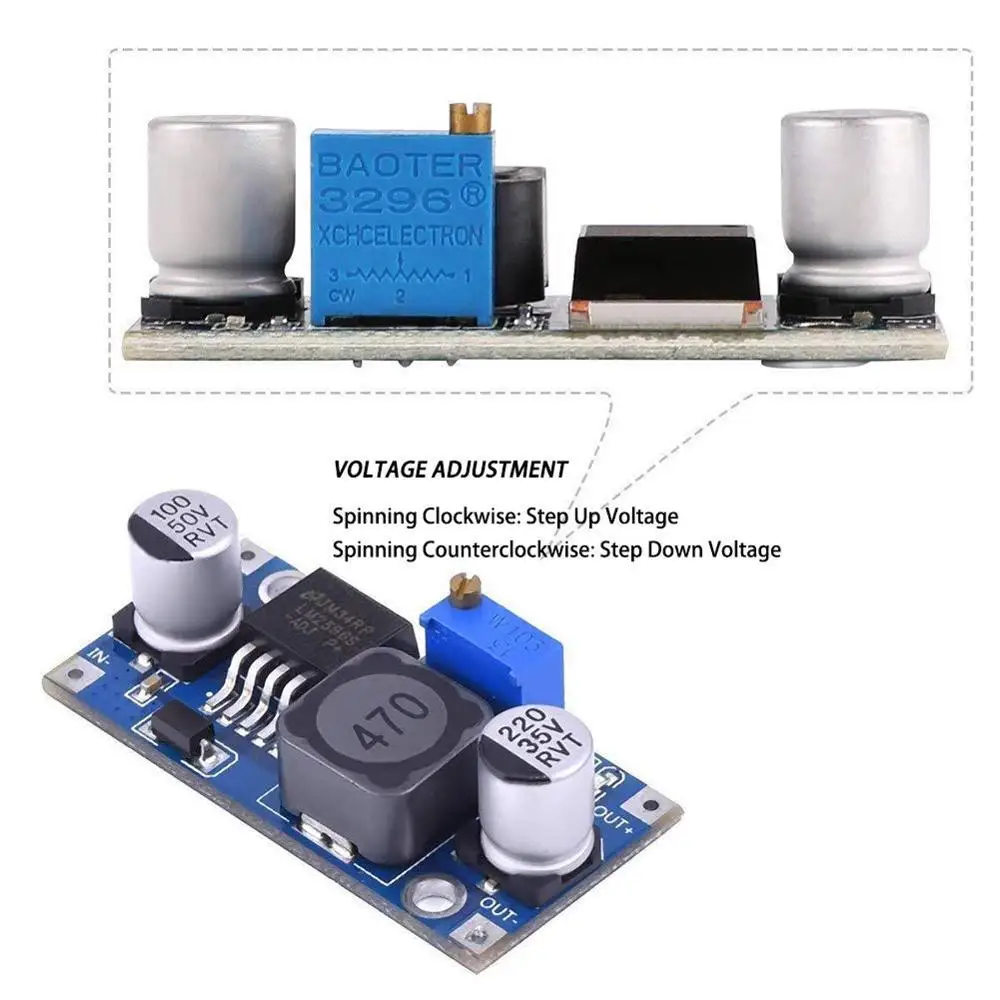

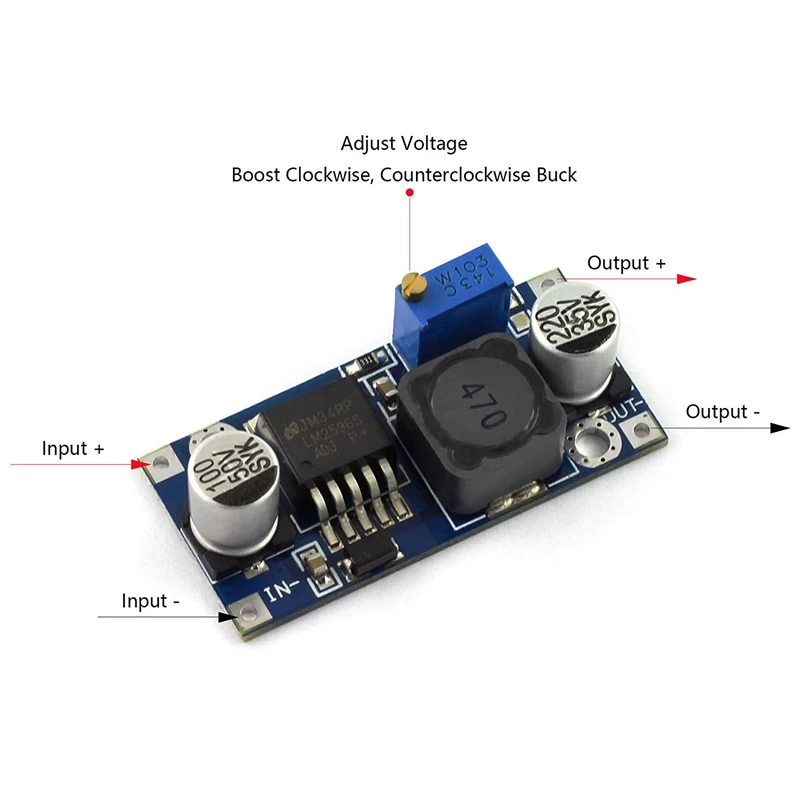

  2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.




  Note:




    Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.
