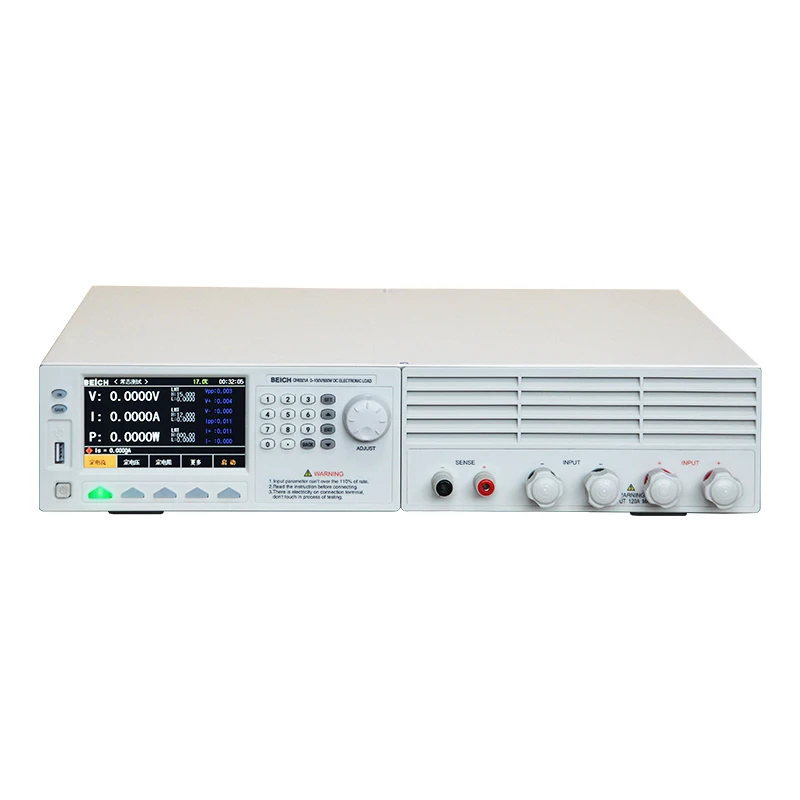

900W 1200w 1500W Programmable dc electronic load tester

Features::

4.3-inch TFT high-definition color display

The display resolution of voltage and current is up to 0.0001, which is suitable for various test

occasions

500KHZ high-speed sampling AD, voltage and current peak-to-peak value, peak value real-time

measurement (VPP/VP+VP-/IPP/IP+IP-)

CR-LED test mode, convenient for parameter setting

OCP test function, automatically obtain the OCP protection point, automatically obtain the

maximum power point (Pmax) and the current voltage and current parameters

The maximum dynamic load frequency is 500KHZ, the current slope can be set, and the voltage peak

value VP+/VP- can be measured in real time

Time measurement function, support OVP protection point and protection time test, power start

time, protection time and other tests

Battery measurement mode, which can measure battery endurance and capacity, with internal

resistance test and curve drawing functions

List test function, which can test the comprehensive parameters of the power supply under various

load conditions, including the comparator function

U disk software upgrade function, keep the latest version operation at all times

There are 100 sets of internal and external (U disk) 500 sets of setting files inside the instrument,

which can save and recall the setting parameters

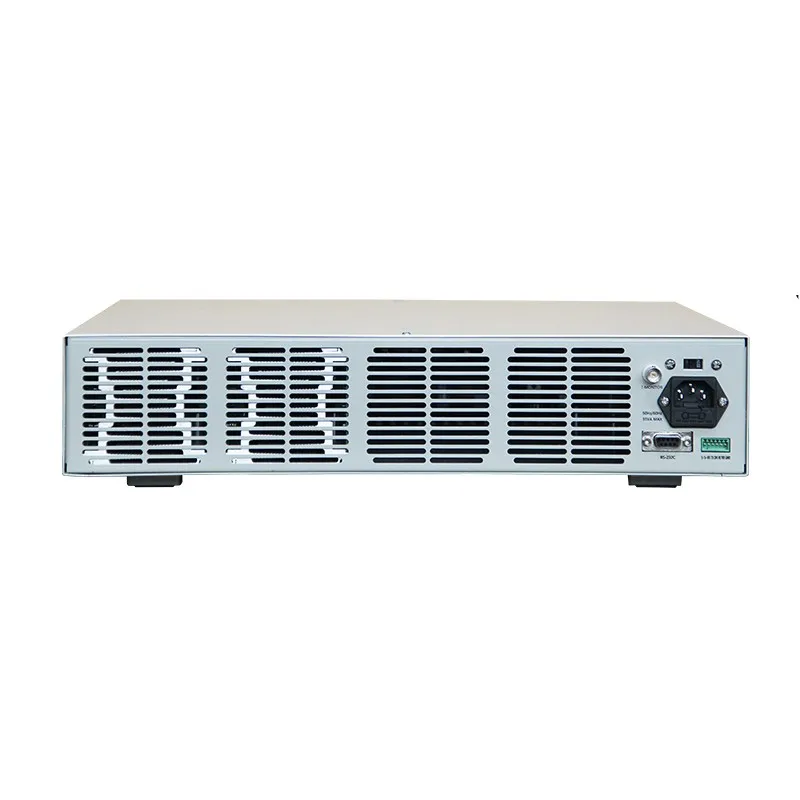

Standard handle and RS232C interface are convenient for connection and signal output

Compatible with the serial communication commands of other mainstream manufacturers, which

can be directly replaced

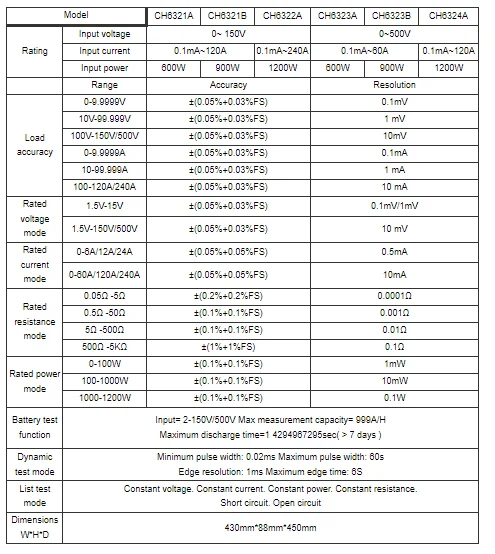

Model		CH6321B	CH6322A	CH6326A
Rated value	Input current	0.1mA-120A	0.1mA-240A
	Input voltage	0-150V
	Input power	900W	1200W	1500W
	Range	Precision	Resolution
Load accuracy	0V-9.9999V	±(0.05%+0.03%FS)	0.1mV
	10V-99.999V	±(0.05%+0.03%FS)	1mV
	100V-150V/500V	±(0.05%+0.03%FS)	10mV
	0A-9.9999A	±(0.05%+0.05%FS)	0.1mV
	10A-99.999A	±(0.05%+0.05%FS)	1mV
	100A-120A/240A	±(0.05%+0.05%FS)	10mV
Constant voltage mode	1.5V-15V	±(0.05%+0.03%FS)	0.1mV/1mV
	1.5V-150V/500V	±(0.05%+0.03%FS)	10mV
Constant current mode	0-6A/12A/24A	±(0.05%+0.05%FS)	0.5mA
	0-60A/120A/240A	±(0.05%+0.05%FS)	10mA
Constant resistance mode	0.05Ω-5Ω	±(0.2%+0.2%FS)	0.0001Ω
	0.5Ω-50Ω	±(0.1%+0.1%FS)	0.001Ω
	5Ω-500Ω	±(0.1%+0.1%FS)	0.01Ω
	500Ω-5kΩt	±(1%+1%FS)	0.1Ω
Constant power mode	10-100W	±(0.1%+0.1%FS)	1mW
	100-1000W	±(0.1%+0.1%FS)	10mW
	1000-1500W	±(0.1%+0.1%FS)	0.1W
Battery measurement mode	Input voltage range: 2-150V/500V, maximum capacity: 9999AH Maximum discharge time = 1 to 7 days
Dynamic test mode	Minimum pulse width: 0.01ms, maximum pulse width: 999s, edge resolution: 0.01ms, maximum edge time: 6S
List test mode	Constant voltage, constant current, constant power, constant resistance, short circuit, open circuit
size	435mm200mm510mm
