Product Overview

Description



Product Description

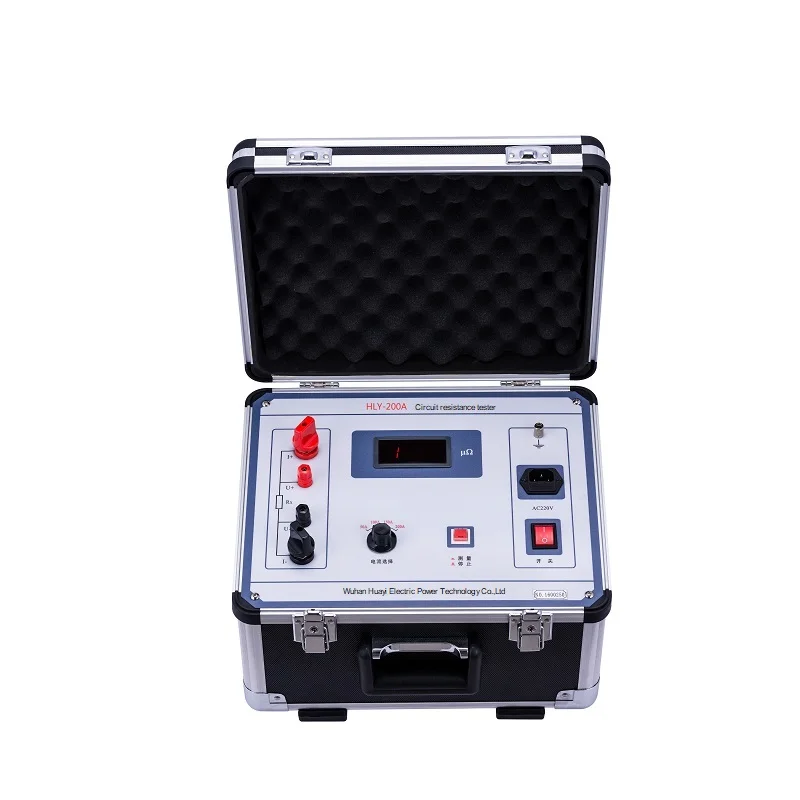

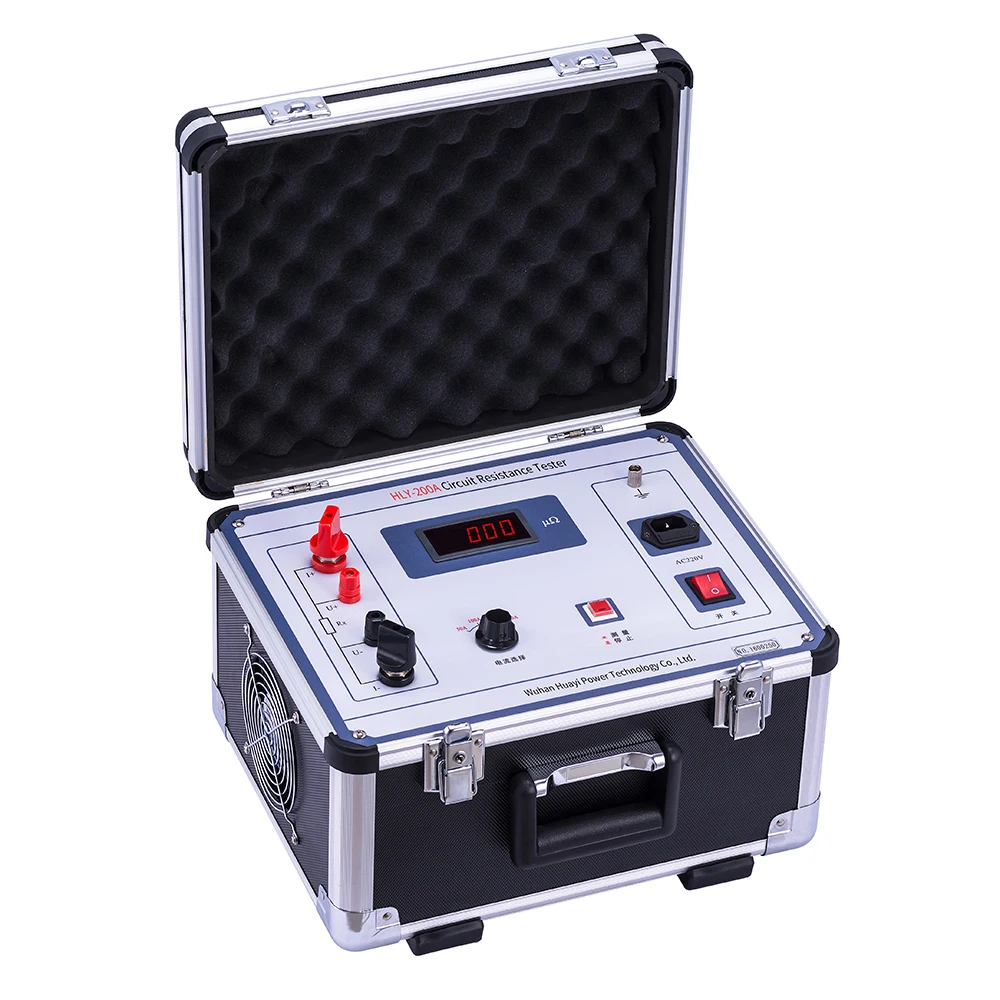

Portable 200A Contact Resistance Test Set Circuit Resistance Tester

It is a pecial instrument for 200A HV switch controlling circuit resistance measurement of equipment. Use 200A current to test loop resistance complied with national standard. This tester is compact, low weight, high resolution and high precision, stable performance.


Introduction
Nowadays Power Systems widely use model QJ44 DC double arm bridge to measure contact resistance (DC resistance and Loop resistance of high-voltage circuit breaker) while the minimum current of such model is 1mA which hardly find the decrease of cross-sectional area of transformers’ conductive circuit conductor. The measurement of loop resistance of high voltage switchgear is affected by oil layer and oxide between static and dynamic contact port, so the resistance measurement value will be several times larger, and cannot reflect the true value of contact resistance. Therefore, the Ministry of Electric Power in national standards SD301-88 "AC 500KV Electrical Equipment Transfer and Preventive Test Procedure" and new version of " Electrical Equipment Preventive Test Procedure" stipulate that the testing current of circuit breaker and isolating switch contact resistance is not less than 100A to ensure accurate test results.

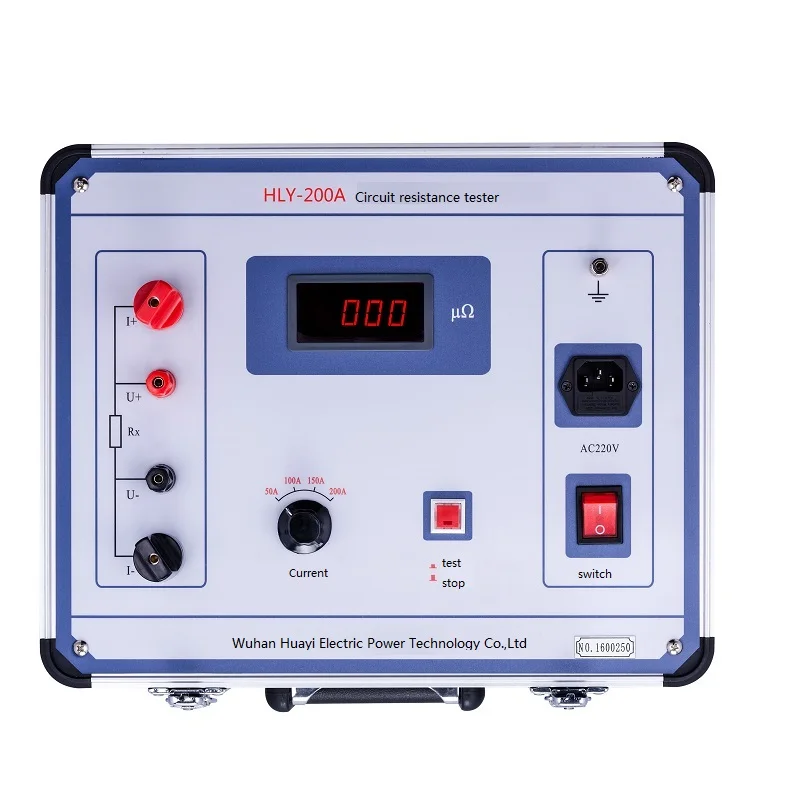

HLY-200A Micro ohmmeter measures up to the latest power system standards--DL/T845.4-2004 designed for measuring loop resistance of Switching Control Equipment using High-frequency switching power supply technology and digital circuit technology. Test current of the Tester is DC 100A and 200A which is recommended in the national standards. The tester can measure the loop resistance at this value and display the result in digital. It is high precision and good stability and can meet most power systems’ requirements in onsite high-voltage switches maintenance and high-voltage switches factory loop resistance measurement. (It performances accurately and stably)


Features
1. High current: For latest power supply technology, the tester can continuously output high current which overcomes the weakness of instantaneous current produced by pulsed power. It can effectively breakdown/puncture the oxide layer of the switches and then get precise results.
2. Strong anti-interference ability: The last number of test data will stably show in the LCD screen only with ±1 error even in
strong Interference situation.
3. Long service life: All the precise resistances used in the tester can reduce the temperature’s impact on the measurement
results and military connectors can enhance vibration resistance.
4. Convenience: Small size, light weight.


Technology Parameters


Measurement range
0～1999 μΩ
Resolution
1μΩ
100.0～2999.9, 0.1μΩ
Measured current
DC 50A,100A, 150A, 200A fixed output
Accuracy
0.5%±1d
Working mode
Continuous
Display
3-1/2 LCD
Power supply
AC220V±10% 50Hz
Service conditions
Temperature -10℃～40℃, humidity:≤80%RH
Dimension
370×320×260 mm
Weight
9.6Kg(not including accessory)


Accessory



Serial Number
Name
Amount
1
Mainframe
one
2

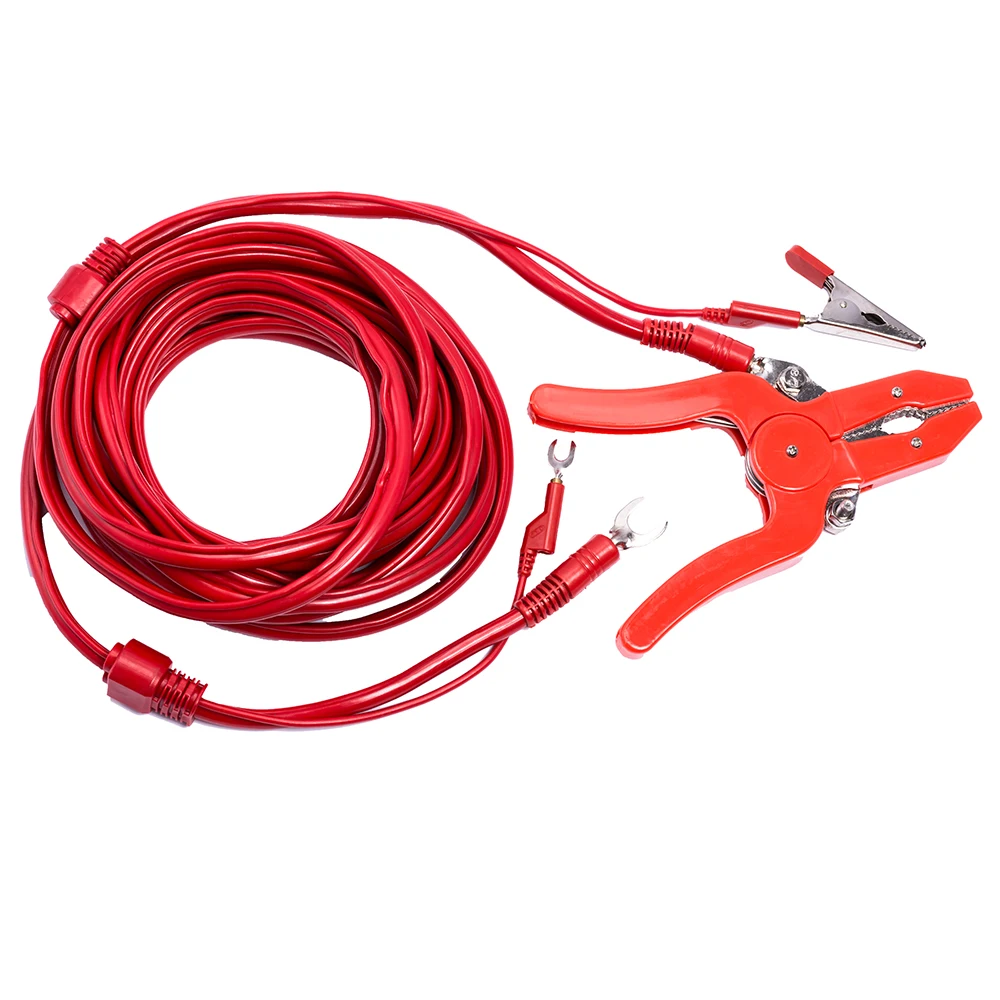

Test line (high current line 6m*2, high current test clps *2, voltage test line 6m*2)
one
3
Ground lead
one
4
10A Fuse
three
5
Accessory package
one
6
AC 220V Power line
one
7
Specification
one
8
Inspection Report
one
9
Certification
one


Products Show
