1HZ-500KHZ DDS Functional Signal Generator Signal Source Module Frequency Counter Sine + Square + Triangle + Sawtooth Waveform
1HZ-500KHZ DDS Functional Signal Generator Signal Source Module Frequency Counter Sine + Square + Triangle + Sawtooth Waveform
1HZ-500KHZ DDS Functional Signal Generator Signal Source Module Frequency Counter Sine + Square + Triangle + Sawtooth Waveform
1HZ-500KHZ DDS Functional Signal Generator Signal Source Module Frequency Counter Sine + Square + Triangle + Sawtooth Waveform
1HZ-500KHZ DDS Functional Signal Generator Signal Source Module Frequency Counter Sine + Square + Triangle + Sawtooth Waveform
1HZ-500KHZ DDS Functional Signal Generator Signal Source Module Frequency Counter Sine + Square + Triangle + Sawtooth Waveform
1HZ-500KHZ DDS Functional Signal Generator Signal Source Module Frequency Counter Sine + Square + Triangle + Sawtooth Waveform

1HZ-500KHZ DDS Functional Signal Generator Signal Source Module Frequency Counter Sine + Square + Triangle + Sawtooth Waveform

Share on:

Price:
Price in USD:Details

Quantity:

Price request

Product Overview

Description



Product Description


Features
* Dual channel outputs

* Frequency accuracy 20ppm and 1μHz resolution

* Abundant modulation function AM, FM, PM, PWM and FSK

* Provide sweep and burst

* 100MHz Built-in counter

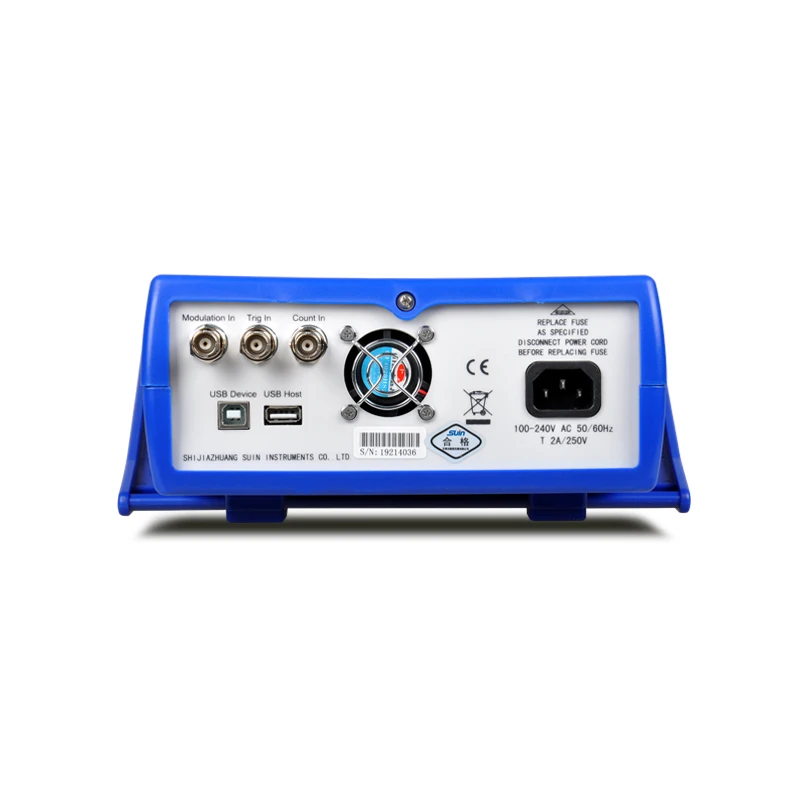

* Standard interface: USB Host & Device




Specification

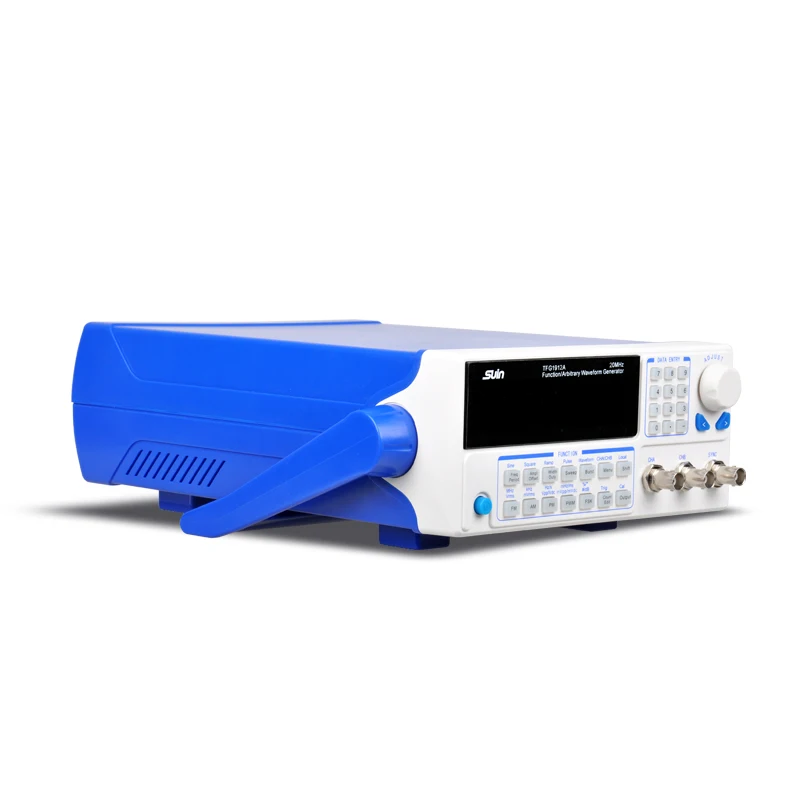

TFG1905A
TFG1910A

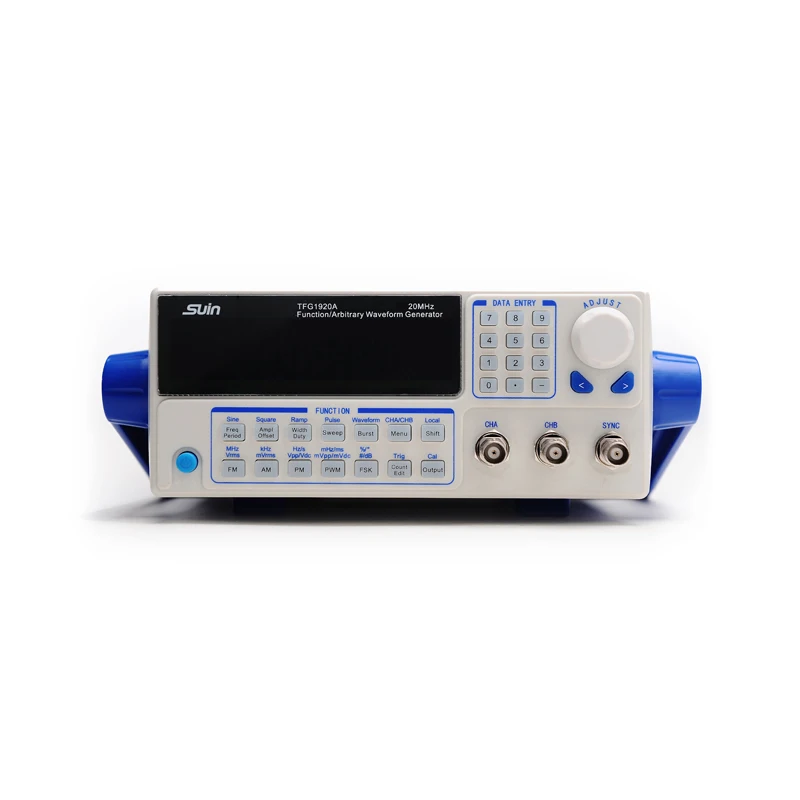

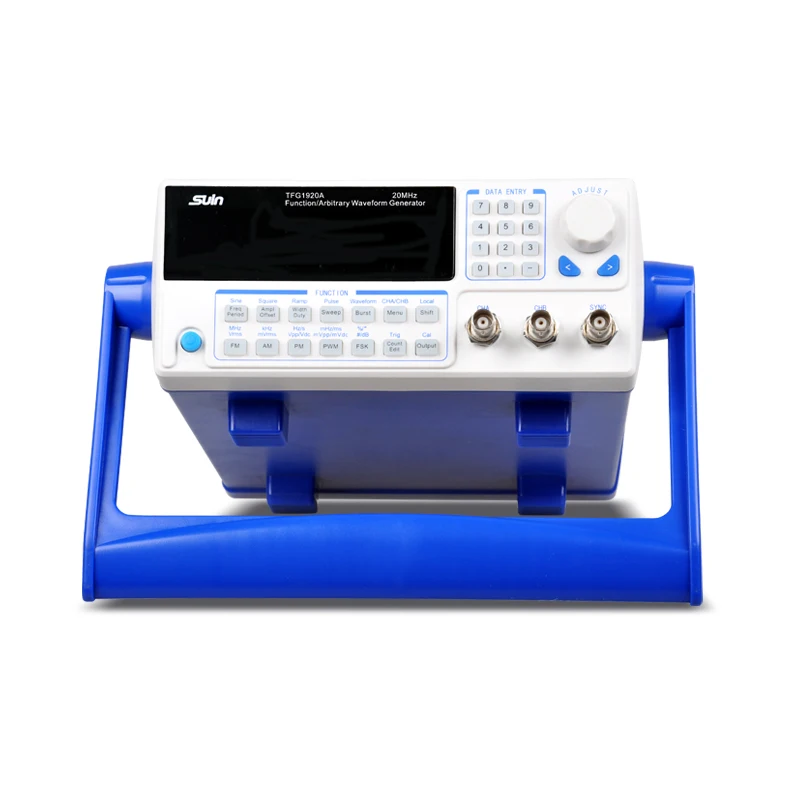

TFG1920A
Frequency
Range
Sine
1μHz ~ 5MHz
1μHz ~ 10MHz
1μHz ~ 20MHz
Square, Pulse
1μHz ~ 5MHz
Others
1μHz ~ 1MHz
Resolution
1μHz, 6 digits
Accuracy
±20ppm
Waveform
Type
11 build-in waveform(Sine, Square, Ramp, Pulse, etc.)
+5 user-defined arbitrary waveforms
Length
4096 points
Sampling Rate
100 MSa/s
Vertical Resolution
10 bits
Amplitude
Range
Frequency≤8MHz
0 ~ 10Vpp(50Ω), 0 ~ 20Vpp(Open circuit)
Frequency>8MHz
0 ~ 9 Vpp(50Ω), 0 ~ 18Vpp(Open circuit)
Resolution
2mVpp(Amplitude>2Vpp)
0.2mVpp(Amplitude≤2Vpp)
Offset (Ampl. 0Vpp)
Range
±5Vdc (50Ω), ±10Vdc (Open circuit)
Resolution
2mVdc
Modulation (CHA)
FM,AM,PM,PWM
Carrier Waveform
16 waveforms, Sine, Square, Ramp, etc.
(only Pulse for PWM)
Modulating Waveform
16 waveforms, Sine, Square, Ramp, etc.
Modulating Frequency
2mHz ~ 20kHz
FSK
Carrier Waveform
16 waveforms, Sine, Square, Ramp, etc.
Hope Frequency
1μHz ~ 5MHz
1μHz ~ 10MHz
1μHz ~ 20MHz
Rate
1mHz ~ 100kHz
Sweep (CHA)
Carrier Waveform
16 waveforms, Sine, Square, Ramp, etc.
Type
Linear or Logarithmic
Sweep Time
50ms ~ 500s
Burst (CHA)
Carrier Waveform
16 waveforms, Sine, Square, Ramp, etc.
Burst Count
1 ~ 1000000
Internal Period
1μs ~ 500s
Start/Stop Phase
0° ~ 360°
SYNC Output
Waveform Characteristic
Square, rise/fall time ≤ 20ns
Output Level
TTL compatible
Counter
Frequency Range
1Hz ~ 100MHz
Input Amplitude
100mVrms ~ 7Vrms
Period
50ms ~ 5s
General Characteristics
Power
AC 100 ~ 240V, 45 ~ 65Hz, < 30VA
Display
VFD display
Dimension & Weight
322×256×102mm, Approx.1.5 kg


Packing & Delivery




Company Profile




SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.
Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.


Exhibition

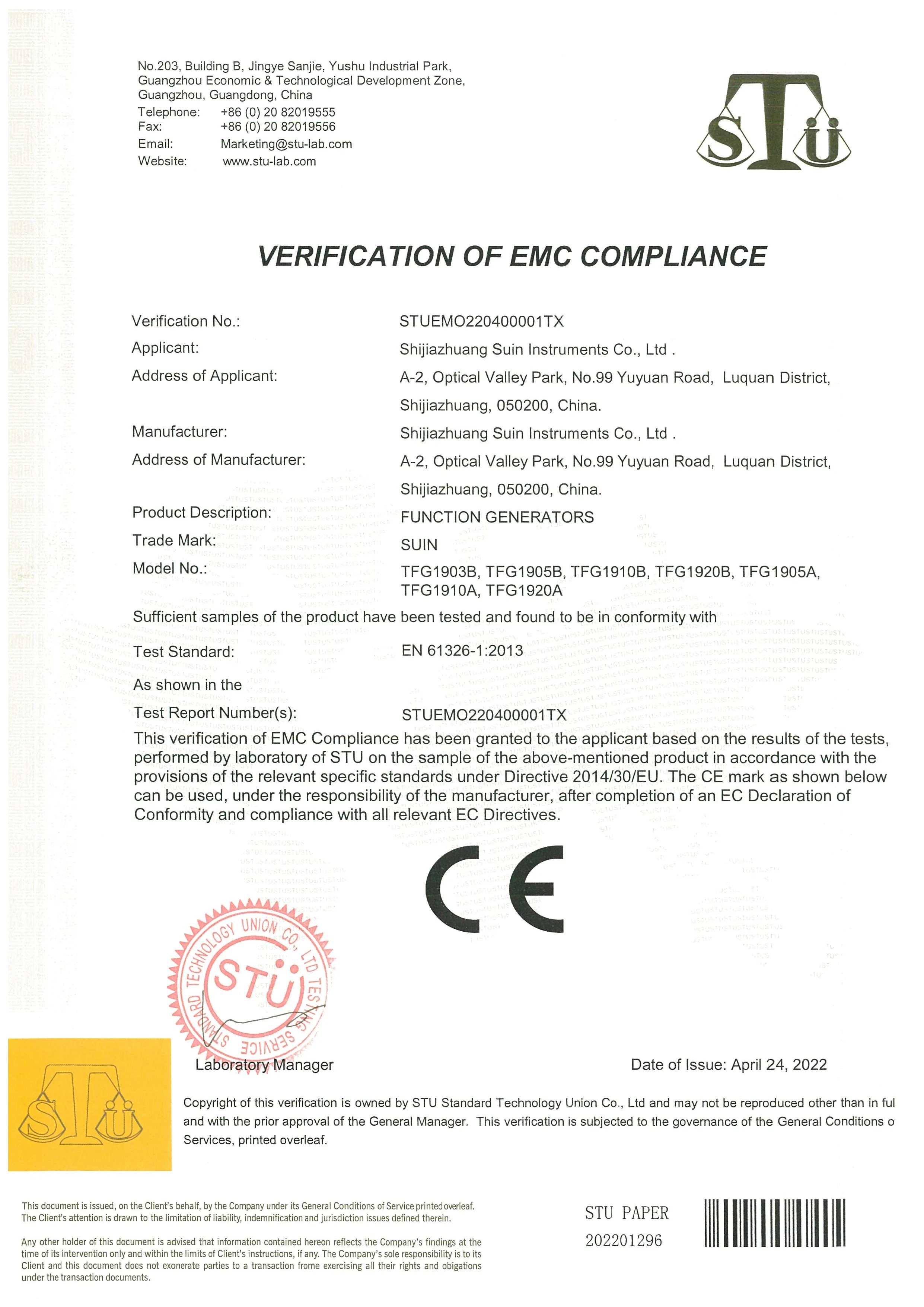

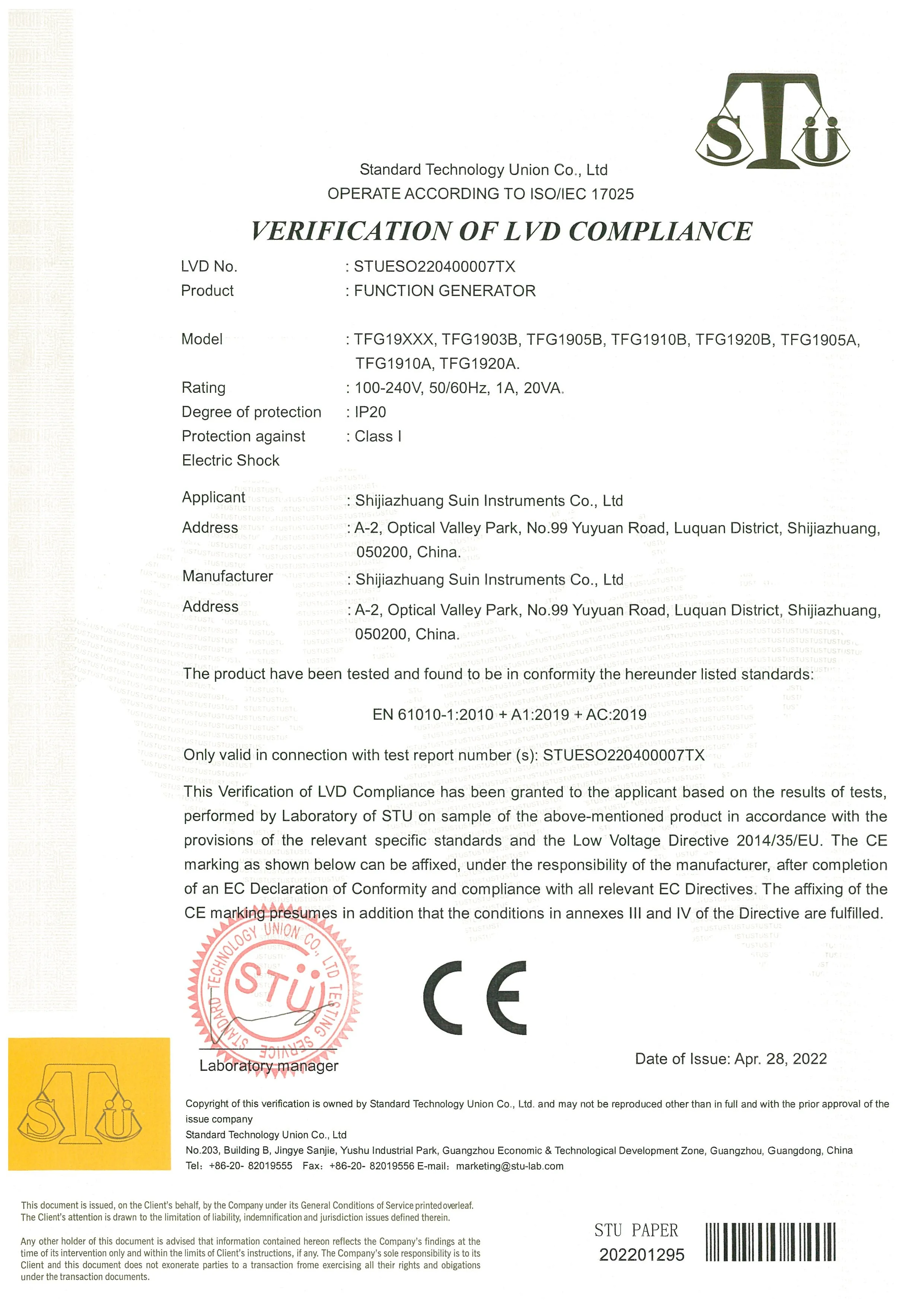

Certifications




FAQ


1. who are we?
We are based in Hebei, China, start from 1990,sell to Eastern Europe(50.00%),Western Europe(22.00%),South America(12.00%),Southeast Asia(6.00%),South Asia(5.00%),Eastern Asia(3.00%),North America(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
power quality analyzer,signal generator,frequency counter,DC power supply,millivolt meter

4. why should you buy from us not from other suppliers?
Several decades years experice in electronic test & measurement, own R&D Capability, competitive price and good after sale service make Suin a reliable supplier overall the world.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,German,French
