Big size 14 inch double pump screen UYUE 968 heating vacuum lcd separator machine for tablet ipad
Share on:
Product Overview
Description
Product Description
Factory Outlet Screen Panel Tv Fpc Acf ST-B100 Pulsed Head Bonding Repairing Lcd Led Flex Tab Bonding Machine
(1) Machine for repair lcd TV screen panel
acf tab cof bonding machine
Bonding machine is a widely used led lcd screen panel repair machine for TV, computer, laptop and mobile phones. It is a screen repair equipment.
bonding machine lcd repair
It can solve screen display faults such as LCD vertical/horizontal/vertical band/horizontal belt, black belt/black/colored thread/ribbon/multi-line/black/black and white/vertical half display.
bonding machine lcd tv
(2)Machine for repair led lcd TV flex cable/tab/cof/acf/fpc/COG/FOG/PCB
cof bonding machine lcd repair
(3) Hot press pulse heating bonding machine for acf cof tab tape
cof lcd bonding machine
our bonding machine is pulse heating with hot press bonding head for acf cof tab tape COG FOG flex cable FPC bonding.
lcd cof bonding machine
*bonding machine working process
1. ACF PCB bonding
2. ACF COF Bonding
3. Screen panel ACF COF TAB Tape Bonding
lcd repair bonding machine
Feel free to contact us for the lastest bonding machine prices.
panel repair acf bonding machine

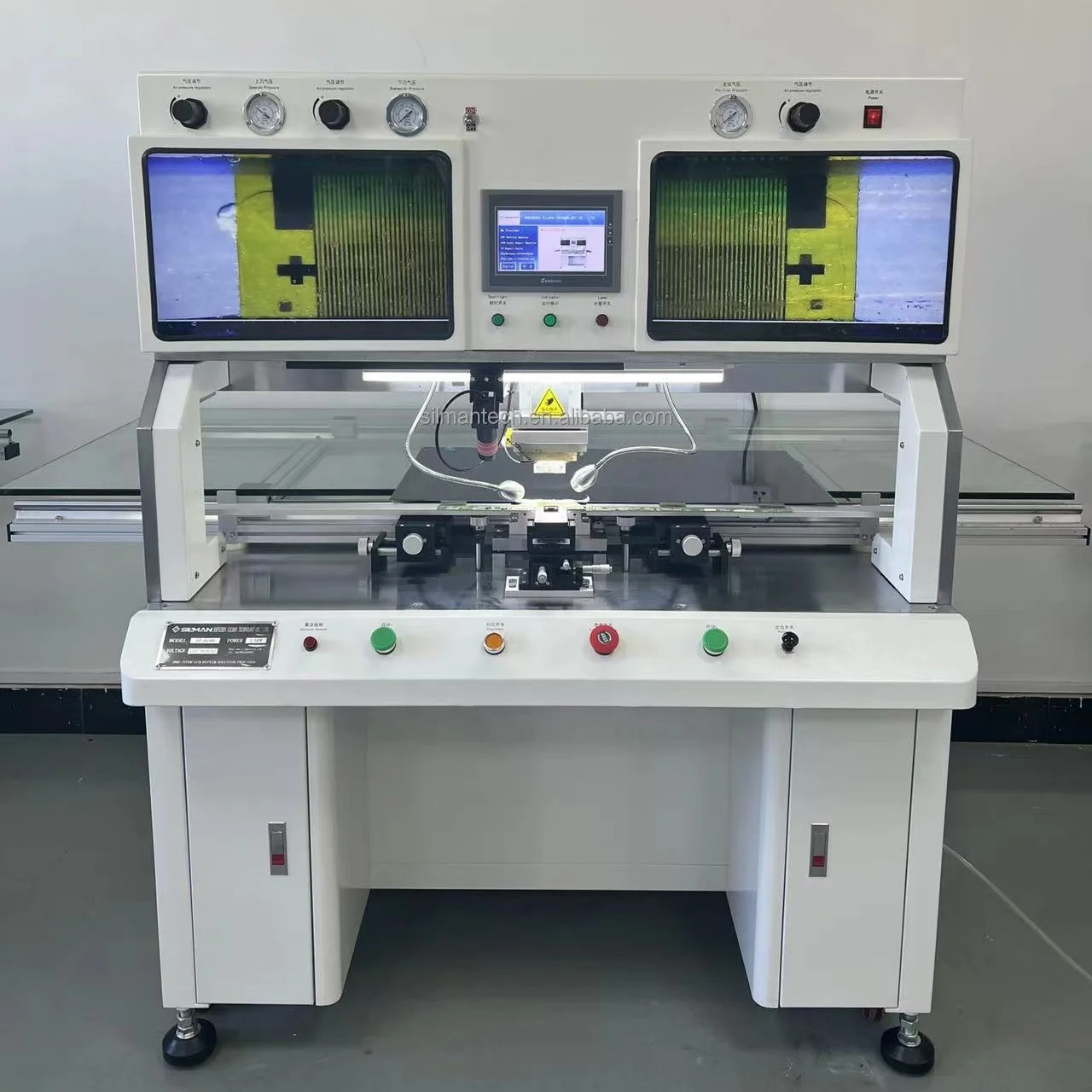

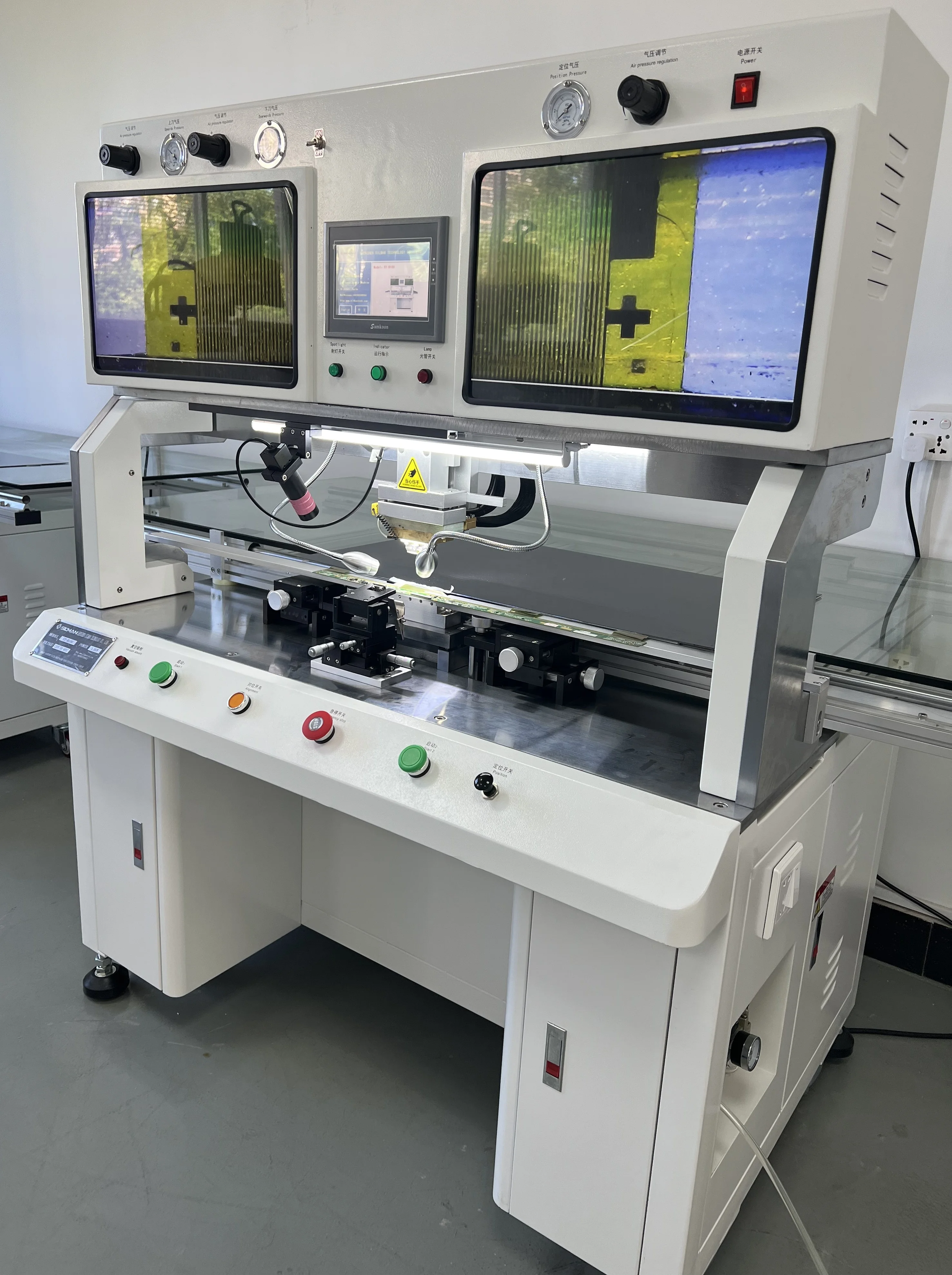

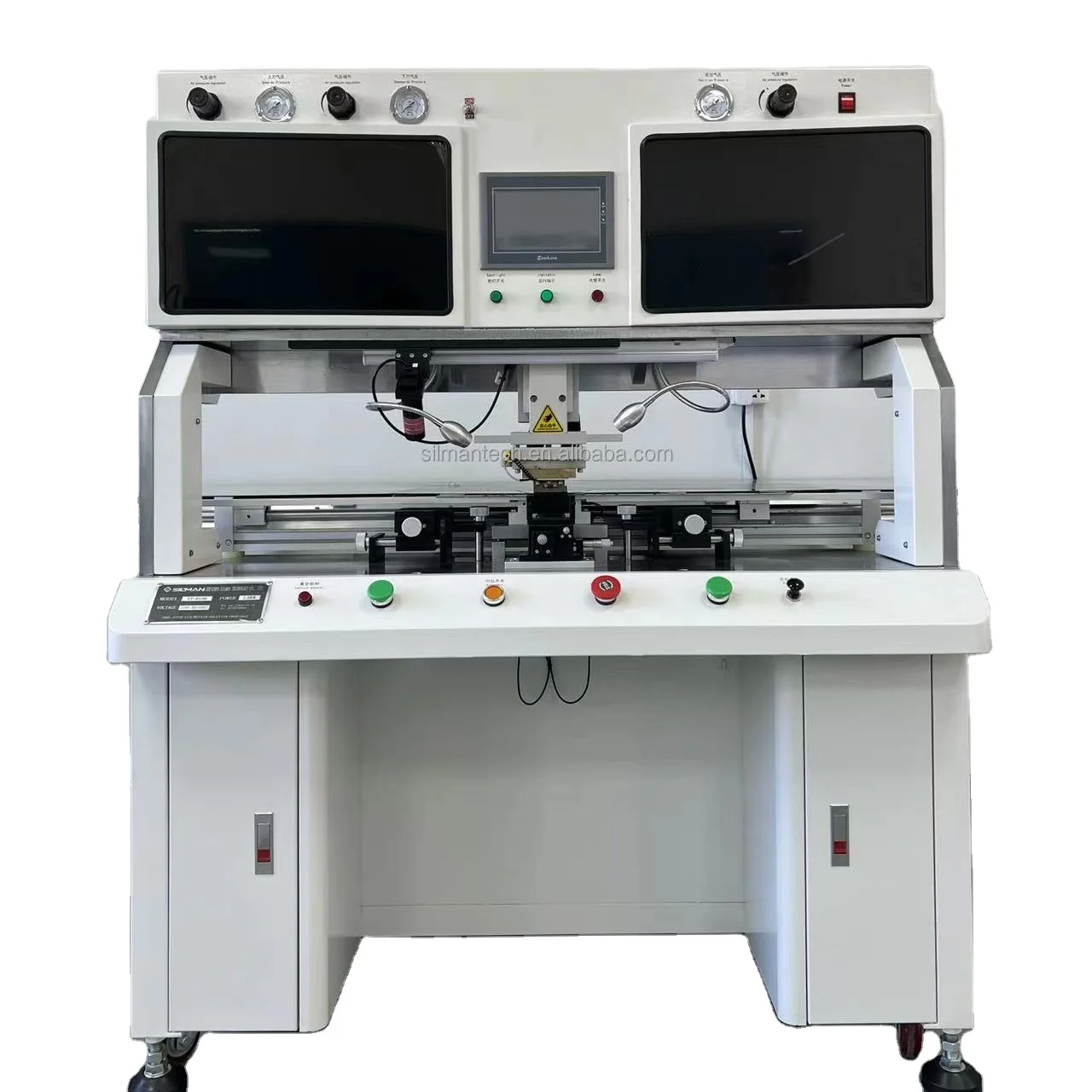

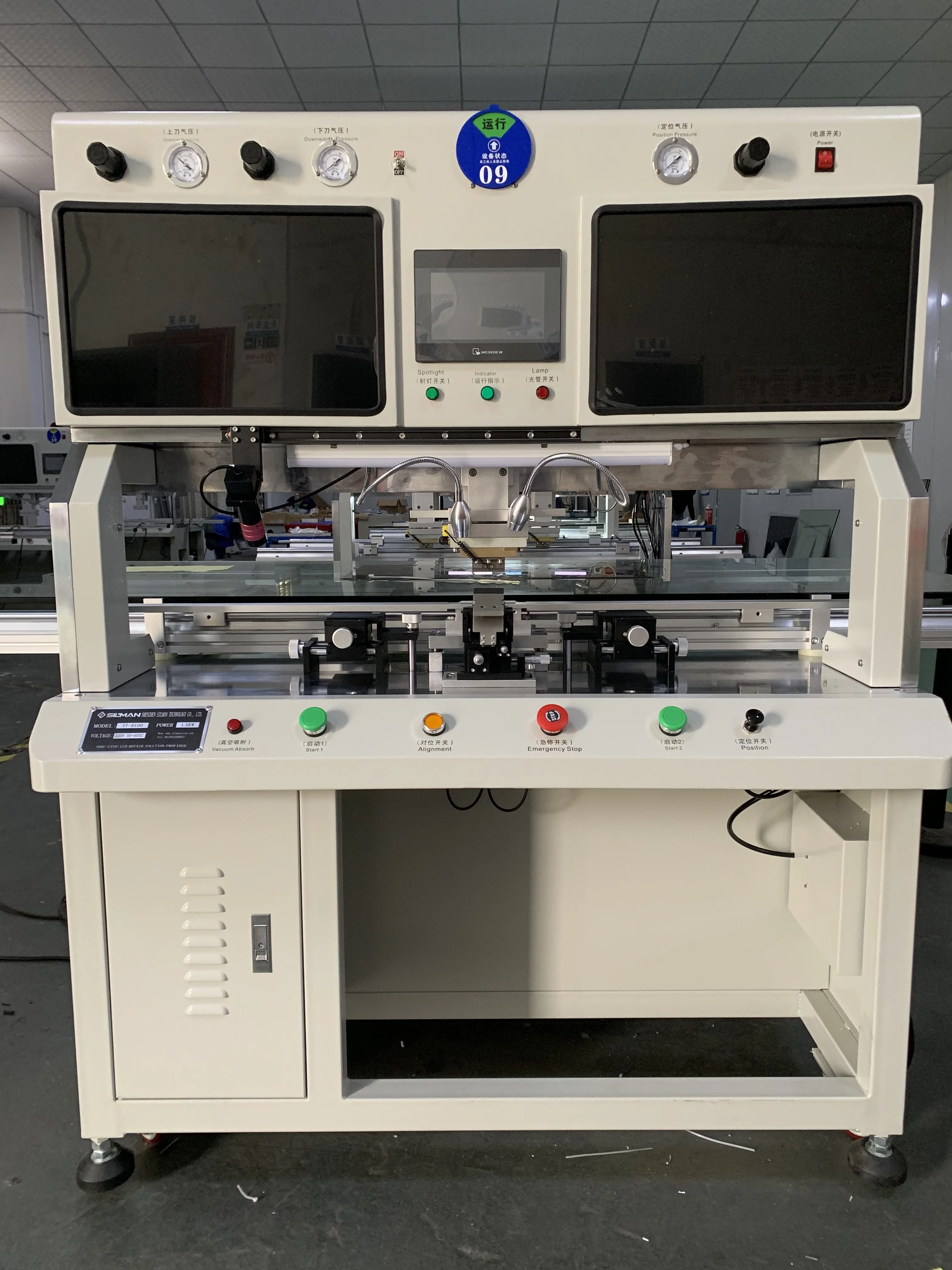

* Images of our bonding machine for TV led lcd screen panel repair
(4) Bonding machine Spare parts
tab bonding machine
Spare parts are provided for repairing bonding machine in warranty. The Warranty for all our TV bonding machines is one year.
tab cof bonding machine

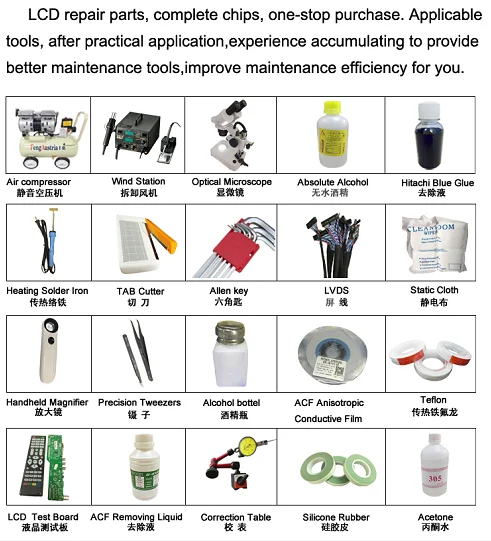

(5) bonding machine accessories
The bonding machine price includes the cost of accessories. You only need to buy COF then you can operate the bonding machine and start your TV repair.
(6) Video link for your reference
https://www.youtube.com/watch?v=Klc2XKlROJ0
Specification
Model | ST-B100 |
Specification | Single Head |
Support Max LCD size | 100 inch (Can be customized) |
Heating mode | Pulse heating |
Working precision | ≤±0.01mm |
Working capacity（PCS/HOUR） | 28 PCS |
Machine size: | 1800mm (L) ×1200mm (W) ×1400mm(H) |
Input Power | AC220V±10%,50-60 Hz |
Rated Power(W) | 4000 |
Work pressure | 0.4-0.8Mpa |
Operation mode | 7inch touch screen control |
Alignment system | 2 High definition C/LCCD camera |
Temperature error range | ±0.5°C |
Programming control device | PLC controller |
TAB fixture | micrometer X, Y, Z Axis adjust |
Platform moving | Manual operate |
Hot press head size | 1.5mm*50mm |
Details Images
bonding machine spare parts
lcd bonding machine spare parts are all in famous brands over the world with good quality, which ensure our bonding machine has good performance and servie life.
Air TAC Original precision cylinder
OmronTemperature Control
Touch Screen
Panasonic PLC

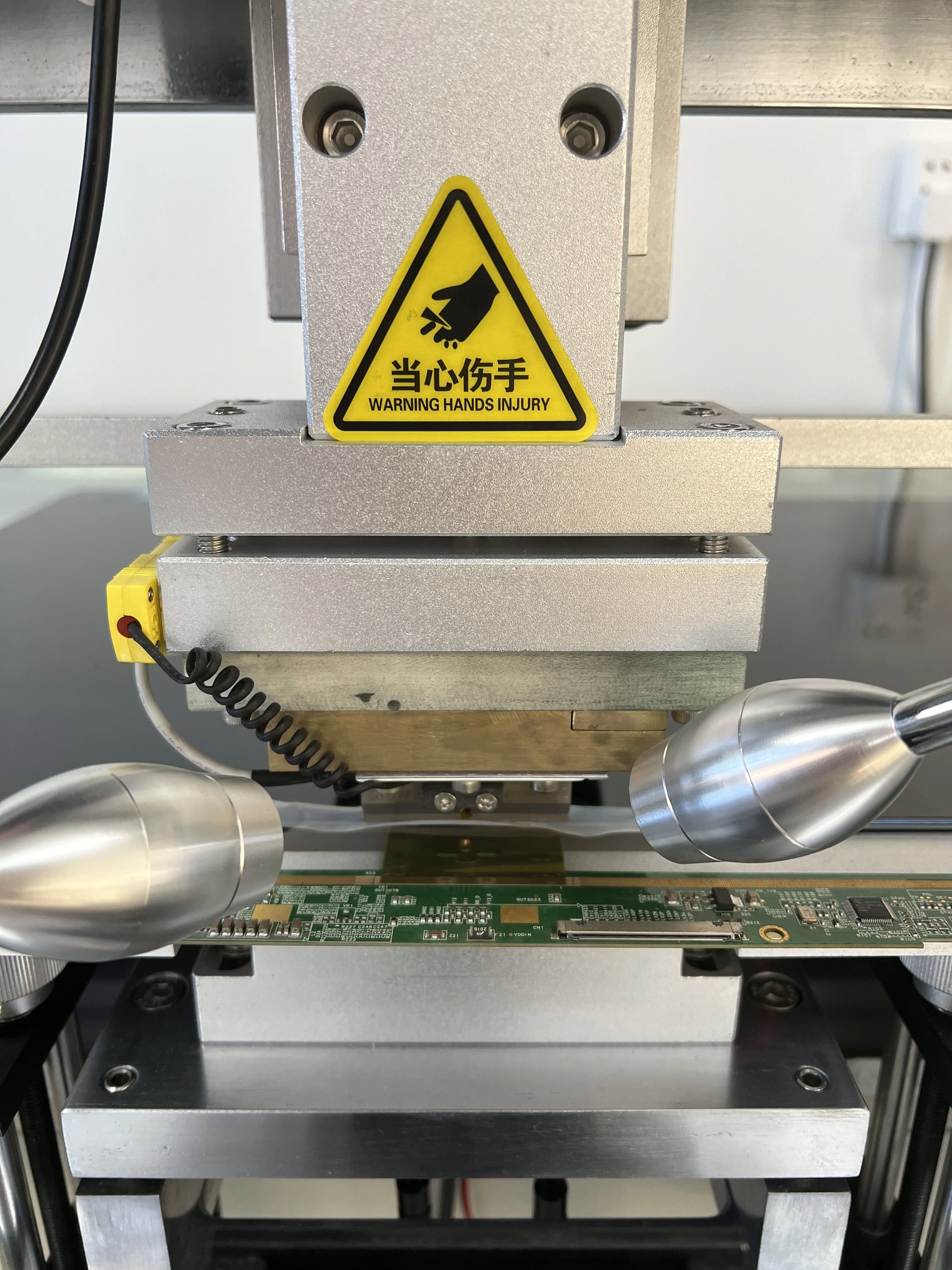

SUS440C titanium alloy press head

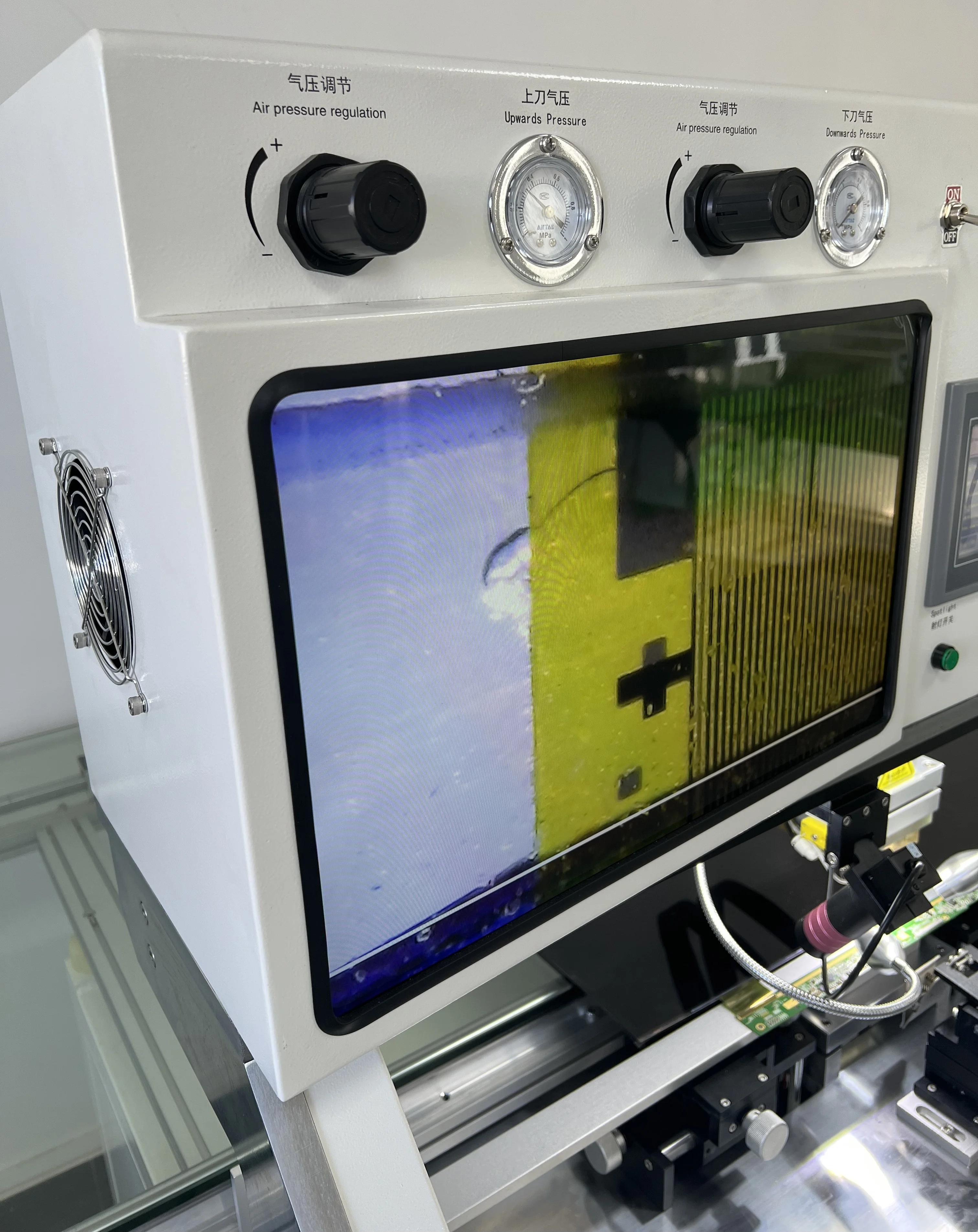

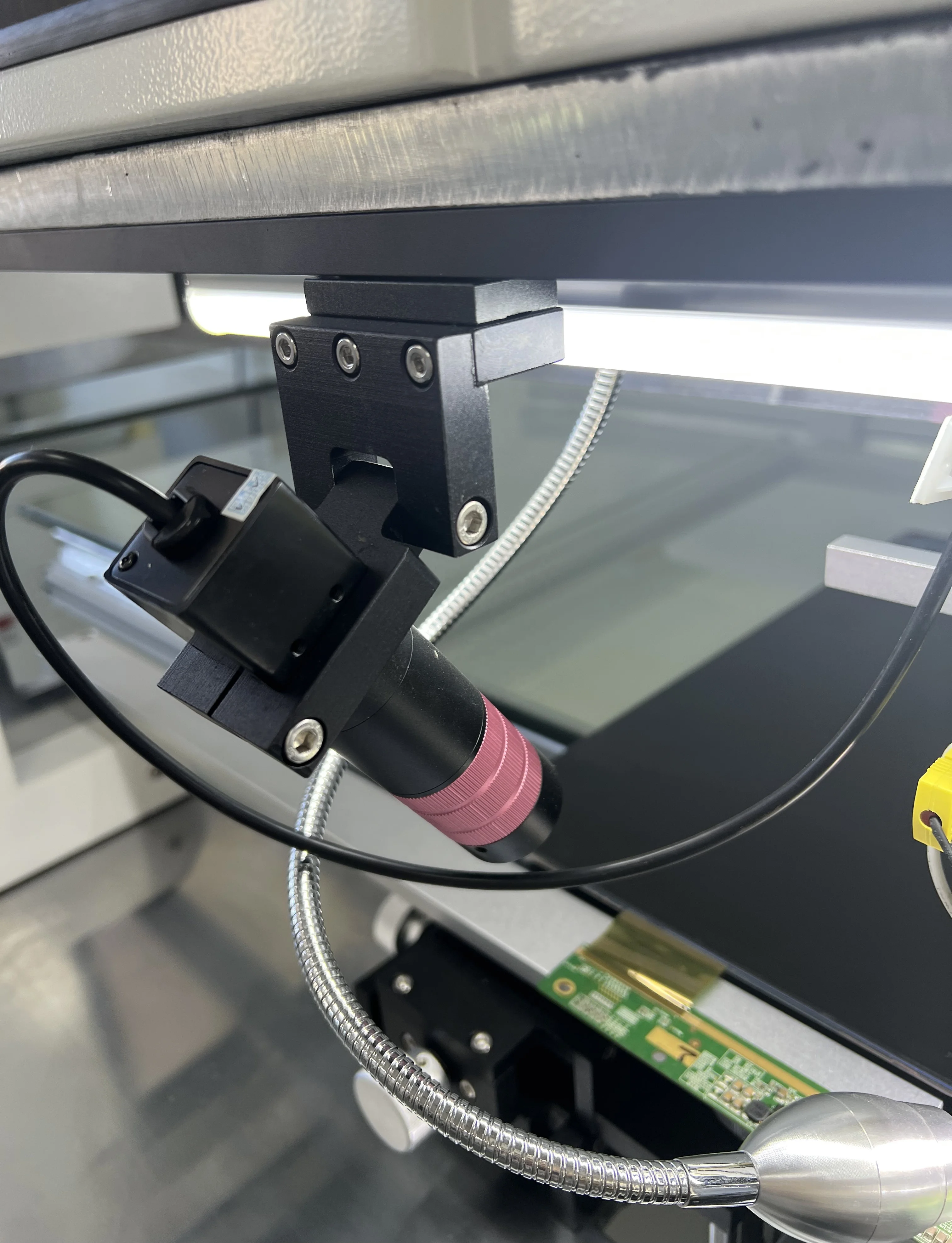

High definition Cameras
Packaging & Transportation
Accessories are shipped with all our bonding machines.
You can find our packing detail below.
Machine | Cof Bonding Machine |
Model | ST-B100 |
Body size | 127*96*168 cm(L*W*H) 184*53*99cm(L*W*H) Without Platform size |
Net weight of equipment | 490KG |
Number of packages | 2 |
Equipment packaging | Composite wood boxes for export No fumigation is required. |
Package size and gross weight | 127*96*168 cm（L*W*H）350KG Machine |
184*53*99cm（L*W*H） 140KG Glass |
Why Choose Us
FAQ
If you have more questions about our cof bonding machine, feel free to ask.
Yes, we are a manufacturer of various lcd screen bonding machines.
2. What are the main products?
Laser lcd repair machines and cof/tab bonding machines for screen repair.
3. will you provide free spare parts?
Bonding machine spare parts are free to provide under warranty if the machine goes wrong.
4. Is there free training on how to use the bonding machine?
We provide video and factory free training to our clients if necessary.
5. Are bonding machine head in different sizes available?
As to the bonding machine head size, there are normally 50*1.4mm, 50*1.2mm and 68*1.4mm. we also can make bonding machine head per
your request.
6. How many cameras are there in ST-100SS?
The bonding machine is equipped with 2 ccd cameras. if you need more, we can customize for you.
7. Can we start to repair screen panel with the accessories included in the bonding machine?
You only need to buy cof and then you can start to repair screen with our machine.
8. Is customized service available?
YES, the size, color, logo etc can be customized.
9. What about the delivery time?
We can ship the machine in 3 days after payment if it is in stock. Please check with our sales first.
