ELING 52mm Gasoline Diesel Fuel Oil Level Gauge Meter 0-190ohm 12/24V With Stainless Cover

Product Item no

P45

MOQ

10 sets

SIZE

19*8*10.2cm

Features

Kilometer and Mile can be adjustable
The clear backlight shows that it can be viewed easily in every Angle of the dark
Waterproof: Professional structure design makes the excellent performance on waterproof
Easy to install and easy to operate

Backlight Optional

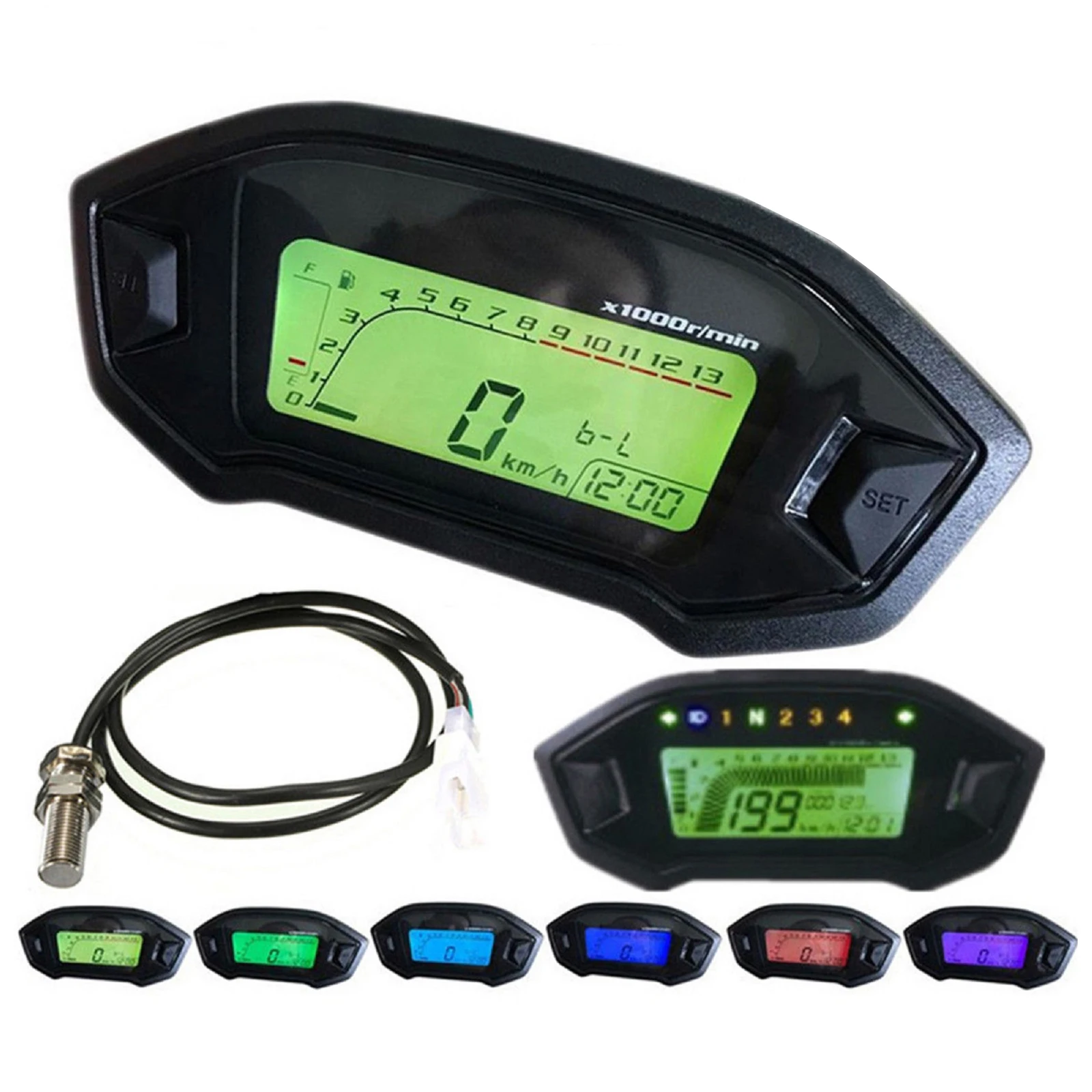

7 color available, you can adjust it anytime, anywhere.
Universal use, it can apply to any wheel size and engine type.

Specification

Working voltage: 10V-15V
Speed calibration: 42.5Hz corresponds to 60KM / H
Speed calibration: 166Hz corresponds to 10 * 1000r / min
Fuel calibration: E point 98Ω, F point 8Ω
Voltage: Below 11.3V Under voltage symbol flashes, above 11.7V Under voltage symbol is not displayed
LCD: 7-color backlight Short press the right button to switch (order: red, purple, pink green, white, blue, green, sky blue.) The
default is red
Equipment: for most DC 12V motorcycles.
Tachometer Size: 106*82*195mm

Package include

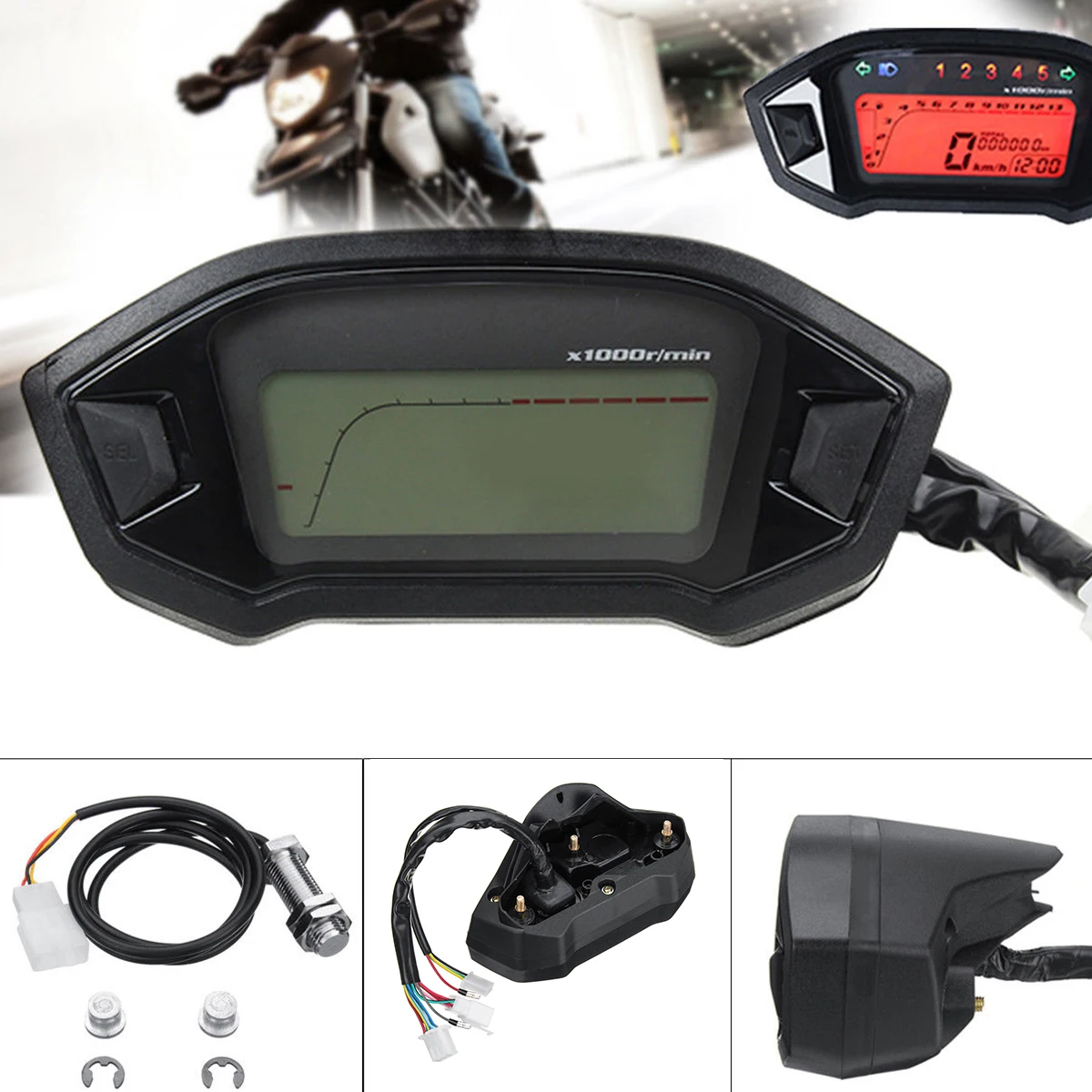

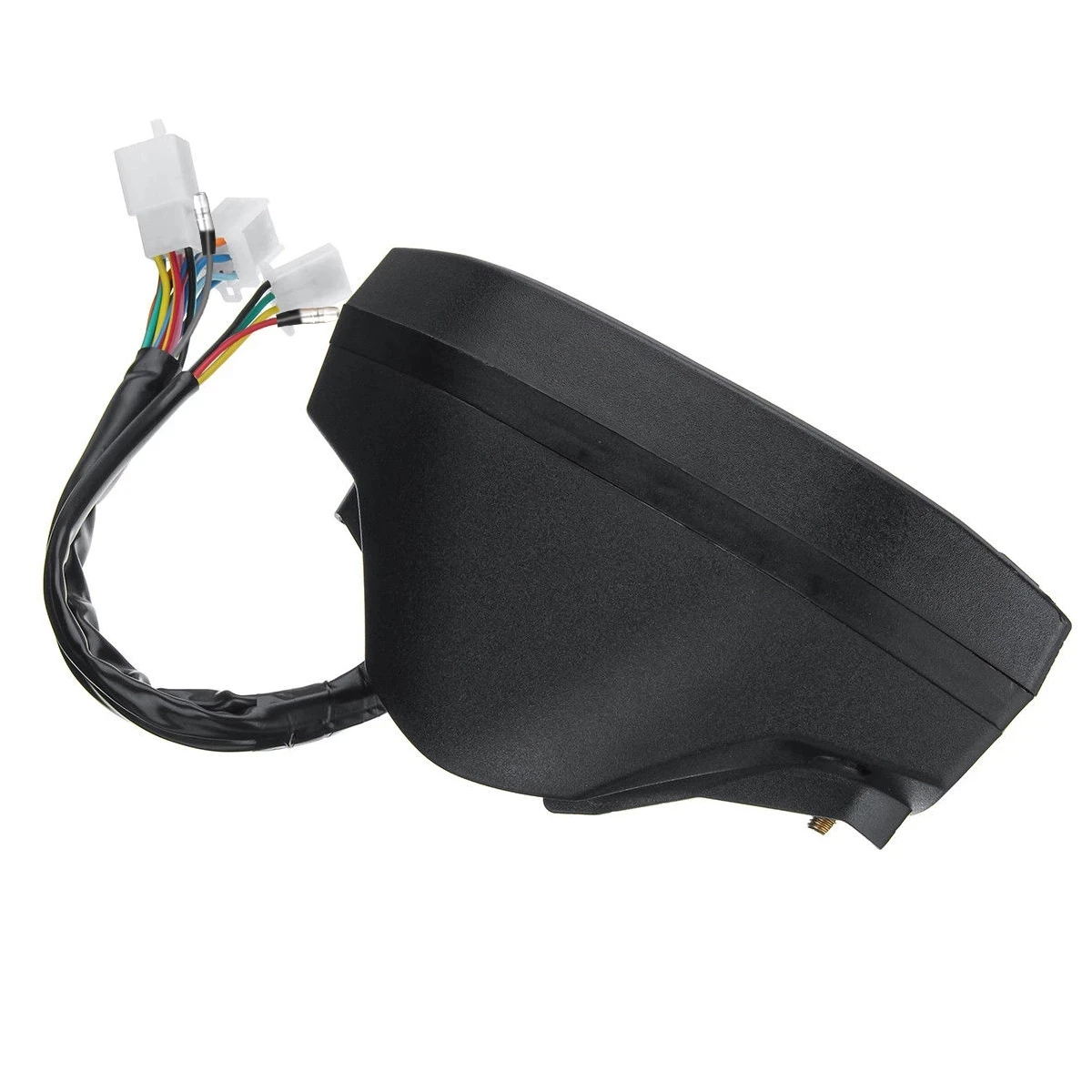

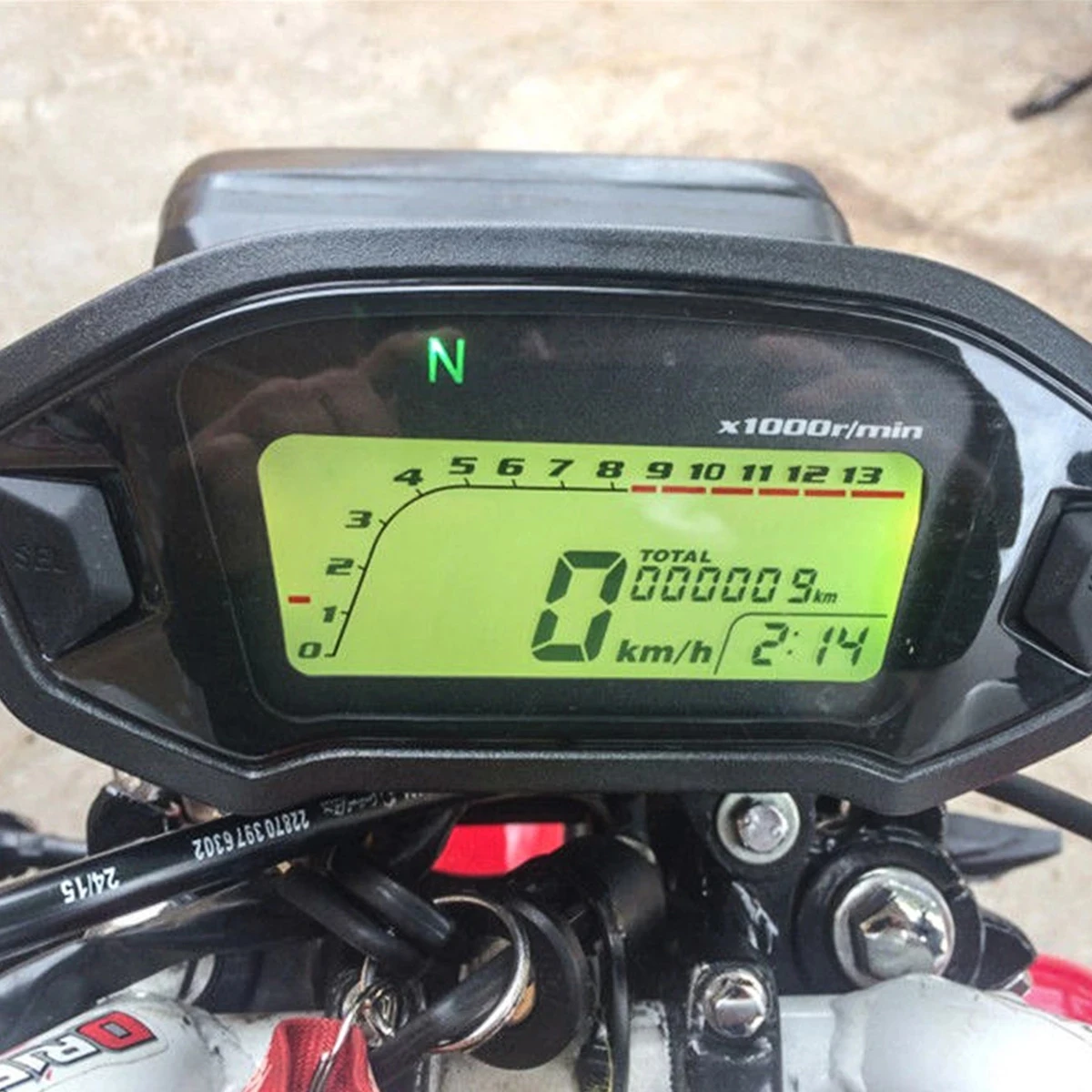

1 x Motorcycle LCD Digital Speedometer

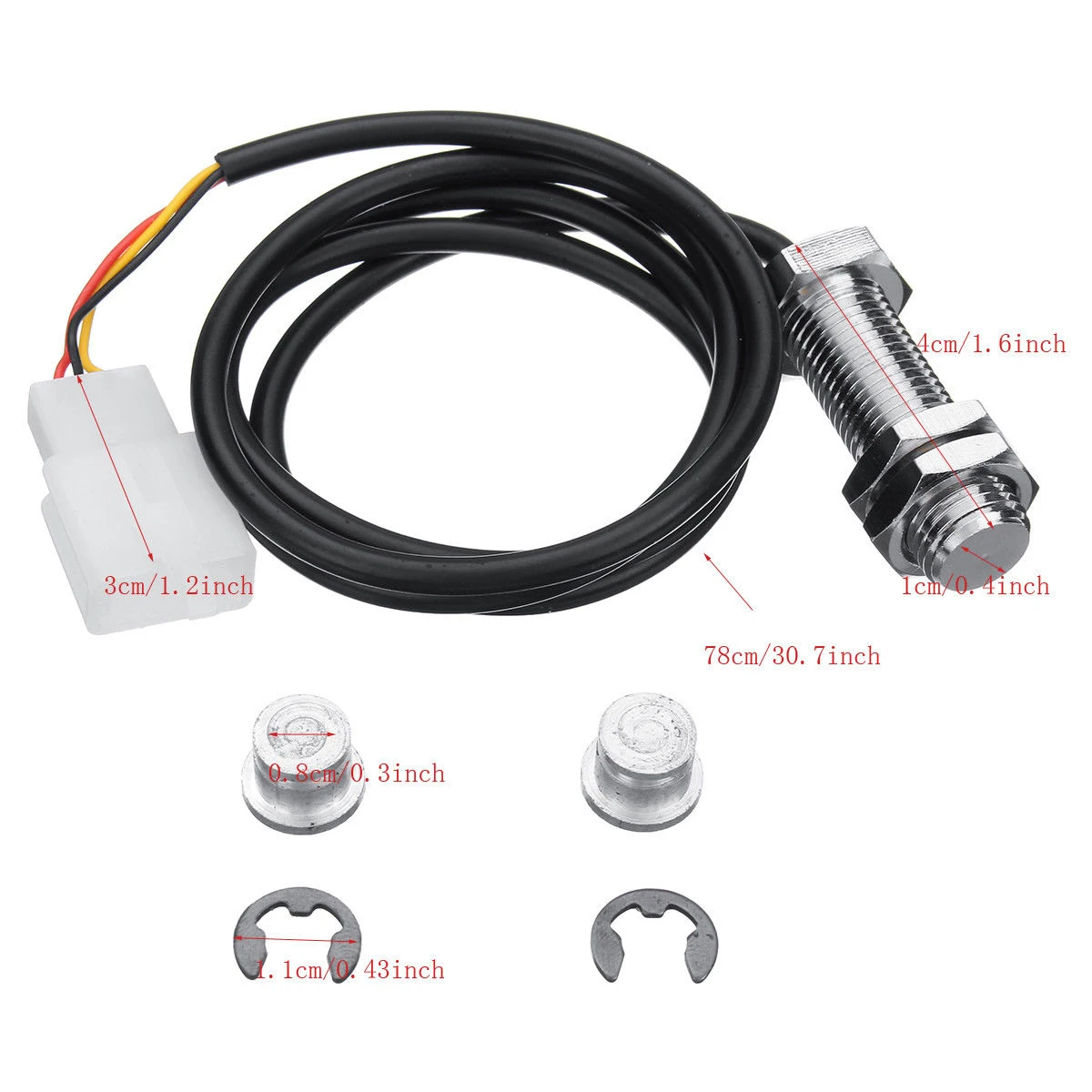

1 x Sensor Cable
2 x Magnetic Steel

Instruction

Light blue: Turn right, 12V positive control Green / red: N file
Blue / Yellow: Speed signal Line Pink: 1 file
Red: Battery positive Blue / red: 2 files
Blue: High beam, 12V positive control Green / black: 3 files
Green: Negative Yellow / Red: 4 files
Orange: left turn, 12V positive Yellow / white: 5 files
Blue and white: fuel signal line
Black: Positive
Yellow: Sensor positive
Green: Sensor negative
Black / white: sensor signal
