Product Overview
Description
Products Description
The seismic industry continues to demand that exploration is carried out at ever-greater scale and receiver density, while some how attempting to balance the requirement to keep project costs under control. To provide the industry with a solution to this challenge, DTCC has developed the SmartSolo intelligent seismic sensor.
SmartSolo is based on DT-SOLO, the high-sensitivity geophone and focuses on the principal of seismic exploration which is known as 3W(Wave = high fidelity signal;When = accurate timing; and Where = the location), in corporated with electronics and software technologies in mobile internet era.This smart sensor provides adequate info for highest-quality seismic data acquisition while keeping its functions and structure as simple as possible.Electronics and software.technologies are super reliable, mature and cost-effective in mobile internet era.These technologies are used for SmartSolo at maximum possible scale.The result:the geophone is something smart, reliable, user-friendly, cost-effective and could run in any harsh environment.
Specification
Physical Specifications
Physical Size: 95mm(L) x 139.6mm(W) x 131.7mm(H)(w/o spike）
Weight: 1.3kg (Including internal battery and spike)
Waterproof: IP67
Operating temperature: -40℃ ~ +70℃
Operating Life@25°C: 25 days @1ms Continuous / 50 days Segmented(12hours ON/12hours SLEEP)
Weight: 1.3kg (Including internal battery and spike)
Waterproof: IP67
Operating temperature: -40℃ ~ +70℃
Operating Life@25°C: 25 days @1ms Continuous / 50 days Segmented(12hours ON/12hours SLEEP)
Optional Onene Sensor Specifications
Natural Frequency: 5HzCoil Resistance: 1850Ω
Damping:
Open Circuit Damping: 0.6
Damping with 43Ω: 0.7
Sensitivity:
Open Circuit Intrinsic Voltage Sensitivity: 80V/m/s (2.03V/in/s)
Distortion: <0.1%
Remark: All parameters are specified at +22℃in the vertical position unless otherwise stated.
Optional Two Sensor Specifications
Natural Frequency: 10HzCoil Resistance: 1800Ω
Damping:
Open Circuit Damping: 0.51
Damping with 43Ω: 0.7
Sensitivity:
Open Circuit Intrinsic Voltage Sensitivity: 85.8V/m/s (2.18V/in/s)
Distortion: <0.1%
Remark: All parameters are specified at +25℃ in the vertical position unless otherwise stated.

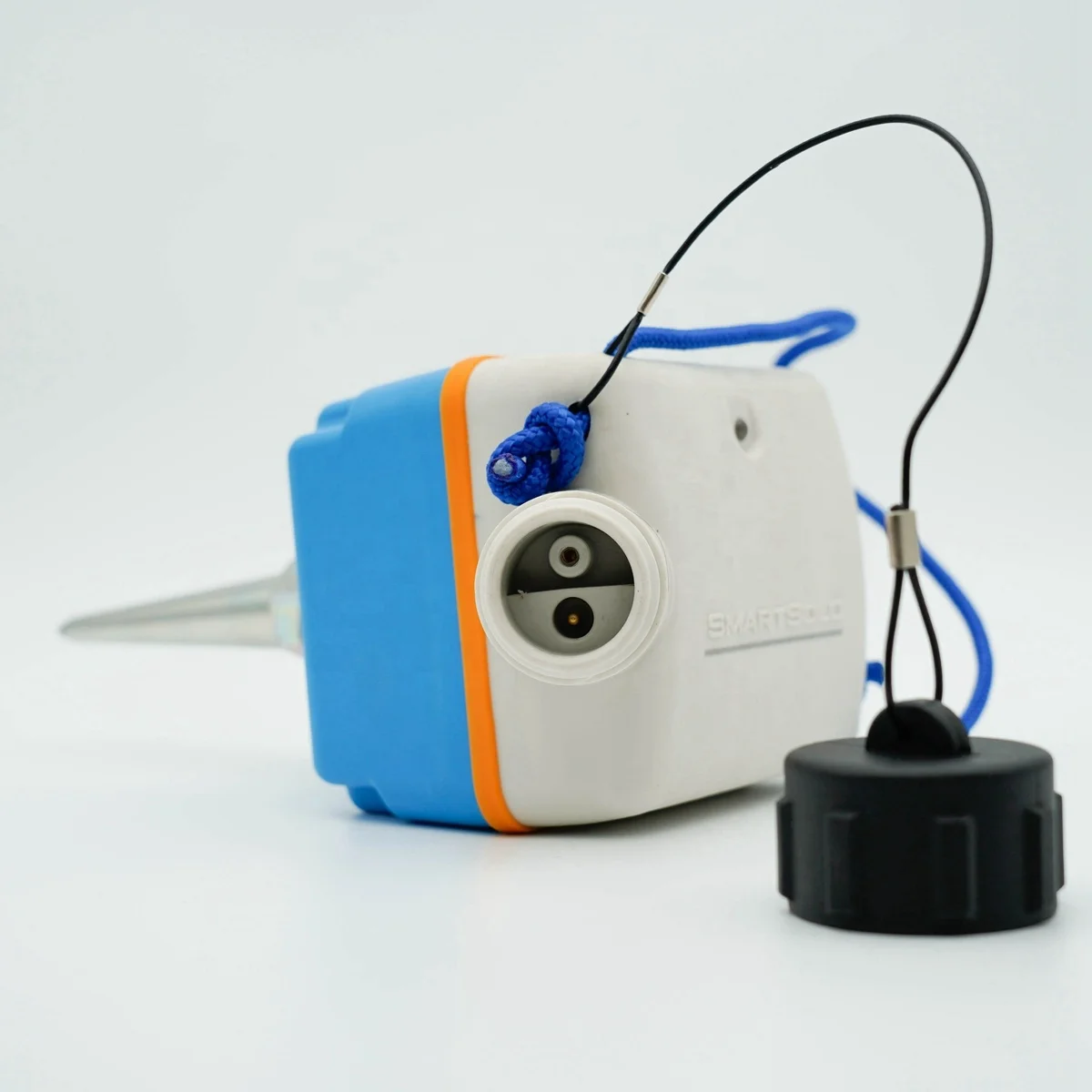

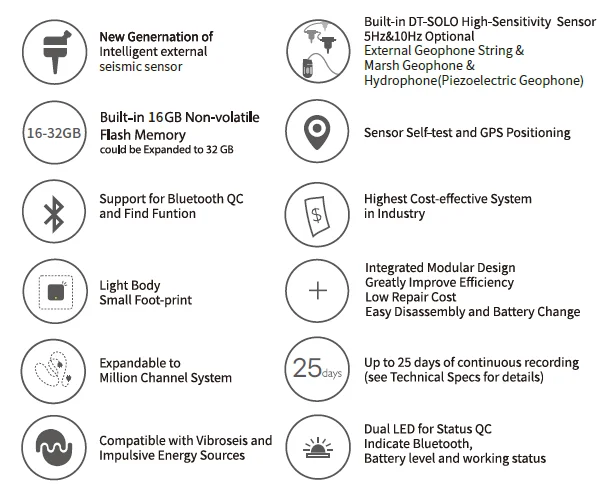

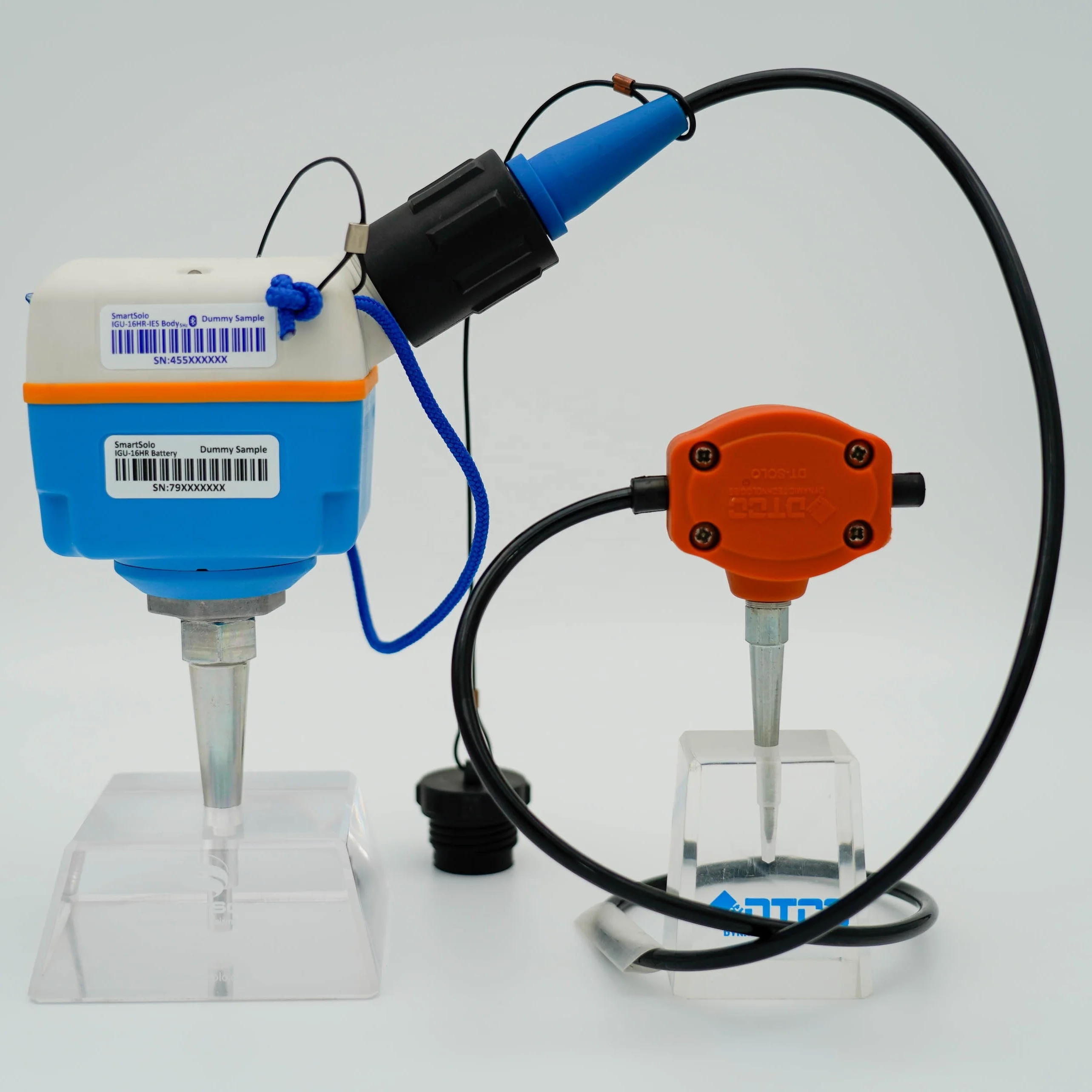

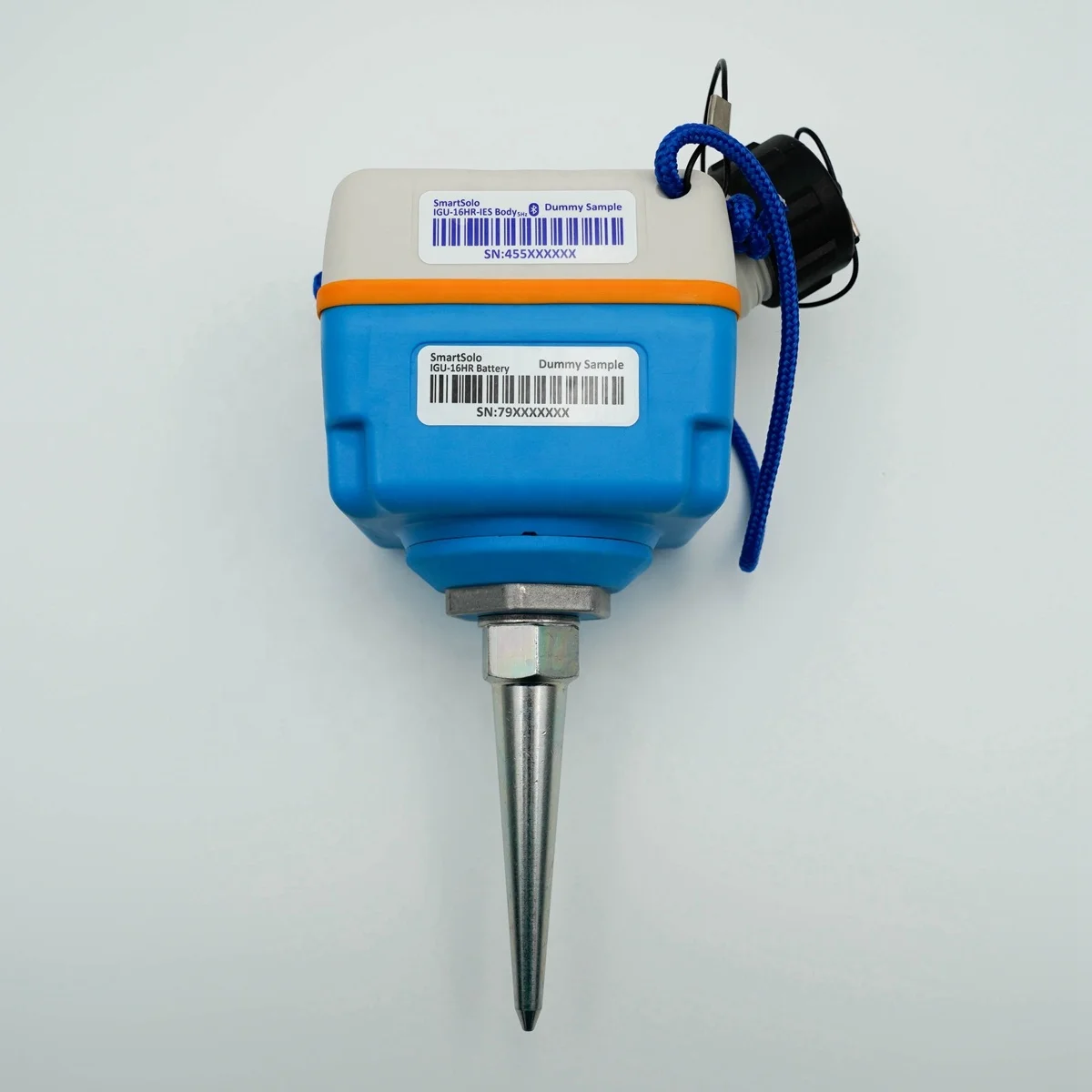

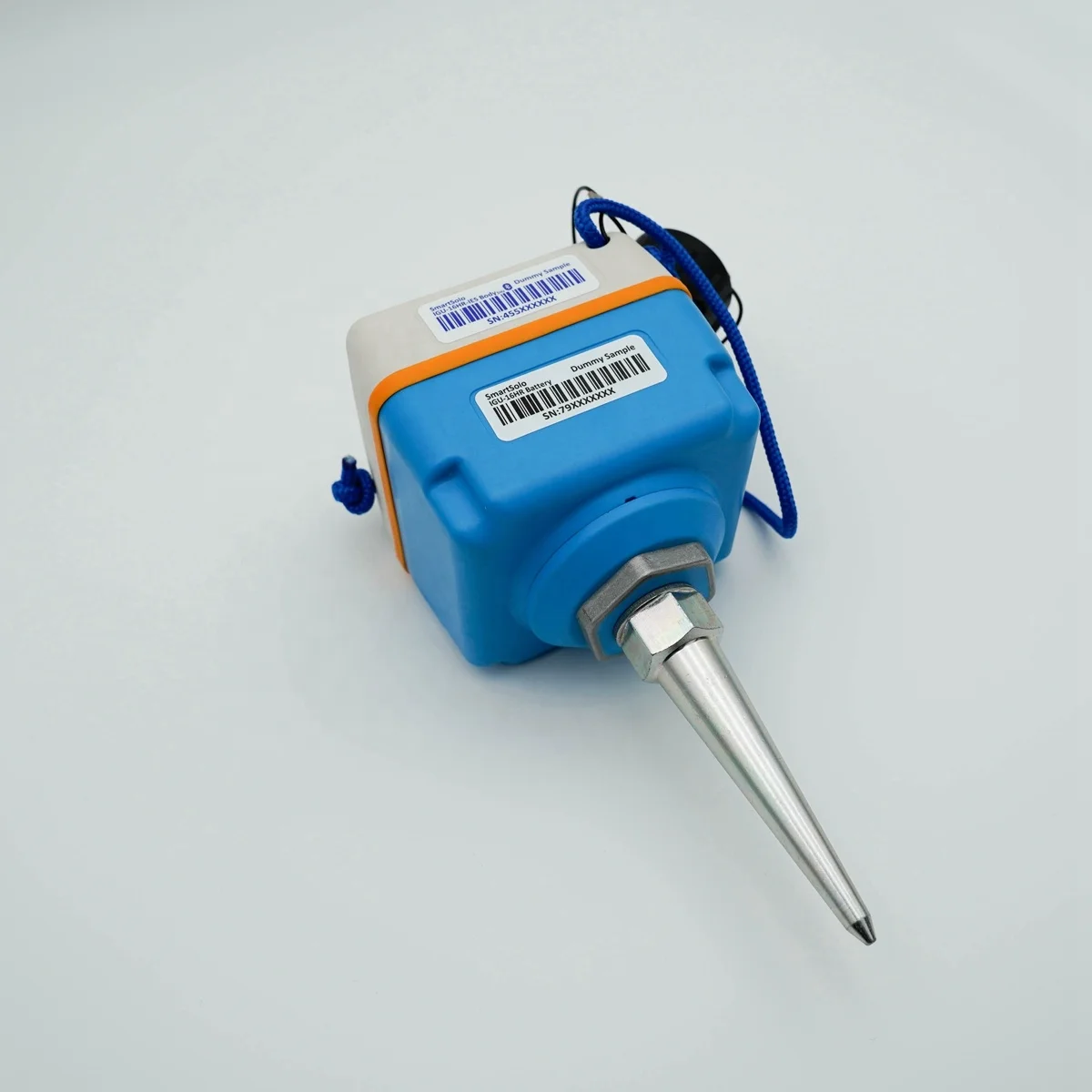

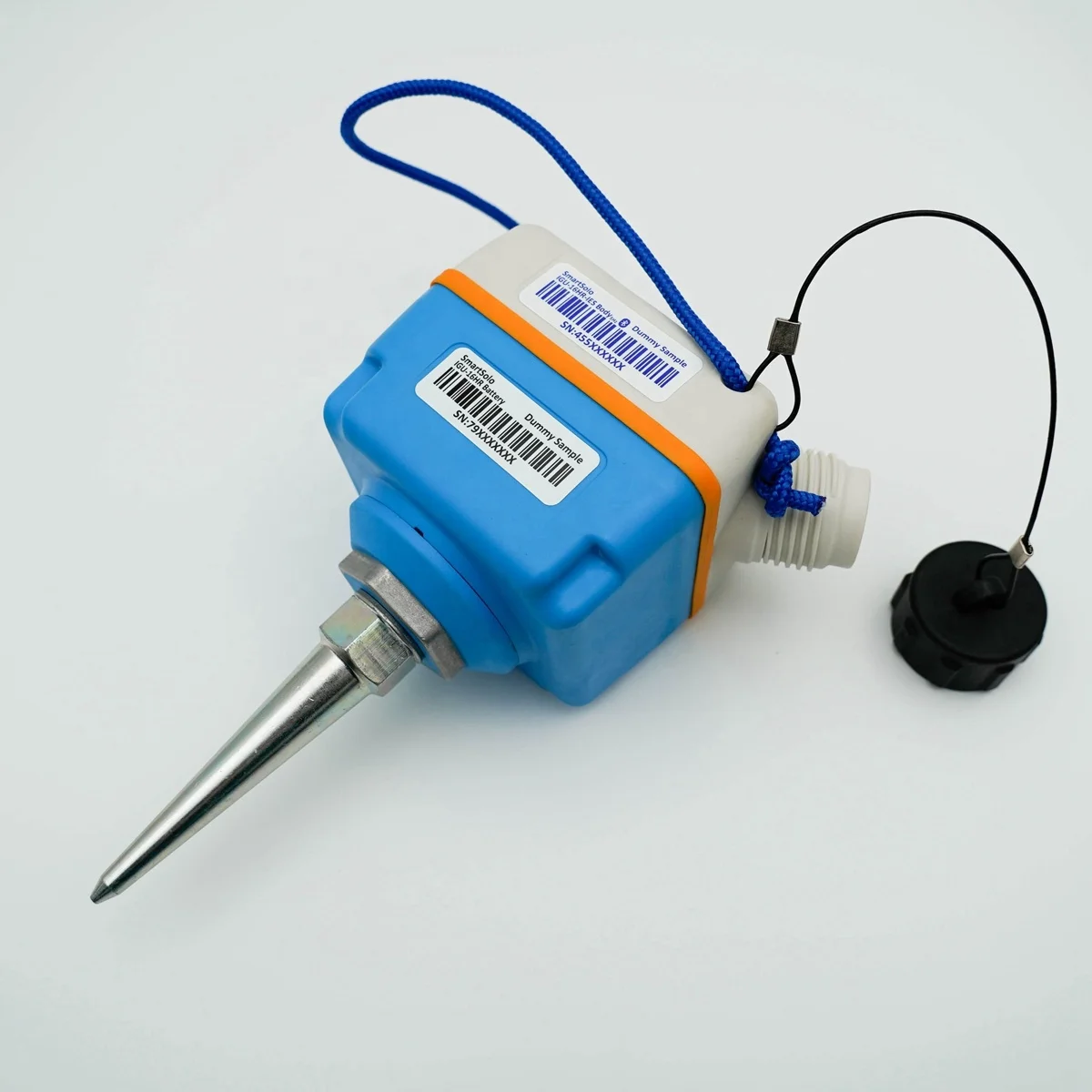

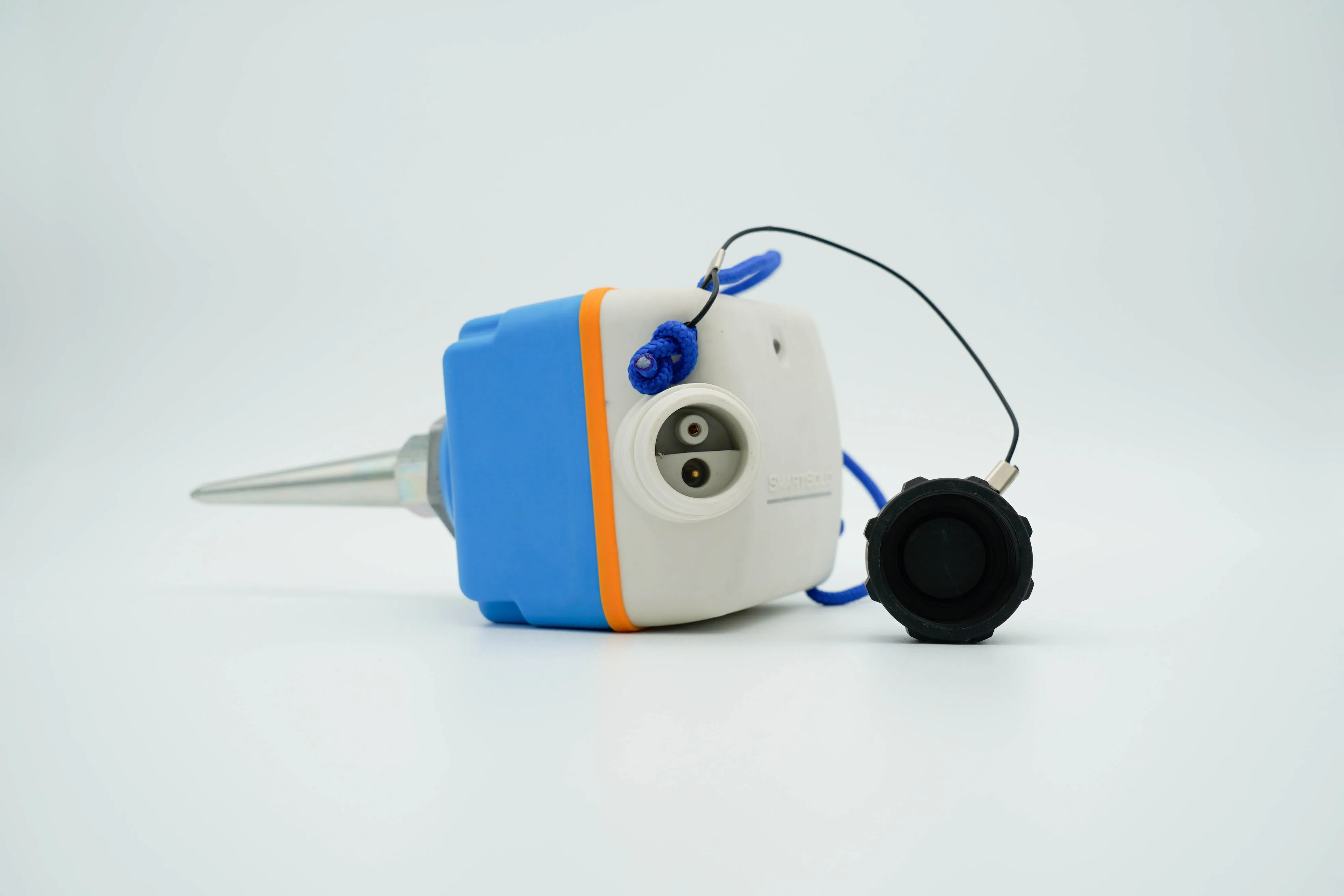

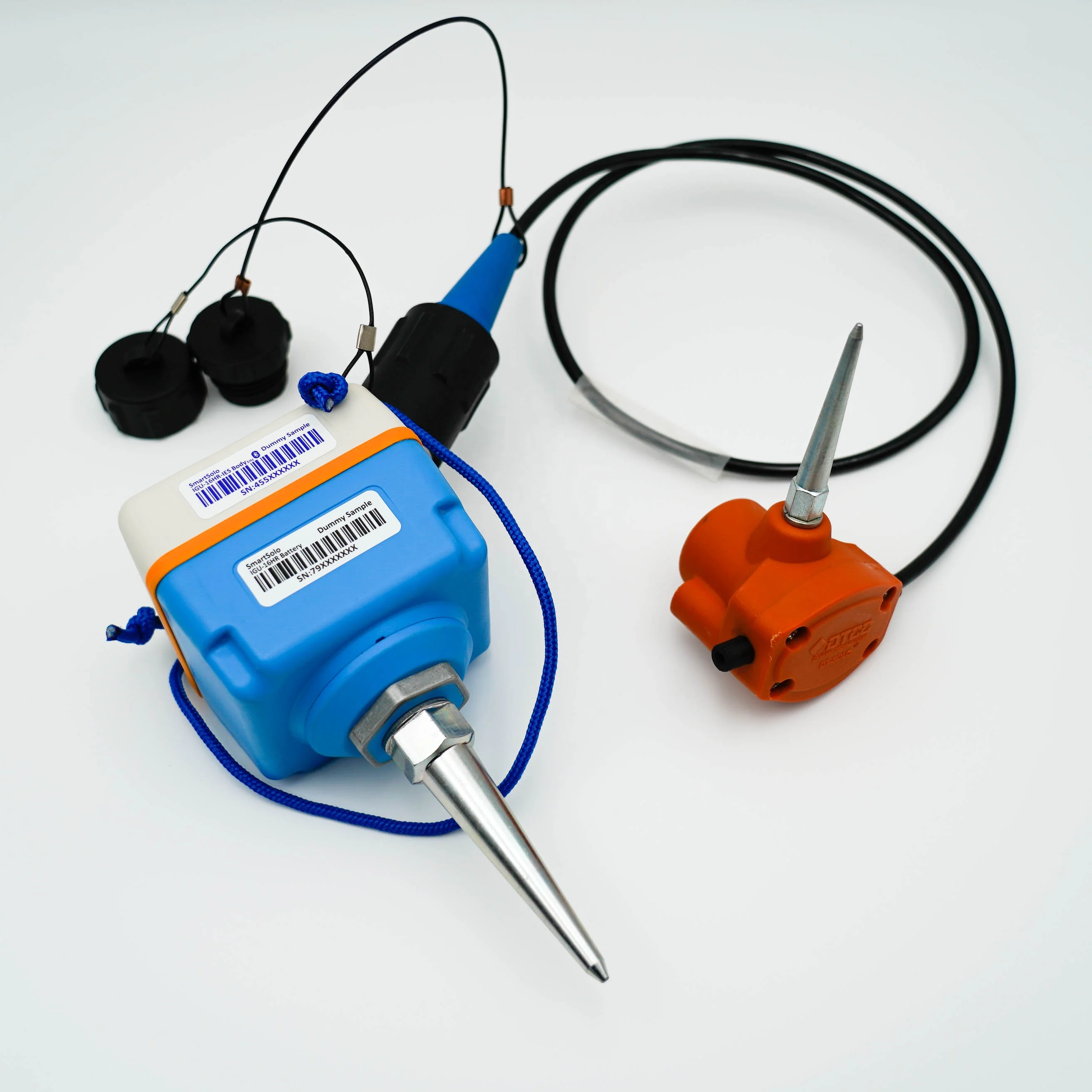

Details Images
The Heart of SmartSolo
High-quality seismic data derives from high-quality seismic sensors. DT-SOLO is a high-sensitivity geophone specially designed for point receiver applications.
lt is well-known in the seismic industry as the top-quality high-sensitivity geophone which is widely used by contractors and equipment manufacturers.
lt is well-known in the seismic industry as the top-quality high-sensitivity geophone which is widely used by contractors and equipment manufacturers.
High Quality
High Sensitivity
Super Reliable
Greater Savings
Low Distortion
Single Point Receiver
lndustry Leader
Available in 10 Hz& 5 Hz
Why Choose Us
High quality and 100% test
1.we use very good material
2.we use supper special method to make it high quality
3.Perfect design from our own patent
4.100% test before delivery.

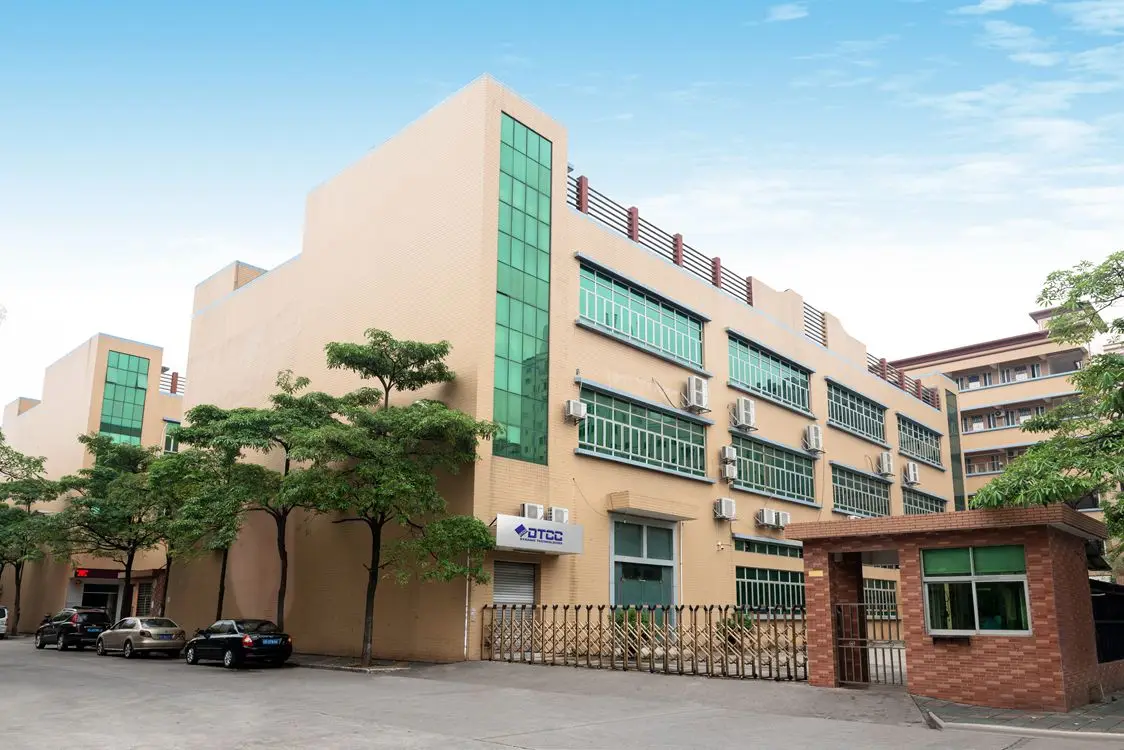

Company Profile
About us
The DTCC Group was formed in 1999, with its headquarters located in Calgary, Canada. It is a manufacturer of vibration sensing and measuring equipment. This equipment, which uses “internet of Things” technology,is designed for use in unusual and challenging environments.The DTCC Group has an international presence. in addition to the corporate, training and marketing facilities in North America, we have a Business Development Center located in Beijing, together with a Research, Development and Manufacturing Facility in Shenzhen. Aditional production locations are in Langfang, Hebei and Dongguan, Guangdong.DTCC also has offices and subsidiaries in several other countries round the world.
Our product ranges from Geophones, Geophone Strings available in Land, Marsh,3C, Hydrophones, Dual Component for transition and marine seismic.Digital cables for Land, Marsh and Transition Zone for the most widely used recording systems. Leader wire and connectors of all types used in seismic acquisition.
Our product ranges from Geophones, Geophone Strings available in Land, Marsh,3C, Hydrophones, Dual Component for transition and marine seismic.Digital cables for Land, Marsh and Transition Zone for the most widely used recording systems. Leader wire and connectors of all types used in seismic acquisition.
Certifications
Product packaging
Small package carton box saving deliver fee
Middle size use plywood box,make is safer
big size make it safe and saving
FAQ
1.How many times can the IGU be assembled/disassembled?
The IGU can be assembled/disassembled at least 500 times.
2.What's the influence of IGU burying and non-burying?
Based on experiments under burying and non-burying conditions, both results meet the coupling requirement. But buried IGUs give better coupling result.
3.Does IGU test geophone element resistance and dip in the field?
IGU can do a self-test based on script setting and get geophone element resistance result but can't get dip result. Since there is no communication between IGU and HHT, the HHT cannot send test command to IGU.
4.What output data formats are provided?
SEGD 1.0, SEGD 2.1, SEGD 3.1, SEGY 1.0, SEGY 2.0, SEG 2, SAC.
Any more questions please contact with SmartSolo team
