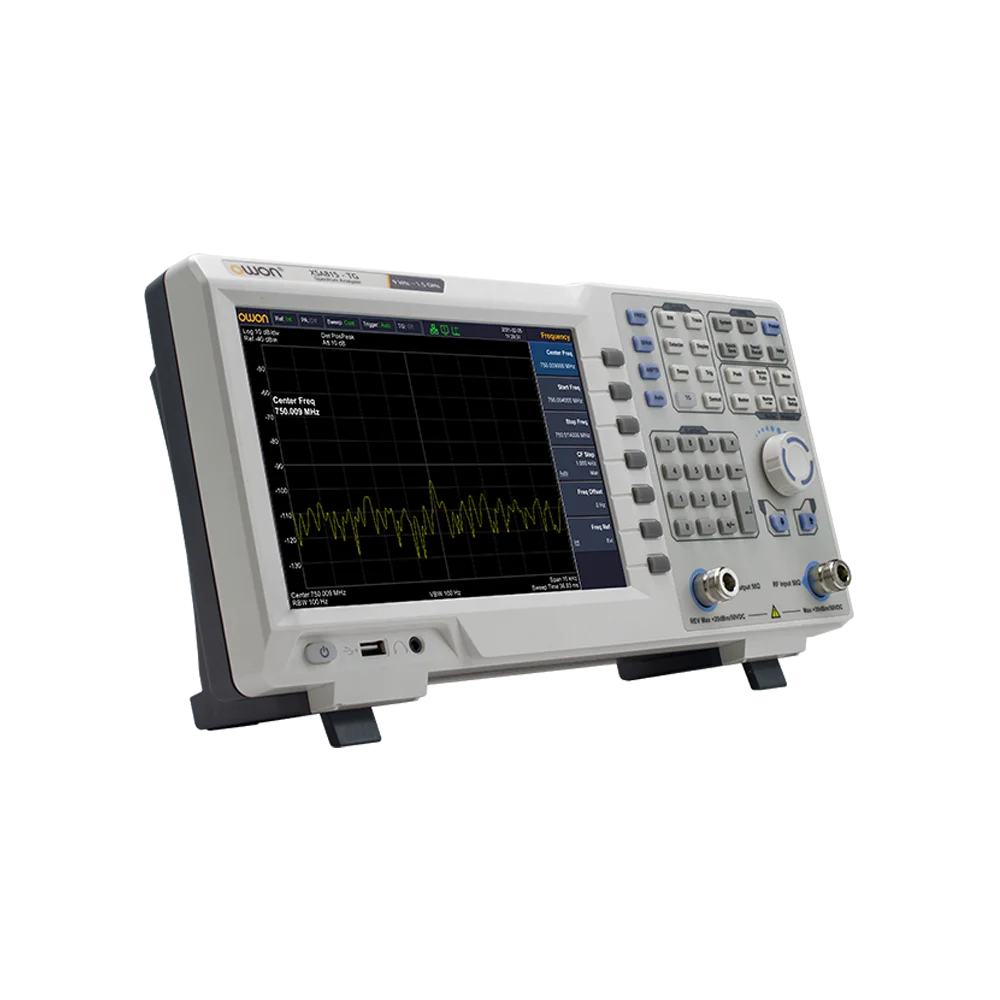

HSA2016A USB interface Handheld Digital Spectrum Analyzer With Portable Field Strength Meter Spectrum Monitor

Frequency

Frequency Range

XSA805(TG)

9 kHz to 500 MHz

XSA810(TG)

9 kHz to 1 GHz

XSA815(TG)

9 kHz to 1.5 GHz

Frequency Resolution

1 Hz

Reference frequency aging rate

< 1 ppm/year

Frequency Span

Span Range

0 Hz, 100 Hz to max frequency of instrument

Span Uncertainty

± span / (sweep points-1)

SSB Phase Noise(20℃ to 30℃, fc = 500 MHz)

Carrier Offset

10 kHz

< -80 dBc/Hz

100 kHz

< -100 dBc/Hz

1 MHz

< -115 dBc/Hz

Bandwidth

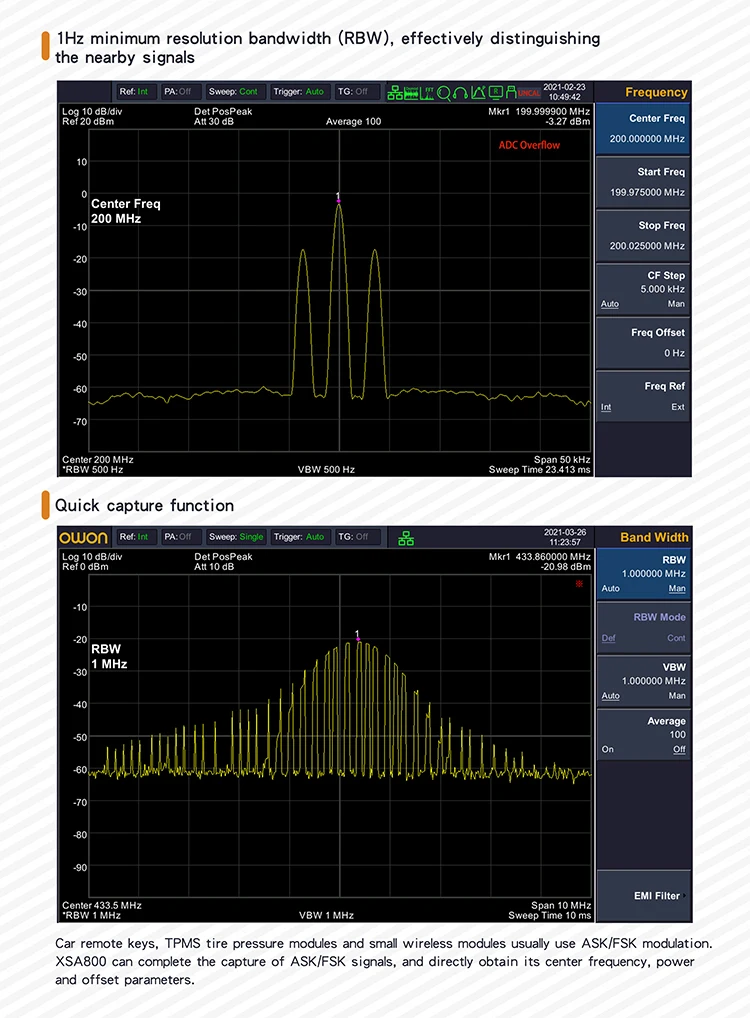

Resolution Bandwidth(-3 dB)

1 Hz to 1 MHz, in 1-3-5-10 sequence

Resolution Bandwidth (-6 dB) (EMI)

200 Hz, 9 kHz, 120 kHz, 1 MHz

RBW Accuracy

< 5% typical

Resolution Filter Shape Factor (60 dB : 3 dB)

< 5 typical

Video
Bandwidth (-3 dB)

10 Hz to 1 MHz, in 1-3-5-10 sequence

Amplitude and level

Amplitude measurement range

DANL to +10 dBm, 100 kHz to 10 MHz, Preamp Off
DANL to +20 dBm, fc ≥ 10 MHz, Preamp Off

Reference Level

-80 dBm to +30 dBm, 0.01 dB by step

Preamp

20 dB, nominal, 100 kHz to 1.5 GHz

Input Attenuator

XSA805(TG)
XSA810(TG)
XSA815(TG)

0 to 40 dB, 1 dB by step

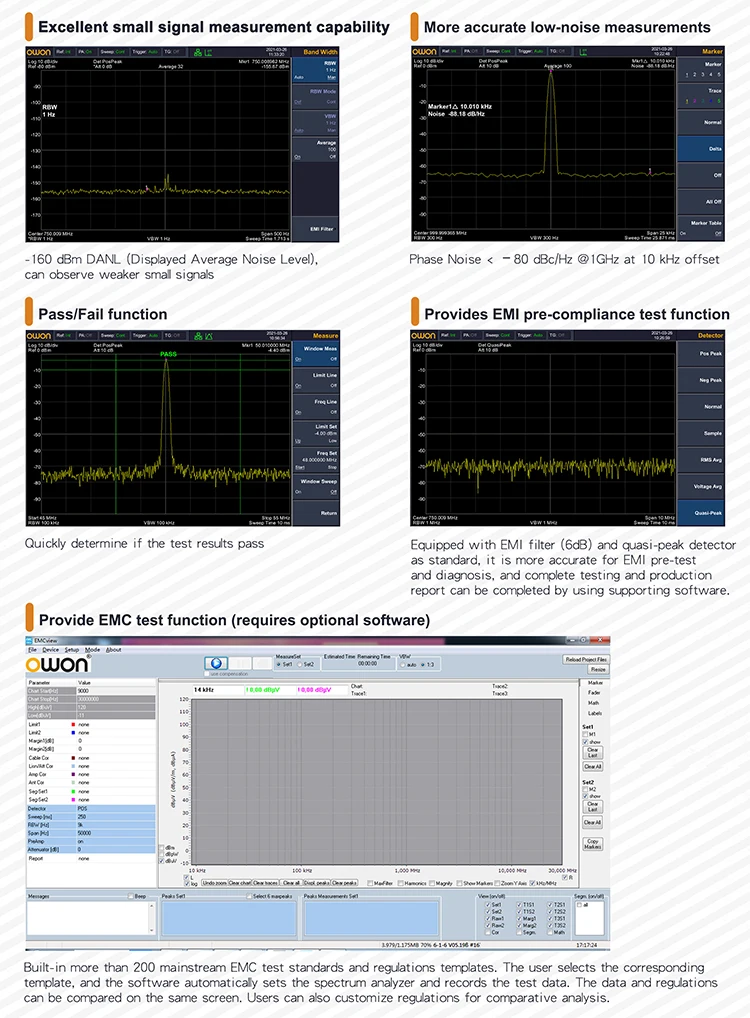

Display Average Noise Level (Input attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20℃ to 30℃, input impedance = 50 Ω)

Preamp Off

9 kHz to 1 MHz

-95 dBm (Typical), <-88 dBm

1 MHz to 500 MHz

-140 dBm (Typical), <-130dBm

XSA810(TG)

500 MHz to 1 GHz

XSA815(TG)

500 MHz to 1.5 GHz

-138 dBm (Typical), <-128 dBm

Preamp On

100 kHz to 1 MHz

-135 dBm (Typical), <-128 dBm

1 MHz to 500 MHz

-160 dBm (Typical), <-150 dBm

XSA810(TG)

500 MHz to 1 GHz

XSA815(TG)

500 MHz to 1.5 GHz

-158 dBm (Typical), <-148 dBm

Level Display

Trace detectors

positive-peak, negative-peak, normal, sample, RMS, voltage average, quasi-peak

Trace functions

clear write, max hold, min hold, average, view, blank, trace math

Units of level axis

dBm, dBμW, dBpW, dBmV, dBμV, W, V

Frequency response
(fc ≥ 100 kHz, 20℃ to 30℃,30% to 70% relative humidity, input attenuation=10 dB, reference frequency= 50 MHz)

Preamp Off

<0.7 dB

Preamp On

<1.0 dB

Difference and Accuracy

Uncertainty

fc = 50 MHz, peak detector, preamplifier off, attenuation = 10 dB, input signal level = -10 dBm, 20℃ to 30℃

< 0.4 dB

Level Measurement Uncertainty

Level measurement uncertainty

95% confidence level, S/N > 20 dB, RBW = VBW = 1 kHz, preamplifier off, attenuation = 10 dB, -50 dBm < input level ≤ 0 dBm, fc > 10 MHz, 20℃ to 30℃

< 0.7 dB

Tracking Generator (optional)

Frequency Range

 XSA805(TG)

100 kHz to 500 MHz

XSA810(TG)

100 kHz to 1 GHz

XSA815(TG)

100 kHz to 1.5 GHz

Output power
level range

-40 dBm to 0 dBm

Output level resolution

1 dB

Output flatness

Relative to 50 MHz

± 3 dB

Tracking generator spurious

Harmonic spurious

-30 dBc (Tracking generator output power -10 dBm)

Non-harmonic spurious

-40 dBc (Tracking generator output power -10 dBm)

Tracking generator to input terminal isolation

-60 dB (Tracking generator output power 0 dBm)

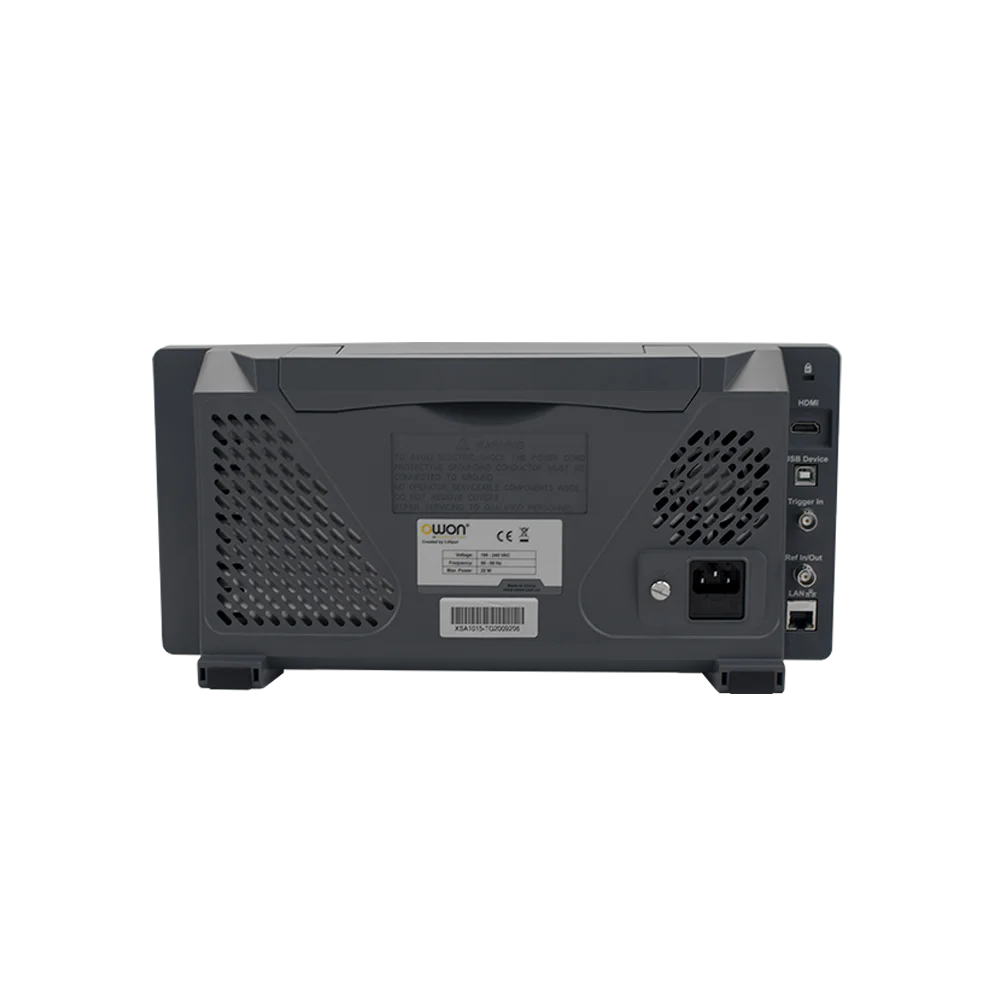

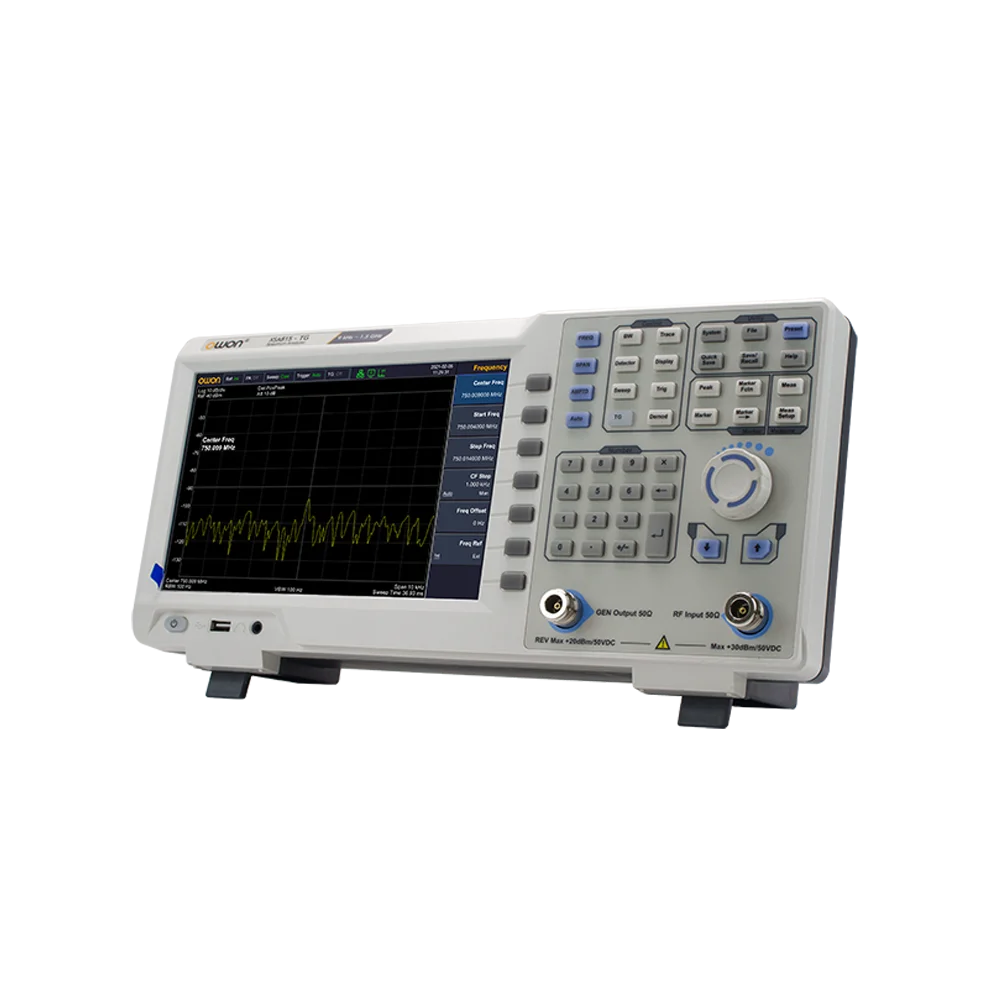

Interface

USB Host, USB Device, LAN, earphone interface, HDMI

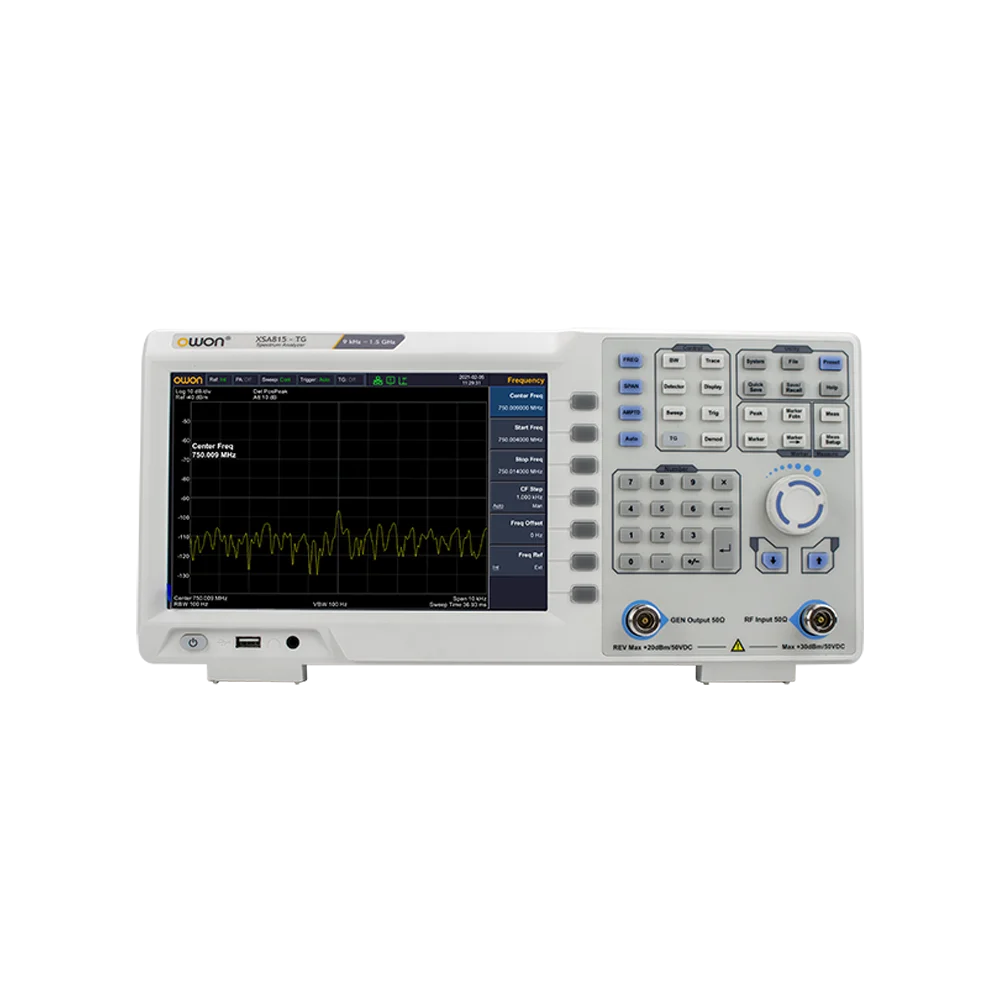

Display

9-inch TFT LCD, 1280 x 800 pixels

Appearance

Dimensions

375 mm (W) × 185 mm (H) × 120 mm (D)

Weight

Approx. 3.7 kg (main device)
