Taidacent 9-30V/18-55V 30A Sensorless BLDC Motor IC Driver Sensorless DC Motor Controller Brushless BLDC Motor Controller Module
- Category: Motor Controllers >>>
- Seller: Yueqing,Wodu,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

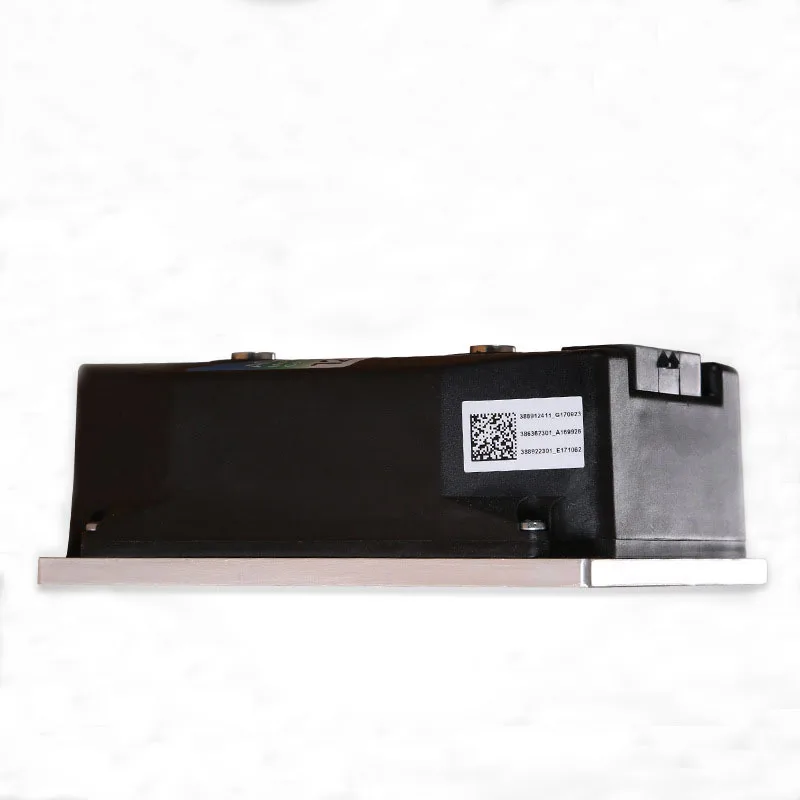

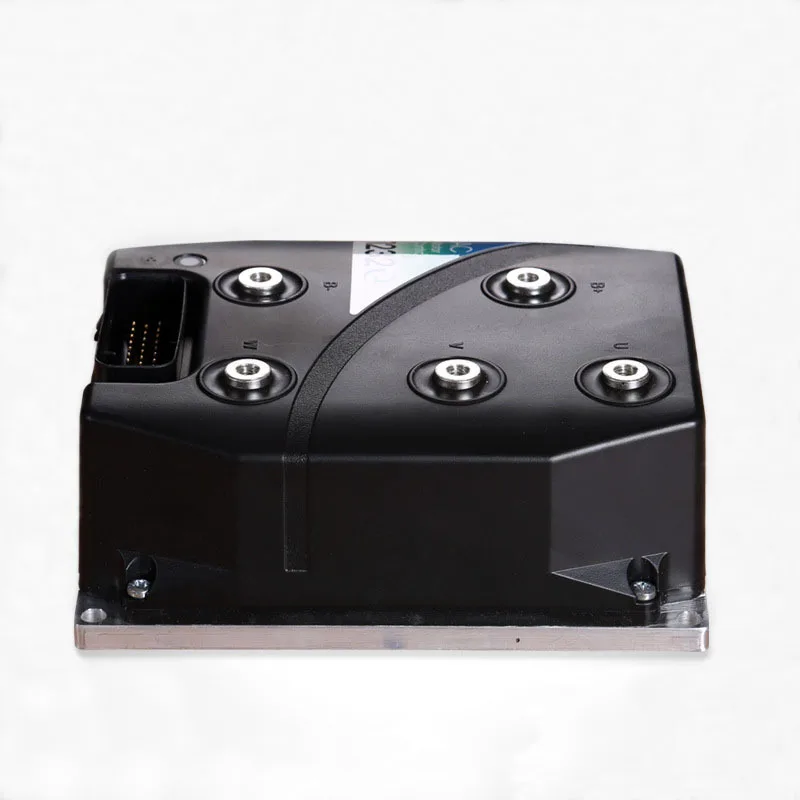

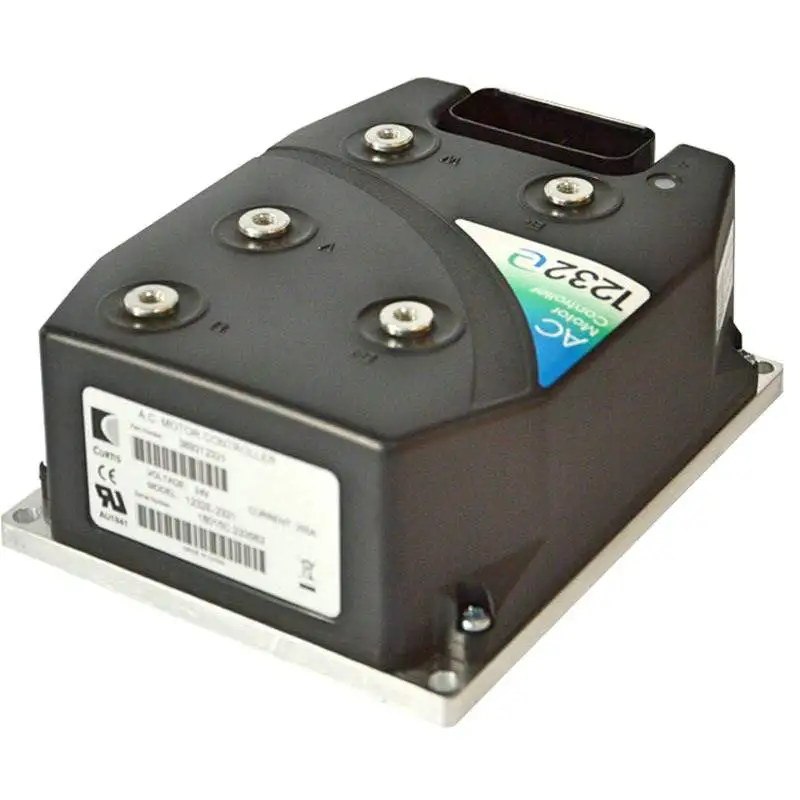

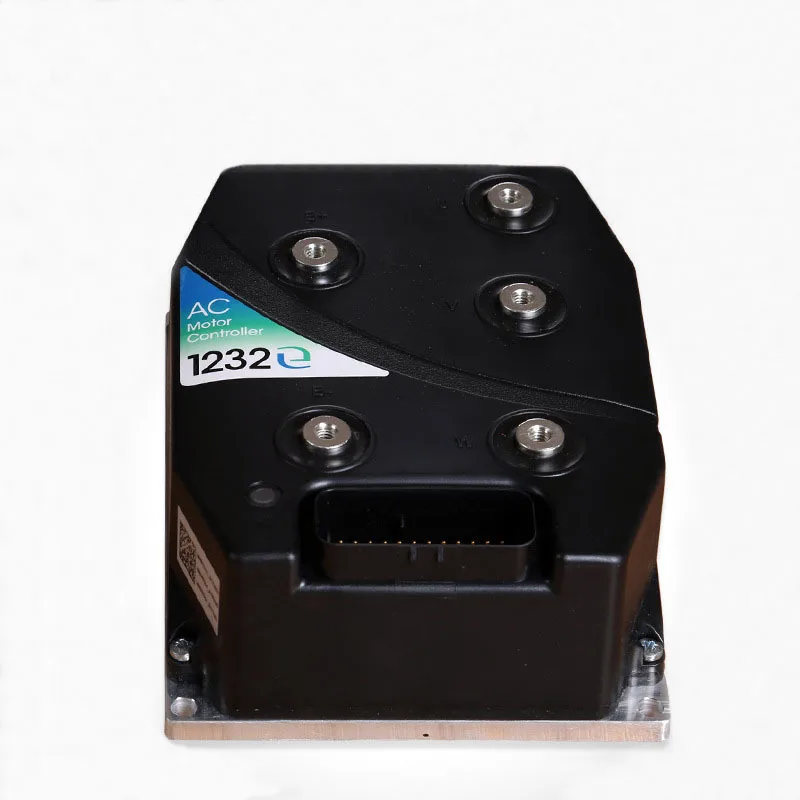

24v Curtis AC motor controller 1232E-2121 for electric stacker/pallet truck/forklift
Specifications:
PWM operating frequency: 15 kHz
Electrical isolation to heatsink (min.): 500 VAC
PWM operating frequency: 10 kHz
Maximum encoder frequency: 15 kHz
Maximum controller output frequency: 300 Hz
Heatsink overtemperature cutoff: linear cutback starts at 85°C; complete cutoff at 95°C
Heatsink undertemperature cutoff: complete cutoff at -40°C
Overview:
The Curtis model 1232E provides advanced control of AC induction motors performing on-vehicle traction drive or hydraulic pump duties and offers the highest levels of functional safety.
PWM operating frequency: 15 kHz
Electrical isolation to heatsink (min.): 500 VAC
PWM operating frequency: 10 kHz
Maximum encoder frequency: 15 kHz
Maximum controller output frequency: 300 Hz
Heatsink overtemperature cutoff: linear cutback starts at 85°C; complete cutoff at 95°C
Heatsink undertemperature cutoff: complete cutoff at -40°C
Overview:
The Curtis model 1232E provides advanced control of AC induction motors performing on-vehicle traction drive or hydraulic pump duties and offers the highest levels of functional safety.
Key Features:
CURTIS Model: 1232E-2121
Nominal input voltage: 24V
2 Minute RMS Current Rating (amps): 250
S2-60 Minute RMS Current Rating (amps): 125
MOSFET overtemperature cutback: linear cutback starts at 100°C; complete cutoff at 110°C
MOSFET undertemperature cutback: approx. 50% motor current at -25°C; complete cutoff at -40°C
All low power connections are made through a single 35-pin AMPSEAL connector
Throttle Type: 0-5K Ω (default setting), flexible throttle circuitry accommodates a variety of throttle types: 5kΩ–0, 0–5kΩ, 0–5V, etc.
Operating Ambient Temperature Range: -40°C to 50°C
Internal Heatsink Operating Temperature Range: -40°C to 95°C
Storage Ambient Temperature Range: -40°C to 95°C
CURTIS Model: 1232E-2121
Nominal input voltage: 24V
2 Minute RMS Current Rating (amps): 250
S2-60 Minute RMS Current Rating (amps): 125
MOSFET overtemperature cutback: linear cutback starts at 100°C; complete cutoff at 110°C
MOSFET undertemperature cutback: approx. 50% motor current at -25°C; complete cutoff at -40°C
All low power connections are made through a single 35-pin AMPSEAL connector
Throttle Type: 0-5K Ω (default setting), flexible throttle circuitry accommodates a variety of throttle types: 5kΩ–0, 0–5kΩ, 0–5V, etc.
Operating Ambient Temperature Range: -40°C to 50°C
Internal Heatsink Operating Temperature Range: -40°C to 95°C
Storage Ambient Temperature Range: -40°C to 95°C
Description:
Through advanced control software, the controller ensures that the motor can run smoothly in different modes, including
regenerative braking at full speed and high torque, zero speed and torque control, proprietary input/output ports and software to
ensure This improves the economy and high efficiency of the controller for electromagnetic brake and hydraulic system control.
Features:
1. Main functions, operation and system are better than those of DC system.
2. Frequency range of 2.0 to 300Hz, low noise operation.
3. 24V system, the operating current reaches 180 amperes in 2 minutes.
4. Powerful operating system ensures that vehicle control, motor control and user-side programs run simultaneously.
5. Advanced pulse width modulation technology ensures that the electricity is used efficiently and reduces the loss of motor
energy consumption and torque conversion.
6. This AC controller can be adapted to any type of AC motor.
7. Built-in electricity status and timer function.
8. On-site debugging program, built-in flash memory can download software at any time. Add text.
Package Included:
- 1 x AC Motor Controller
Note:
- Battery is not included.
- Made in China
Product Name | 24v Curtis AC motor controller 1232E-2121 for electric stacker/pallet truck/forklift |
Model Number | 1232E-2121 |
Voltage | 24V |
Current | 180A |
Details Images
Application
Packing & Shipping
FAQ
Q: How to confirm a spare part ?
A: Usually, we confirm a spare part according to following details:
(2) Model number of a part.
(3) Photos of a spare part.
Q: How long is your delivery time?
A: Generally, 1-2 days for normal products.
Q: Any service about spare parts ?
A: Based on clients' enquiry, we supply correct products with photos.
Q: How to do the order and payment ?
A: Please check below details for your reference.
(2) Please tell us your PayPal account, then we send you an invoice by PayPal.
(3) After you confirm an order, we will send you an official invoice for your payment.
