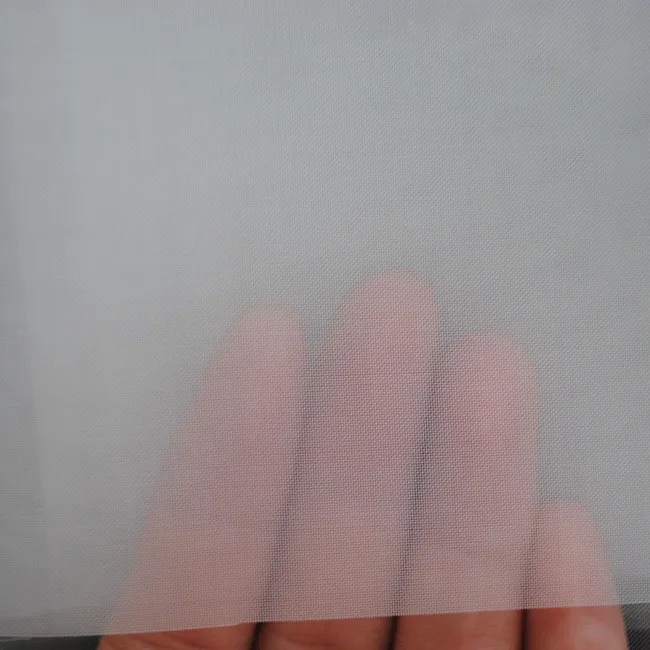

Sefar Quality Polyester Screen Printing Mesh/Bolting Cloth for Textile Printing
- Category: Printing Mesh >>>
- Seller: Anping,County,Resen,Screen,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
polyester silk screen printing
screen printing mesh silk fabric screens is very popular used in screen printing industry such as glass screen printing,ceramic screen printing,textile screen printing and PCB screen printing.

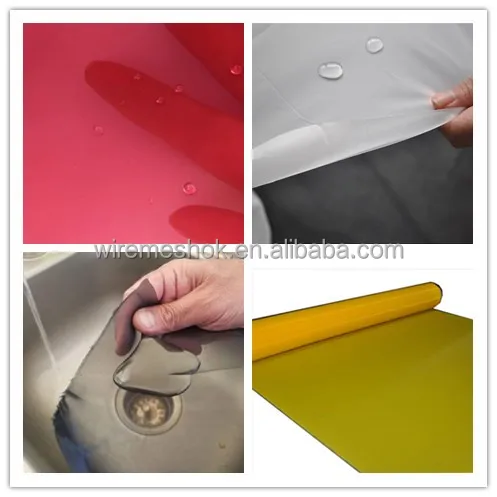

Features of roll screen printing mesh silk fabric screens :
Faster tensioning without damage to the threads.
Higher tension threshold and breaking point.
Good diathermancy
Good anti-static properties & Good mechanical behavior.
Acid resistance & Alkali resistance Hard wear & Long working life.
Superior stencil adhesion, resulting in less stencil breakdown on the press, delivering longer
print runs far beyond other conventional treated fabrics Better resolution of fine details.
Features of roll screen printing mesh silk fabric screens :
Faster tensioning without damage to the threads.
Higher tension threshold and breaking point.
Good diathermancy
Good anti-static properties & Good mechanical behavior.
Acid resistance & Alkali resistance Hard wear & Long working life.
Superior stencil adhesion, resulting in less stencil breakdown on the press, delivering longer
print runs far beyond other conventional treated fabrics Better resolution of fine details.

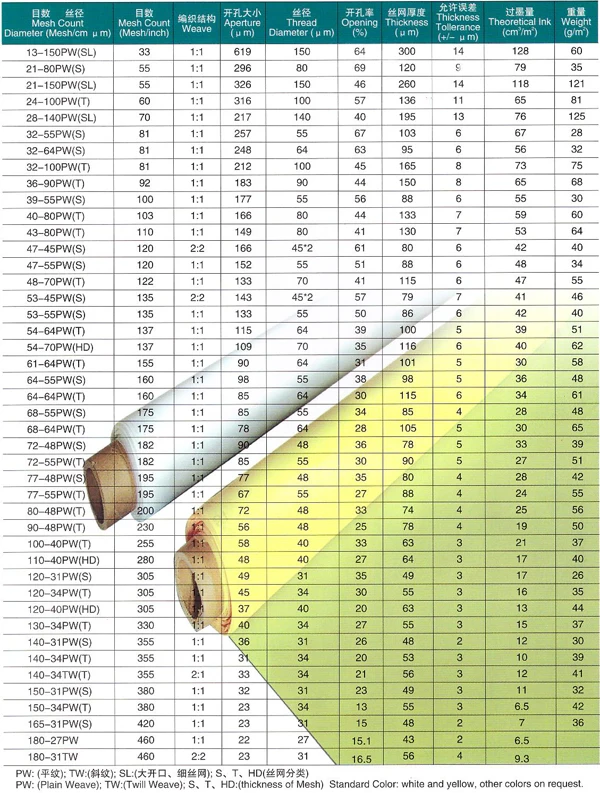

Specification
Mesh | 25mesh(10T),40mesh(17T),60mesh(24T),80mesh(32T),100mesh(39T),110mesh(43T), 120mesh(47T),135mesh(53T),137mesh(54T),150mesh(59T),155mesh(61T),160mesh(64T), 180mesh(72T),195mesh(77T),200mesh(80T),230mesh(90T),250mesh(100T),300mesh(120T), 350mesh(140T),380mesh(150T),460mesh(165T) |
width | 105cm,115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm 240cm,340cm,360cm |
Length | Usually 30 or 50m per roll,or made to order |
color | White ,yellow |
packing | Pack in roll,then plastic bag inside,carton case outside |
sample | Sample with size less than 1m is supplied free.shipping cost paid by buyer |
Payment terms | T/T,western union,paypal,escrow,Trade Assurance |

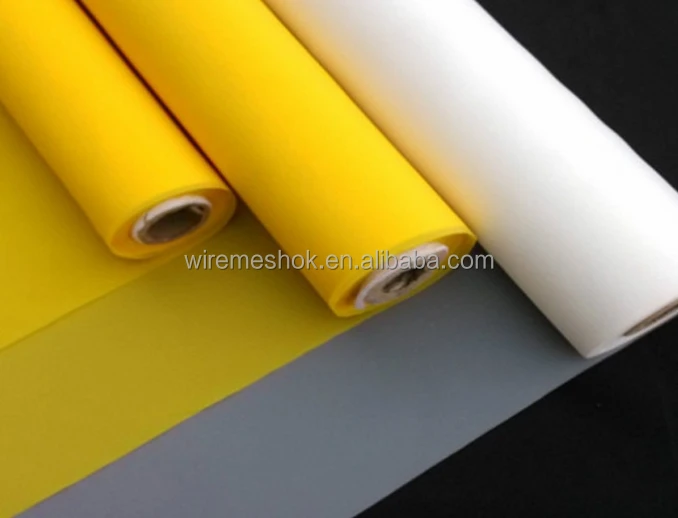

differences of white and yellowing screen printing mesh
White polyester mesh is the more economical of the two, and is primarily seen in lower mesh counts used for less-detailed designs. Higher count polyester mesh is usually dyed yellow,a yellow mesh one needs to proportionally increase the exposure time, as this mesh absorbs the light .color yellow acts as a canceling factor for UV light and prevents refraction along the mesh strands when burning your screens. This allows for a more focused and precise exposure, keeping your screens as crisp as possible.
Application
polyester screen printing mesh fabric Applications
It’s widely used in silk screen printing machines, t-shirt silk screen printing, PCB, glass printing, textile printing, and
ceramic printing, etc.
ceramic printing, etc.
advice when choosing polyester printing mesh screen
1.\t24 and 38 mesh is used mostly for glitter inks that need a very open mesh for printing.
2.\t60 mesh is usually used for printing smaller glitter and most shimmer inks.
3.\t80 mesh is also used for printing shimmer inks and for laying down thick layers of ink for high-density printing. It also works well for printing foil adhesive.
4.\t110 mesh makes printing white and other thick inks easy. It is ideal for spot color printing since it holds less detail than 155 mesh and lays down a thick layer of ink for maximum coverage.
5.\t120 mesh is one of the most rifely mesh sizes in screen printing. It works great for printing white ink and other colored inks that have a thicker viscosity.
6.\t155 mesh is great for general purpose textile printing with basic to semi-fine detail. It will hold a little finer detail than a 110 mesh while also working well with thinner inks.
7.\t200 mesh is great for printing more detailed prints that need a thinner layer of ink than a 155 mesh. It works very well with thinner inks and is a good middle-range mesh size.
8.\t230 mesh is great for high-end fine detail printing. A 230 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh. The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.
9.\t280 mesh screens are great for high-end fine detail printing. A 280 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh.
10.\t305 mesh holds extremely high detail, letting through only a thin layer of ink. This allows for a very soft hand on the garment and is great for use in printing halftones and process prints. The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.
2.\t60 mesh is usually used for printing smaller glitter and most shimmer inks.
3.\t80 mesh is also used for printing shimmer inks and for laying down thick layers of ink for high-density printing. It also works well for printing foil adhesive.
4.\t110 mesh makes printing white and other thick inks easy. It is ideal for spot color printing since it holds less detail than 155 mesh and lays down a thick layer of ink for maximum coverage.
5.\t120 mesh is one of the most rifely mesh sizes in screen printing. It works great for printing white ink and other colored inks that have a thicker viscosity.
6.\t155 mesh is great for general purpose textile printing with basic to semi-fine detail. It will hold a little finer detail than a 110 mesh while also working well with thinner inks.
7.\t200 mesh is great for printing more detailed prints that need a thinner layer of ink than a 155 mesh. It works very well with thinner inks and is a good middle-range mesh size.
8.\t230 mesh is great for high-end fine detail printing. A 230 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh. The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.
9.\t280 mesh screens are great for high-end fine detail printing. A 280 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh.
10.\t305 mesh holds extremely high detail, letting through only a thin layer of ink. This allows for a very soft hand on the garment and is great for use in printing halftones and process prints. The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.

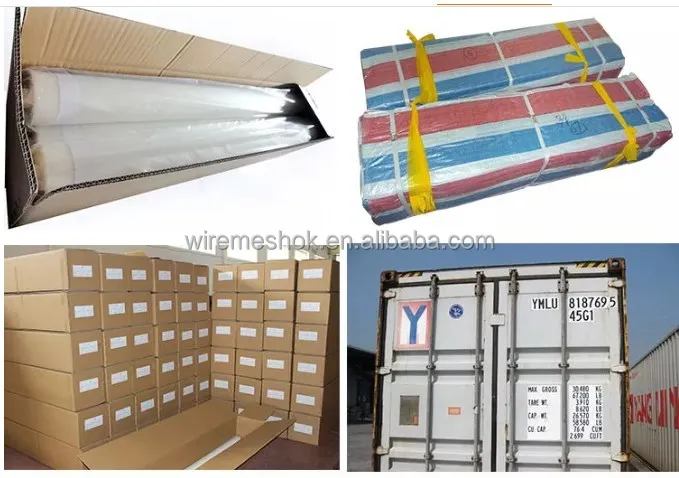

Packing & Delivery

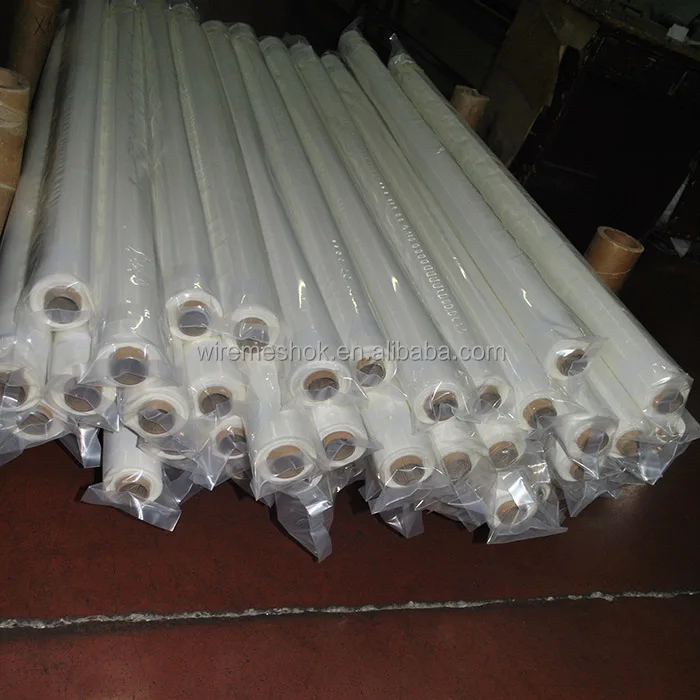

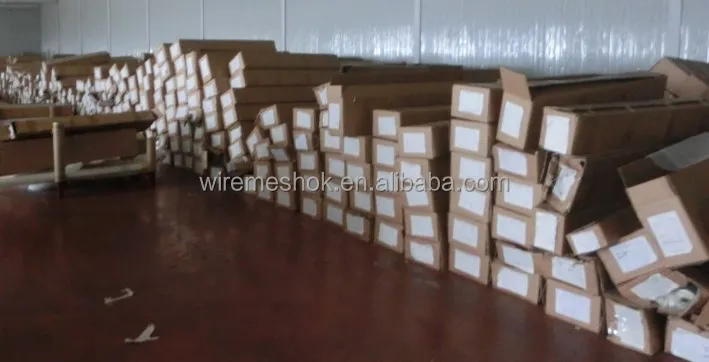

pack screen print cloth mesh in roll then pp bag inside, carton bag outside
polyester silk screen printing mesh can be shipped by sea and air or train for big quantity,and express for small quantity
Company Profile

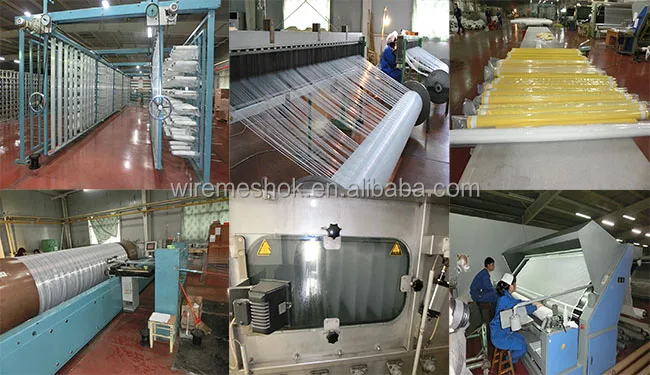

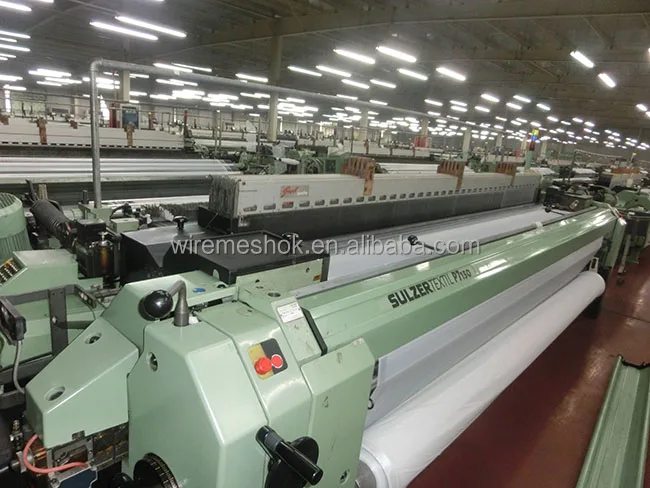

Resen Screen is located in Anping county -- the famous Wire Mesh Land of China, with a land area of 40.000 square meters, a construction area of 13, 000 square meters. PFM SCREEN factory has 83 sets of P7100& P7150 Sulzer polyester printing mesh weaving looms. Our screen printing mesh ( polyester filter cloth) has been approved by ISO9001:2008, and we’re proud of our strict production line and quality control. Our mesh polyester is ranges from 7T-165T with white and yellow color mainly as a file, other special specifications can be produced as required.
