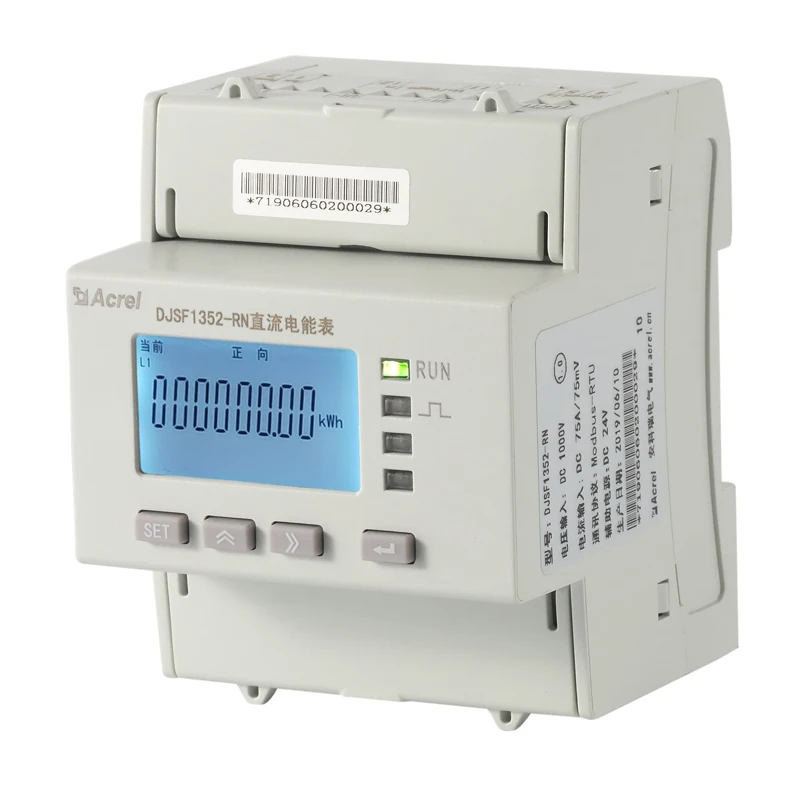

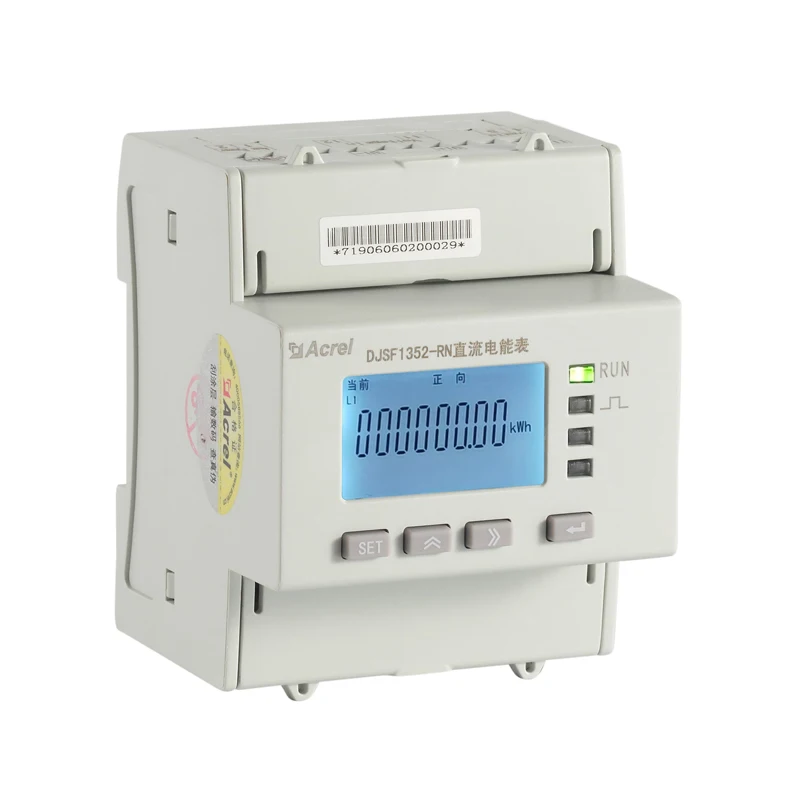

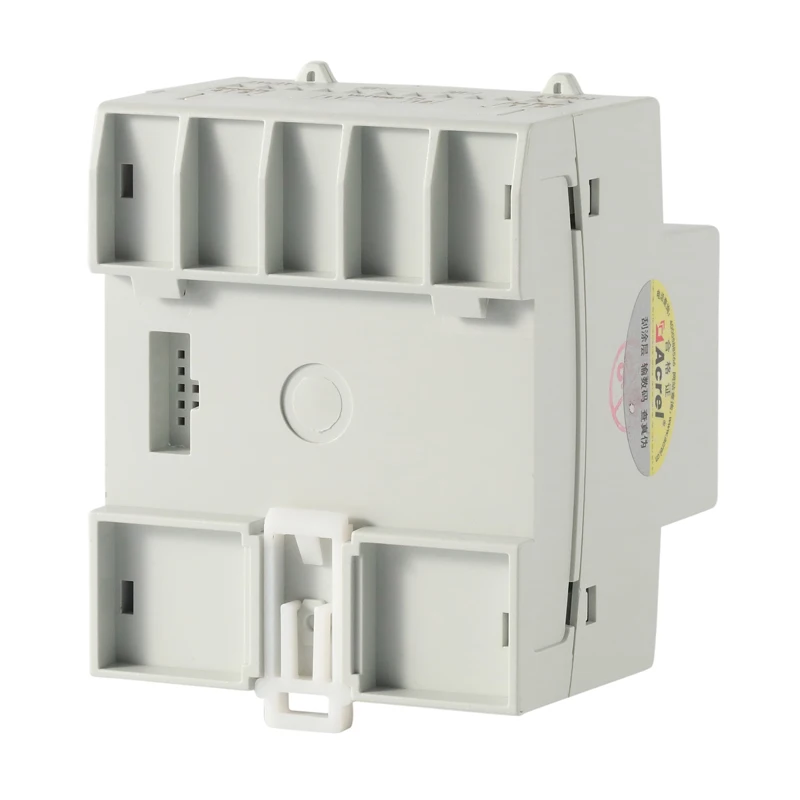

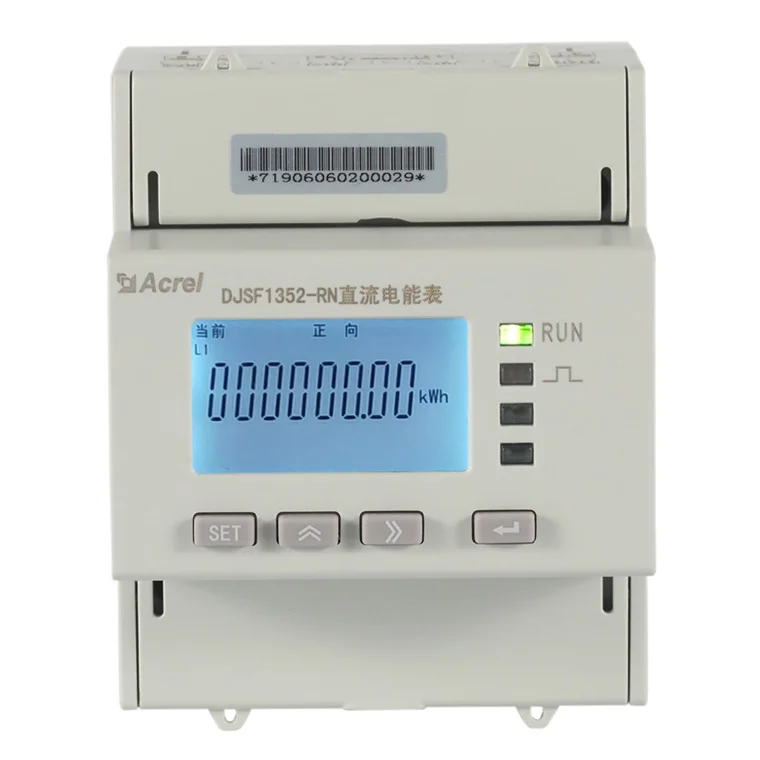

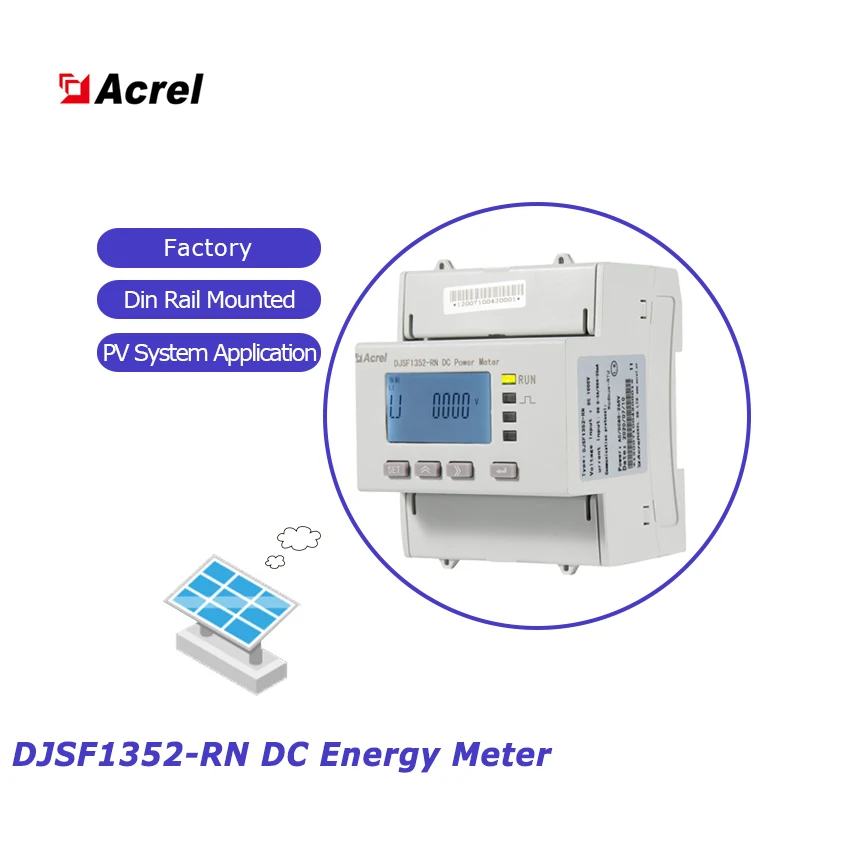

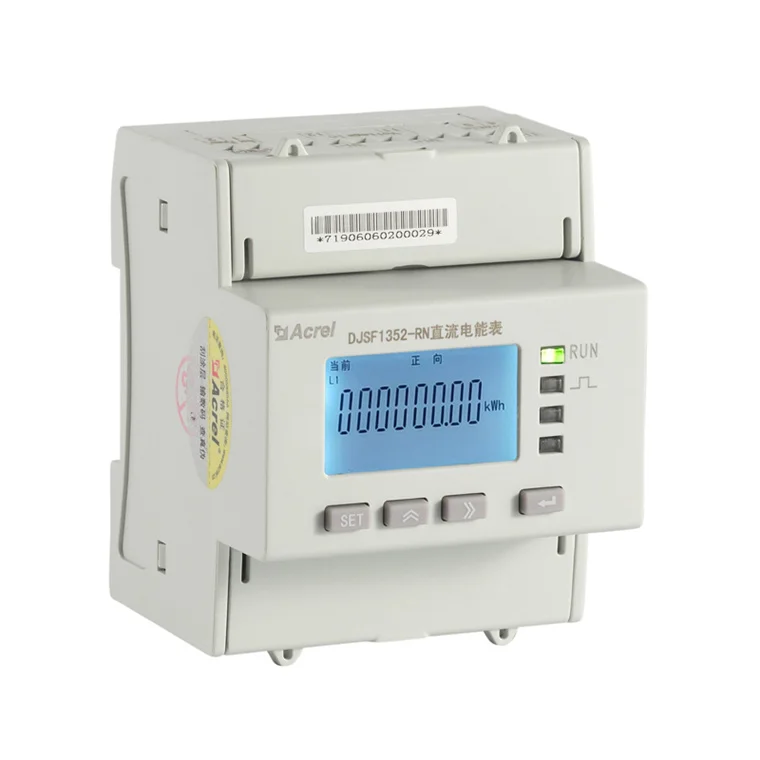

DJSF1352-RN DIN Rail DC Energy Meter
DJSF1352-RN rail-mounted DC power meter with double DC input channels, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment,
computers to form a measurement and control system.
computers to form a measurement and control system.
Product Description
Accuracy: Class 1
Frequency
/
Power Supply(self supply)
AC/DC85-265V or DC24V(±10%)orDC48V(10%)
Pulse output:
/
Input Consumption:
Input Consumption:
Voltage:≤0.2VA current≤0.1VA

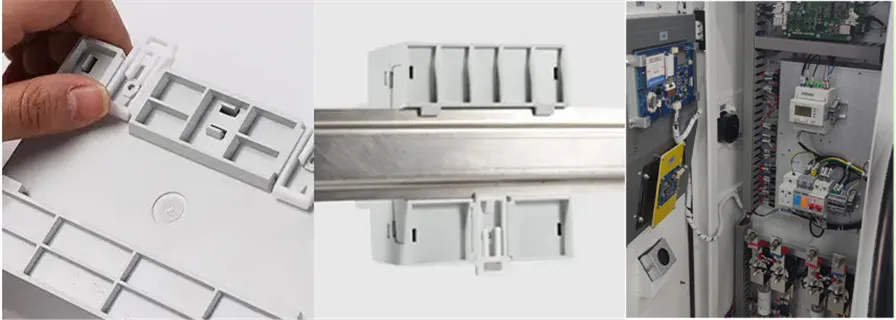

Installation:
DIN 35mm
Dimension(L*W*H):
Dimension(L*W*H):
88*71*72mm
Clock
Clock
/
Switch relay:
Switch relay:
DC 30V/3A AC 220V/3A
Technical parameters
Technical parameters | Indicators | ||||
Input | Nominal value | Voltage input range | Current input | ||
DC 0-1000V See the physical wiring diagram | Shunt：0-75mV； Hall sensor：0-20mA、4-20mA、0-5V，0-10V and so on | ||||
Overload | 1.2 times rated (continuous); 2 times rated/1 second; | ||||
Power consumption | Voltage: ≤0.2VA, current ≤0.1VA | ||||
Accuracy class | Class 1 | ||||

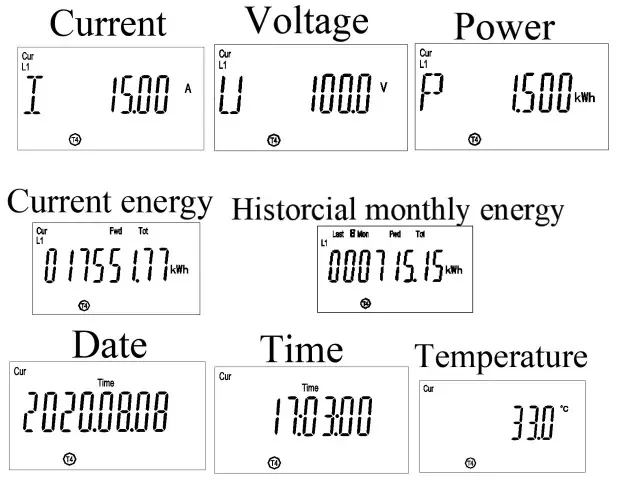

Function | Display | 8-bit segment LCD screen (LCD) | |||
Communication Interface | RS485, infraredRS485, infrared | ||||
Communication protocol | Modbus-RTU，DL/T 645-2007 | ||||
Switch | Switch output | 2 Relay outputs, 2A/30VDC or 2A/250VA | |||
Switch input | 2 dry contact inputs | ||||
Pulse output | A second pulse output, a energy pulse output | ||||
See the SYS->PLUS display in the meter menu setting For example: The meter displays 100, which is 100imp/kWH | |||||
Power Supply | Voltage range | AC/DC 85-265V or DC24V(±10%) or DC48V(±10%) | |||
Power consumption | ≤ 3W | ||||
Power frequency withstand voltage | Power supply // Voltage input // Current input // Relay output and switch input // Communication interface / / Pulse output 3kV/1minPower supply // Relay output // Voltage input // Current input 3kV/1minPulse output // Communication interface // Switch input 2kV/1min | ||||
Insulation resistance | ≥ 40M Ω | ||||
Average barrier-free working hours | ≥50000h | ||||
Environment | Temperature | Normal operating temperature: -25 °C ~ +65 °C; Limit working temperature: -40 °C ~ +70 °C; Storage temperature: -40℃～+80℃ | |||
Humidity | ≤93%RH, no condensation, no corrosive gas | ||||
Altitude | ≤2500m | ||||

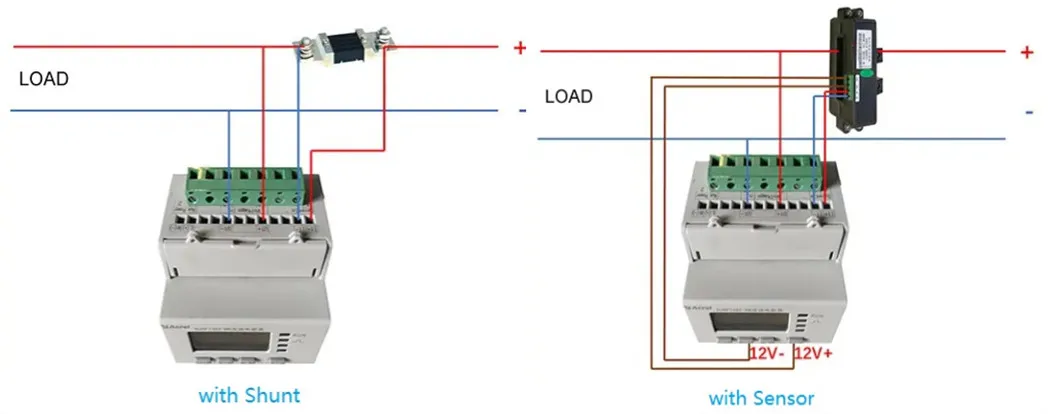

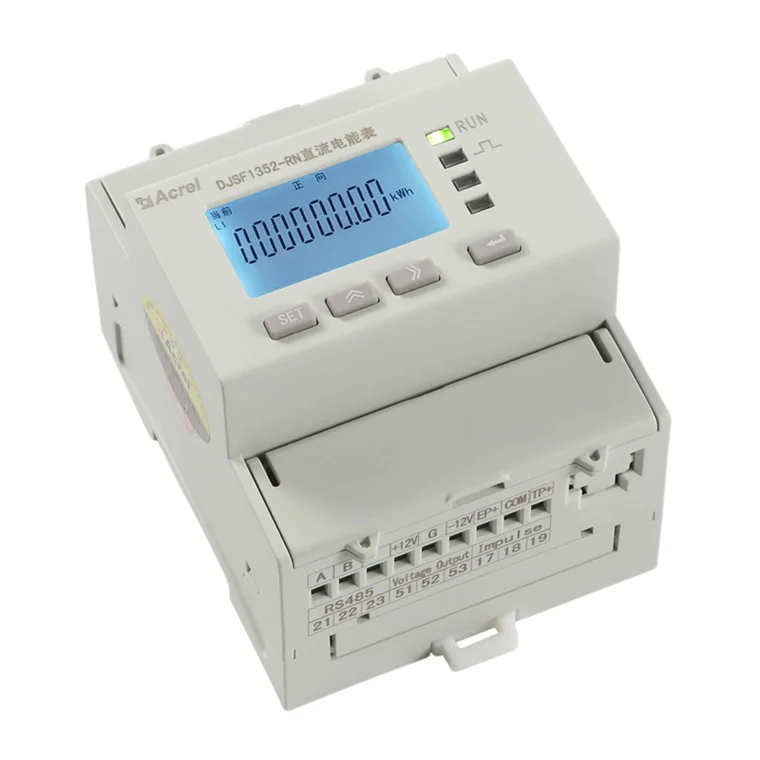

Dimensions and wirings
② Panel
③ Set button
④ Up button
⑤ Down button
⑥ Indicator light
⑦ Enter button

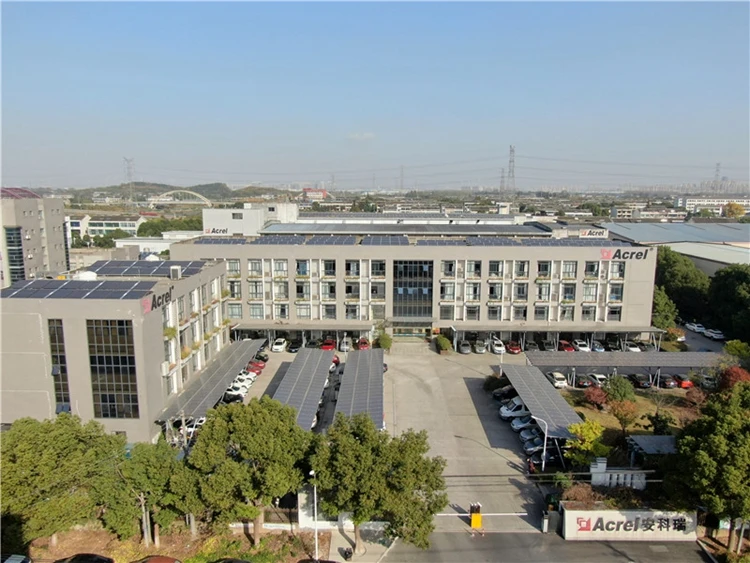

Company Profile
Acrel Energy Efficiency Management System includes various cloud platforms such as substation operation and maintenance, safety power management, environmental protection power supervision and prepaid management, and many kinds of monitoring and management systems such as intelligent transformer and distribution, power quality, building energy consumption, industrial energy, leakage fire alarm, fire power, fire door, emergency lighting and evacuation instructions, charging pile charge, data center power unit and environment variables, intelligent lighting and IT distribution insulation.
Acrel has set up branches and offices in major cities in China. Local sales and technical support teams are deployed to quickly respond to customers’ and provide users with high-quality product experience.By the end of 2018, Acrel have had 5 trademarks, 18 invention patents, 70 utility model patents, 93 appearance patents and 147 computer software copyrights, and participated in the formulation of national or industrial standards.Acrel has maintained a steady growth since its listing in 2012. With the concept of "innovation, efficiency, unity and integrity", the company will adhere to steady operation and continuous innovation to provide more high-quality solutions, products and services for the end users.
Shanghai Electric Power Exhibition
Indonesia Exhibition
Vietnam Exhibition
Project Performance
Costa Rica national stadium electric monitoring and energy management system
The project is taken over by Anhui Foreign Economic Construction Group,adopting over 500 hundred DC power energy meters.
Packing & Delivery
MINIMUM PACKAGE | Package dimensions(4 PC) 170*150*130mm | Net Weight(0.034KG/PC*4) 0.136KG | |||||
WHOLE BOX PACKAGE | Package dimensions(36 PCS) 480*260*200mm | Package Weight(36 PCS) 2.304kG | |||||
PRODUCT HS CODE | 9028301400 | ||||||
FAQ
1. Where is your factory located ?

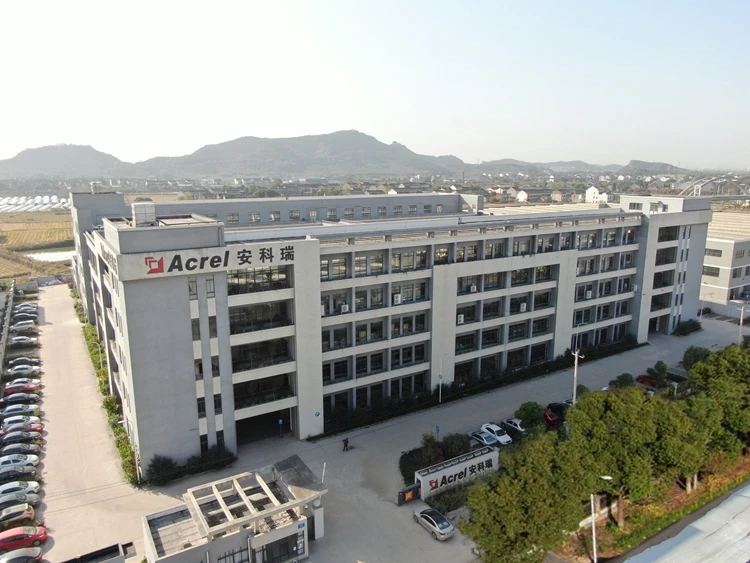

Our production base is located in Jiangyin City, Jiangsu Province, China.
2. How long would your equipment be used?
Generally, more than 10 years.
3. How long could I get my order?
Stock Products: shipping within 5-7 days.
Customized products: usually 10-15 days. It depends on your design and quantity.

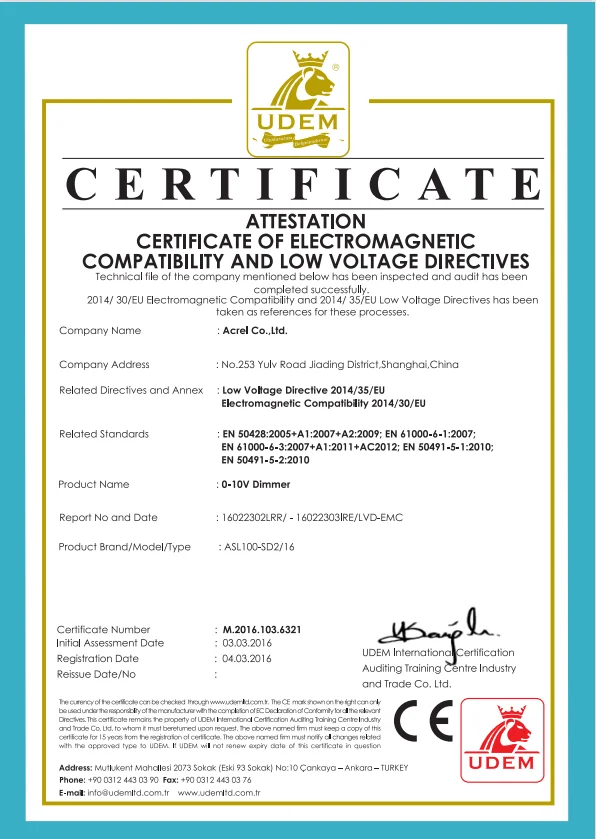

4. What certificate do you have?

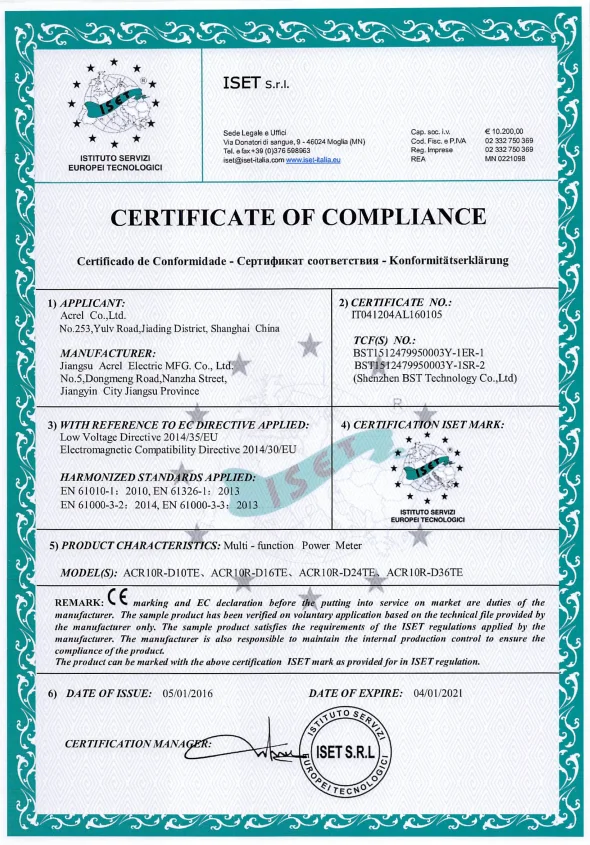

We have ISO9001, CE, IEC and so on.
