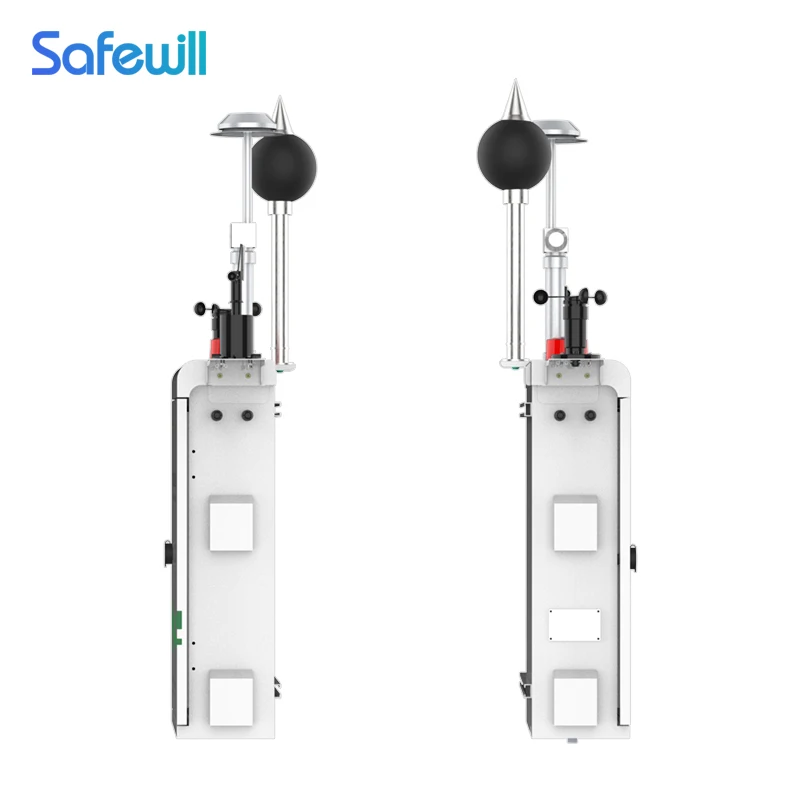

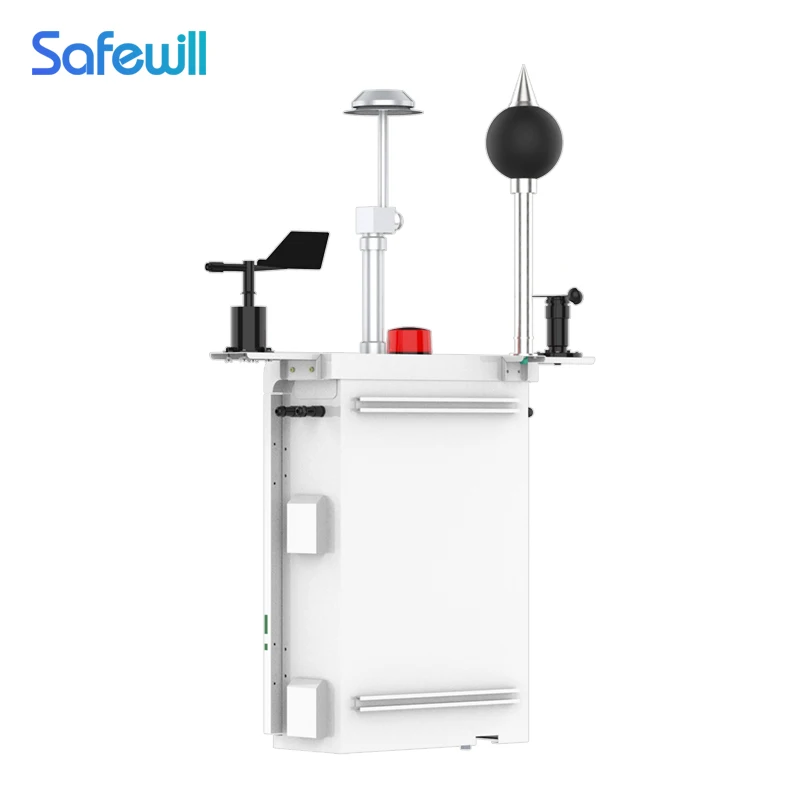

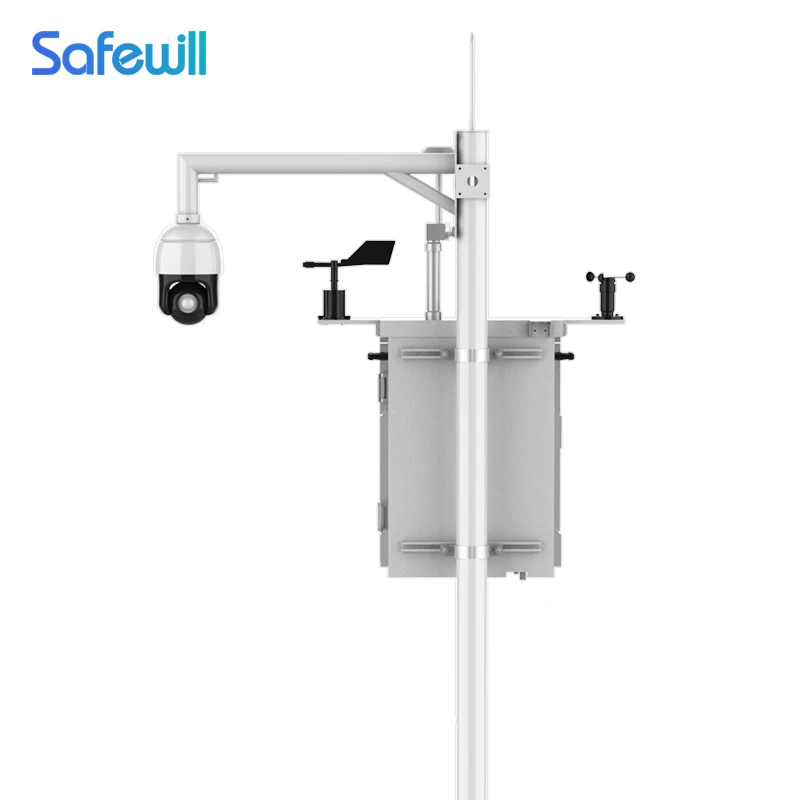

SAFEWILL ES80A-A6 h2s pm2.5 co nh3 multi gas exhaust detector analyzers air quality monitor system station with accessories
SAFEWILL ES80A-A6 h2s pm2.5 co nh3 multi gas exhaust detector analyzers air quality monitor system station with accessories
SAFEWILL ES80A-A6 h2s pm2.5 co nh3 multi gas exhaust detector analyzers air quality monitor system station with accessories
SAFEWILL ES80A-A6 h2s pm2.5 co nh3 multi gas exhaust detector analyzers air quality monitor system station with accessories
SAFEWILL ES80A-A6 h2s pm2.5 co nh3 multi gas exhaust detector analyzers air quality monitor system station with accessories
SAFEWILL ES80A-A6 h2s pm2.5 co nh3 multi gas exhaust detector analyzers air quality monitor system station with accessories
SAFEWILL ES80A-A6 h2s pm2.5 co nh3 multi gas exhaust detector analyzers air quality monitor system station with accessories

SAFEWILL ES80A-A6 h2s pm2.5 co nh3 multi gas exhaust detector analyzers air quality monitor system station with accessories

Share on:

Price:$2,000.00 - $3,500.00
Price in USD:Details

Quantity:

Price request

Product Overview

Description





                                     Specification Parameter Information
Product Name/Model
                            Air Quality Online Monitoring System/ES80A-A6
Detection Method
Diffusion / Suction
Data Transmission
RS485 Modbus, 4G LTE Optional
Preheat Time
90 Seconds
Temperature/ Humidity
-20℃~50 ℃/10%RH ~95%RH (No Condensation)
Power Supply/Consumption
AC220V/50Hz, Optional Solar Power Supply/80W（MAX）
Host Size
620*440*160MM
The Main Material
Cold Rolled Steel Plate
Installation Method
Outdoor Column Installation
Protection Class
IP53


    Gas Selection
The Standard Configuration
Gas Type
Measuring Range
Resolution
Indication Error
T90
O3
500ppb
1ppb
≤±10%FS
120S
NO2
500ppb
1ppb
≤±10%FS
120S
SO2
500ppb
1ppb
 ≤±10%FS
120S
CO
50ppm
0.1ppm
 ≤±10%FS
120S


Gas Selection
Optional Gases
Gas Type
Measuring Range
Resolution
Indication Error
T90
TVOC
10ppm
0.1ppm
≤±10%FS
120S
H2S
20ppm
0.1ppm
≤±10%FS
120S
NH3
20ppm
0.1ppm
≤±10%FS
120S
*Note: The Indication Error Is Measured In The Laboratory Environment.
Need to test other gases, please contact us for    confirmation.


Particulate Technical Parameters
Project
Technical Indicators
Measuring Range
PM2.5/10/TSP：(0-2000) μg/m3
Sampling Cutter
Cyclone Physical Cutter
Sampling Time
Adjustable, Default Five Minutes
Resolution
1ug/m3
Sampling Mode
Suction Type
Air Intake Heating
Heating And Dehumidifying According To Air Humidity
Malfunction Alarm
Real-Time Display Of Fault Alarms
Zero Method
Automatic zero calibration


Meteorological And Other Parameters(Optional)
 Parameters
Range
Resolution
Accuracy
Temperature
-30℃--50℃
0.1℃
±1℃
Humidity
0-95%Rh
1%Rh
±5%Rh
Wind Speed
0~60m/s
0.1 m/s
±1m/s
Wind Direction
0-360°
1°
/
Atmospheric Pressure
600—1100hPa
1 hPa
/
Noise
30dB(A)~130dB(A)     (A-weighted
/
±3dB
Rainfall
0~4mm/min
0.1mm
±0.4mm (≤10mm)  ±4%(>10mm)
Illumination
0~200,000 Lux
/
±7% (25℃)
UV Radiation
0~400mW/㎡
1mW/㎡
±5%




About Safewill
Safewill is professional manufacturer of Environmental Devices, our product line involves household gas alarm, fixed and portable gas detectors, Particulate online monitor system, Continuous Air quality monitor System.

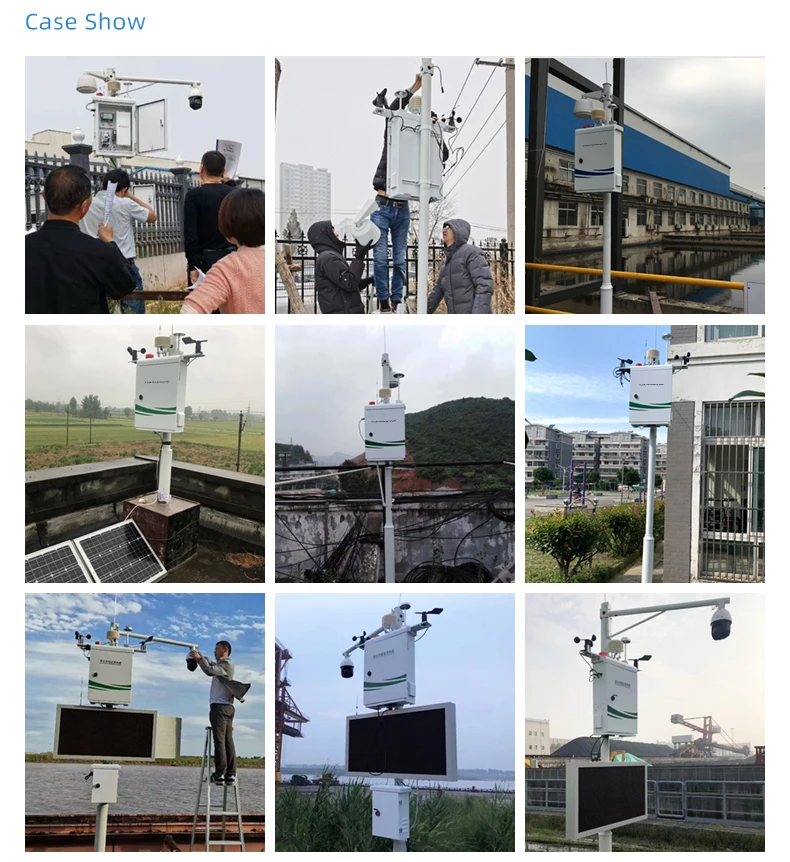

R&D& Production& Use Case
The R&D and after-sales team of more than 10 people and the production team of more than 20 people ensure to provide high-quality products and timely after-sales service to you. The products we offer can be widely used in many industry scenes, such as Oil and gas, chemical industry, environmental protection, laboratory of school and so on.

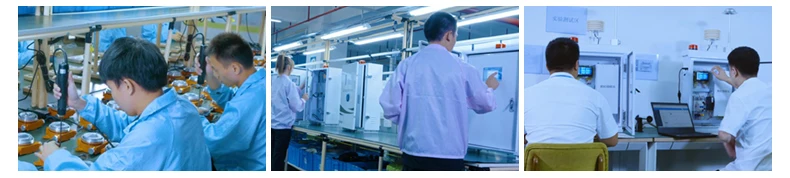

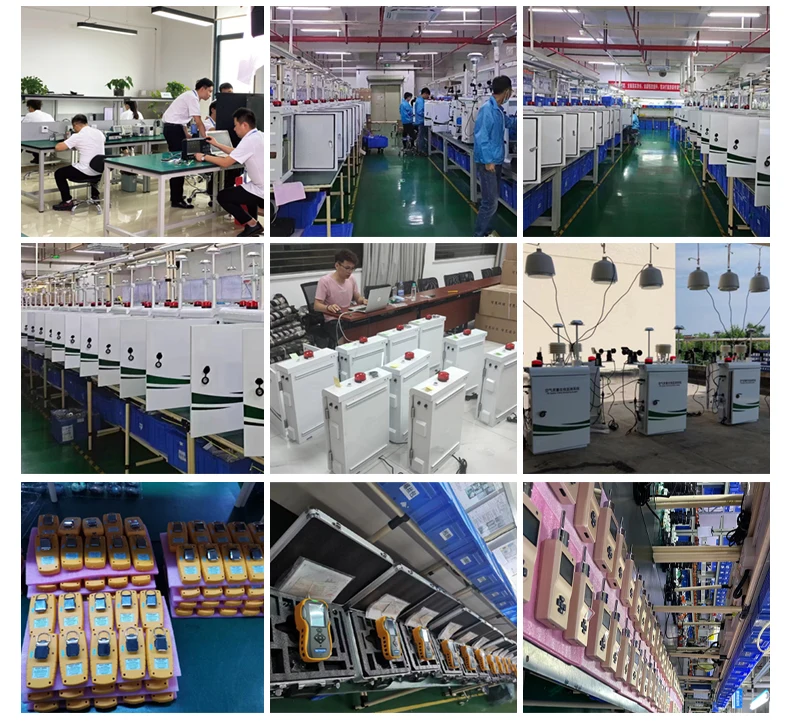

Assembly & Quality Control
Each process of our production will be tested, and all products will be inspected and tested before shipment to ensure that
high-quality products are delivered to you.




Exhibition & Customer
