Price:$3,995.00 - $4,495.00
Price in USD:Details

Quantity:

Price request

Product Overview

Description



Product Description


Analog/Digital Resistance Tester Megohmmeter with a Lithium-Ion battery and a Max reading of 10 TOhms. CAT IV 600V.
Features
* Industry best guard terminal accuracy
* Smaller size and lightweight allows easier transport and use without compromising performance
* Compact and lightweight for easy transport and use
* Auto IR, DAR and PI
* Unique dual case design provides additional user protection
* Lithium-ion battery - extended capacity, rapid charge
* Advanced memory with time/date stamp
* CATIV 600V safety rating on all terminals




Applications
* Testing the Insulation of High or Low Voltage Electric Equipment
* Generators
* Motors
* Transformers
* Cables
* Switchgear
* High-Voltage Power Cables
* High-Voltage Buses
* Large Motor/Generator Windings
* Line and Substation Transformers
* Spot Tests
* Stepvoltage Tests
* Dielectric Discharge Tests
* Ramp Tests
* Dielectric Absorption Tests
* Acceptance Testing at Installation to Check Conformance to Specifications
* Routine Preventive/Predictive Maintenance Testing After Installation
* QA Testing as Part of the Manufacturing Process
* Diagnostic Testing to Isolate Faulty Components for Repair
* Rotating Machinery
* Insulation Resistance of Armature and Field Windings






* Selectable test voltage from 250 to 5000 V
* CATIV 600 V safety rating
* Can run from AC line power/mains if battery is dead

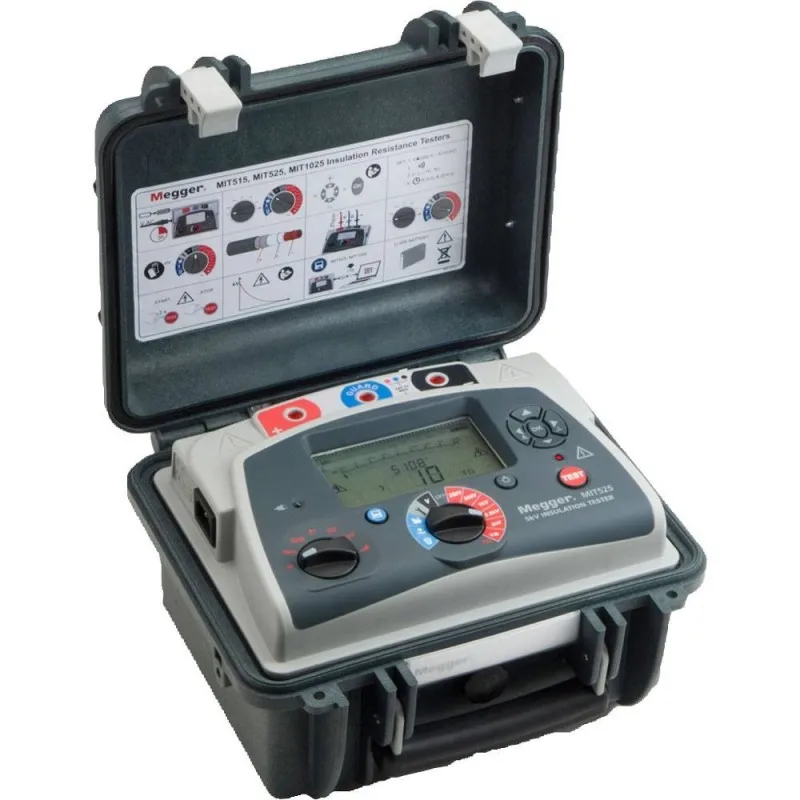

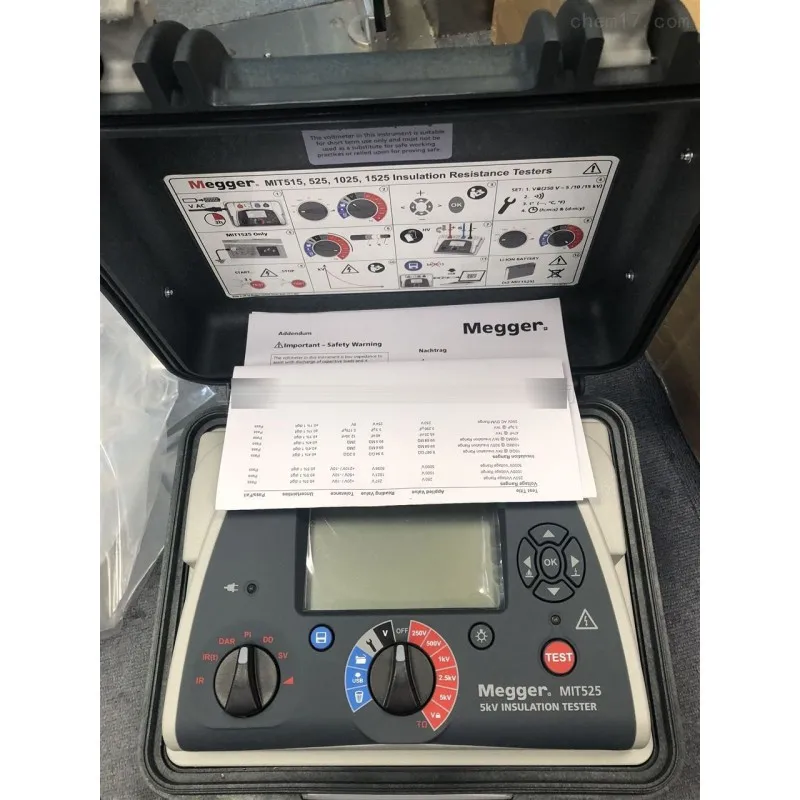

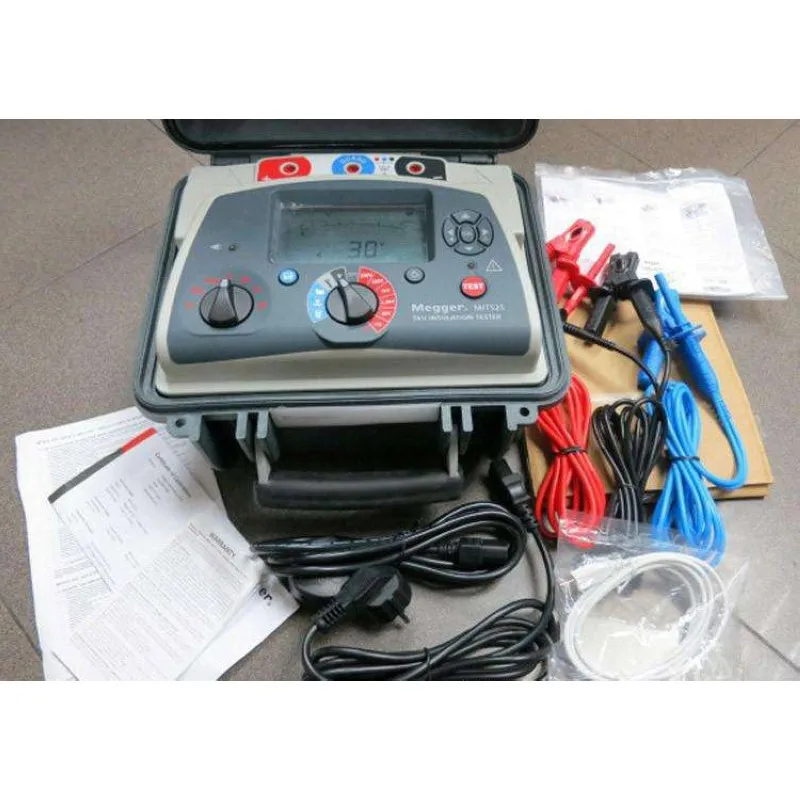

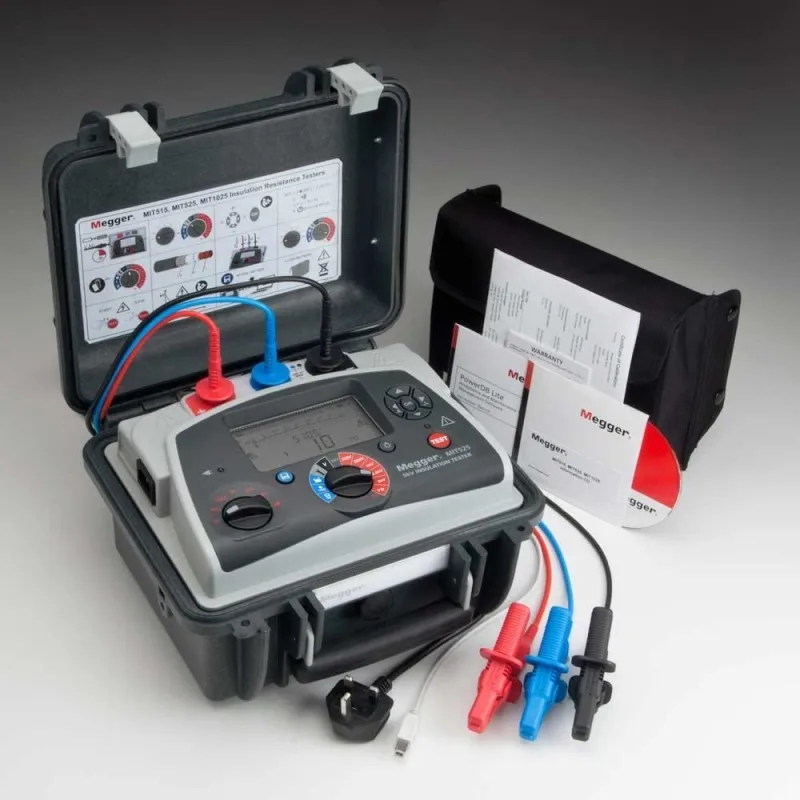

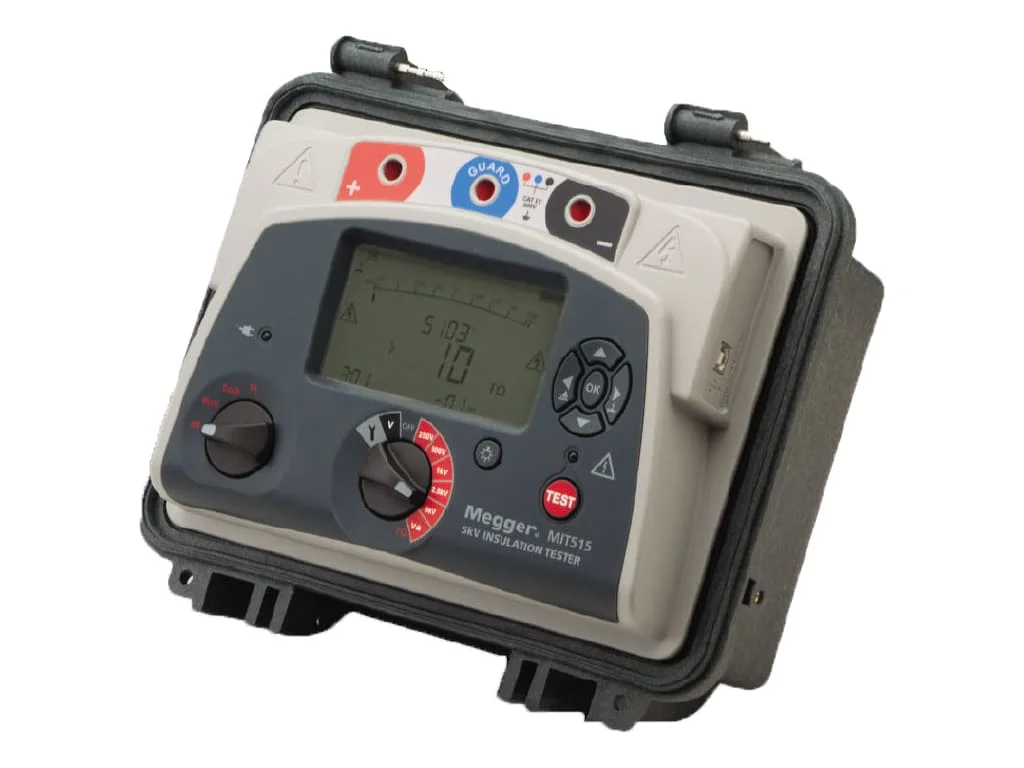

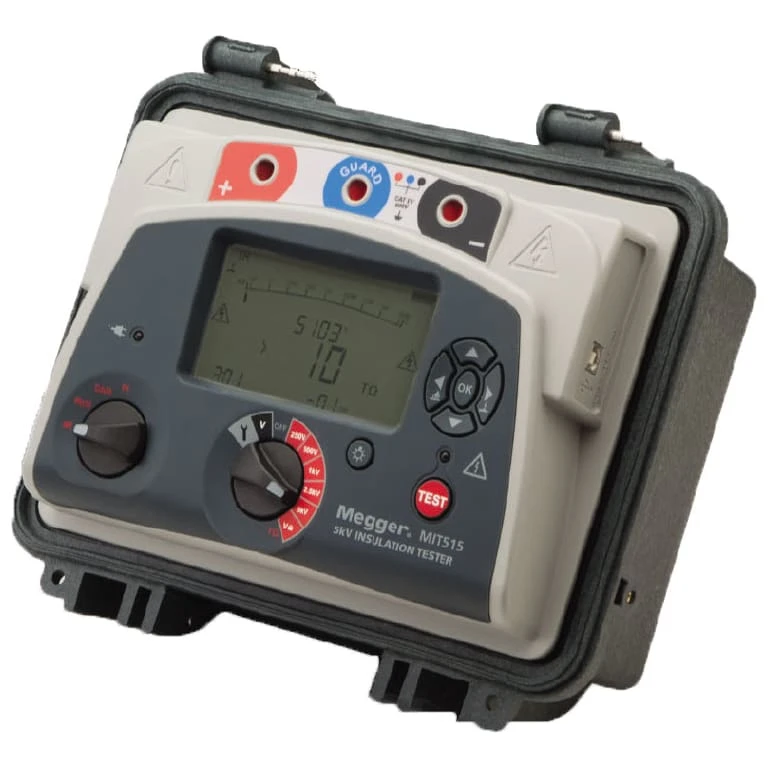

The MIT515 is the simplest unit available in the Megger MIT line of insulation resistance testers. The unit is capable of testing insulation resistance up to 5 kV output voltage and 10 TΩ resistance. The MIT515 comes standard with a range of new features and design updates which make it easy to use daily in professional settings.
The Megger MIT515 comes equipped with lithium ion fast-recharge batteries. With these batteries, a full charge can be achieved from empty in 2.5 hours. The batteries will last 6 hours on a single charge. In the worst case, a 30 minute charge will provide about 1 hour of life if tests need to be completed. The MIT515 can also run using AC line power.




Specification


Analog Insulation Range
100 kΩ to 10 TΩ
Digital Insulation Range
10 kΩ to 10 TΩ
Test Voltages
250 V, 500 V, 1000 V, 2500 V, and 5000 V
User Defined Test Voltages
100 V to 1 kV in 10 V Steps
1 kV to 5 kV in 25 V Steps
Accuracy (23°C)
±5% to 1 TΩ, ±20% to 10 TΩ
Voltage Output Accuracy (0 to 30°C)
4 to 0% ±10 V of nominal test voltage at 1 GΩ load
Voltmeter Range
30 to 660 V ac or dc, 50/60 Hz
Accuracy: ±3% ±3 V
Frequency Range: 45 Hz to 65 Hz
Short Circuit Current
3 mA Nominal, Max. Power on All Loads Outperforming Many
5 mA Testers
Insulation Alarm
100 kΩ to 1 GΩ
Current Measurement
Range: 0.01 nA to 6 mA
Accuracy: ±5% ±0.2 nA at All Voltages
Capacitance Range Above 500 V
10 nF to 25 µF (Dependent on Measurement Voltage)
Accuracy (23°C): ±10% ±5 nF
Capacitor Charge
<3 s per µF at 3 mA to 5 kV
Capacitor Discharge
<250 ms/µF to Discharge from 5000 V to 50 V
Timer Range
Up to 99 Minutes, 15 Seconds Minimum Setting
Memory Capacity
5 1/2 Hours Continuous Logging Every 5 Seconds or 33 Logged PI Tests or 350 Logged IR Tests
Industry-Standard Tests
IR, IR(t), DAR, PI
Interface
USB Type B (Device)
Real Time Output
USB, 1 Reading/Second (Voltage, Current and Resistance)
Interference Rejection
1 mA per 250 V up to a maximum of 3 mA
Guard Terminal
2% Error Guarding 500 kΩ Leakage with 100 mΩ Load
Voltage Input Range
85 to 265 V, 50/60 Hz, 60 VA
Battery Type
Lithium-Ion, 11.1 V, 5.2 A Hour, Meets IEC 62133:2003
Battery Life
Typical Capacity 6 Hours Continuous at 5 kV with a 100 MW Load
Battery Charge Time
2.5 Hours from Deep Discharge, 2 Hours Normal Discharge
30 Minutes Quick Charge: 1 Hour Operation at 5 kV, 100 MW
Safety
Meets the Requirements of IEC61010-1 CAT IV 600 V
Default Voltmeter Warns Operator of Applied Voltage Above 50 V
EMC
Meets the requirements of IEC61326-1
Ingress Protection
IP65 (Lid Closed)
IP40 (Lid Open)
Temperature Range
Operating: -4 to 122°F (-20 to 50°C)
Storage: -13 to 149°F (-25 to 65°C)
Humidity Range
90% RH @ 104°F (40°C)
Altitude
3000 m, CAT rating maintained >2000 m* (*test load connected)
Dimensions
12 x 11 x 7" (315 x 285 x 181 mm)
Weight
10 lb (4.5 kg)
