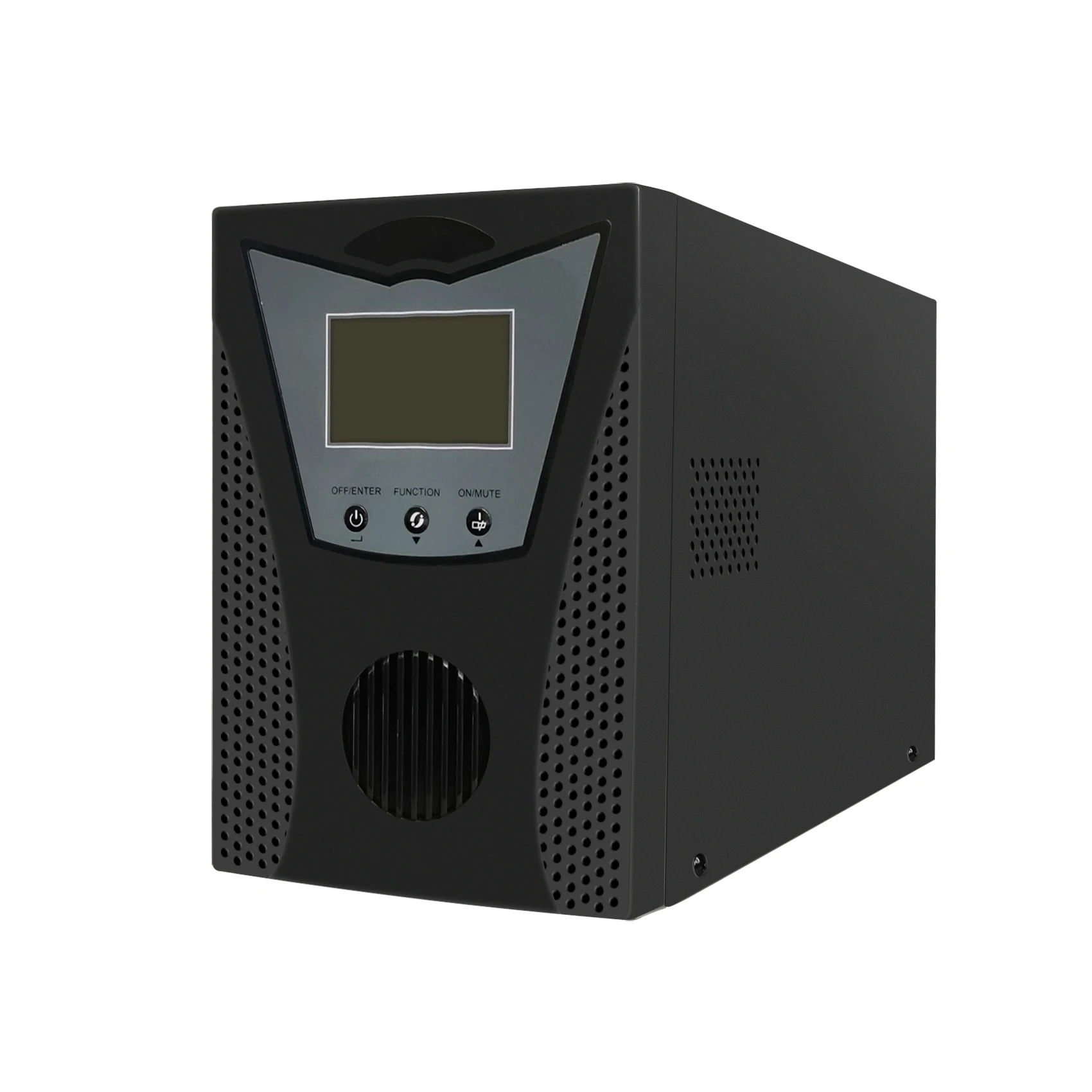

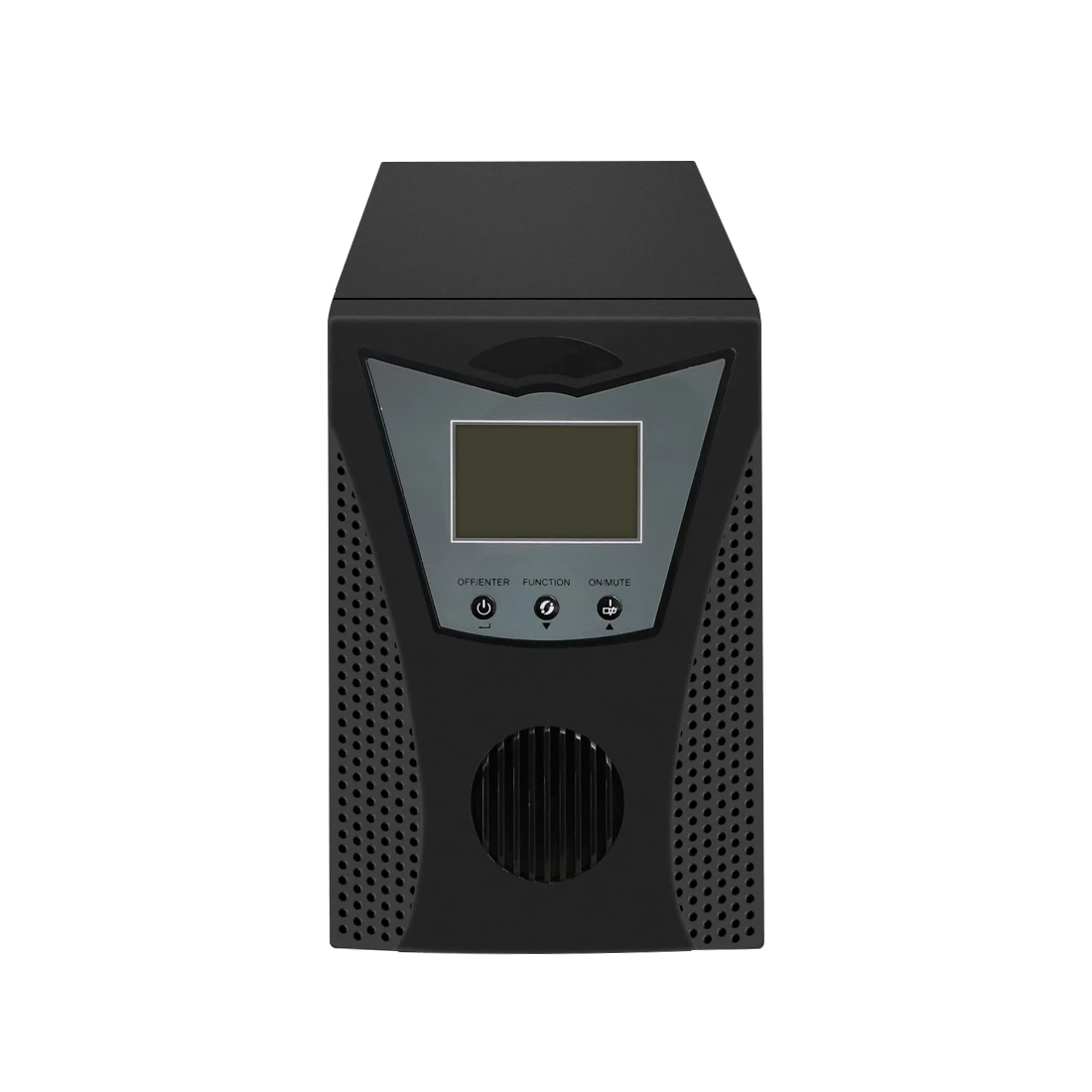

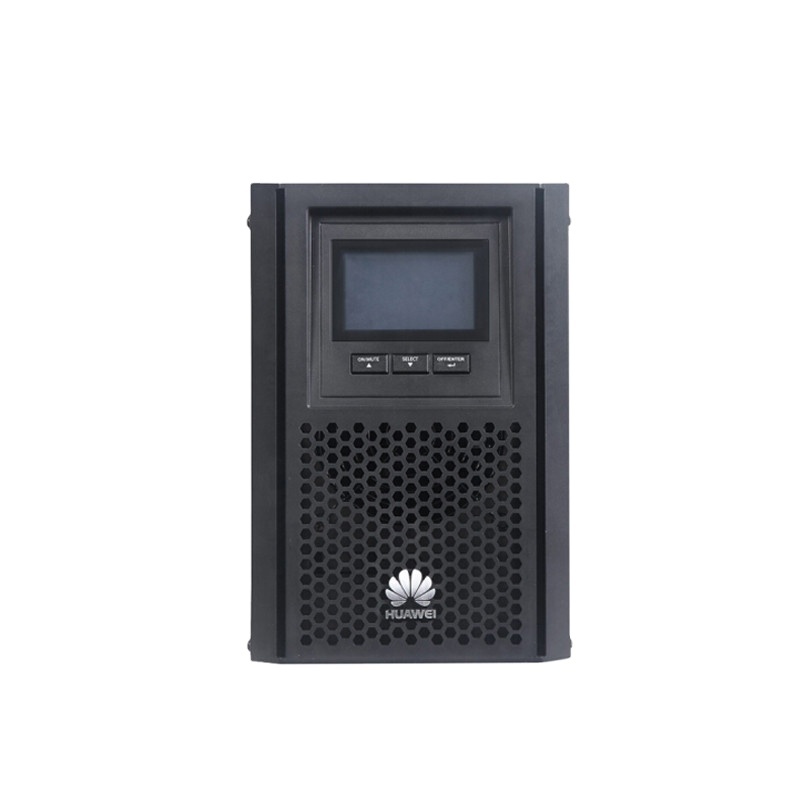

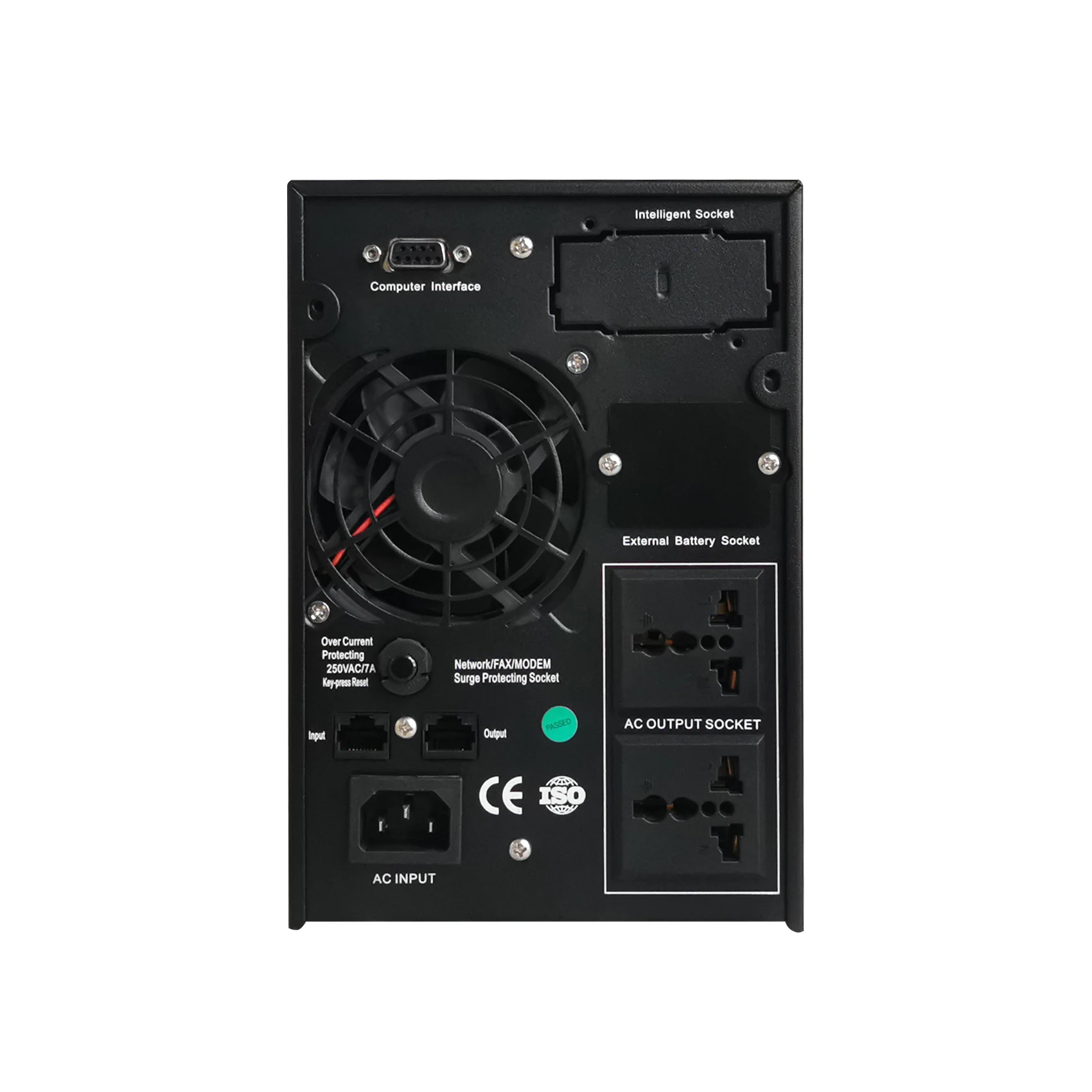

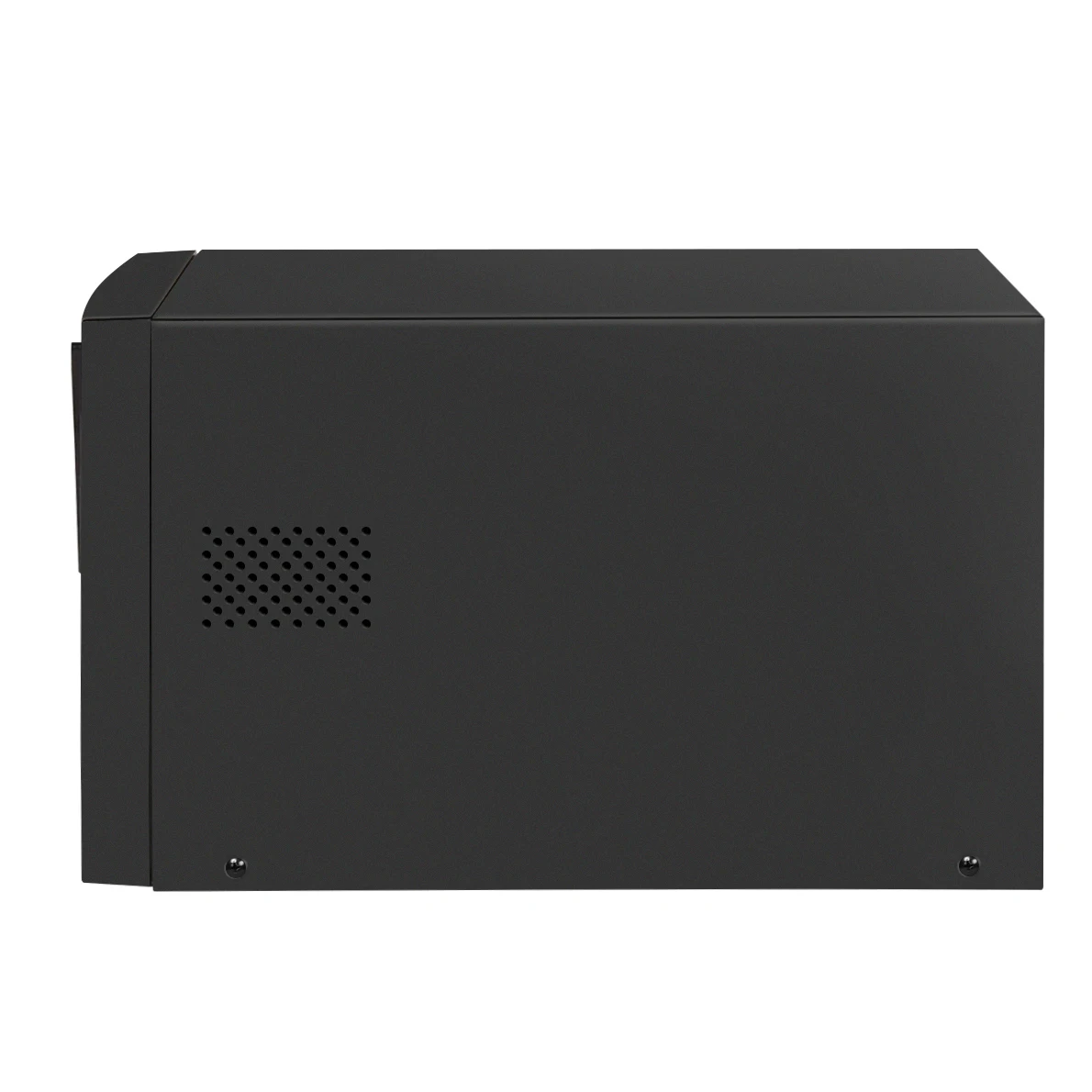

Taidacent Uninterruptible Power Supply Computer Access Control Security Industrial DC Power Supply DC UPS Power Supply Module
- Category: Uninterruptible Power Supplies (UPS) >>>
- Seller: Guangxi,Baisen,Energy,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Features
Pure sine ware outputDC Start & Automatic Self-Diagnostic Function
High Efficiency Design & ”Power Saving Mode” to Conserve Energy
Auto restart when Ac in recovering
Smart battery charger design for optimized battery performance
Selectable charging current based on applications
Auto Restart Voltage
High Efficiency Design & ”Power Saving Mode” to Conserve Energy
Auto restart when Ac in recovering
Smart battery charger design for optimized battery performance
Selectable charging current based on applications
Auto Restart Voltage
Model | SP0312-55P | SP0512-55P | SP1012-I00P | SP1524-100M | SP2024-150M | SP2024-200M | ||||||
Inverter | ||||||||||||
Battery Voltage | 12V | 24V | ||||||||||

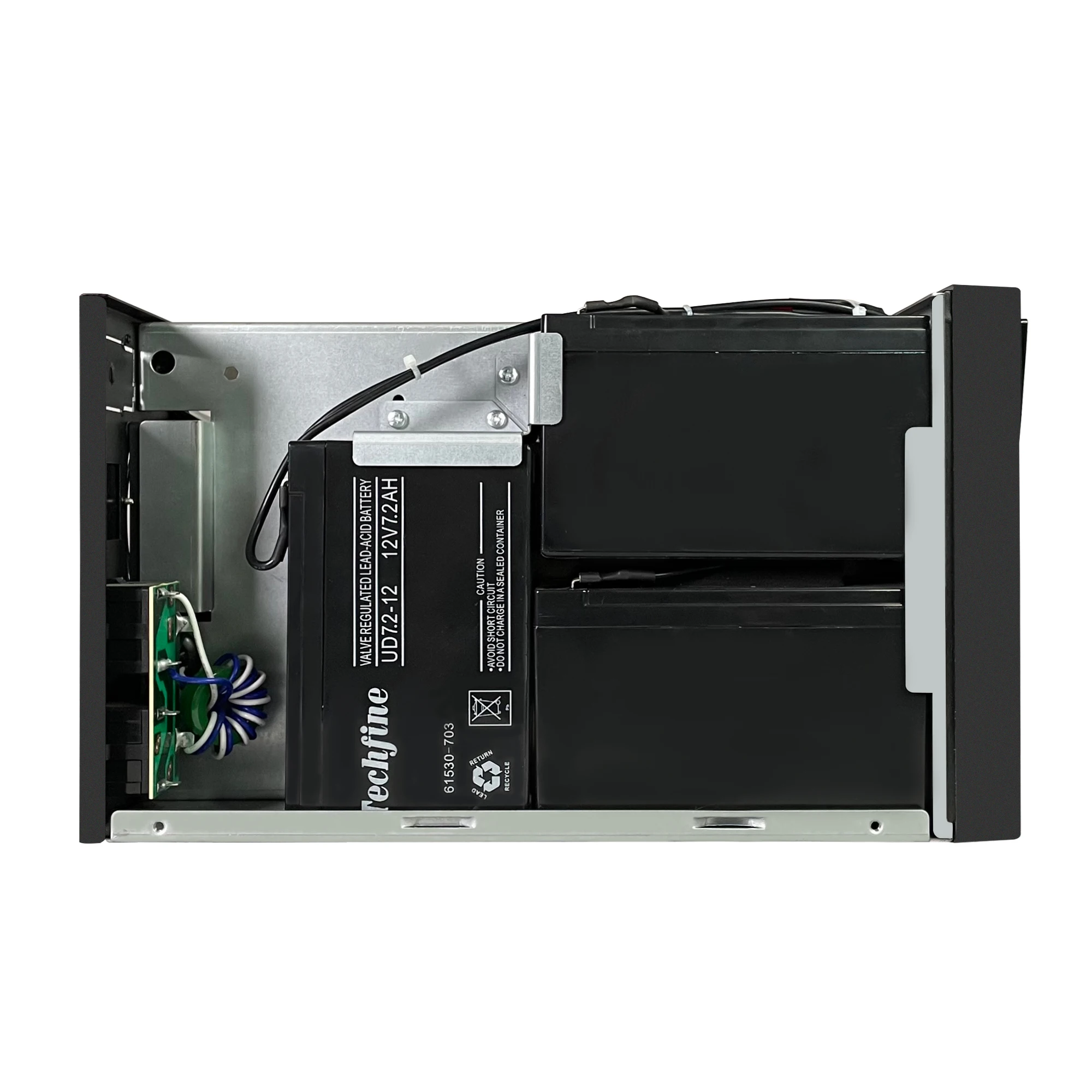

In-built battery specification | 55AH | 55AH | 100AH/12V | 100AH/12V*2 | 150AH/12V*2 | 200AH/12V*2 | ||||||
Rated power | 300W | 500W | 1000W | I500W | 2000W | 2000W | ||||||
Output Voltage | 110VAC/220VAC | |||||||||||
Output Frequency | 50/60Hz | |||||||||||
Output Waveform | Pure Sine Wave | |||||||||||
Charge by mains supply | ||||||||||||
Rated Voltage | 220VAC----* ( * means an optional function) | |||||||||||
Charge Current | 5A (5-8Aadjustable) | 6A (6-10A adjustable) | 12A (10-20Aadjustable) | 12A (10-18Aadjustable) | 20A (15-30Aadjustable) | |||||||
Solar Input | ||||||||||||
Maximum Photovoltaic Voltagc(VDC) | <25V | M145V | ||||||||||
Charge Voltage (VDC) | 13.7V | 27.4V | ||||||||||
Rated Charge Current(A) | (PWM)5-10A | (MPPT)30A | (MPPT)60A | |||||||||
Maximum Power(Wp) | 36OWp | 800Wp | 1600Wp | |||||||||
Voltage of overcharge protection(VDC) | 14.2 V | 28.4V | ||||||||||
Voltage of overcharge recovery(VDC) | 14.0 V | 28.0V | ||||||||||
Voltage of floating charge(VDC) | 13.7V | 27.4V | ||||||||||
DC Output | ||||||||||||
High voltage protection voltage(VDC) | 16V | 32V | ||||||||||
High voltage recovery voltage(VDC) | 15.2V | 30.4V | ||||||||||
Voltage of low-voltage recovery(VDC) | 13V | 26V | ||||||||||
Voltage of low-voltage protection(VDC) | 11V | 22V | ||||||||||
5VDC USB Output Port 5VDC USB | 2units/MAX 2A | |||||||||||
12VDC Output Port 12 VDC | 2 DC Ports (MAX 2A) | |||||||||||
Fan startup temperature | >45 °C | |||||||||||
Ambient Tcmperaiurc fbr operation | 0-40°C | |||||||||||
Ambient Temperature for storage | -25-55 "C | |||||||||||
Operation/Storage Conditions | 0-90% (no condensation) | |||||||||||
