Factory Wholesale Cellular Network 234G Signal Repeater 900 1800 2100 Mhz Universal Cellphone Signal Amplifier/Booster
- Category: >>>
- Seller: Shenzhen,Jiangxin,Communication,Technology,Co.,Ltd.
Share on:

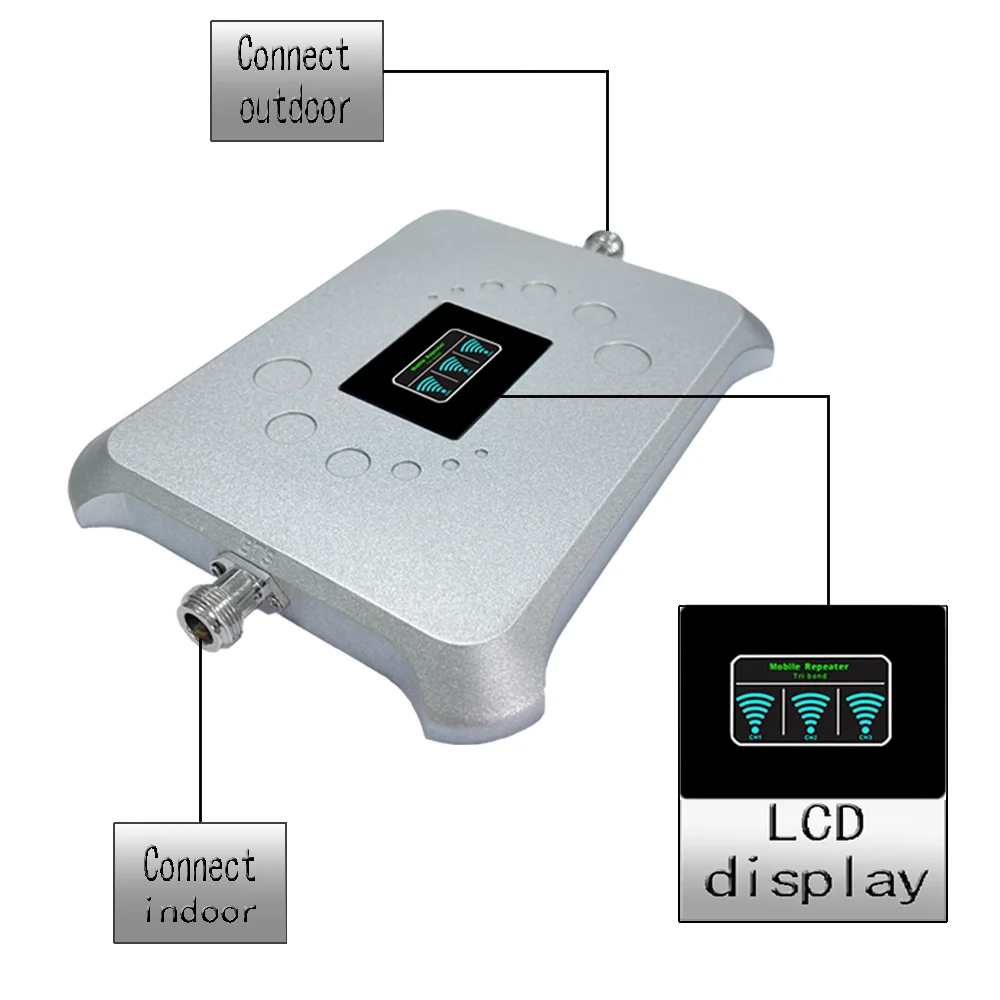

Product Overview
Description
Products Description
Product Paramenters
Technique Specification | ||||||
Model No | SS81-GDW | |||||
Parameter data | Uplink | Downlink | ||||
Frequency Range | GSM | 890~915 MHz | 935~960 MHz | |||
DCS | 1710~1785 MHz | 1805~1880 MHz | ||||
WCDMA | 1920~1980 MHz | 2110~2170 MHz | ||||
Output Power | 18 ±2dBm | 20 ±2dBm | ||||
Gain | 65±2 dB | 70±2dB | ||||
Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 2A | |||||
Power Comsumption | < 24W | |||||
Mechanical Specification | ||||||
RF Connector | N-Female | |||||
Operating Temperature | -10℃ ~ 55℃ | |||||

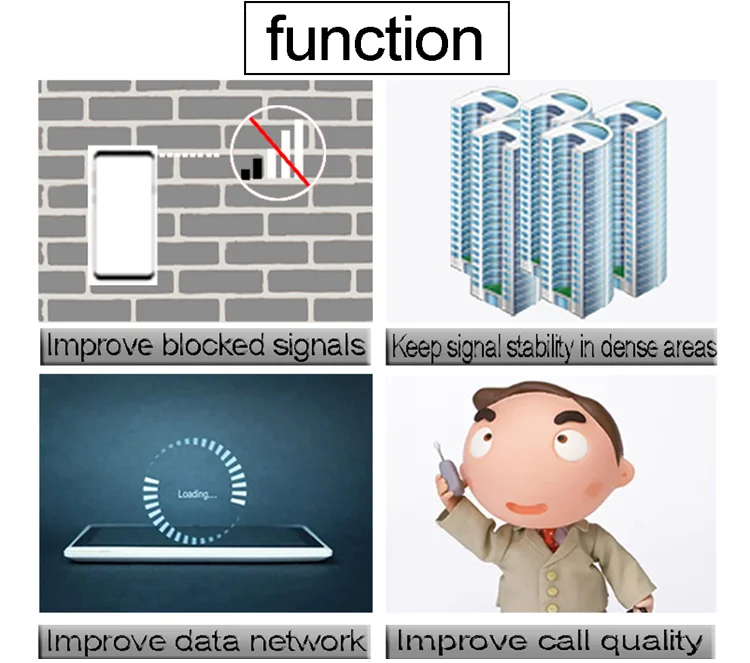

Product Introduction of mobile phone signal amplifier：
The product can be used in mountain areas, urban areas, towns, villages in the city, undergroundwarehouse, basement, underground parking lot without signal area.The function is to draw (absorb)he stable signals outside to the room and then amplify and diffuse the signals to cover the wholeeffective area, so as to provide stable and high-quality signals to the equipment in need of signals

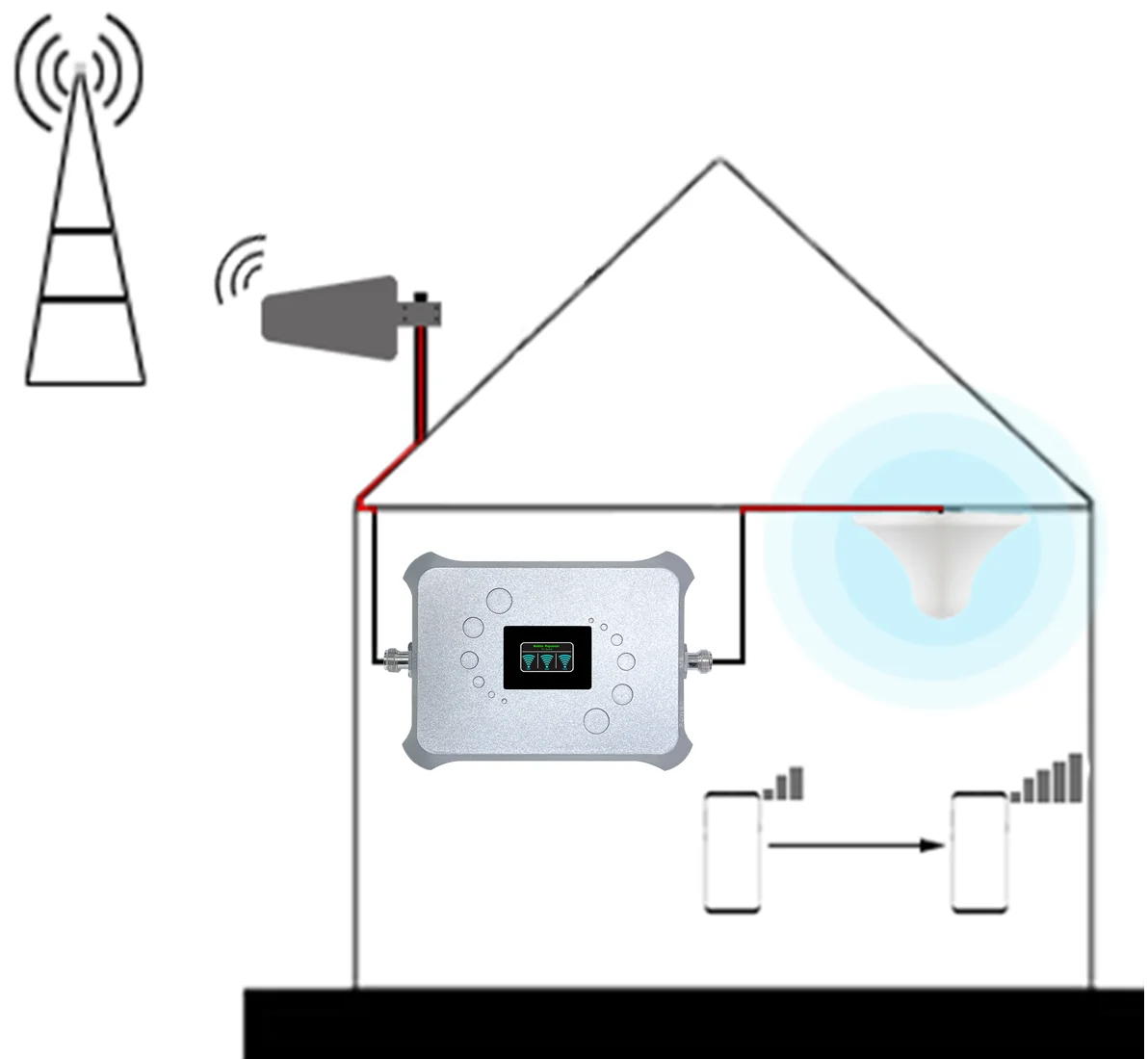

Working principle diagram
Attention!

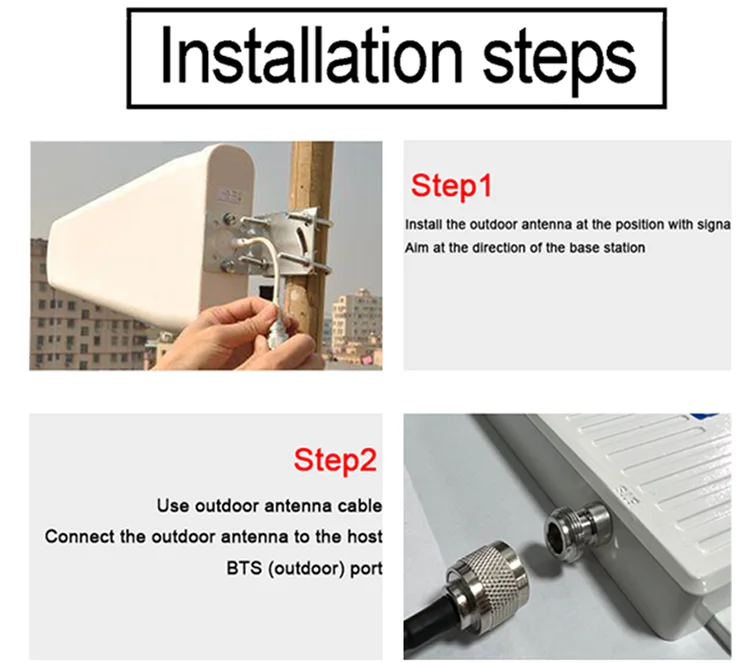

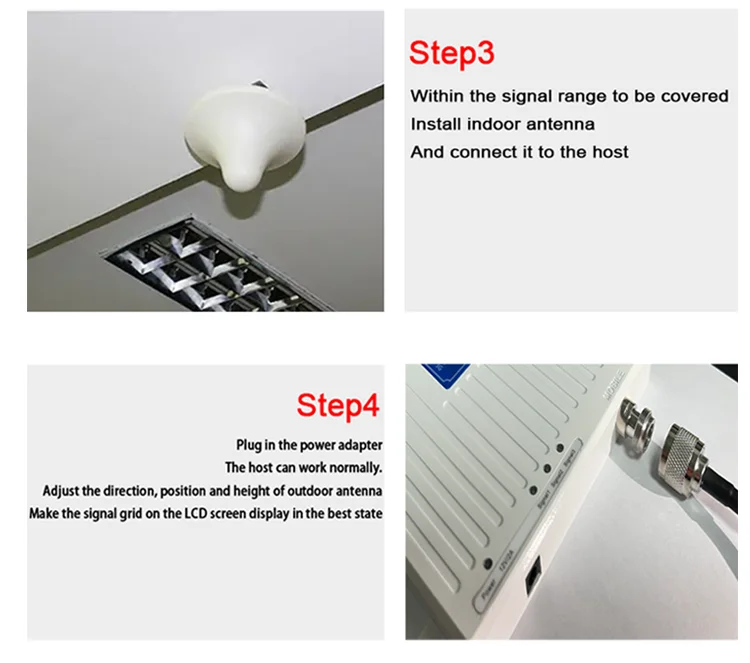

The indoor and outdoor antennas and other accessories involved in the installation method are only for installation instructions and are not included in the product. The product only contains the signal repeater host and power adapter.If you need other accessories, you can contact us or enter other links in the store to purchase.

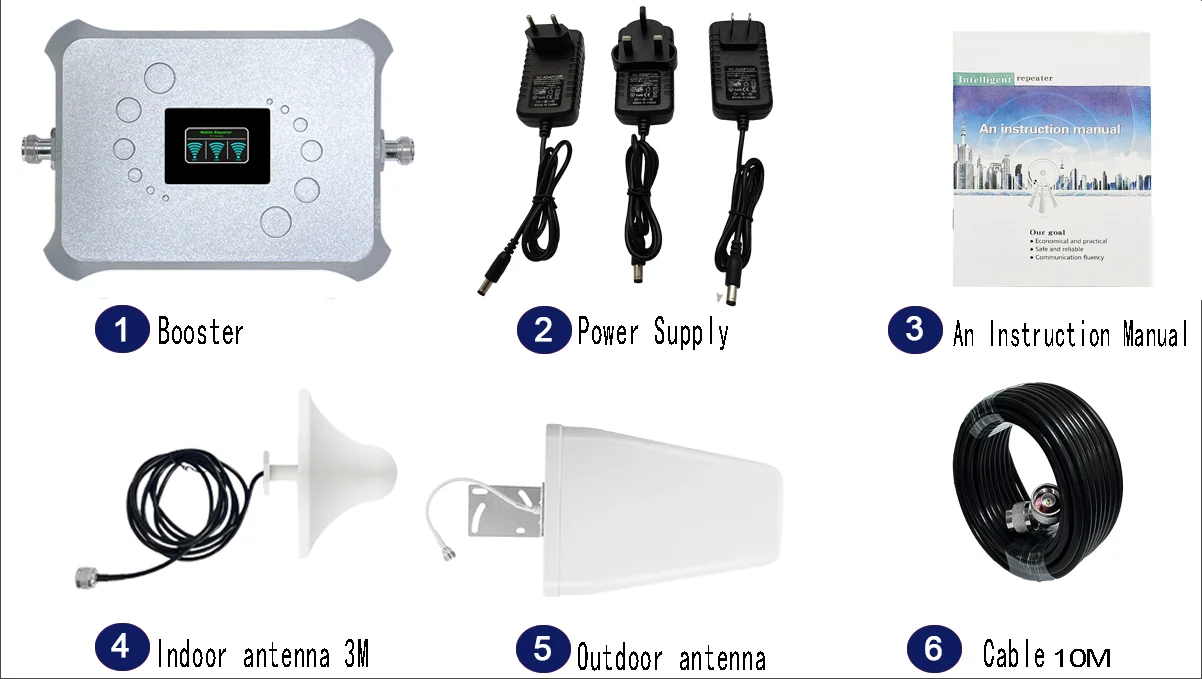

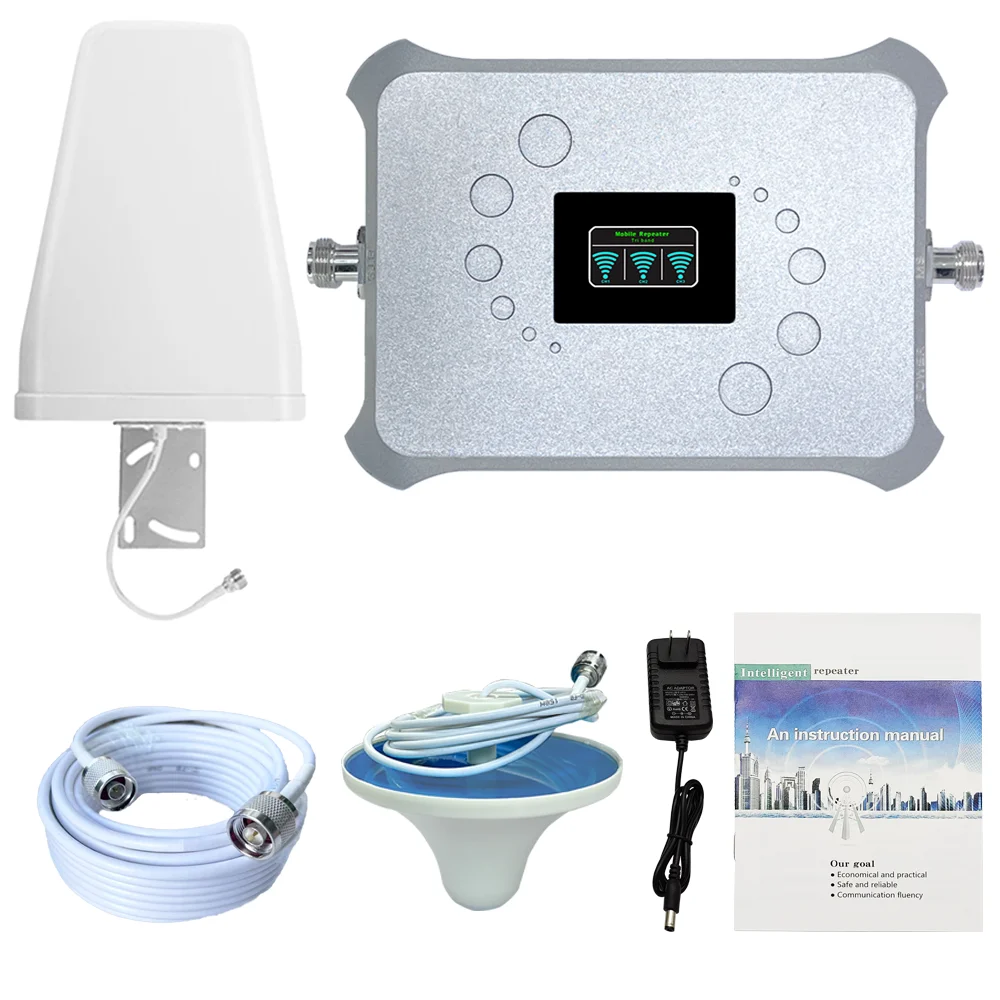

Complete set of equipment
By default, one set of equipment is: one repeater, one adaptive power supply, one indoor 3M ceiling, one outdoor logarithmic antenna, and one 10M cable
packing
Packaging Details：Put the host, power adapter and manual into a neutral packaging box, and then put 20 packaged hosts into a large box, one box is 24kg, and the size is 640 * 430 * 310mm
hot-sale product
Company Introduction
The company was founded in 2016 and is located in Shenzhen, China. It is committed to the research and development of mobile phone signal amplification, working hard for the national and even global signal coverage, and reducing the trouble caused by signal blind areas. The company has always adhered to the "credit and people-oriented" business Philosophy, "Science and Technology Innovation, Quality First" management belief, relying on professional technology to quickly lay a solid foundation at home and abroad, and become a well-known brand in the industry.
We are sincerely willing to cooperate with you. let’s win the future together!
contact us
Q：Are you a manufacturer？
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
