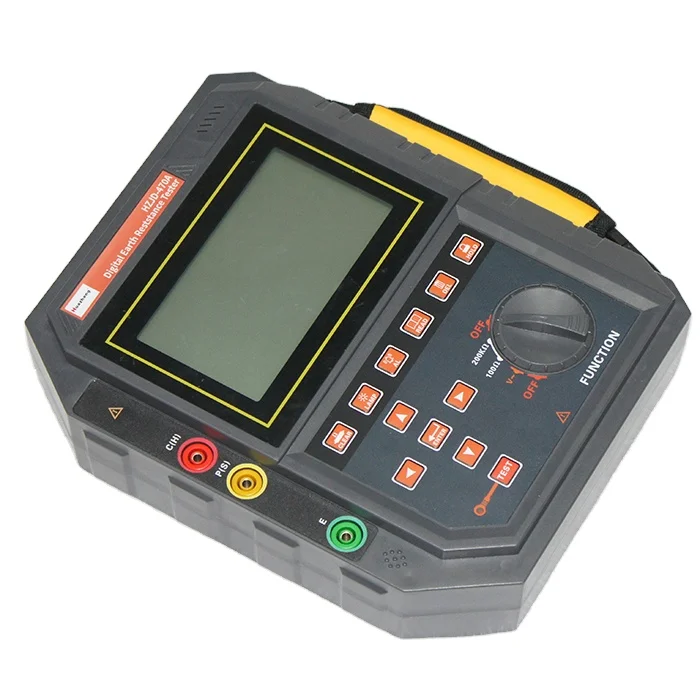

Megger Insulation Resistance Tester Analogue and Digital 1010T,5050T 0-500,0-1000 500,1000 8PCS/CTN 16/14kg 205*120*145mm CN;ZHE

Function

Ground resistance, ground voltage, low value resistance measurement

Power supply

DC 14.8V 2600mAh rechargeable lithium battery , the battery is fully Charged at about 16.8V

Backlight

Controllable white screen backlight, suitable for use in dark places

Measurement method

Precise three-wire method and simple two-wire method to measure grounding resistance

Measurement methods

Earth resistance measurement: Rated current changing pole method

Voltage to ground: average value rectification (between PE interfaces)

Range

Ground resistance: 0.000Ω~200KΩ

Ground voltage: AC 0.000V~600V (50Hz/60Hz)

Resolution

0.001Ω ; 0.005V

Precision

Ground resistance: ±2%rdg±5dgt

Note: 1. Auxiliary connection Rc: 500Ω~1000Ω error≤±5dgt

2. Auxiliary connection Rp: 500Ω~10KΩ error≤±3dgt

3. When the interference voltage is 5V, the additional error is ≤±5%rdg± 5dgt

Ground voltage: ±2%rdg±3dgt (50Hz/60Hz)

Test voltage waveform

Sine wave

Test frequency

700Hz

Test current

0.000Ω~100.0Ω range: about 20mA constant current

100Ω~200.0KΩ range: about 0.1mA constant current

Product Size

Meter size: length, width and height 258mm×21 5 mm×83mm

Package size: 27 0mm *16 0mm *25 0mm

Test line

3 pieces: red 15m, yellow 10m, green 5m each

Simple test line

2 pieces: 1 piece of red 1.6m and 1 piece of green 1.6m

Auxiliary ground rod

2 pieces: φ 10mm× 20 0mm

Measure time

Ground voltage: about 2 times/second; ground resistance: about 5 seconds/time

Measurement times

More than 5000 times (short circuit test, test once, stop for 30 seconds and test again)

Line voltage

Measured below AC 600V

Communication Interface

With USB interface

Battery voltage

When the battery power is lower than 25%, the low battery voltage symbol is always displayed, reminding that it needs to be charged in time; when the battery power is lower than 10%, the LCD screen continues to flash, and the instrument will automatically shut down after about 5 seconds

Automatic shut-down

When there is no operation, it will automatically shut down after about 15 minutes

Power consumption

Backlight: 25mA Max (power consumption of backlight alone)

Standby: 35mA Max (backlight off after power on)

Measurement: 150mA Max (backlight off)

Overvoltage protection

AC 75V between CE ports

AC 600V between PE ports

AC 600V between PC ports

Insulation resistance

>500MΩ between test line and case

Withstand voltage

AC10.0kV 50Hz between the test line and the case for 1min

Electromagnetic properties

IEC61326(EMC)

Suitable for safety regulations

IEC61010-1 (CAT Ⅲ 300V, CAT IV 150V, pollution degree 2);

IEC61010-031; IEC61557-1 (grounding resistance); JJG 366-2004 (grounding resistance meter).
