Product Description

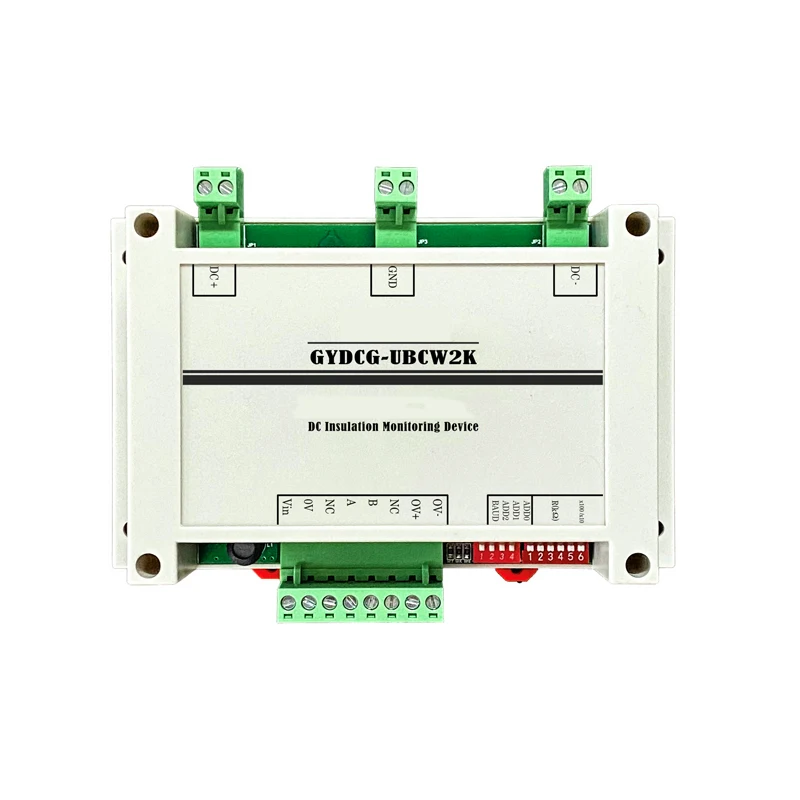

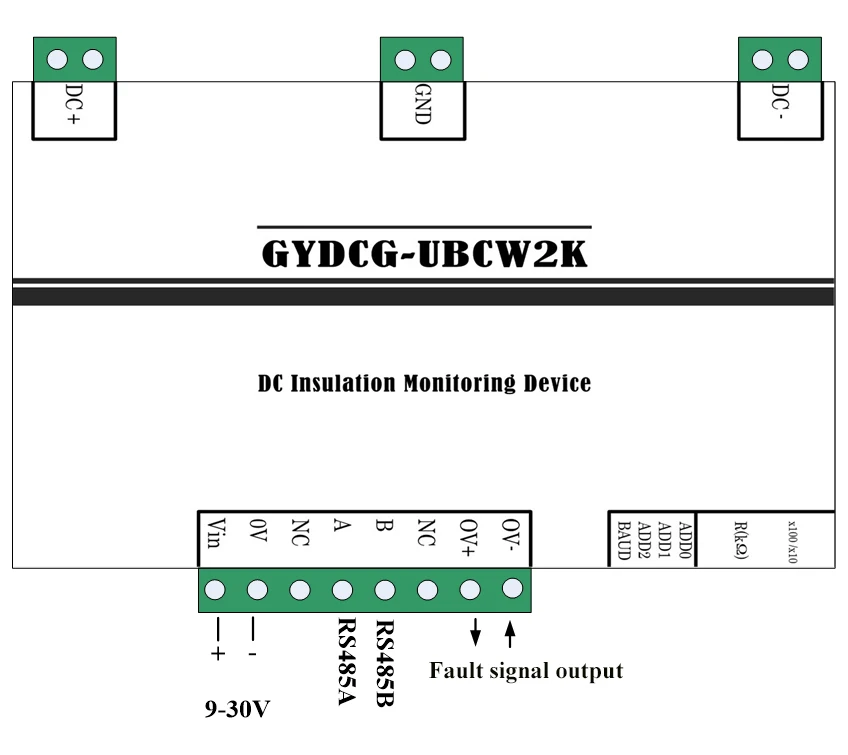

GYDCG-UBCW2K series is a DC-to-ground insulation monitoring module based on the principle of unbalanced bridge, which has monitoring and protection functions in one. It can monitor the insulation resistance value of the positive and negative poles of the DC floating system to the ground, ranging from 0Ω to 10MΩ; at the same time, it can also detect the DC voltage value, ranging from 0V to 2000V.
The insulation resistance monitoring can only be realized when the DC voltage is between 100V and 2000V. When the DC voltage is less than 100V, or the insulation monitoring is not enabled, the insulation resistance read is 65535 (invalid number). When the measured value is greater than 10MΩ, the value received by the communication is 60000 (infinity).


Features


Features
* Widely power supply range
* Widely insulation monitoring range (0V~2000VDC)
* insulation monitoring equipment self-test
* Adaptive capacitance to ground
* Convenient parameter setting
* Remote monitoring and management
* Monitor positive and negative poles
* Ground insulation resistance
* Voltage reverse polarity alarm






Specification


Parameter
Value
Power supply
10-30VDC, Power 3w
DC voltage range
0V~2000V
DC voltage
measurement accuracy
≤2V+0.3%
Insulation resistance
measurement range
1KΩ~10 MΩ
(DC System voltage:100V~2000V)
Insulation monitoring
accuracy
DC voltage:100V-300V
≤3kΩ+10%
DC voltage:300V-2000V
≤3kΩ+5%
CY>0.3μF, insulation resistance>1MΩ or CY>1μF
>10%
Off-line pressure test
<2mA
Maximum relay switching voltage
250VAC/30VDC
Maximum relay switching current
3A
Relay contact resistance
<100mΩ
Relay insulation resistance
100MΩ
Standard
IEC 61851-23 (2014-03):2014-11
Humidity
85%
Storage temperature
- 40°C ~125°C
Operating temperature
- 40°C ~75°C


Note: If you have any puzzles or requests about this product (including model number, data sheet or any other aspects), please contact us immediately.


Application


* Insulation resistance monitoring
* DC voltage monitoring
* Guarantee the safety and stability of charging
* Improvement of the efficiency and charging quality
* Personnel and equipment security
