Product Overview

Description



Products Description


Type
O type pressure gauge siphon
material
stainless steel
thread
NPT/BSPT/BSPP
connection
male x female
Max pressure
3000Psi
Tube size
14*3 mm  SCH40,SCH80
Types Available
Available in Q type,Plate U Type,Straight U Type
End connection
S/W,Screwed.NPT,BSP,Male/Female,Swivel type.
Application
Connected with pressure gauge


Application
syphon is often used in conjunction with a gauge cock or isolation valve. This helps reduce the temperature of the medium.
Condensation forms and accumulates within the loop or bend, providing the gauge protection before it reaches the gauge head. It can also help the gauge with stand rapid pressure surges.






Installation

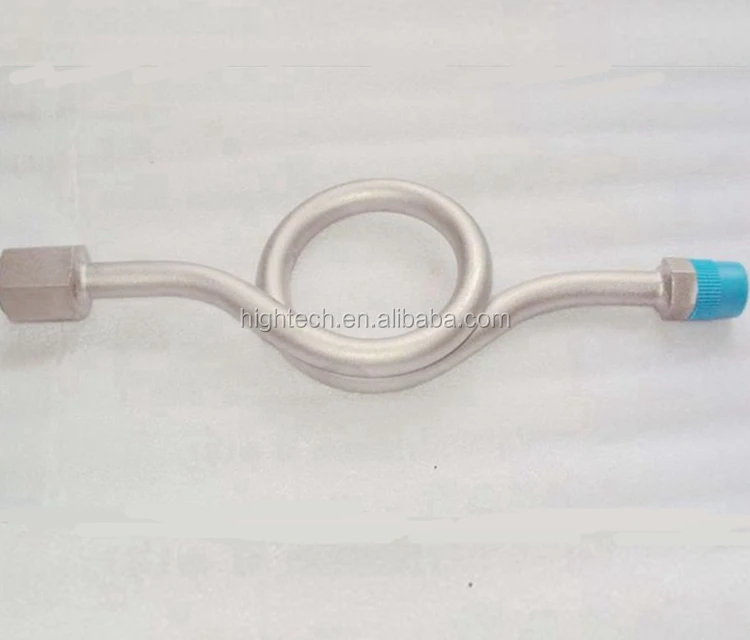

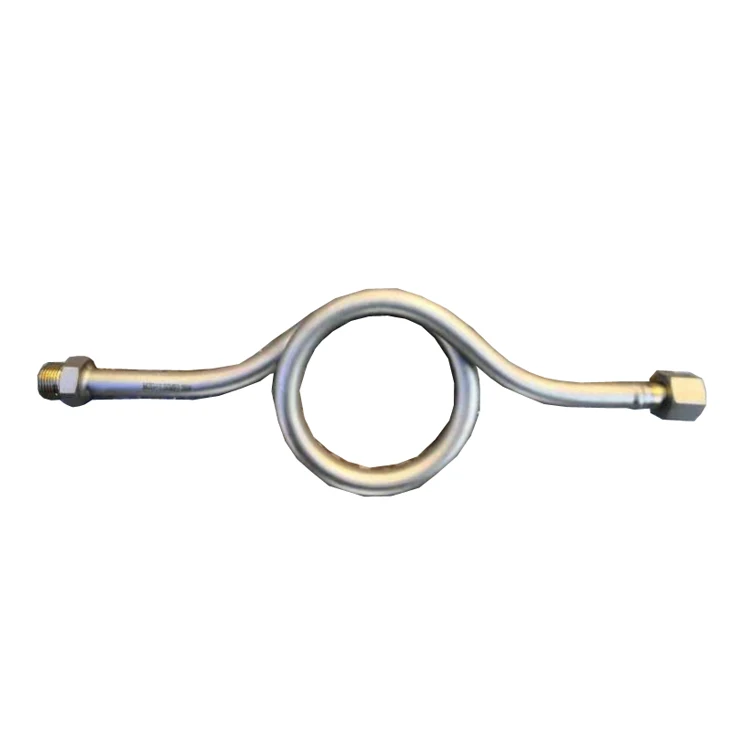

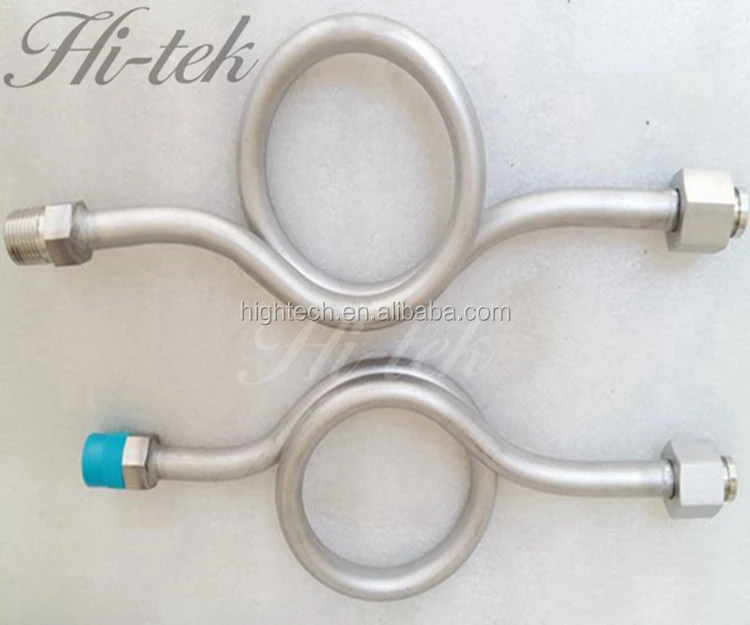

O Type Syphons:The Coil Syphon is normally used for vertical installations.
U Type Syphons:The U Type Syphon is normally used forhorizontal installations.


Why do we use Pressure Gauge Syphons?
Pressure gauge syphons are used to protect the pressure gauge from the effect of hot pressure media such as steam and also to reduce the effect of rapid pressure surges. The pressure medium forms a condensate and is collected inside the coil or pigtail portion of the siphon. The condensate prevents the hot media from coming in direct contact with the pressure instrument. When the siphon is first installed, it should be filled with water or any other suitable separating liquid.
It can also be used to reduce the potentially damaging effects of rapid pressure changes. These low-cost devices allow systems builders to use a pressure sensor with a much lower temperature range in high-temperature applications.

Pigtail for vertical installations
U for vertical installations
Coil for horizontal installations


that's why:
From the example chart, the pressure gauge siphon acts as a thermal barrier between the process media and pressure gauge.
Note: The chart specifications will change based on the type of pressure gauge siphon. The below chart displays the readings for 3 different siphons.


HI-TEK GAUGE SYPHON  SPECIFICATION TABLE


Part No.
material
type
Inlet
out let
HK-CSOFM0104
carbon steel
O type
1/4 NPT Male
1/4 NPT Female
HK-SSOFM0104
stainless steel
O type
1/4 BSPT Male
1/4 BSPT Female
HK-CSOMM0104
carbon steel
O type
1/4 NPT Male
1/4 NPT Male
HK-SSOMM0102
stainless steel
O type
1/2 NPT Male
1/2 NPT Male
HK-CSUFM0102
carbon steel
U type
G 1/2
G 1/2 LH
HK-SUFM0102
steel
U type
G 1/2
G 1/2 LH


Note: Accept customization, BSP BSPT NPT and other threads (Male to Female Swivel)
