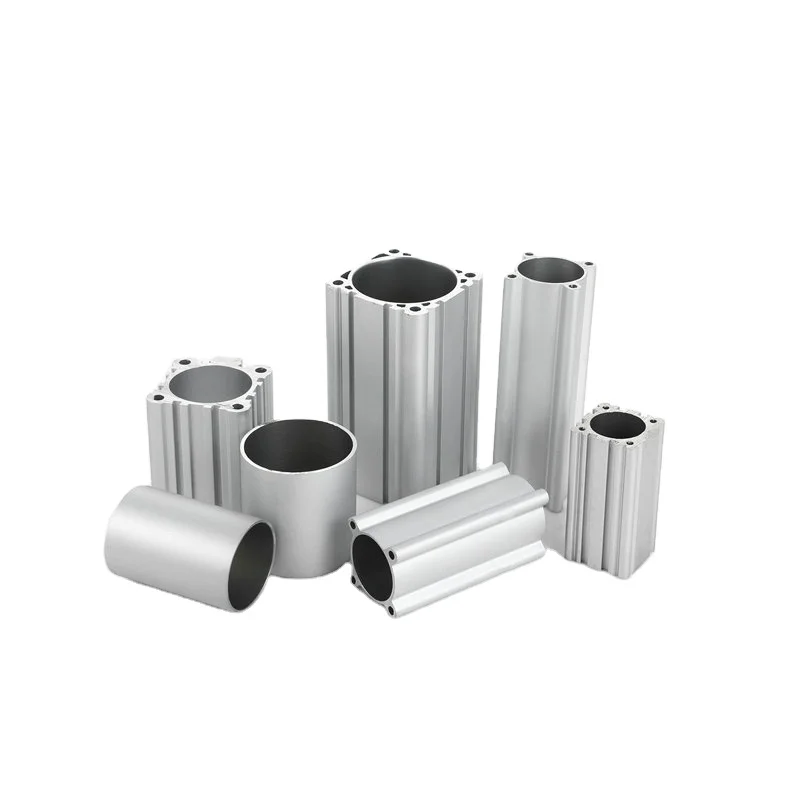

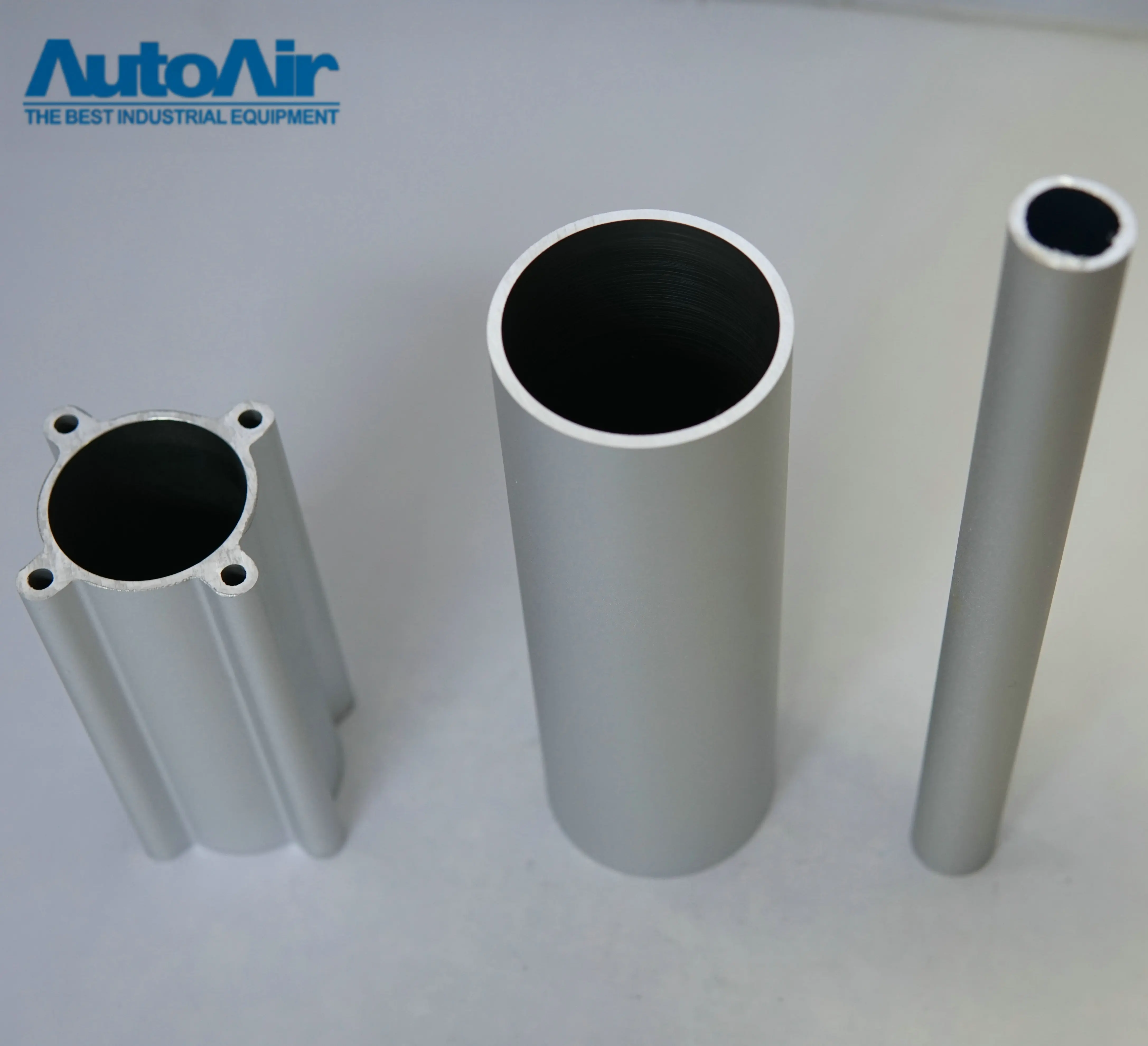

Long- life And High Quality Mickey Mouse Aluminum Alloy Profile Tube For Pneumatic Cylinder

Product Overview

Description

Our factory website:  www.fylg.cn

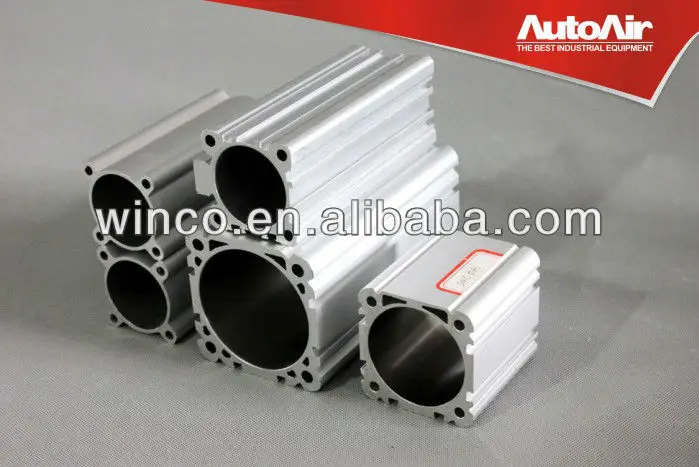

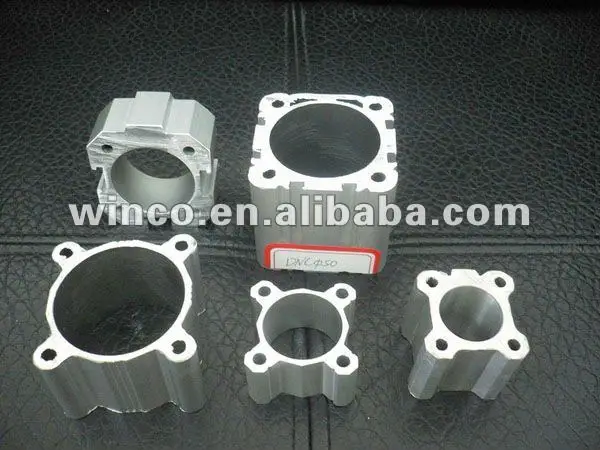

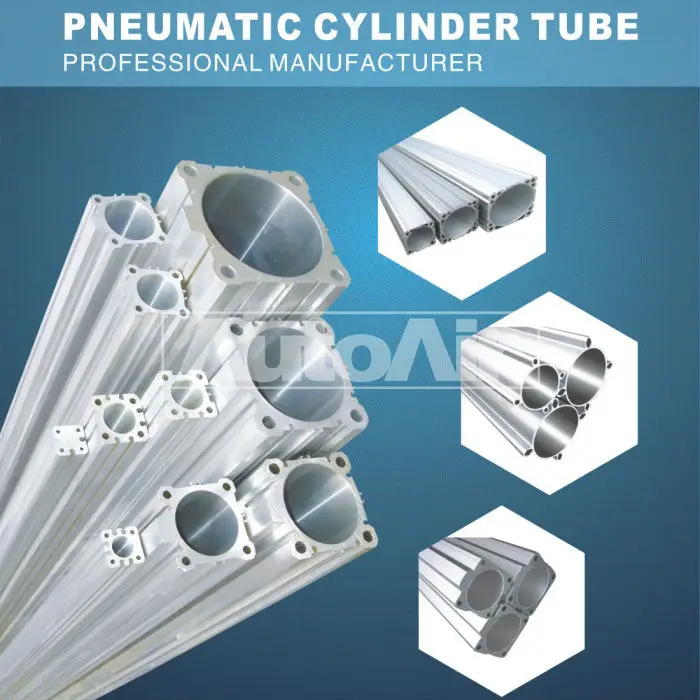

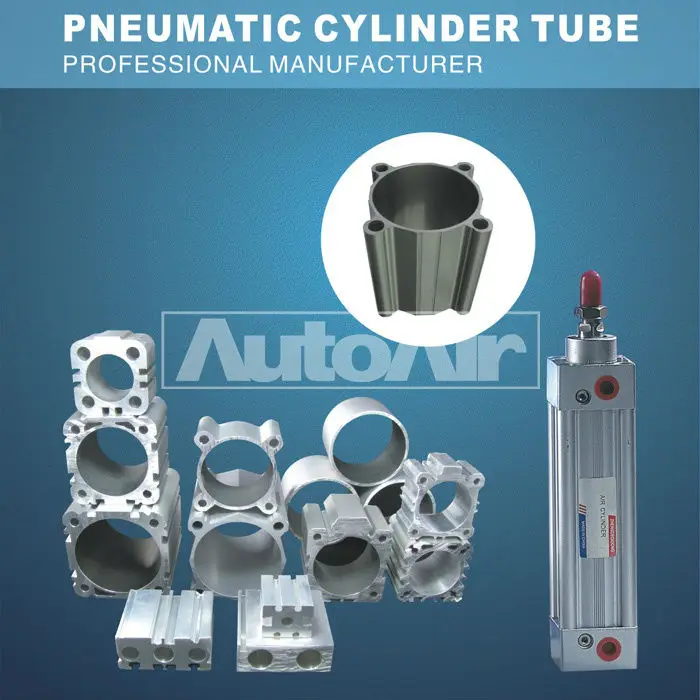

Mickey Mouse Profile Tube

1.Introduce

We’re professional manufacturer of pneumatic components, such as Solenoid Valve, Cylinder, FRL unit, fittings and other hydraulic valve.

Our company also can provide other pneumatic cylinders as below,
1. ISO Standard cylinder: DNC(ISO 6431&VDMA24562),DNG(ISO 15552),SI(ISO 6431),MA(ISO 6432)
2.Standard cylinder:SC/SU,MB,CA1
3.Mini cylinder:MA,MAL,CJ2,CM2,CJP Needle cylinder
4.Double-shaft cylinder:TN,CXS
5.Free installation cylinder:CU
6.Slide bearing cylinder:STM
7.Three-shaft cylinder:MGP
8.Stopper cylinder:RSQ
9.ADVU, SDA,CQ2B compact cylinder
10.Rotary cylinder:MSQ
11.Rodless cylinder:CY1
12.Air gripper:MHC Series Pneumatic Parrallel Gripper, MHC point type Gripper
Parallel Style Wide Opening Air Gripper

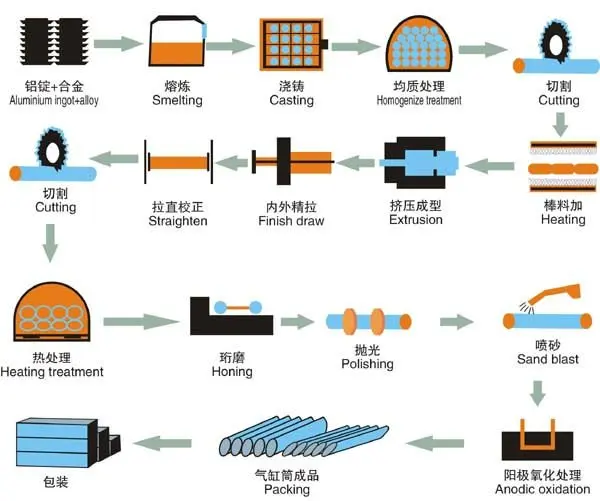

2.Processing

The manufacturing process include : die-casting, aluminum profile precision draw, machining, castings shot blasting, air tightness assurance through the impregnation by vacuum pressure process and passivation treatment, aluminum profile surface oxidation treatment, assembling and testing, for better quality control.
The cylinder covers, piston and piston rods are CNC machined, use high quality seals, to ensure the cylinders work stably and safely.

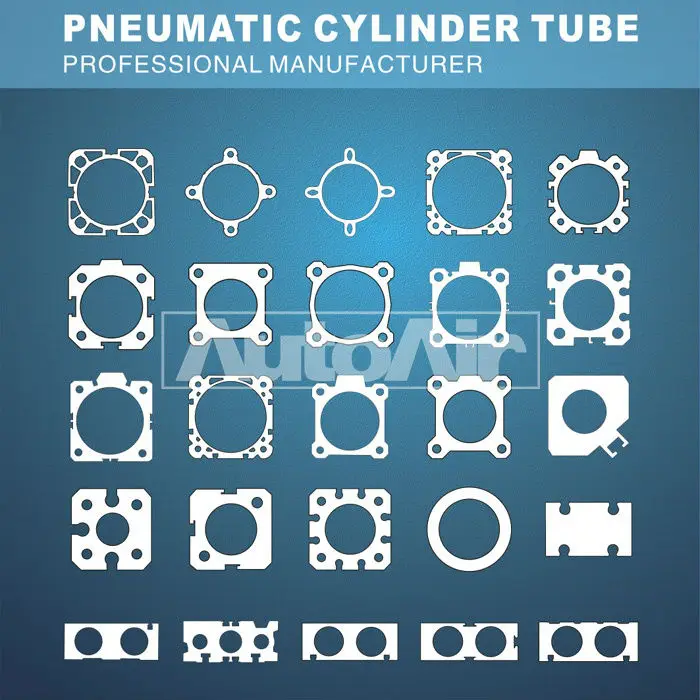

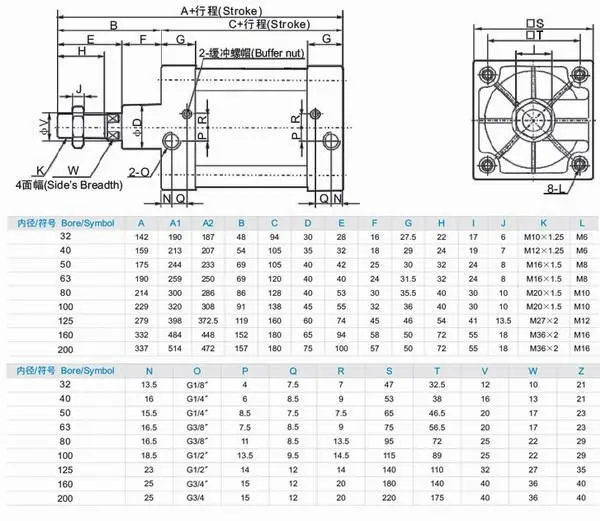

3.Dimension







































































4.Specification

The anodized surface makes it the real aluminum alloy tubes for Pneumatic cylinder.

Useful : Pneumatic cylinder Precise machine tube

Chemical Composition	Mg	Si	Fe	Cu	Mn	Cr	Zn	Ti
	0.81	0.41	0.23	<0.08	<0.08	<0.04	<0.02	<0.05



Specification	Tension Intensity (N/mm2)	Yield Strength (N/mm2)	Ductility (%)	Surface Hardness	Internal Diameter Accuracy	Internal Roughness	Straightness	Thickness Error
	Sb 157	S 0.2 108	S8	HV 400	H9-H11	Ra 0.2-0.4	1/1000	± 1%

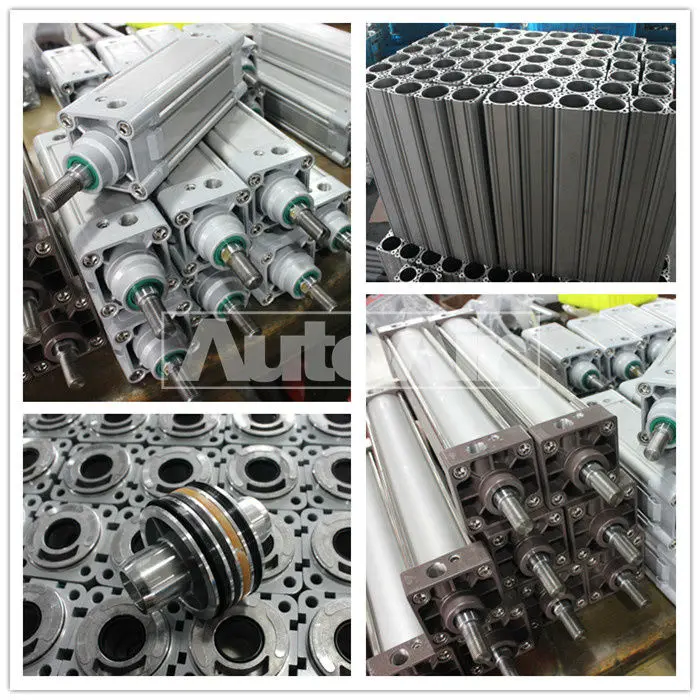

5.Production

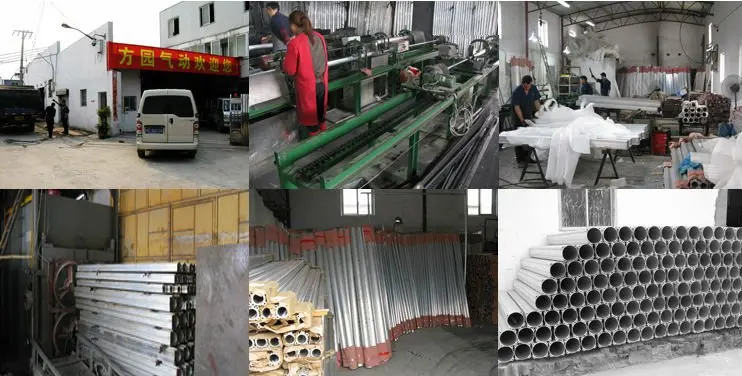

6.Workshop

if want to know more about our factory, please check: www.fylg.cn

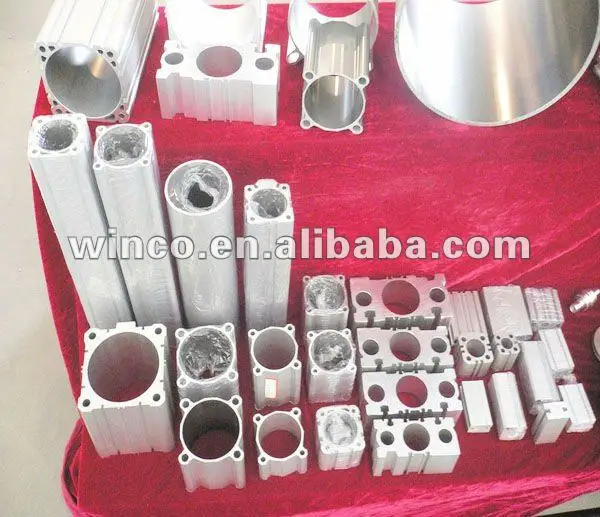

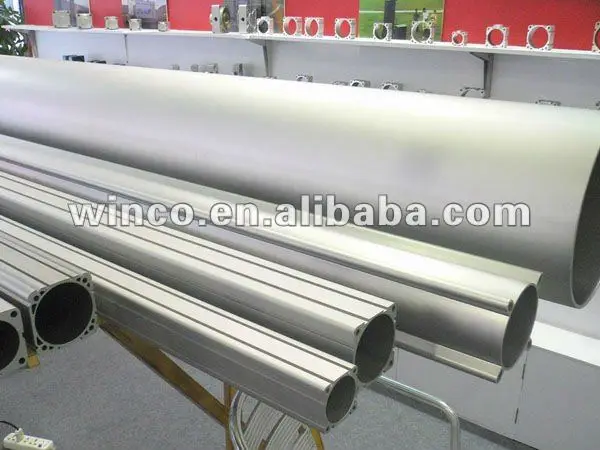

7.Photos

8.Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service

9.Payment and Shipment
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
                   After we shipped your goods, we will send you the tracking number by E-mail.
                   If you do not receive it within 7 business days after shipping, please contact us.
 Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !
