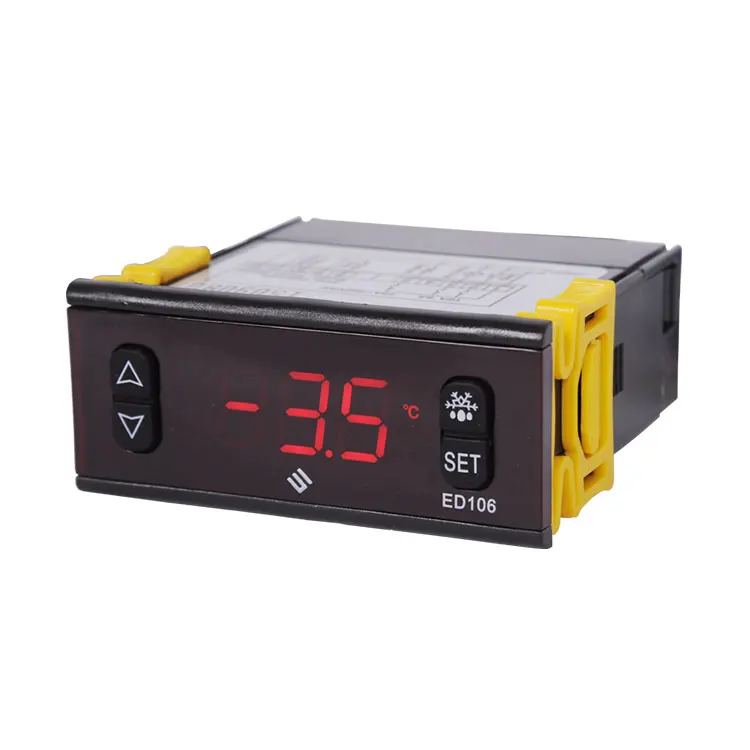

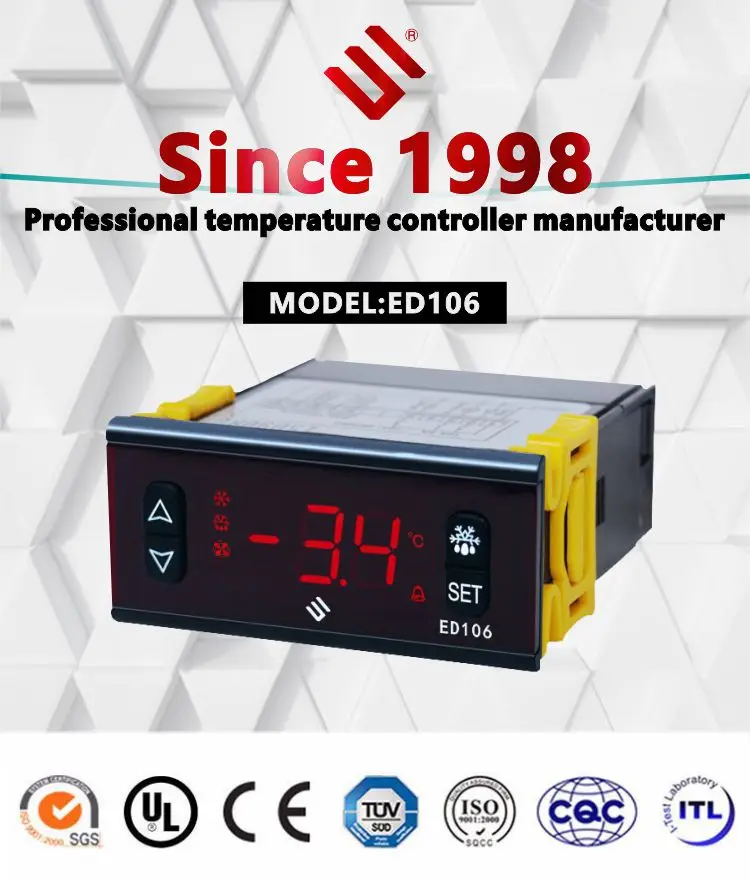

ED106 self control thermostat defrost digital temperature controller
Product Description
Application: Freezers temperature display and control
Features
Temperature control
Evaporator fan control
Automatic/manual defrost
Defrost by electric heater
Time/temp. seting to end defrost
Re-start delay
Celsius/Fahrenheit degrees
Technical Data
Range of temperature display:-45~150℃ (-45~150℉)
Range of set temperature:-45~45℃ (-40~113℉)
Accuracy:±1℃(±2℉)

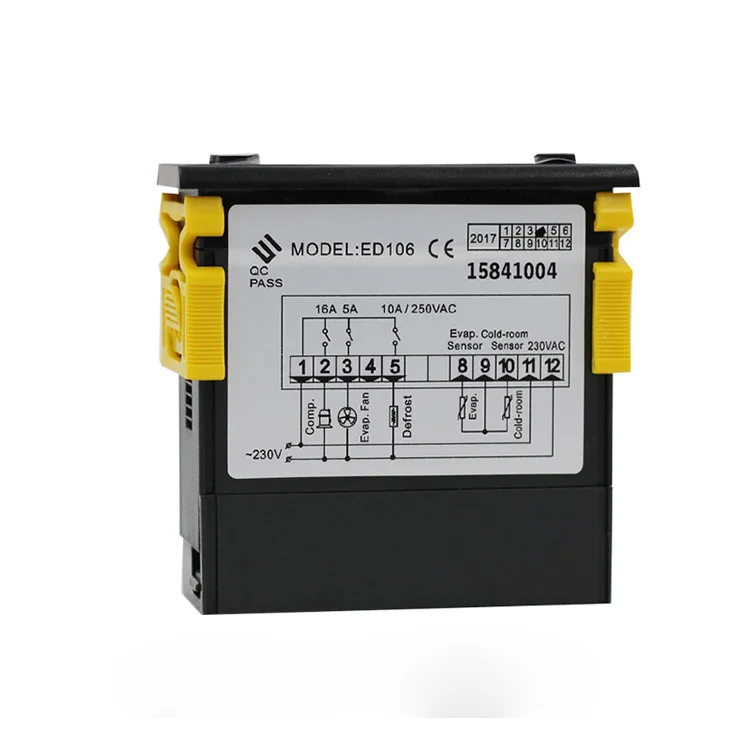

Compressor: N.O. 16A/250VAC
Defrost: N.O. 10A/250VAC
Evap. Fan: N.O. 5A/250VAC
Specification:

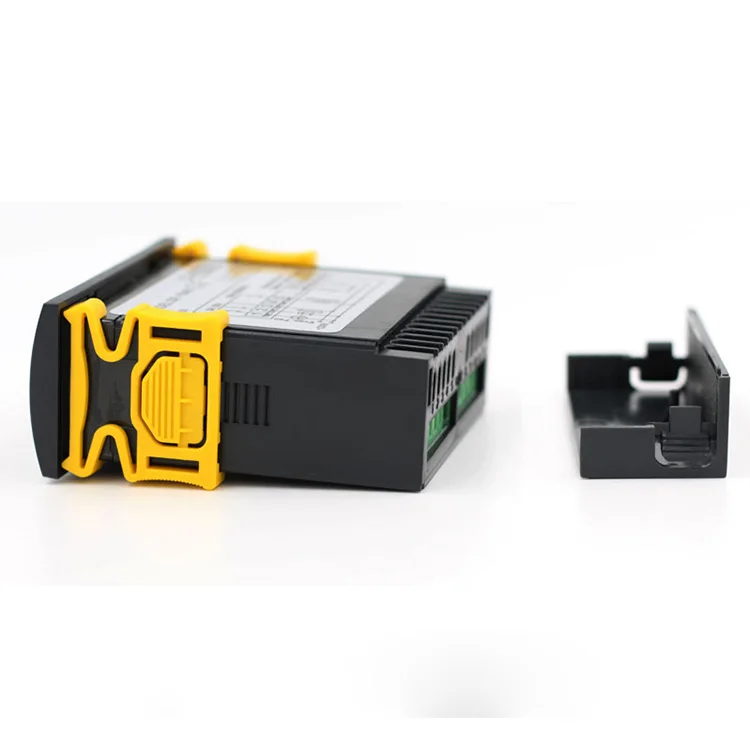

Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm
Parameter List
Code | Function | Set range | Default |
E1 | Lower setpoint limit | -45°C/-45°F~Set temp. | -35°C/-31°F |
E2 | Higher setopint limit | Set temp.~45°C/113°F | 45°C/113°F |
E3 | Temp.hysteresis | 1~20.0°C / 1.8~36.0°F | 4.0°C/7.2°F |
E4 | Comp.start delay time | 0~10Min | 2Min |
E5 | Offset on room temp. | -20.0~20.0°C / -36.0~36.0°F | 0 |
E6 | Offset on evap.temp. | -20.0~20.0°C / -36.0~36.0°F | 0 |
C1 | Temperature unit | 0=°C 1=°F | 0 |
F0 | Defrost function | 0=Electric heater 1=Hot gas | 0 |
F1 | Max.defrost duration | 1~60Min | 20Min |
F2 | Defrost interval time | 0~24Hr | 6Hr |
F3 | Defrost terimination temp. | 0~30°C / 32~86°F | 8°C/46 |
F4 | Display during defrost | 0=Nomal display 1=Last value before defrost | 0 |
F5 | Fan operationg fuction | 0=Parallel with comp. 1=Continuous running except defrost | 0 |
F6 | Dripping time | 0~30Min | 2 |
F7 | Fan operating fuction after defrost end | 0=Temperature 1=Time | 1 |
F8 | Fan start-up delay after defrost end | 0~10Min | 2 |
F9 | Fan start temperature after defrosting(evaporator) | -30~30°C / -22~86°F | 5°C/41°F |
Company Information
About us
Established in 1998, started from customizing digital temperature controllers for freezer manfacturers, according to the idea of "Credit standing roots quality, quality creats brand", and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration,air conditioning,heating,food and packaging machinery etc.
Shangfang controllers have the characters of compact design,easy operation,strongly anti-jamming and stable performance etc. The controllers are UL ,CE,CQC and RoHS approved.
Shangfang is ISO9001:2000 certified. Each production procedure is processed under austere safety& quality control, each product needs pass strick aging,environmental temperature& humidity tests before leaving factory to ensure the customers choose Shangfang all over the world can use the controllers of excellent quality.
Our Services
Packaging & Shipping

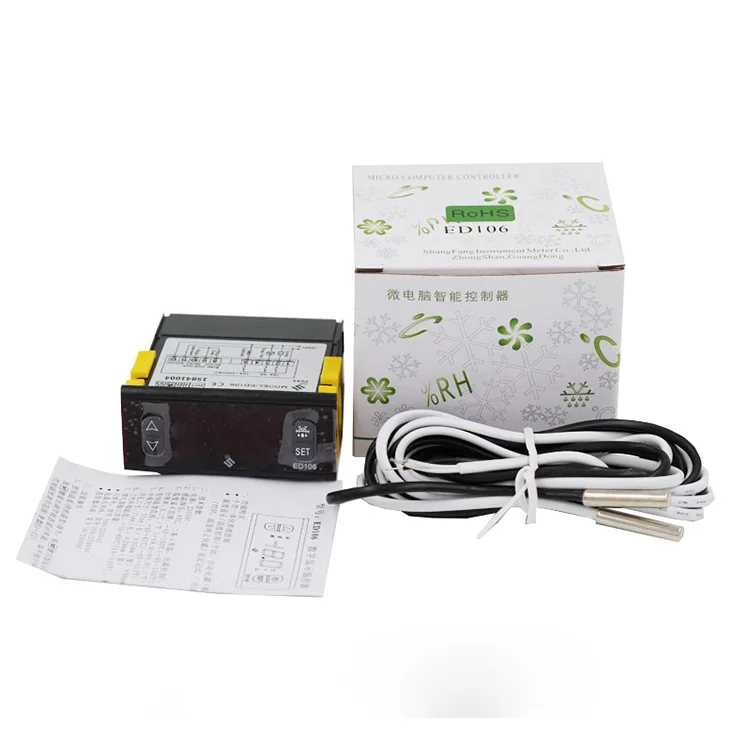

What included:
ED106 Digital Temperature Controller X 1
NTC Temperature Sensor X 2
English Manual X 1
Package: 50 pcs per carton
Weight: 17 KGS
Each product has a small packaging,The packing box can also be produced as customer requirements. Carton is export standard carton.
You can choose the delivery method according to your requirements.
FAQ
Could the controller change to 110V and Fahrenheit degree?
The voltakge could be 12 VDC/VAC, 110V, 220V,230V etc and in Fahrenheit degree.
How could I get a sample?
Sample for testing is available here, please contact us for more details.
The specification listed is not perfectly for my needs?
We have many customized options, we can provide the suitable ones for you.
Could not understand the description well?
We can provide more detail photos and even videos to presentation.
We do not need as much as MOQ?
Our MOQ is 50 pcs, but small orders less than MOQ is also acceptable.
