Product Overview

Description

Product Description

two-channel Modules 100M indoor type EOC master

Profile

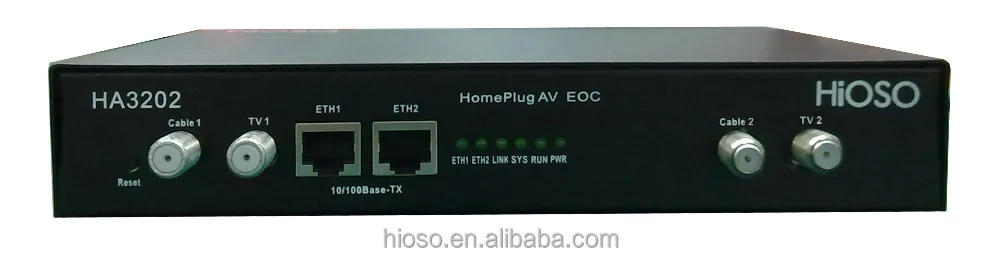

HA3200 is indoor type EOC master, with 2 pieces EOC module inside, each module is 100Mbps and with carrying capacity of 253 slaves, total 506 slaves in theory.

Character

l Supply 2 hybrid signal output ports, each port can connect to maximum 253 users

l Good anti-jamming capability with OFDM (kind of MCM, Multi-Carrier Modulation) and channel-adaptive technology

l Highly adaptable to network, amplifier and distributor

l Highly effective filter, lower interference to CATV

l Supply VLAN, IGMP and QoS

l Support SNMP, WEB and CLI management

l Support remote software upgrade

l Support integrated management for slaves

l Support AC220V power supply

l Supply two data interfaces

Technical Specification

Parameter	Specification
System Bandwidth	Physical layer data rate 200Mbps MAC layer data rate 100Mbps
Modulation	1024/256/64/16/8-QAM,QPSK,BPSK,ROBO
MAC Protocol	TDMA and CSMA
EOC technology	HomePlug AV
Frequency	7.5 ~ 30MHz
EOC module	2
Carrying Capability	253 per module, total 506 slaves in theory
Protocol and Standard	IEEE 802.1Q IGMP v1, v2 IEEE 802.1P QoS
NMS	WEB, CLI, SNMP
Data Interface	Four 10/100 Base-TX RJ45 ports Auto MDI/MDIX Comply with 802.3 and IEEE802.3u
RF Interface	4 RF ports (Metric thread F type, 2 TV in ports and 2 RF out ports) Output level: 110dBμV Insertion Loss: <1dB Flatness in Band: ±0.5dB Return Loss: >20dB suppression ratio of out band: 55dB Impedance: 75Ω
Light Indicator	PWR (power LED) RUN (management system LED) SYS (system LED) LINK (link LED) ETH (Ethernet port LED)
Distance	700m

Working Environment

Power	AC220V
Power Consumption	12W
Working Temperature	-25℃ ~ +60℃
Storage Temperature	-40℃ ~ +70℃
Working Humidity	20% ~ 85%(non-condensing)
Storage Humidity	10% ~ 90%(non-condensing)
Dimension	218mm(length) ×176mm(width)×38mm(height)
