Overview

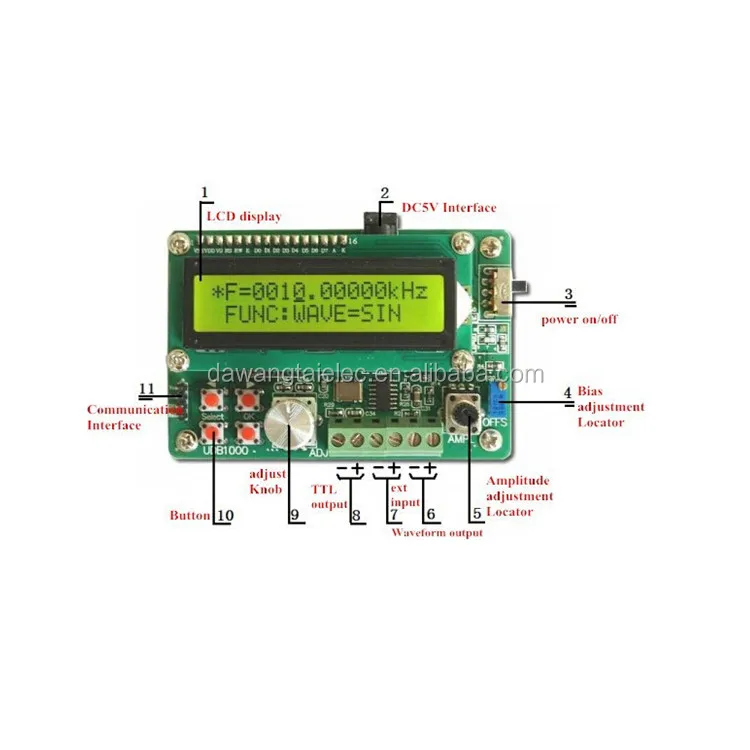

UDB100xS series are signal generators based on direct digital synthesis (DDS) technology- are deigned by adopting FPGA-it has the characters of high stability and low distortion ect-one channel output-one channel TTL output- external frequency measurement- counter- etc.-and output signals are capable of regulating amplitude and DC bias. UDB100xS series have a sweep function and can freely set sweep range and scanning time. UDB100xS series are applicable to laboratories and are used by engineering technicians and enthusiasts.

Main funcation

1. Signal: Can output sine- square- triangle wave and sawtooth


2. Measurement: The instrument has frequency measurement and counting functions


3. Scan: SWEEP scanning function to achieve frequency scanning


4. Stored and transferred function: 10 group parameters storage function- M0-M9- automatically transferred M0 datas when turn on

Signal output function:

• Output waveforms: Sine wave- Square wave- Triangle wave- Sawtooth wave


• Output amplitude: ≥9Vp-p(signal output -no load)


• Output impedance: 50Ω±10%


• DC offset: ±2.5V(no load)


• Display: LCD1602


• Frequency range: 0.01Hz~2MHz(UDB1002S)- 0.01Hz~5MHz(UDB1005S)- 0.01Hz~8MHz(UDB1008S)


• Frequency resolution: 0.01Hz(10mHz)


• Frequency stability: ±1×10^-6


• Frequency accuracy: ±5×10^-6


• Sine wave distortion: ≤0.8% (reference frequency is 1kHz)


• Trinagle wave linearity: ≥98% (0.01Hz~10kHz)


• Rise and fall time of square wave: ≤100ns


• Square wave duty range: 1%~99%

Frequency range:

• 0.01Hz~2MHz(UDB1002S )


• 0.01Hz ~5MHz(UDB1005S)


• 0.01Hz ~8MHz(UDB1008S)


• Amplitude: >3Vp-p


• Fan out coefficient: >20 TTL Load

COUNTER function:

• Counter range: 0~4294967295


• Frequency measurement range: 1Hz~60MHz


• Input voltage range: 0.5Vp-p~20Vp-p

SWEEP function:

• Frequency range: fM1~fM2(frequency can be freely set)


• Input voltage range: 0.5Vp-p~20Vp-p

Other functions:

• Save and load parameter: 10 Location- M0~M9(M0:default load)


• Power: DC 5V

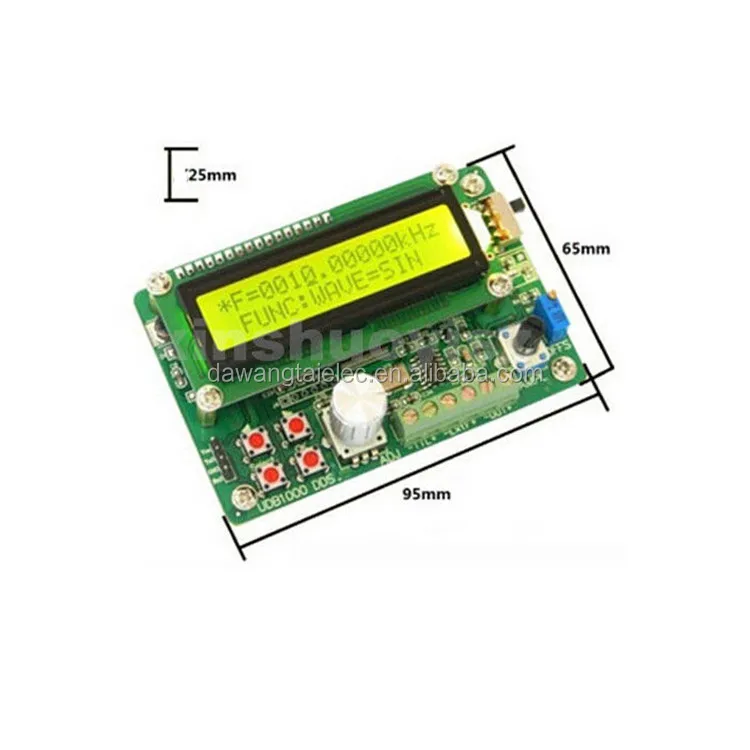

• Dimension: 130 x 102 x 85mm


• Net weight: 260g

Package content

• 1 x UDB-1005S Signal source module


• 1 x DC 5V power
