Kaiweets KM601 Multimeter Amazon Hot Sale 10000 counts Safety Smart Multifunction multitester Electrician multimeter
Share on:
Product Overview
Description

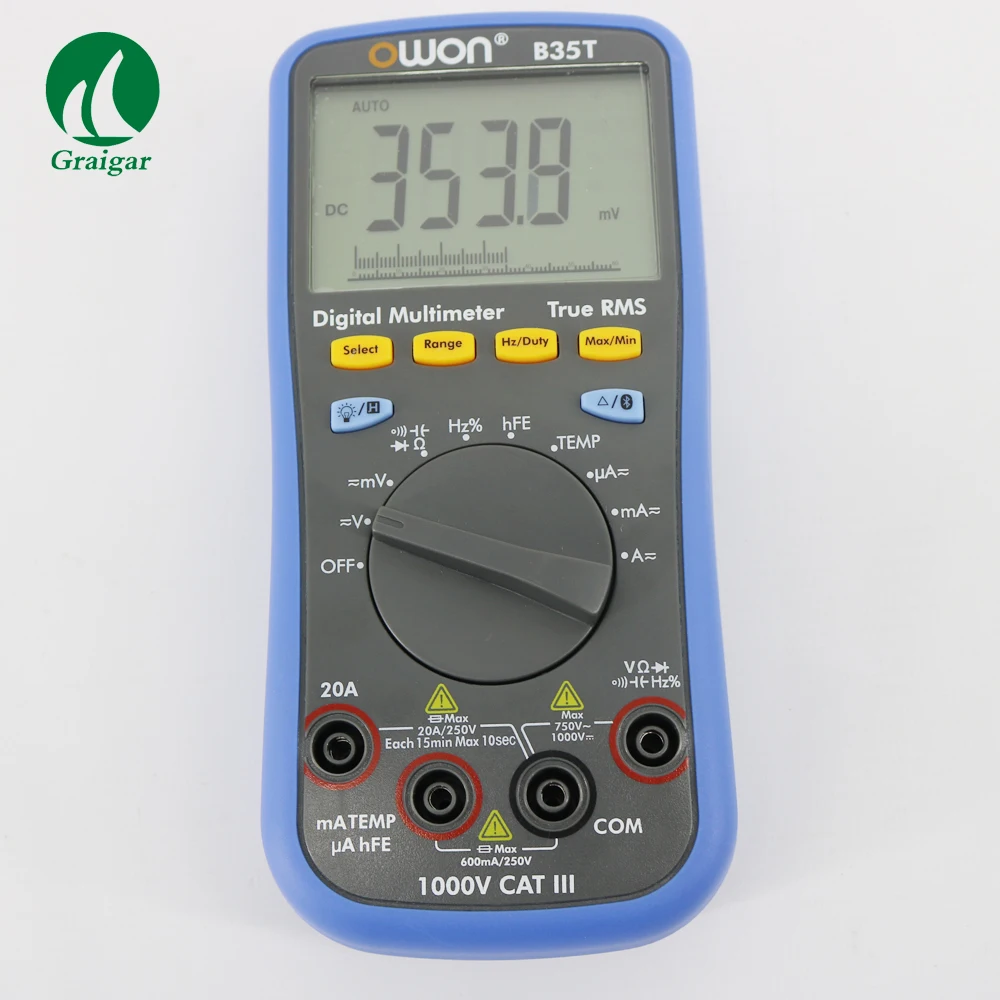

OWON DM Series Digital Multimeter
Product Series : DM Series
Main Features
- function as 3 in 1 : datalogger + multimeter + temperature meter
- multi-connection (more than one device) supported via mobile app
- the change trend analysis accessible via special chart mode
- voice warning supported, which assures measurement safety
- smart voice-reading accessible
- 3(5/6)-digit full scale reading, achieving higher measurement accuracy than 3(3/4)-digit counterparts
- larger display, easier data-reading; simulated bar chart comes as an added option
- backlit-powered screen, more suitable for dark measurement environment
- smart power-off option extending battery life
- true RMS value available (only in B35T, and D35T)
Application
electronic circuit debugging circuit testing
design and manufacture education and training
automobile maintenance and testing
| Measurement Range | Resolution | Accruacy | |
DC Voltage | mV | 60.00mV/600.0mV | 0.01mV | ±(0.5%+2dig) |
V | 60.00mV/600.0mV/6.000V/60.00V | 0.1mV | ||
600.0V/1000V | 0.1V | |||
AC Voltage | mV | 60.00mV/600.0mV | 0.01mV | ±(0.8%+2dig) |
V | 60.00mV/600.0mV/6.000V/60.00V | 1mV | ±(0.8%+2dig) | |
600.0V/750V | 0.1V | ±(1%+3dig) | ||
DC Current | μA | 600.0μA | 0.1μA | ±(0.8%+2dig) |
mA | 600.0μA/6.000mA/60.00mA/600.0mA/6.000A | 0.01mA | ±(0.8%+2dig) | |
A | 20.00A | 1mA | ±(1.2%+3dig) | |
AC Current | μA | 600.0μA | 0.1μA | ±(1%+3dig) |
mA | 600.0μA/6.000mA/60.00mA/600.0mA/6.000A | 0.01mA | ±(0.8%+2dig) | |
A | 20.00A | 1mA | ±(2%+3dig) | |
Resistance | 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/10.00MΩ | 0.1Ω | ±(0.8%+2dig) | |
60.00MΩ | 0.01MΩ | ±(2%+3dig) | ||
Capacitance | 40.00nF | 0.01nF | ±(2.5%+3dig) | |
400.0nF/4.000μF/40.00μF | 0.1nF | ±(2.5%+3dig) | ||
400.0μF/4000μF | 0.1μF | ±(3%+5dig) | ||
Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/ 9.999MHz | 1mHz | ±(0.8%+2dig) | |
Duty Ratio | 0.1%~99.9%typical value: Vrms=1V, f=1kHz | 0.1% | ±(1.2%+3dig) | |
0.1% ~99.9%≥1kHz | ±(2.5%+2dig) | |||
Temperature | -50~+400 | 1°C | ±(2.5%+3dig) | |
-58°F~+752°F | 1°F | ±(4.5%+5dig) | ||
Display | 6000 count | |||
Frequency | (40-400)Hz | |||
Shift Rate on DMM | 3 times / s | |||
Shift Rate on App | 2 times / s | |||
Simulated Chart Shift Rate on DMM | 30 times / s | |||
Model: D35, D35T, B35, B35T
Bluetooth Module | √ (only in B35, and B35T) | Max / Min Value | √ |
Auto-scale | √ | LCD Backlight | √ |
True RMS | √ (only in B35T, and D35T) | Simulated Chart | √ |
Diode Test | √ | Input Protection | √ |
Audion Test | √ | Input Impedance | 10MΩ |
Auto Power-off | √ | LCD Size | 69 x 52 mm |
On-off Warning | √ | Display Area | 67 x 46 mm(effective area 66 x 45 mm) |
Low-battery Indicator | √ | Battery | 3V (2.5V x 2) |
Data Hold | √ | Weight (without package) | 0.32 kg |
Relative Measurement | √
| ||
