42u 800x1000 server rack with mesh door
- Category: >>>
- Seller: Shenzhen,Idealink,Network,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Item: | IRS Series Network Cabinet |
Brand: | Idex |
Cabinet material: | Cold Rolled Steel |
Cabinet thickness: | Mounting rails 2.0 mm, others 1.2 mm |
One | 19” active standard machine stand |
One | Steel dismountable side door |

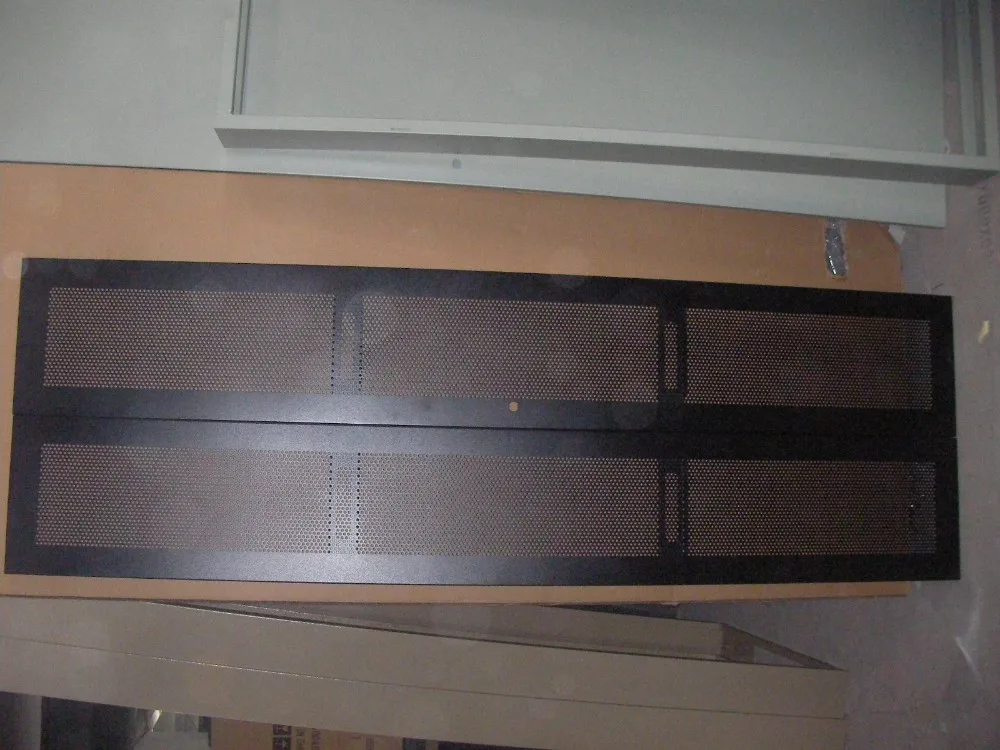

One | Ventilation grid steel dismountable back door |
One | Ventilation grid steel door with lock |
One | fixed shelf (14-27 U have one board, 32 U have two board,and etc.) |
Two | Ceiling-cover hear dissipation scavenger fan (600*600 have Two Fans, 800*1000 have Four Fans) |
One | Six- socket versatile electrical outlet |
Four | Active chassis all-direction trundle |
Some | M6 steel screw nut |
| Cabinet Information : |
| SPCC high-quality Cold Roll Steel. And its thickness: Mounting rails 2.0 mm, others 1.2 mm. |
| Surface treatment: degreasing, rustproof, phosphoric spraying. |
| Steel frame. Range of medium duty cabinets of durable modular construction. |
| Tempered glass front door and rear door accelerate the convection inside enclosure. With tempered glass locking doors section doors, enable ventilation and reliable operation. |
| Removable side panels, leveling feet or castors, Max. Static load 800 KG, Max. Dynamicload 350 KG. |
| Special design, strength front/rear door shape beauty and structure fastness. Several lockable wiring holes on top/bottom, size of the large hole the bottom adjustable. The frame can be moved according to requirement, U-marked in the frame to identify the height. Bottom base can fix the cabinet, cable entry, airflow, and avoid arts. |
| Full set of optional accessories. |
| Installation can be optional for castors of standing. |
| Efficient cabinets connectors. |
| Cabinets are vented to allow cooling. |
| Standard color is computer gray. |
| No tools are required to change the door from left hand to right hand opening. |
| Standard Compliances: |
| Standard meet ANSI/EIA RS-310-D. |
| DIN41491,PART1. |
| IEC297,PRAT7. |
| GB/T3047.2-42 requirement. |
| Compatible with 19” international standard. |
| The ETSI standard. |

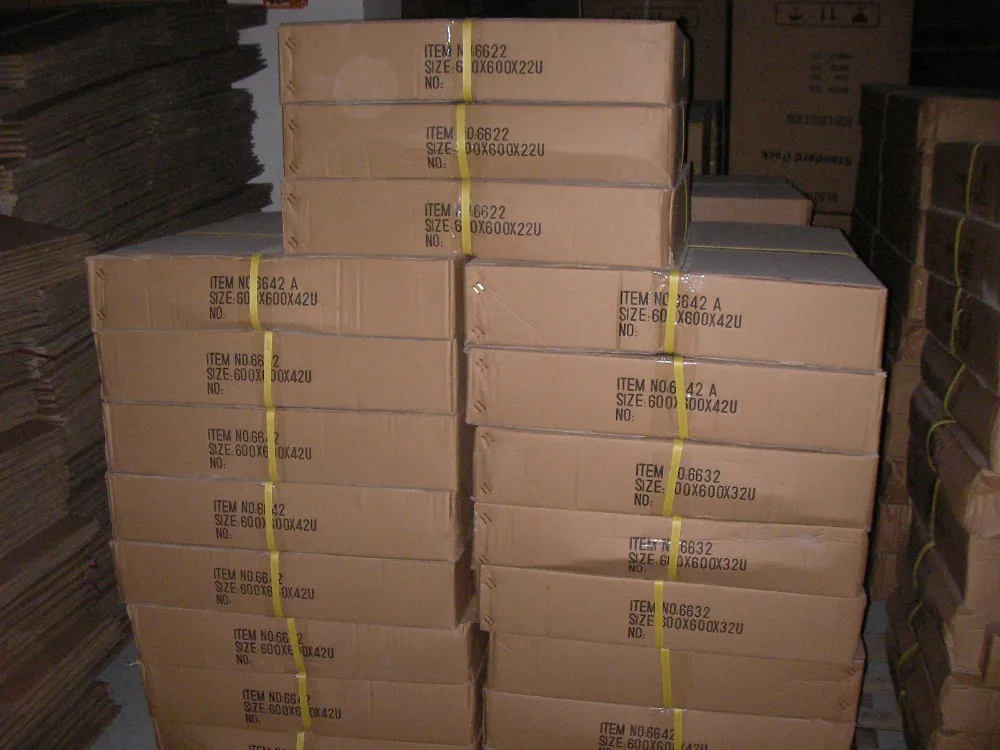

Packaging:
