1. Bend-arm (C-axis) by electric. Clamp die by hydraulic, Pressure die by hydraulic.

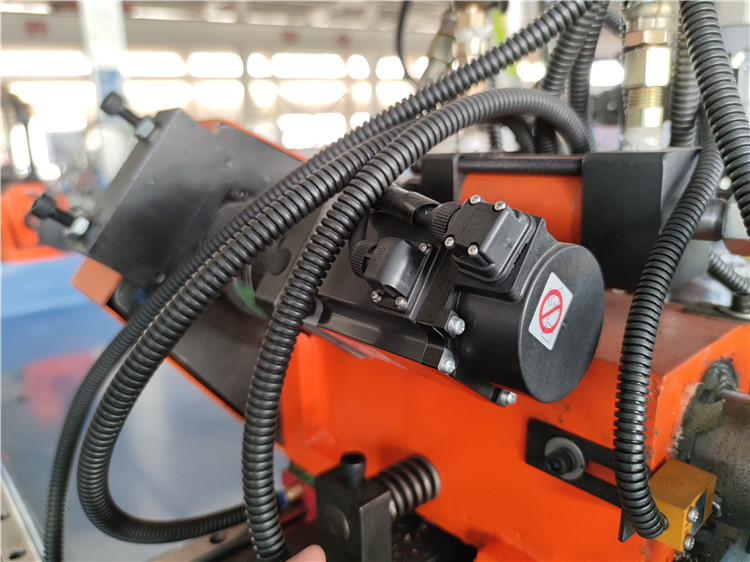

2. Carriage (Y-axis) by servo motor. Collet (B-axis) : rotation by servo motor, grip by hydraulic.
3. Anticipated mandrel retraction unit. Standing pedestal, serves emergency stop and remote control.
4. Water-cooling system. Diagnosis error immediately.
5. Foot pedal for safe start.

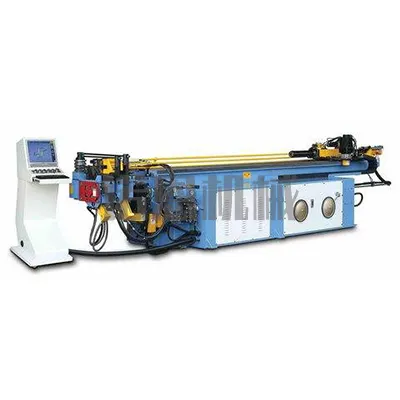

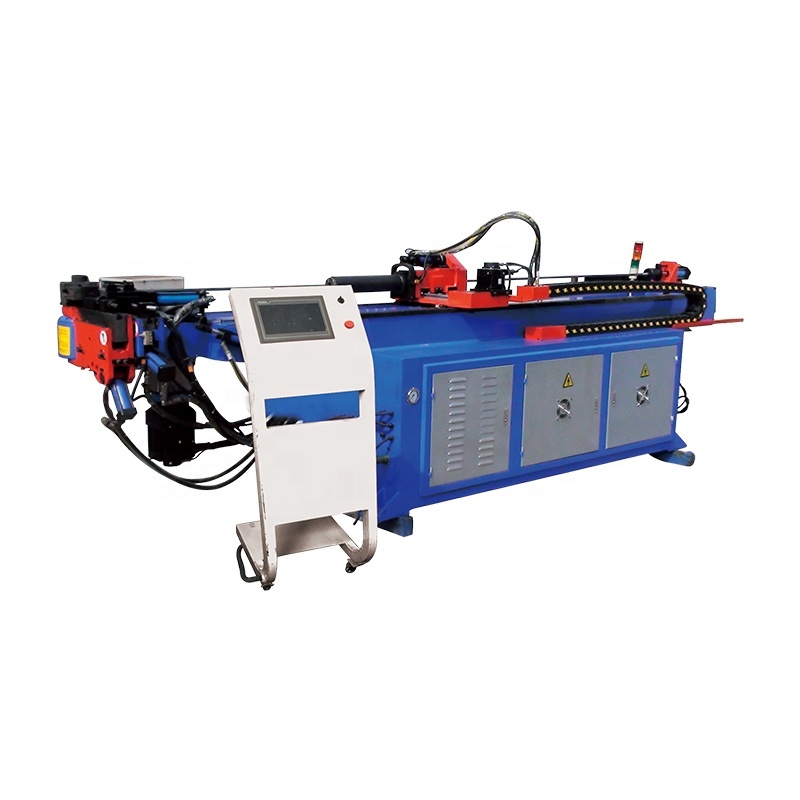

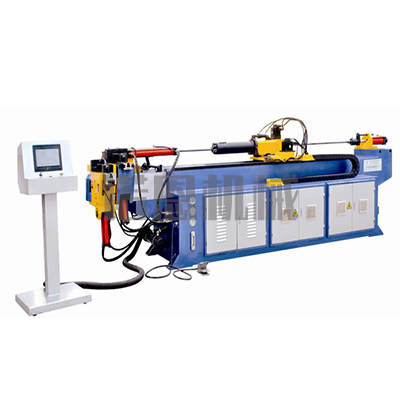

6. It is fully automatic pipe bender, with PC control system (more advanced than PLC), two servo for rotary, feeding.
7. Touch screen panel display English, have different bending degree prefabricate, dialogue operation, can choose manual,
semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.
Multi axles working simultaneously.
8. Bending pipe - Automatic. Rotating pipe - Automatic. Feeding pipe - Automatic.
9. One key back up of programs for USB or disk storage or through INTERNET. Management and storage of bend data and tools is done in standard text files on the hard disk of the control PC. In case of requirement it is also possible to integrate the PC into bending machine. Therefore an Ethernet adapter is included. The number of tools and products is practically unlimited. Product and tool files can easily be edited (also on a separate PC) and printed out.
10. Security code for the protection the data setting and selected operation features.
11. To access to the history bending setting data to the facilitate study of malfunction with one set of tooling.
12. All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
13. CNC fully auto, have cubical space bending equipment, loading the whole bending process is automatic.
14. The electric pipe bender is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the pipe processing.
15. PC assorted with touch screen display, capable of 3D bending simulation, 3D preview and collision prevention.
16. CE, ISO9001 Certification.
Contact US Now
SANCO MACHINERY CO., LTD (Since 1984)
Add: 17#, Economic Development Zone, Nanfeng Town, Zhangjiagang City, China.
Tel / Fax: +86-0512-58900248
Cell phone / Wechat / WhatsApp: +8615895475880
Skype: +8615895475880
www.sancomachine.com
About Sanco
Packing & Delivery
FAQ
1. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Max. outside diameter:
- Wall thickness range:
- Bending radius (CLR):
- The pipe material:
- The drawings if possible:
2. Q: What is the difference for NCB, NCBL and CNC machines?
A: NCB is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic.
NCBL is semi-automatic pipe bending machines, mechanical gear feeding, servo motor automatic angle rotation and hydraulic automatic bending.
CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius (CLR).
3. Q: What is the machine's control?
A: Standard control is Mitsubishi PLC, Special is IPC controls. IPC with function of 3D view, 3D simulation, DWG readout, remote assistance etc.
4. Q: What is the biggest bending capacity you could offer?
A: As of now the biggest bending capacity is 325mm outside diameter for cold bending. For hot bending, the capacity would be 1450mm.
5. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
6. Q: What is the certificates available?
A: CE & ISO9001
7. Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals, and USD100-USD150 per day.
