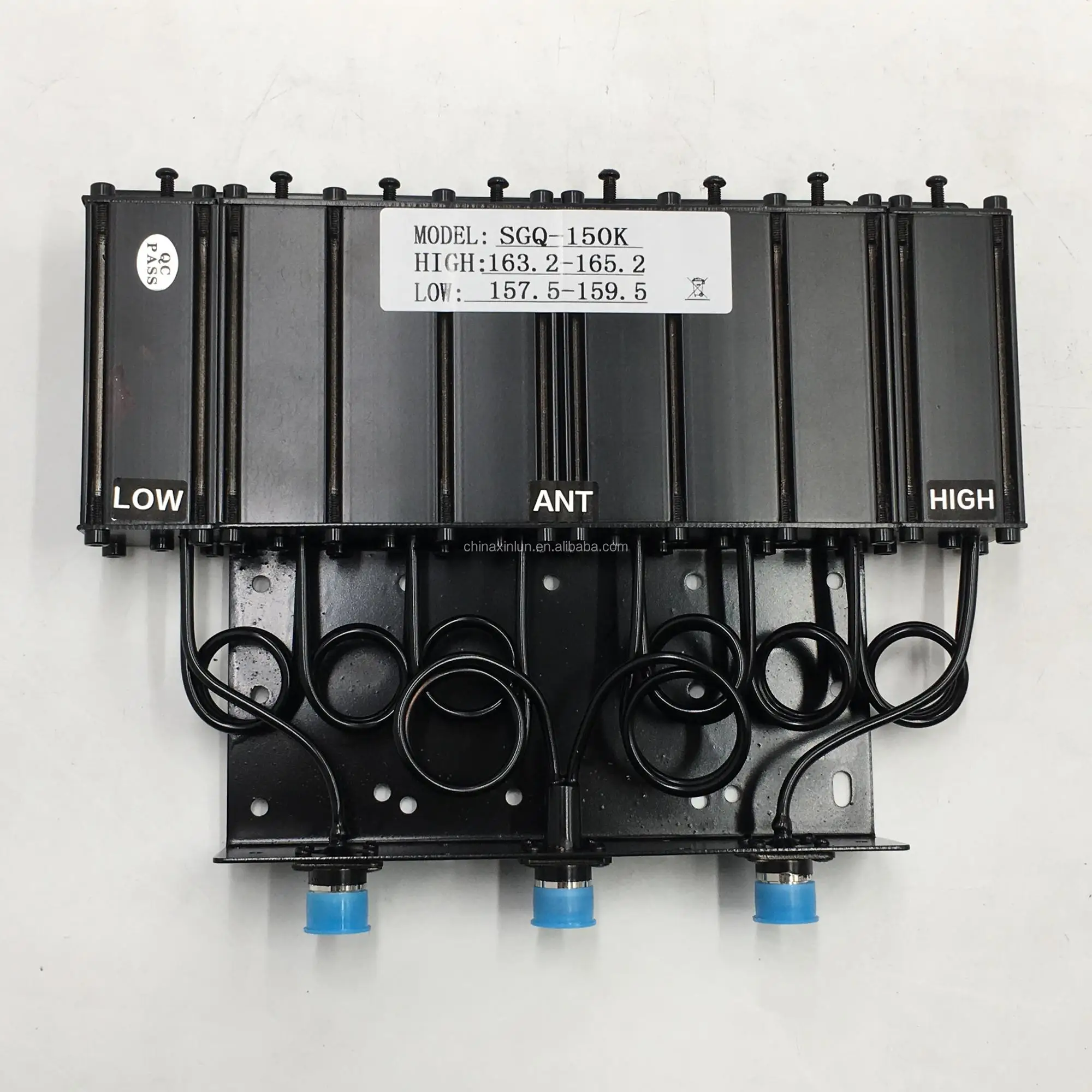

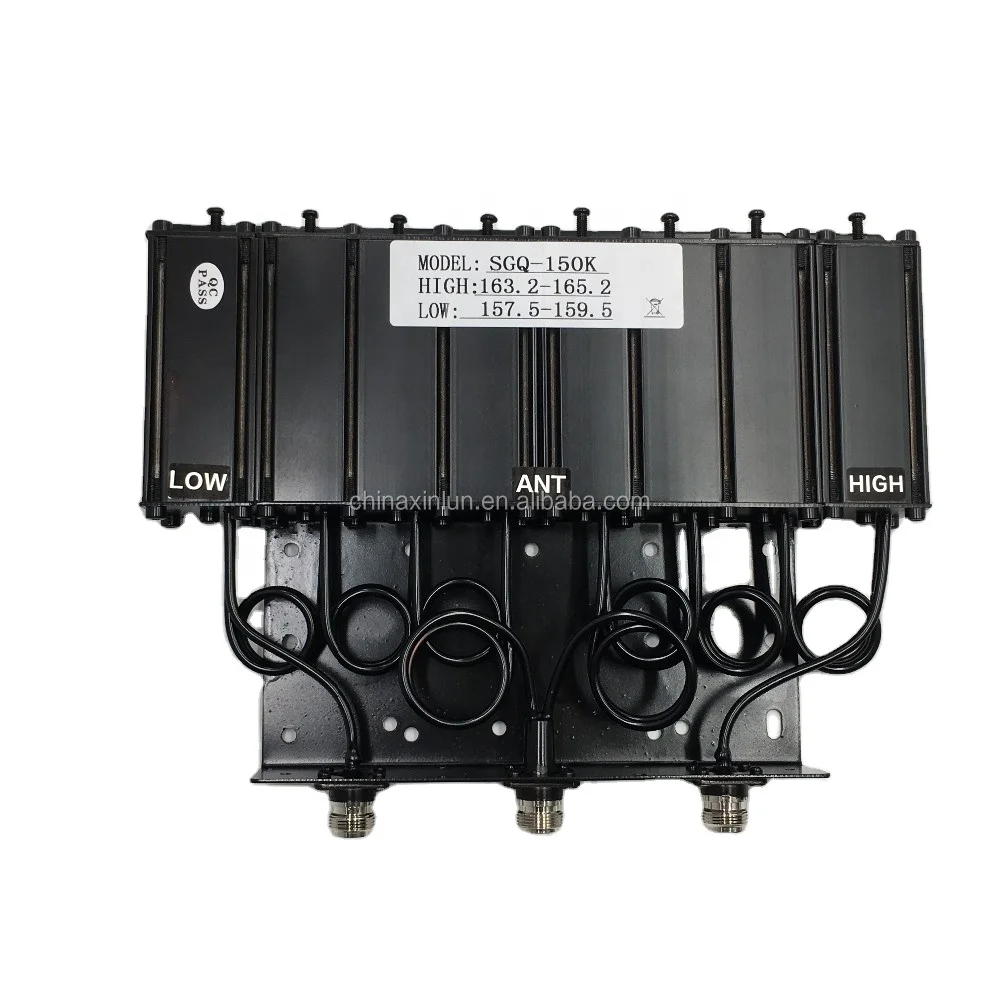

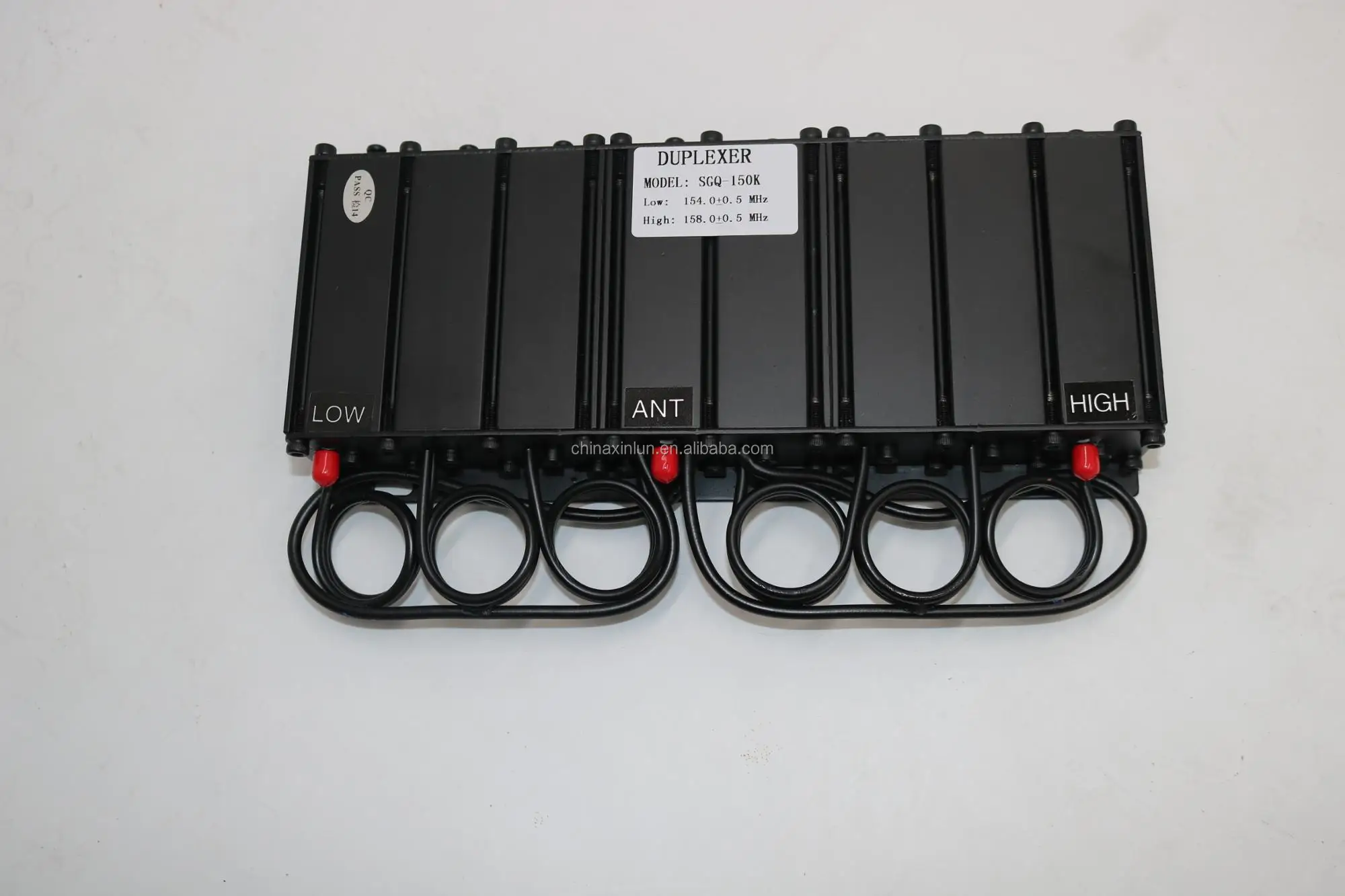

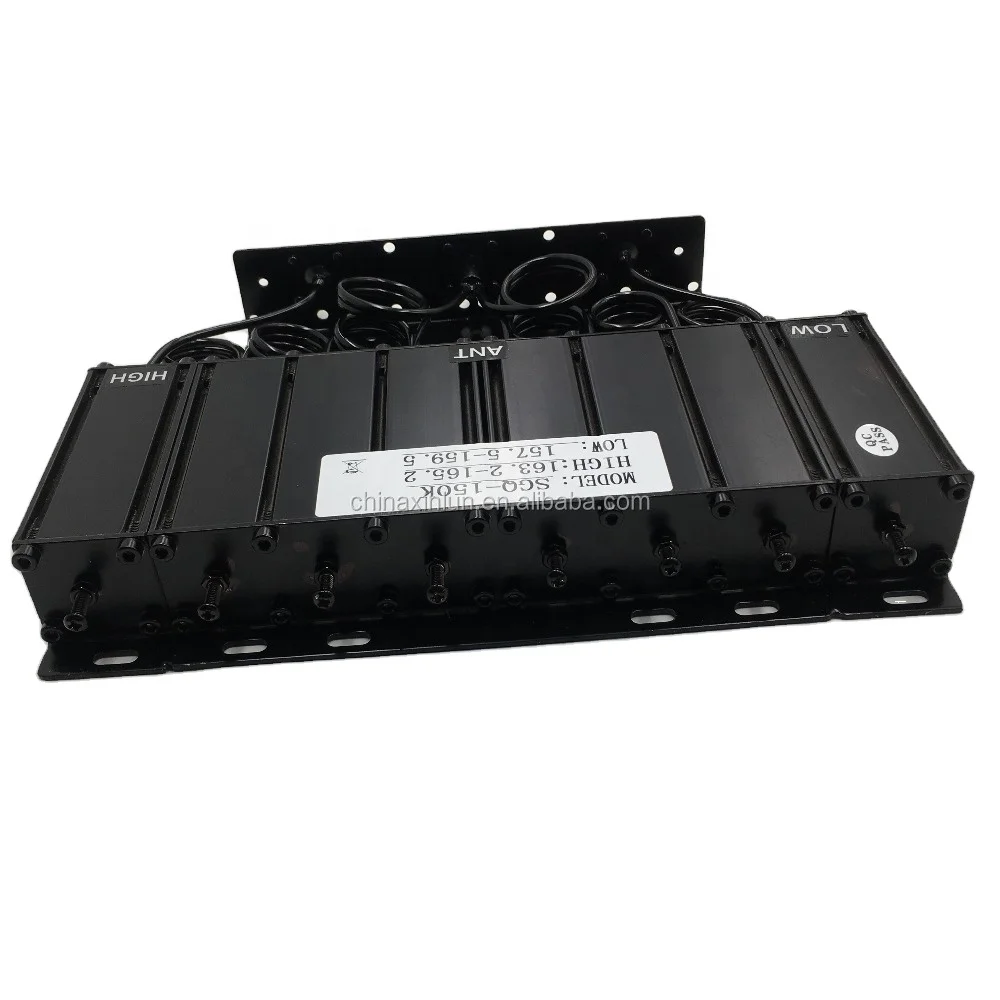

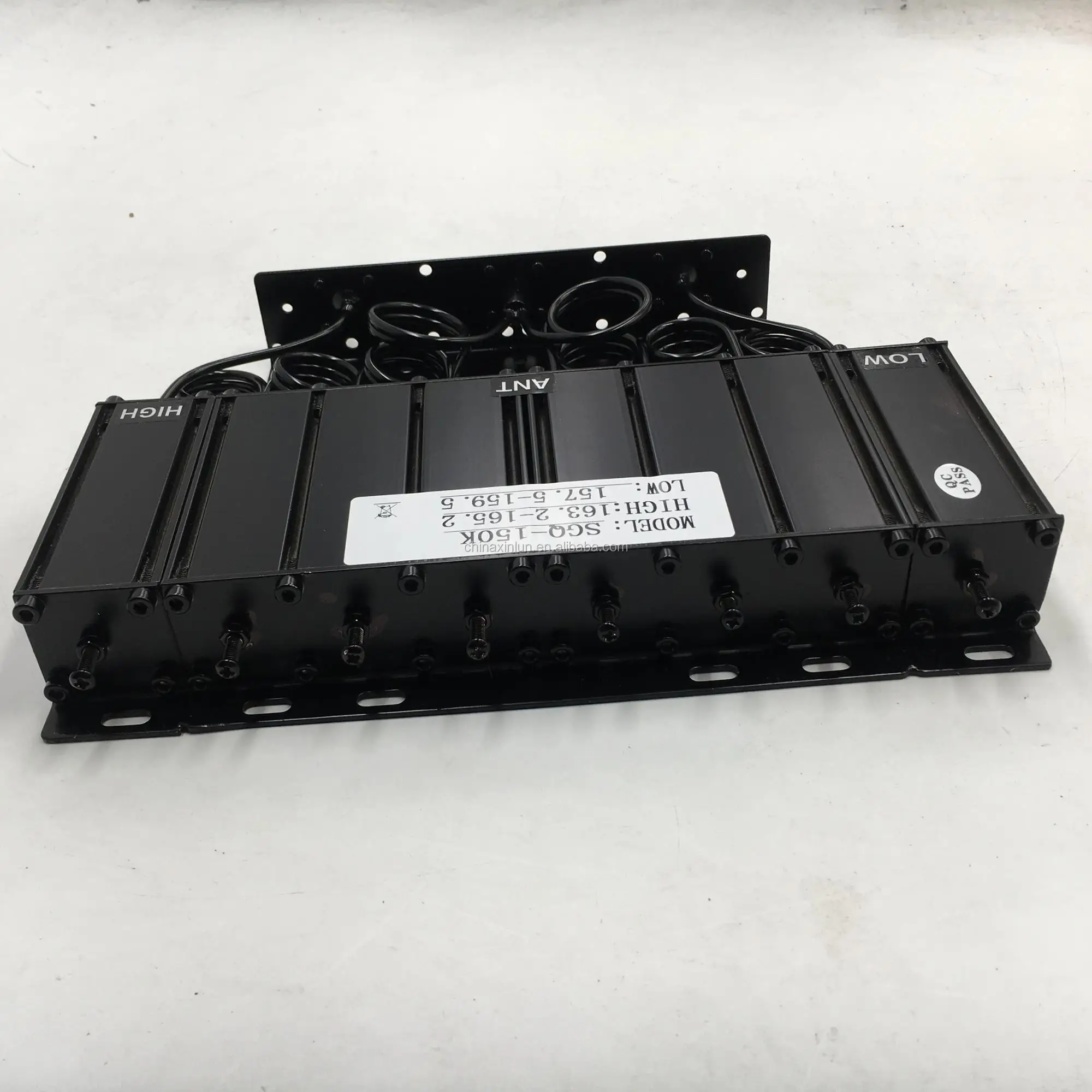

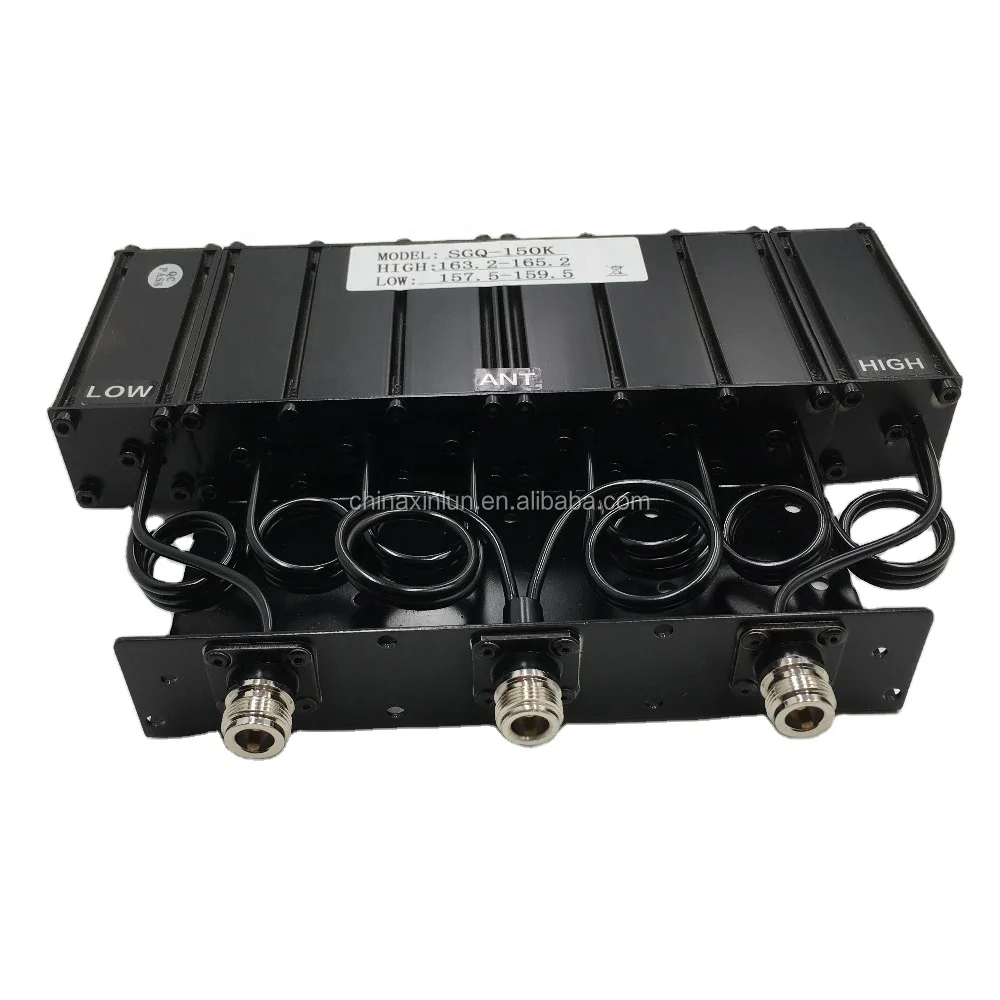

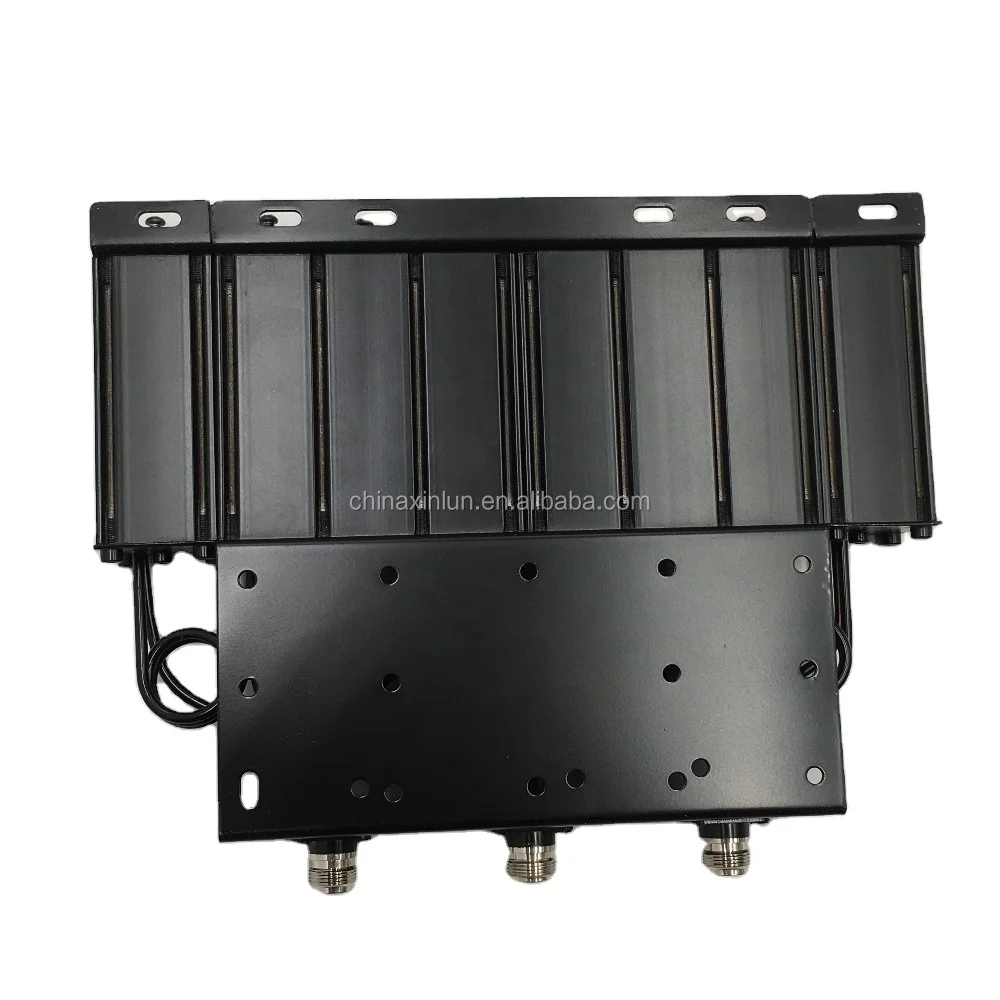

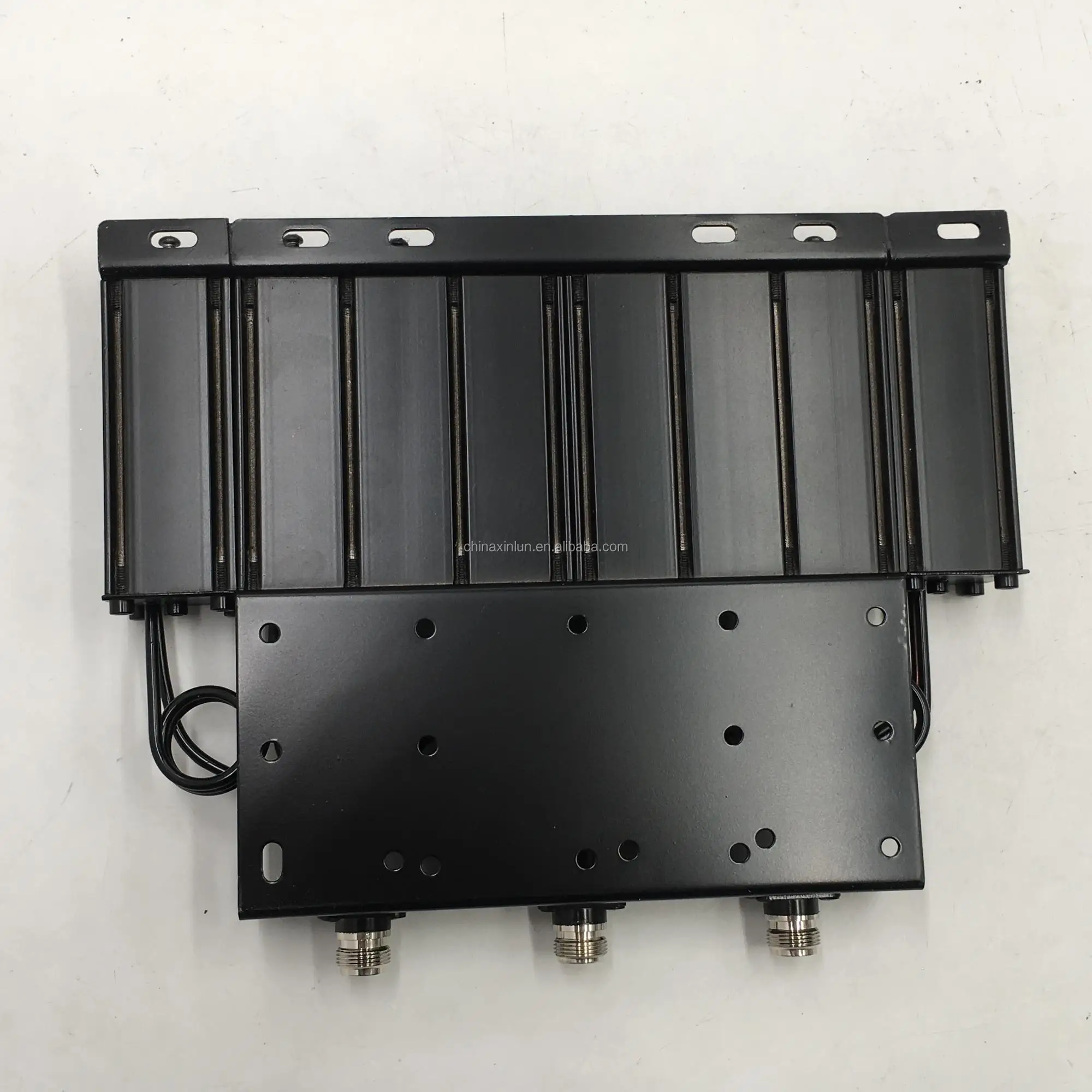

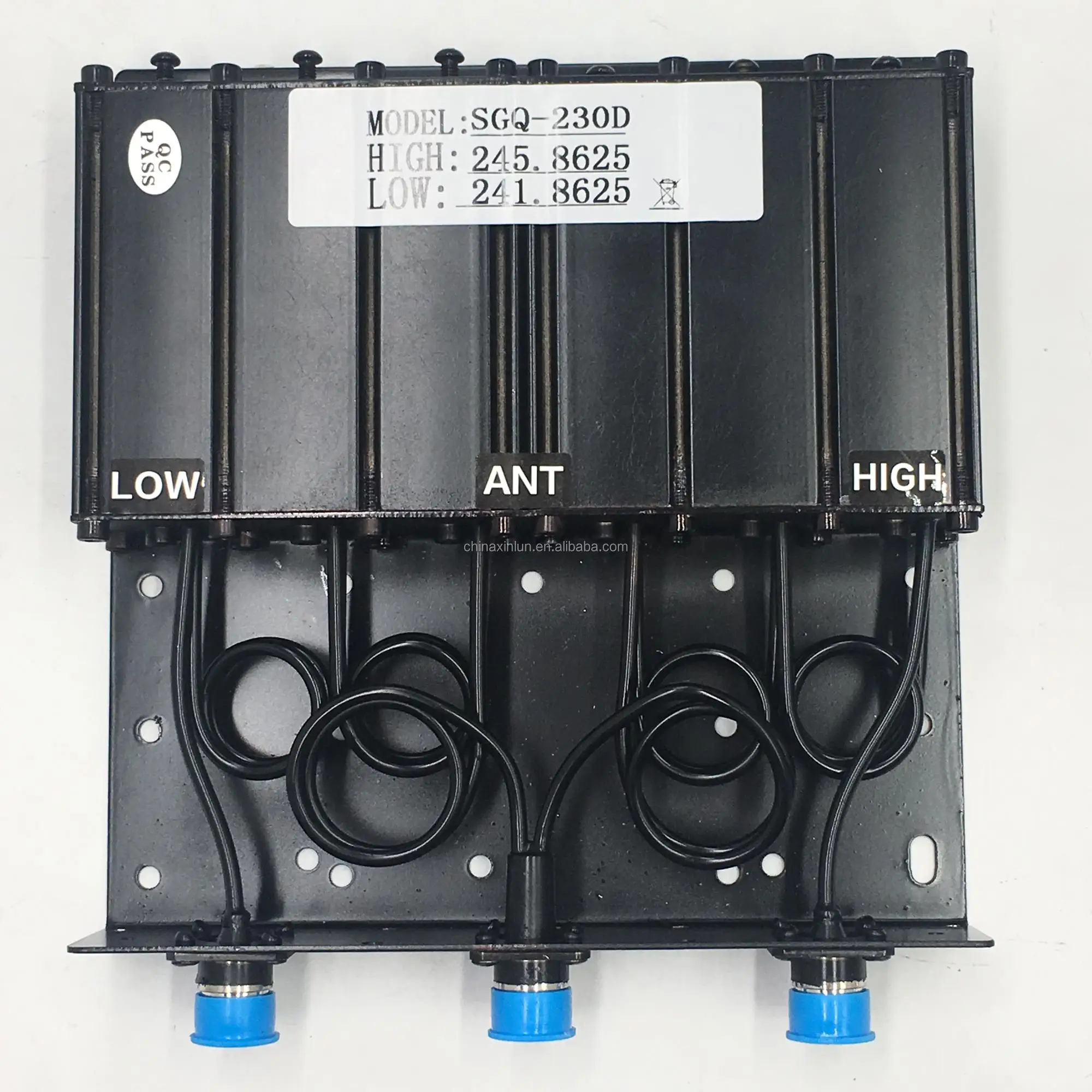

High Power 100W VHF Bandreject Duplexer Filter
Please Attention
1. We can provide many kinds of duplexers,customization is acceptable.
2. We have 10~400watts duplexers.
3. We can produce 66-88MHz,137-180MHz,200-280MHz,330-380MHz,380-520MHz,
700MHz, 800MHz,900Mhz,1800MHz,2100MHz,2300MHz,2600MHz duplexers.
4. Before order,please tell us the TX and RX frequency.
Technical Specifications:

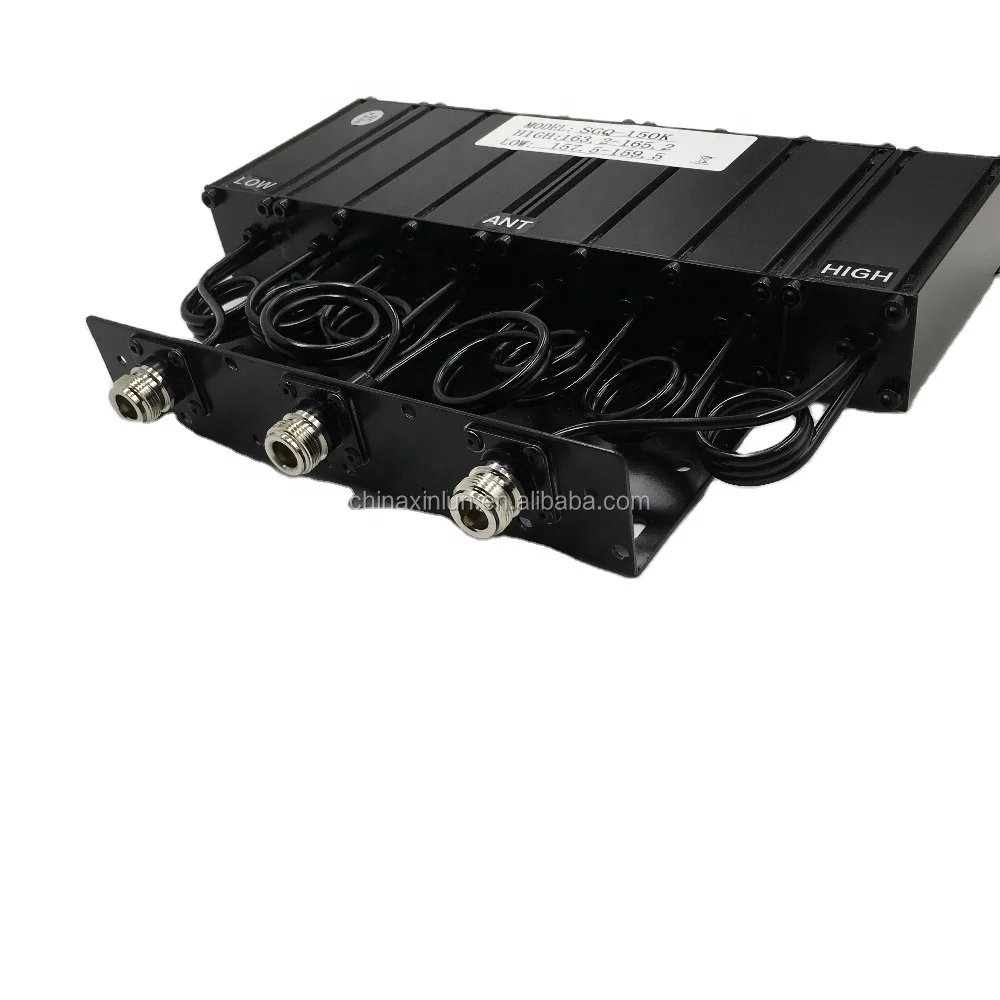

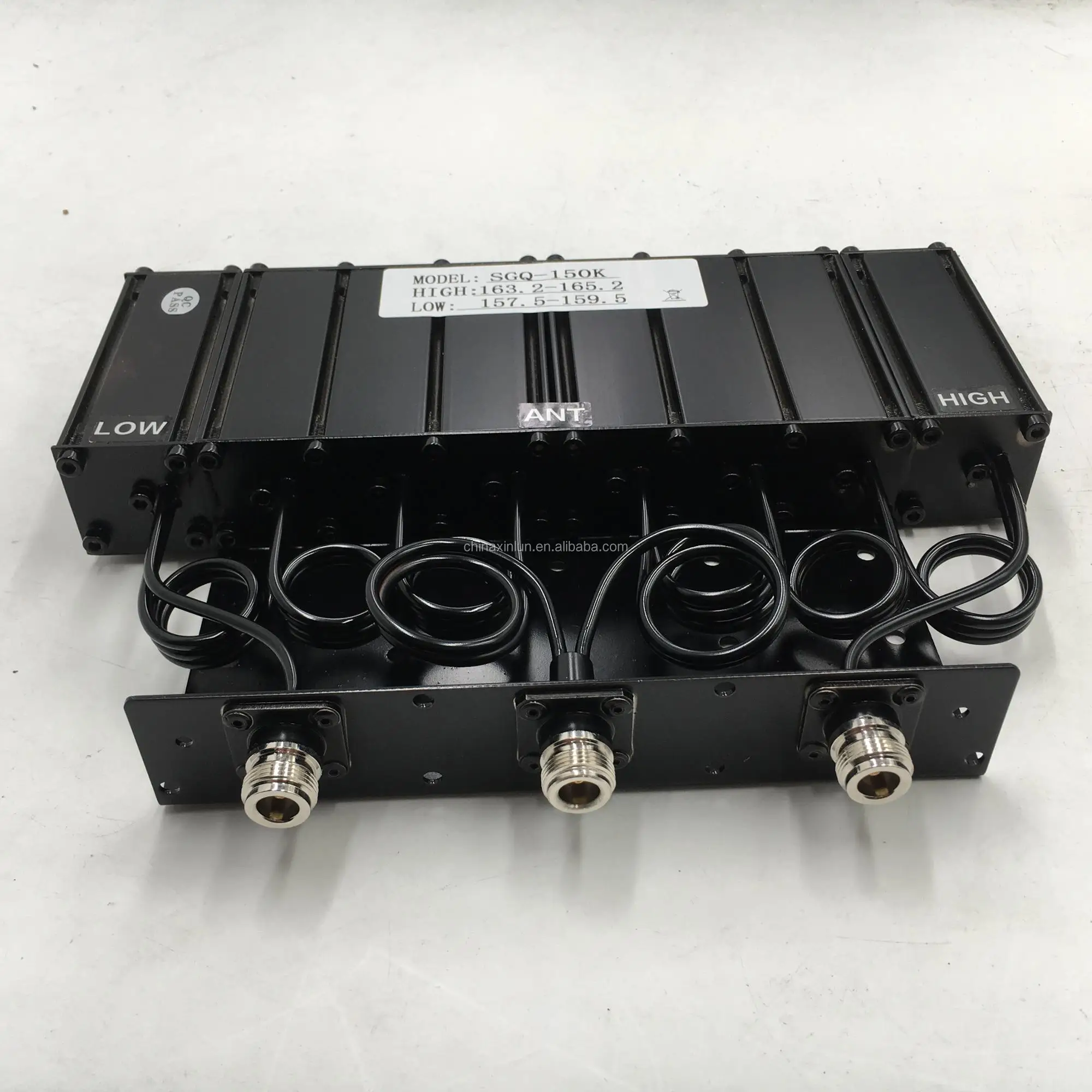

Model number | SGQ-150K |
Frequency range(MHz) | 136~180(can be customized) |
Frequency space(MHz) | 3-15 |
Bandwidth(MHz) | ≤1 |
Max. input power(W) | 100 |
Insertion loss(dB) | Typical≤1.5 |
Nominal Impedance(Ohm) | 50 |
V.S.W.R | Typical≤1.5 |
Suppression(dB) | Typical>75 |
Isolation(dB) | Typical>75 |
Connector type | N or BNC or SMA(can be customized) |
Dimensions(mm) | 200×260×40 |
Weight(kg) | 2kg |













1.Packaging:paper box;
2.Delivery time:usually within 7 days after got the payment;
3.Shipping ways:DHL/UPS/FEDEX/EMS etc;
4.Payment ways:T/T,Western Union,Paypal,Alibaba Trade Assurance.

1.Your inquiry related to our products or prices will be replied in 24 hours;
2.Well-trained and experienced staffs to answer all your inquiries in fluent English;
3.Monthly output over 2000pcs;
4.Strong package;
5. Sample order in small quantity is acceptable;
